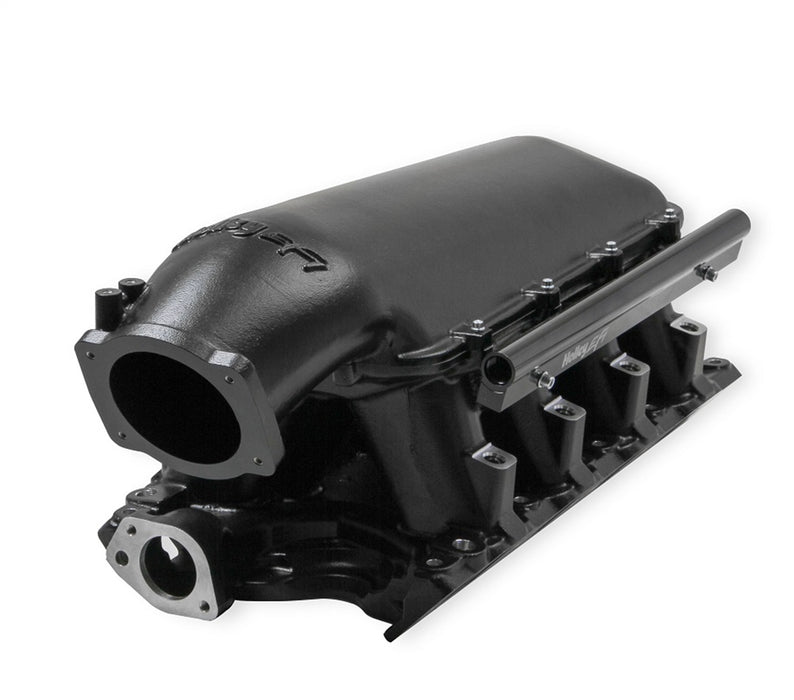

Holley EFI 300-241BK Holley EFI Hi-Ram Intake Manifold
by Holley EFI
SKU ds_BBVL_300-241BK
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Original price
$2,047.95
-
Original price
$2,047.95
Original price
$2,047.95
$2,047.95
$2,047.95
-
$2,047.95
Current price
$2,047.95
Availability:
Only 1 left!
Description

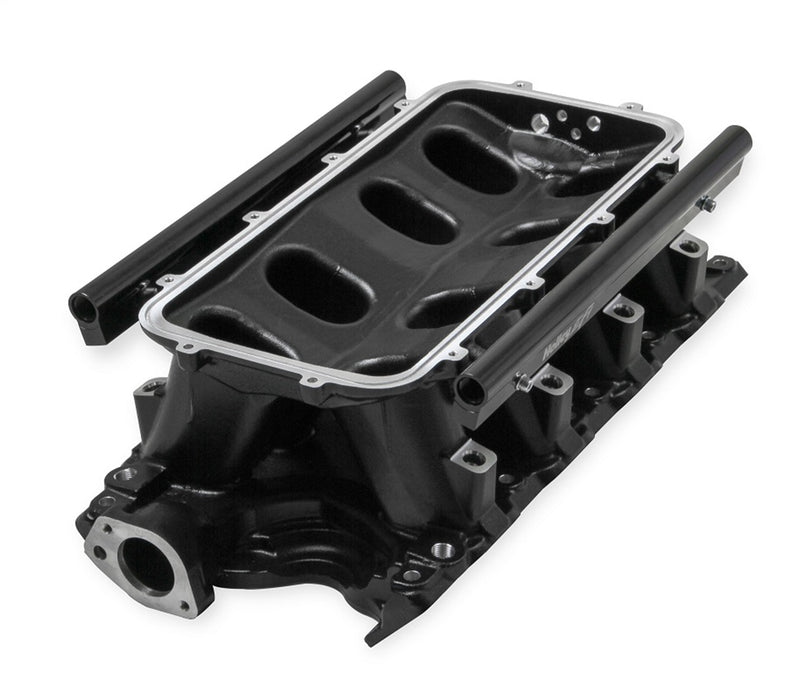

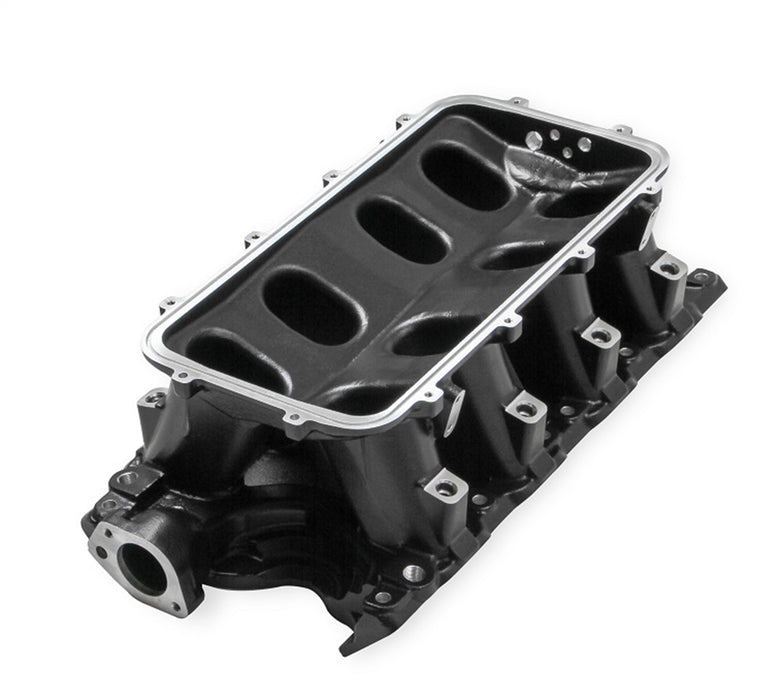

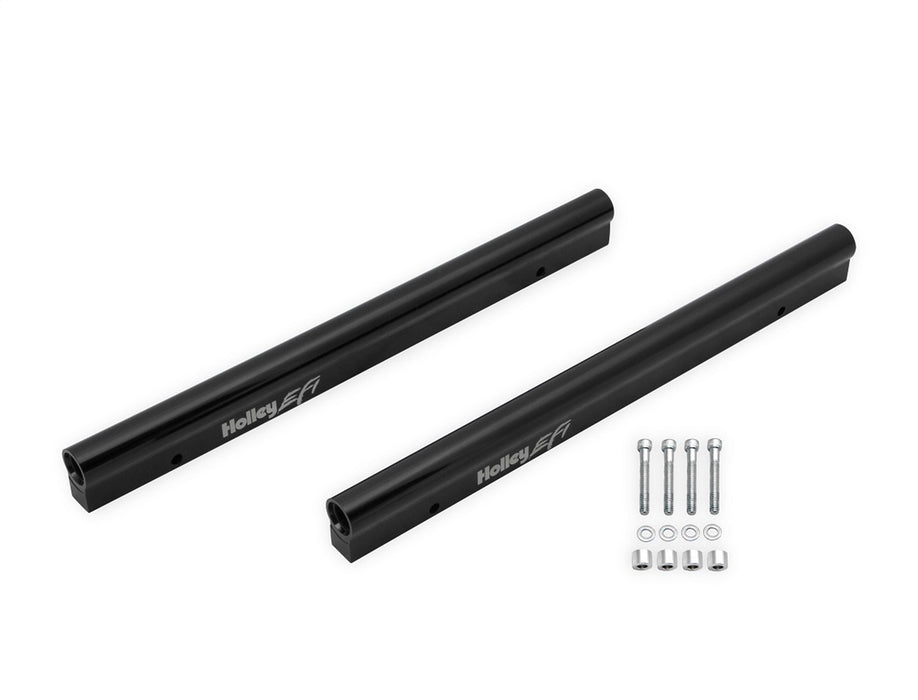

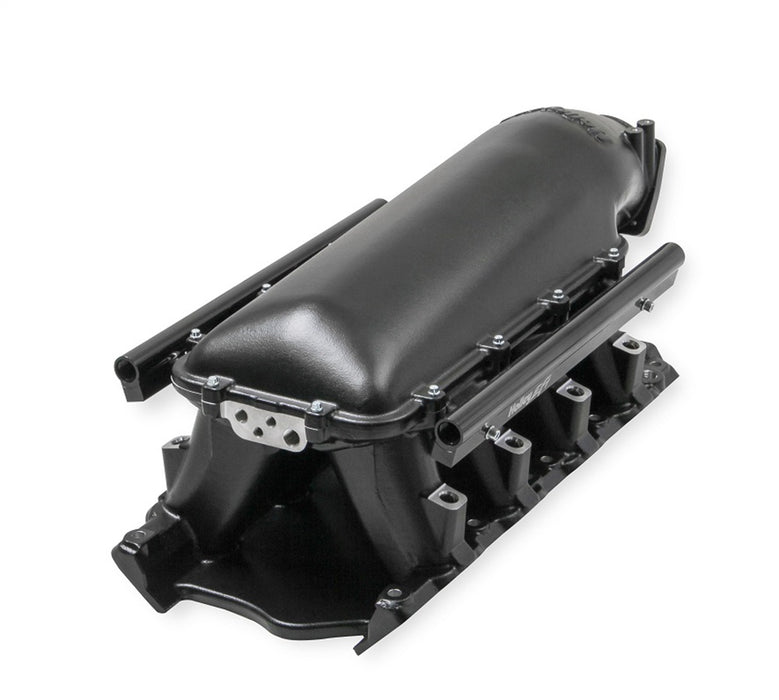

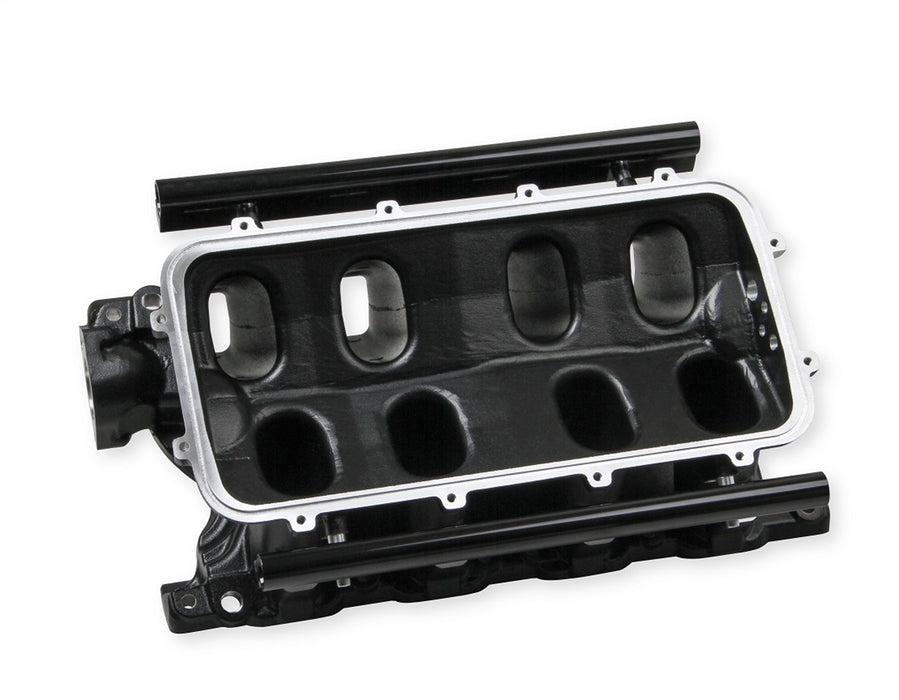

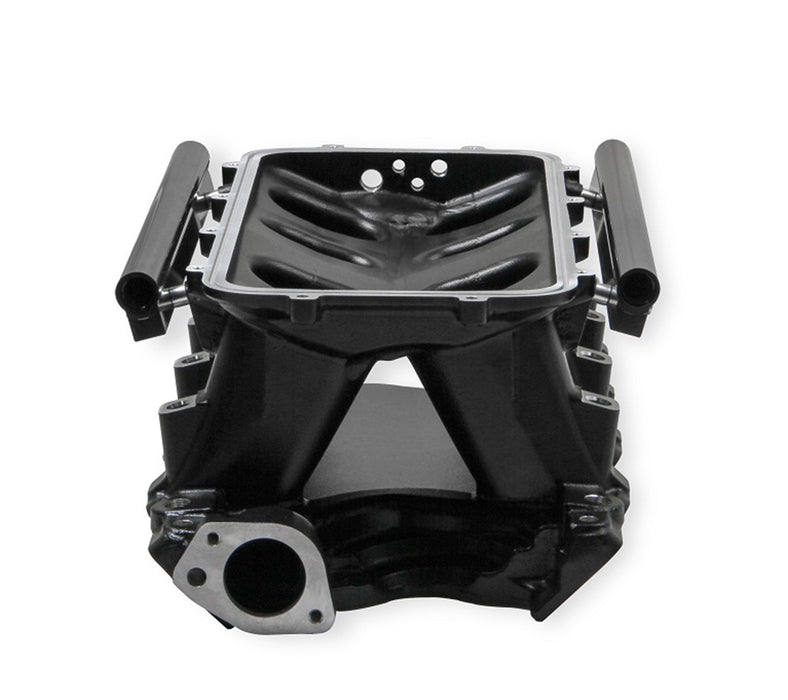

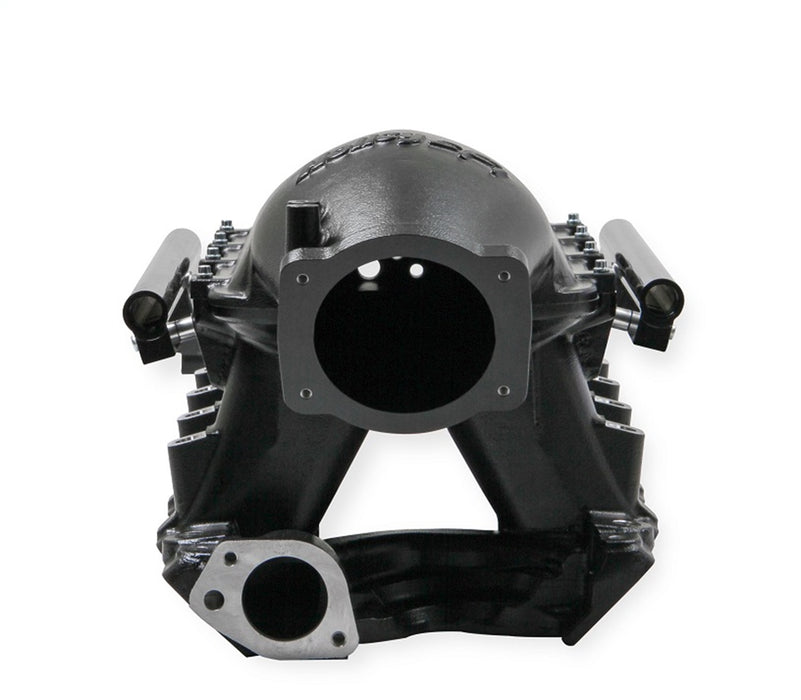

The EFI Hi-Ram manifold line has a new addition for the 351W Ford application. The new manifold is available to work with a 95MM or 105MM LS throttle body. The runner length and tapered cross section design will perform well for a wide range of engine combinations. The engineering team also redesigned the water crossover passage to allow room for distributor phasing. These manifold kits come with billet fuel rails. The fuel rails are setup to use -8AN o-ring fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsation in the fuel system. This manifold is the perfect addition to your EFI combination. Available separately, Holley has also designed a low profile 351W dual phase distributor for this combination. (Part Number 565-111). The new distributor allows for proper spark plug wire clearance under the intake and it can also be used with coil on plug applications. Also a replacement fuel rail kit, 534-234 is available for the 351W Hi-Ram manifolds.
Resources
Installation InstructionsSpecifications
| Construction | Cast |
| Cylinder Head Type | Standard |
| Description_ASC | Holley Performance Emission Code 4: This part is legal for sale or use on Racing Use Only Vehicles. The following vehicles are considered Racing Use Only Vehicles: Racing Use Only Vehicles are vehicles that are used exclusively for competition that are not registered and that may never be used on the street. WARNING: It is against the law to install this part on an Emissions Controlled Vehicle |
| Description_DEF | Engine Intake Manifold |
| Description_DES | Holley EFI Hi-Ram Intake Manifold |
| Description_EXT | Holley EFI Hi-Ram Intake Manifold; For Use w/[565-111]; With 95mm LS Throttle Body Flange Top; 9.5 in. Deck; 2.0x1.190 in. Port Size; 1500-7000 RPM Power Band; Black Finish; |
| Description_EXT | Holley EFI Hi-Ram Intake Manifold; With 95mm LS Throttle Body Flange Top; 9.5 in. Deck; 2.0x1.190 in. Port Size; 1500-7000 RPM Power Band; Black Finish; |

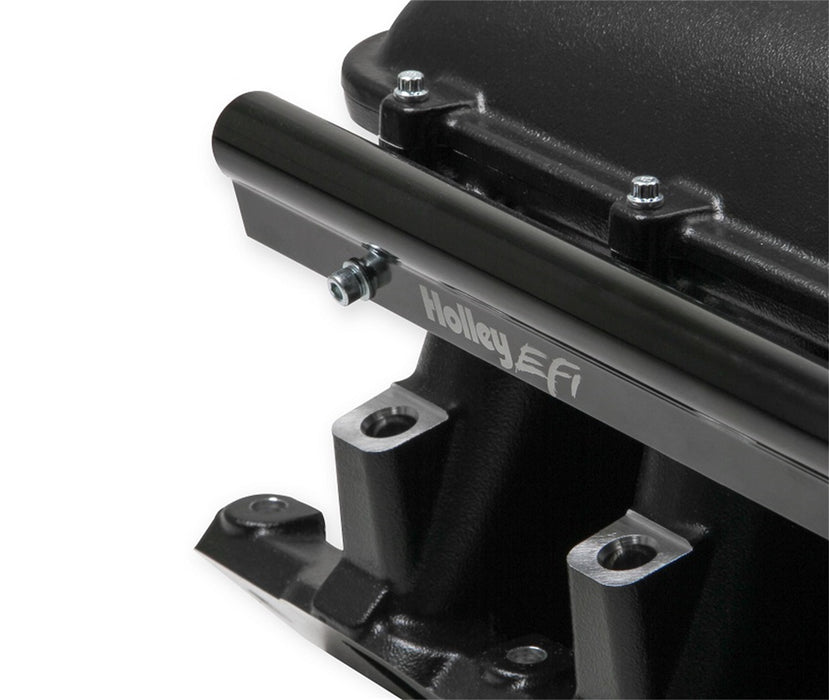

| Description_FAB | EFI Fuel Rails Are Machined For -8AN O-Ring Fittings |
| Description_FAB | Manifold is Designed For A 9.5 in. Deck Height |
| Description_FAB | Plenum Top Gasket Type-3/32 in. Round O-Ring Cord |
| Description_FAB | With Passages Large Enough To Accommodate High Fuel Flows |
| Description_INV | KIT; FORD 351W HI-RAM; 95MM EFI BLACK |
| Description_MKT | The EFI Hi-Ram manifold line has a new addition for the 351W Ford application. The new manifold is available to work with a 95MM or 105MM LS throttle body. The runner length and tapered cross section design will perform well for a wide range of engine combinations. The engineering team also redesigned the water crossover passage to allow room for distributor phasing. These manifold kits come with billet fuel rails. The fuel rails are setup to use -8AN o-ring fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsation in the fuel system. This manifold is the perfect addition to your EFI combination. Available separately, Holley has also designed a low profile 351W dual phase distributor for this combination. (Part Number 565-111). The new distributor allows for proper spark plug wire clearance under the intake and it can also be used with coil on plug applications. Also a replacement fuel rail kit, 534-234 is available for the 351W Hi-Ram manifolds. |
| Description_MKT | The EFI Hi-Ram manifold line has a new addition for the 351W Ford application. This manifold comes with a 95MM LS throttle body flange top, a 105mm LS throttle body top is also available. The runner length and tapered cross section design will perform well for a wide range of engine combinations. The engineering team also redesigned the water crossover passage to allow room for distributor phasing. Aggressive, bold, race-bred styling will make bad intentions clear for drag race, muscle car, marine, off-road, sandrails, pulling trucks, track, street-rod applications and more! Manifold is designed for a 9.5 in. deck height. Manifold Width is 11.32 in.. Runner length and the tapered cross-section designed to perform well for a wide range of engine configurations EFI fuel rails are machined for -8AN O-ring Fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits. Cast aluminum construction with black finish. |
| Description_SHO | Intake Manifold |
| Emission | Without EGR |
| Engine Make/Size | Ford 351W |
| finish | Black |
| Flange Type | EFI |
| Fuel System Type | EFI |
| height | 14.5 |
| length | 26.7 |
| Manifold Type | Hi-Ram |
| Number of Carbs | None; For Fuel Injection |
| Port Size | 2.000 in. x 1.190 in. |
| Position | N/A |
| RPM Range | 1500-7000 |
| Throttle Bore | 95mm |
| Usage | Racing |
| WARNING CA Proposition 65 | No |
| weight | 33.45 |
| width | 17.0 |
