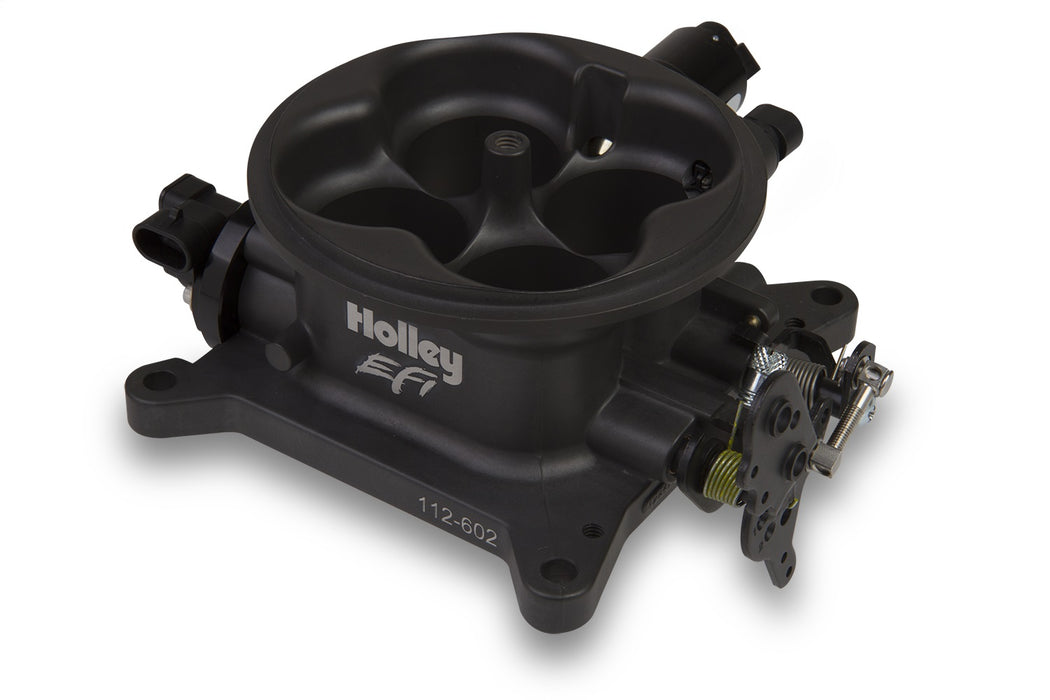

Holley EFI 112-602 EFI Universal Race Series Throttle Body
by Holley EFI
SKU ds_BBVL_112-602
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$1,067.56
-
Original price
$1,067.56
Original price
$1,067.56
$1,067.56
$1,067.56
-
$1,067.56
Current price
$1,067.56
Availability:
Out of stock
Description
The Holley EFI die cast aluminum four barrel throttle body is designed to fit on any square bore (4150 style) intake manifold. This new MPFI Race Throttle Body shares the same air entry area design that powers every NASCAR Sprint Cup Series(TM) car! The unit includes the Throttle Position Sensor (TPS), Intake Air Temperature Sensor (IAT), and Idle Air Control (IAC) motor. It has four 1-3/4 throttle plates. It features non progressive throttle linkage, for quickest throttle response, but can be converted to progressive operation by removing and adjusting the installed linkage. It also features one 3/8 and one 3/16 full manifold vacuum ports!
Resources
Installation InstructionsSpecifications
| Barrel | Four |
| CFM | 1000 |
| Description_ASC | Holley Performance Emission Code 4: This part is legal for sale or use on Racing Use Only Vehicles. The following vehicles are considered Racing Use Only Vehicles: Racing Use Only Vehicles are vehicles that are used exclusively for competition that are not registered and that may never be used on the street. WARNING: It is against the law to install this part on an Emissions Controlled Vehicle |
| Description_DEF | Fuel Injection Throttle Body |
| Description_DES | EFI Universal Race Series Throttle Body |
| Description_EXT | EFI Universal Race Series Throttle Body; 4 bbl.; 1000 CFM; Square Bore 4150 Flange; 1 3/4 in. Throttle Bore; Hard Core Gray; |
| Description_FAB | Dedicated Race Only Throttle Lever |
| Description_FAB | Hiflow Iac Passage For Large Cubic Inch Engine For Idle Stability |
| Description_FAB | High Quality Die Cast Aluminum For Strength And Weight Reduction |
| Description_FAB | Integrated TPS IAC And Air Sensor |
| Description_FAB | Knurled Primary Curb Idle Adjustment Screw |
| Description_FAB | Square Bore Mount Pattern For Install On Many Intake Manifolds |
| Description_FAB | Stainless Steel Adjust Secondary Link/Factory Set 1:1 Actuation |
| Description_FAB | Throttle Shaft In Oil Impregnated Bushing For Smooth Actuation |
| Description_FAB | Uses A Non-Contact Magnetic Hall Effect TPS Sensor |
| Description_INV | MPFI RACE THROTTLE BODY-HARD CORE GRA |
| Description_MKT | The Holley EFI die cast aluminum four barrel throttle body is designed to fit on any square bore (4150 style) intake manifold. This new MPFI Race Throttle Body shares the same air entry area design that powers every NASCAR Sprint Cup Series car! The unit includes the Throttle Position Sensor (TPS), Intake Air Temperature Sensor (IAT), and Idle Air Control (IAC) motor. It has four 1-3/4 in. throttle plates. It features non progressive throttle linkage, for quickest throttle response, but can be converted to progressive operation by removing and adjusting the installed linkage. It also features one 3/8 in. and one 3/16 in. full manifold vacuum ports! |
| Description_MKT | The Holley EFI die cast aluminum four barrel throttle body is designed to fit on any square bore (4150 style) intake manifold. This new MPFI Race Throttle Body shares the same air entry area design that powers every NASCAR Sprint Cup Series(TM) car! The unit includes the Throttle Position Sensor (TPS), Intake Air Temperature Sensor (IAT), and Idle Air Control (IAC) motor. It has four 1-3/4 throttle plates. It features non progressive throttle linkage, for quickest throttle response, but can be converted to progressive operation by removing and adjusting the installed linkage. It also features one 3/8 and one 3/16 full manifold vacuum ports! |
| Description_SHO | TBdyAssy |
| height | 7.9 |
| length | 12.5 |
| Throttle Bore | 1.750 in. |
| WARNING CA Proposition 65 | No |
| weight | 3.8 |
| width | 11.4 |
