Holley 300-256 Race Intake Manifold
by Holley
SKU ds_BBVL_300-256
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Original price
$1,026.14
-
Original price
$1,026.14
Original price
$1,026.14
$1,026.14
$1,026.14
-
$1,026.14
Current price
$1,026.14
Availability:
Only 2 left!
Description

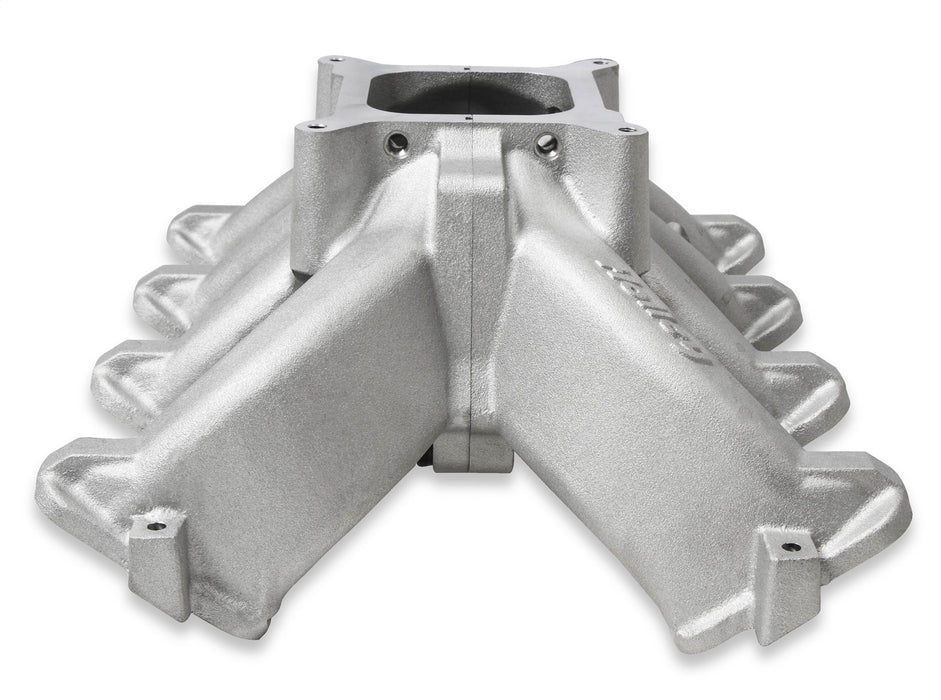

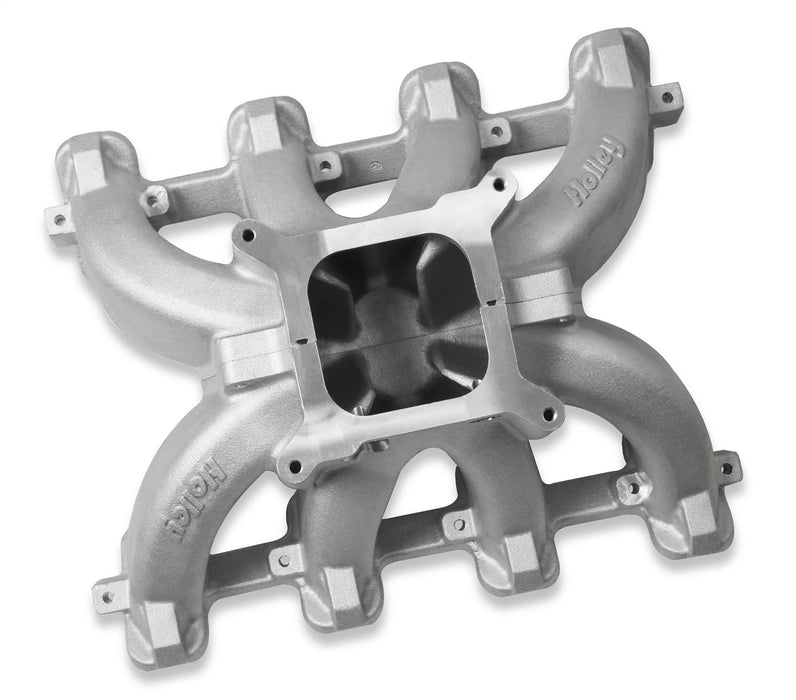

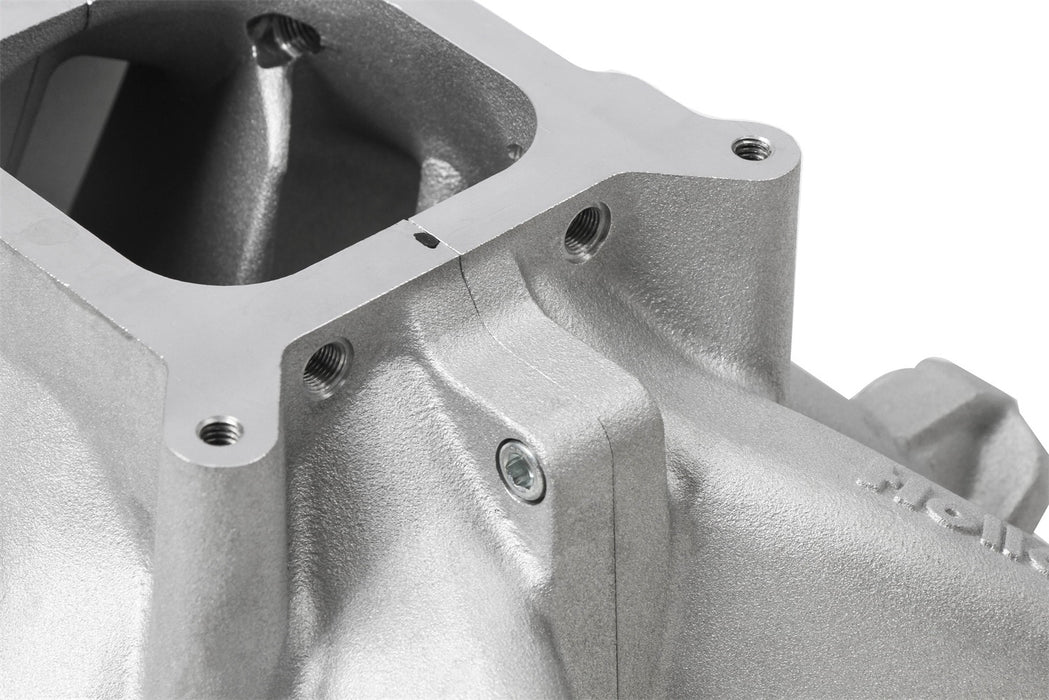

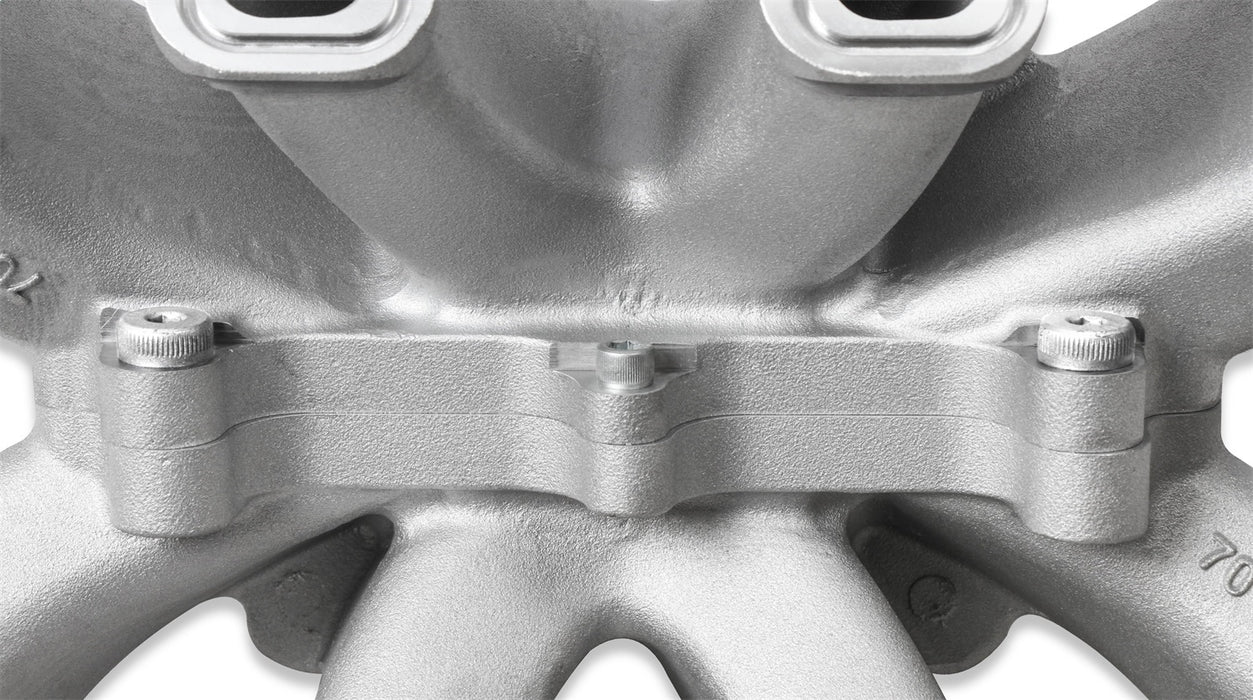

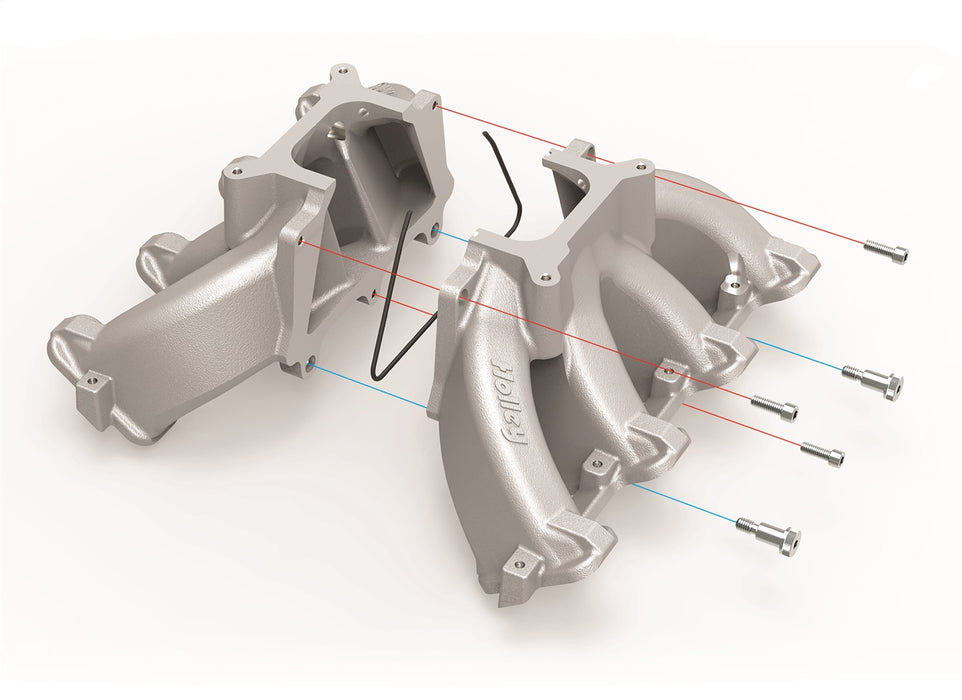

The new Holley Single-Plane Race intake manifold were designed with performance in mind. They feature a race bred, two piece split feature that was previously only found on the most expensive race intakes. The manifold will fit GM LS Gen III engines with cathedral port heads and are intended for 4150 style square bore flanged carburetors or throttle body EFI. The LS Race single-plane intake manifold was designed for hi-performance/racing engine applications, 5.3 to 6.2+ liter displacement, and maximum engine speeds of 6000-7000 rpm, depending on the engine combination. This single-plane design provides optimal performance across the RPM spectrum while providing maximum performance up to 7000 rpm. The Holley LS Race manifold incorporates a split feature, which allows disassembly of the intake for direct access to internal plenum and port surfaces, making custom porting and matching a snap. With shoulder bolt locators and O-ring seal, reassembly is simple and precise.
Specifications
| Description_ASC | Holley Performance Emission Code 3: This part is legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles and Racing Use Only Vehicles. The following vehicles are considered Uncontrolled (Non-Emissions Controlled) Vehicles: 1965 and older U.S. manufactured California Certified vehicles/1967 and older U.S. manufactured Federally Certified vehicles/1967 and older Foreign manufactured vehicle. The following vehicles are considered Racing Use Only Vehicles: Racing Use Only Vehicles are vehicles that are used exclusively for competition and that are not registered and that may never be used on the street. WARNING: It is against the law to install this part on an Emissions Controlled Vehicle. The following vehicles are considered Emissions Controlled Vehicles: 1966 and newer U.S. manufactured California Certified vehicles/1968 and newer U.S. manufactured Federally Certified vehicles/1968 and newer Foreign manufactured vehicle |
| Description_DEF | Engine Intake Manifold |
| Description_DES | Race Intake Manifold |

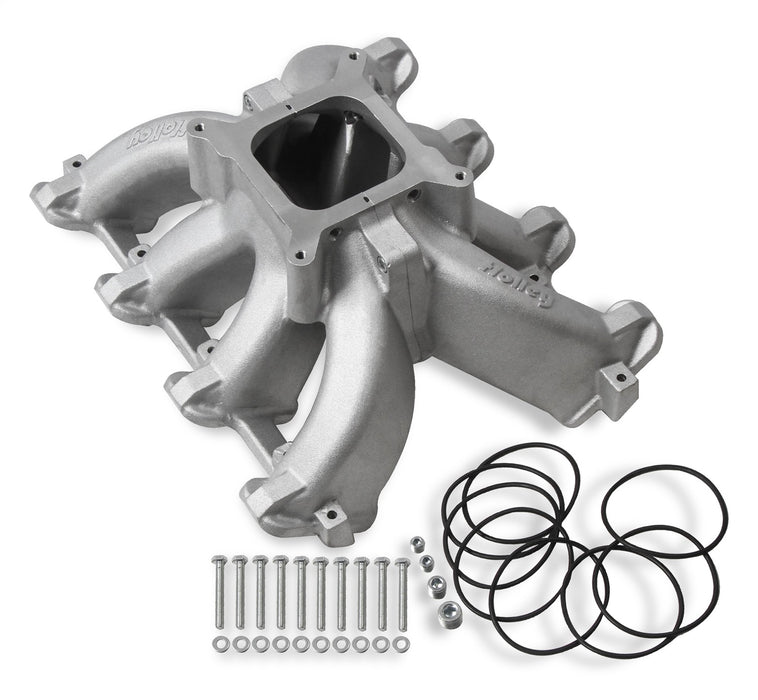

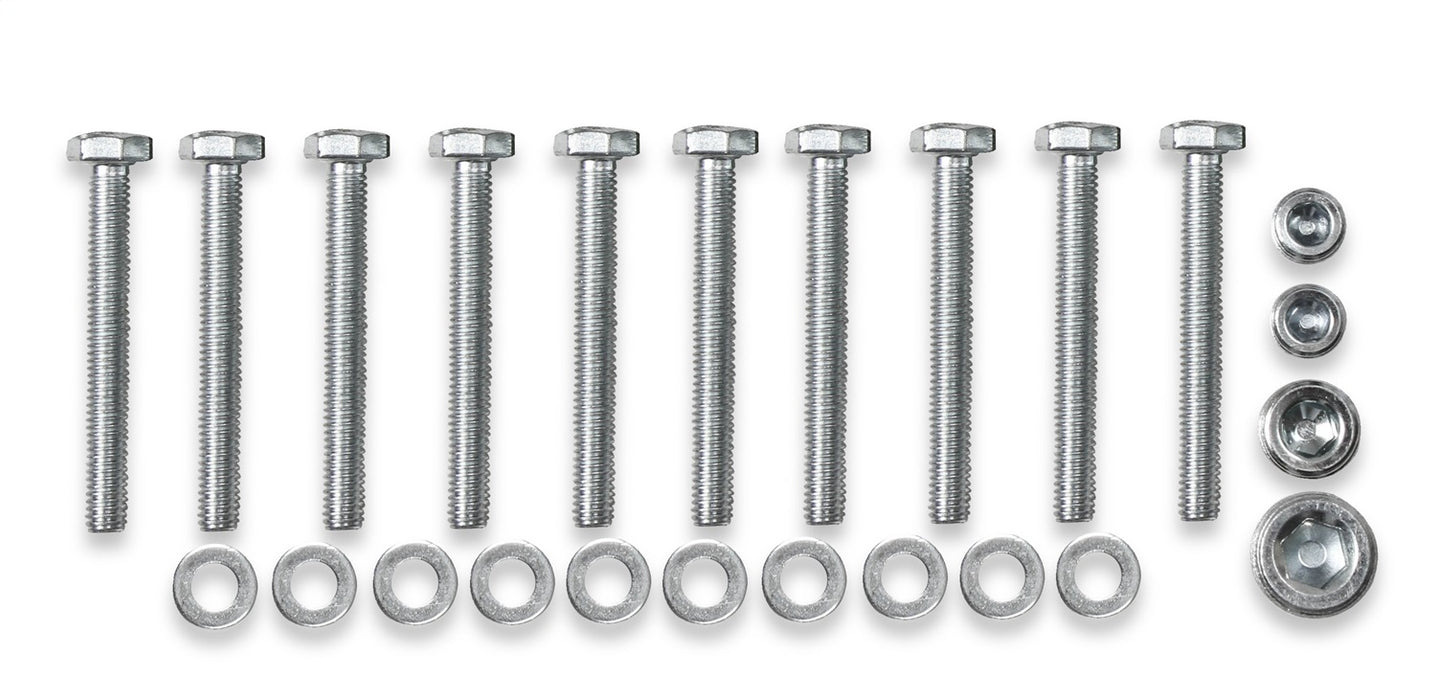

| Description_EXT | Race Intake Manifold; Single Plane; Split-Design; 4150 Square Bore Flange; 7.32in. Front/Rear Height; 2500-7000 RPM Band; Incl. Shoulder Bolt Locators/O-Ring Seals; Satin Finish; |
| Description_FAB | 1/3 to 1/2 The Price Of Other Split Race Intakes |

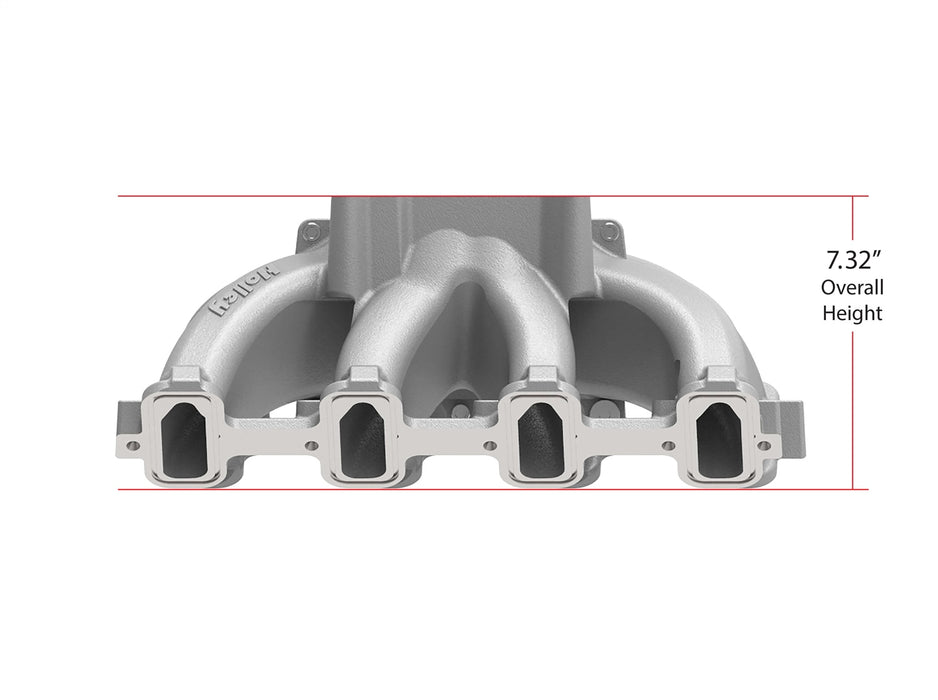

| Description_FAB | A-B Height - 7.32 in. (0 Deg carb flange angle) |
| Description_FAB | As-Cast Runner Area - 3.5 in. Square at Runner Entry |
| Description_FAB | As-Cast Runner Area - Tapered To 2.9 in. Square at Flange Exit |

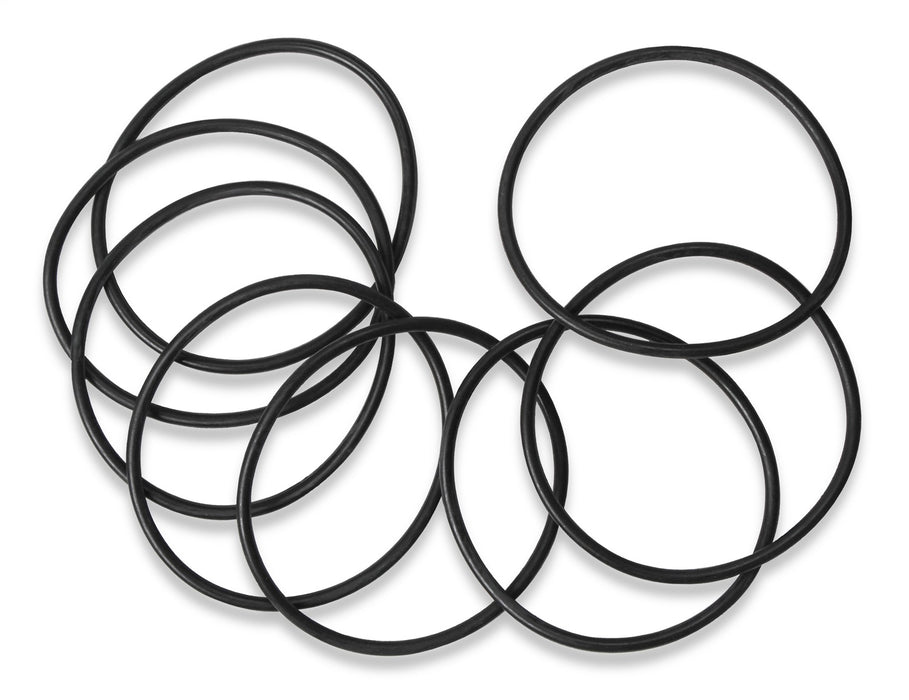

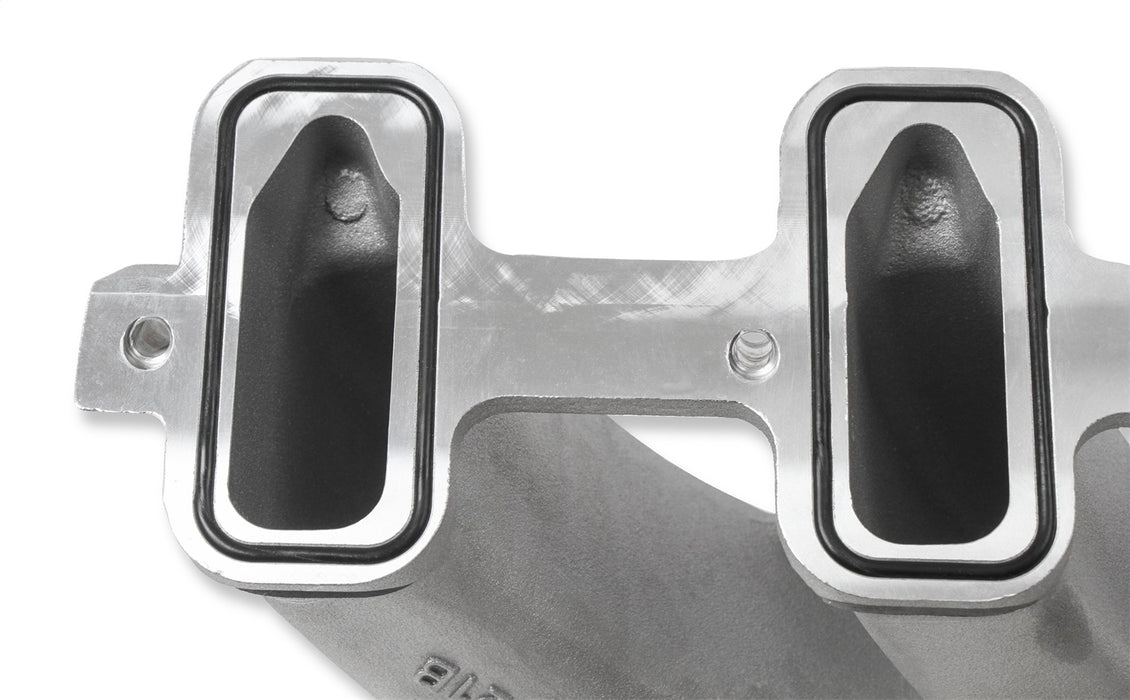

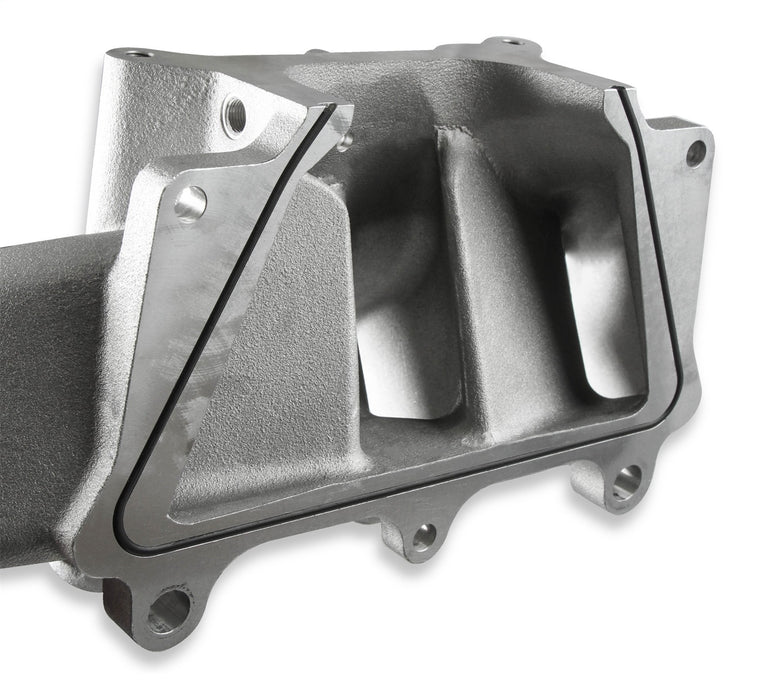

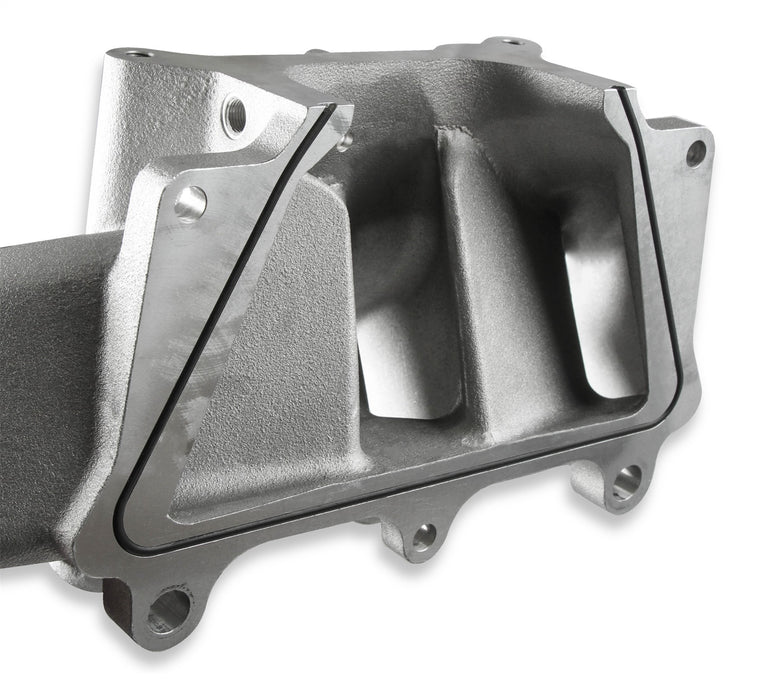

| Description_FAB | Captured O-Ring Seals At Head Ports and Split |
| Description_FAB | Carb Flange - Std 4150 For Up To 1-3/4 in. Dia. Throttle Bores |
| Description_FAB | Lighter Than Other Split Race Intakes |
| Description_FAB | Maximum Performance Race Design w/Hood Clearance Consideration |

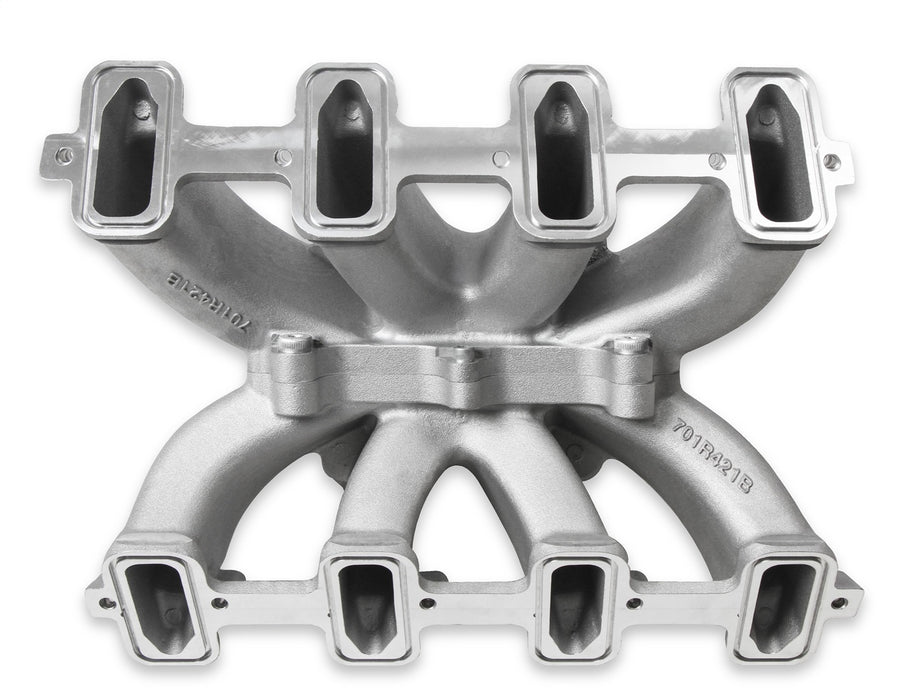

| Description_FAB | Port Size 3.28 in. Height x 1.10 in. Wide |
| Description_FAB | Split Feature Making Porting Efforts Easy |
| Description_FAB | Vacuum Port Options Incl. (2) 1/8; (1) 1/4; (1) 3/8 NPT Ports |
| Description_INV | INTAKE MNFD CATHEDRAL SPLIT SGL-PLN CARB |
| Description_MKT | The new Holley Single-Plane Race intake manifold were designed with performance in mind. They feature a race bred, two piece split feature that was previously only found on the most expensive race intakes. The manifold will fit GM LS Gen III engines with cathedral port heads and are intended for 4150 style square bore flanged carburetors or throttle body EFI. The LS Race single-plane intake manifold was designed for hi-performance/racing engine applications, 5.3 to 6.2+ liter displacement, and maximum engine speeds of 6000-7000 rpm, depending on the engine combination. This single-plane design provides optimal performance across the RPM spectrum while providing maximum performance up to 7000 rpm. The Holley LS Race manifold incorporates a split feature, which allows disassembly of the intake for direct access to internal plenum and port surfaces, making custom porting and matching a snap. With shoulder bolt locators and O-ring seal, reassembly is simple and precise. |
| Description_MKT | The new Holley Single-Plane Race intake manifold were designed with performance in mind. They feature a race bred, two piece split feature that was previously only found on the most expensive race intakes. The manifold will fit GM LS Gen III engines with cathedral port heads and are intended for 4150 style square bore flanged carburetors or throttle body EFI.The LS Race single-plane intake manifold was designed for hi-performance/racing engine applications, 5.3 to 6.2+ liter displacement, and maximum engine speeds of 6000-7000 rpm, depending on the engine combination. This single-plane design provides optimal performance across the RPM spectrum while providing maximum performance up to 7000 rpm.The Holley LS Race manifold incorporates a split feature, which allows disassembly of the intake for direct access to internal plenum and port surfaces, making custom porting and matching a snap. With shoulder bolt locators and O-ring seal, reassembly is simple and precise. Technical Data‚· A-B Height - 7.32 in. (0° carb flange angle)ï‚· Port Size- 3.28 in. Height x 1.10 in. Wide‚· Carburetor Flange - Standard 4150 for up to 1-3/4 in. diameter throttle boresï‚· As-Cast Runner Cross-Sectional Area - 3.5 in² at the runner entry tapered to 2.9 in² at the flange exit |
| Description_SHO | Intake Manifold |
| height | 11.0 |
| length | 21.0 |
| weight | 20.0 |
| width | 15.0 |
