Holley 300-137 LS Single Plane Mid Rise EFI Intake
by Holley
SKU ds_BBVL_300-137
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Original price
$712.67
-
Original price
$712.67
Original price
$712.67
$712.67
$712.67
-
$712.67
Current price
$712.67
Availability:
4+ in stock
Description
The Modular Mid–Rise intake utilizes the popular Holley LS1/LS2/LS6 cathedral port Mid–Rise 2 x 4 intake Manifold along with a purpose built plenum base Adapter and a Holley 92MM EFI plenum top which converts it into a Mid–Rise EFI intake manifold. With a max overall height of only 10.44in., the Mid–Rise Manifold is an excellent choice for street and performance street/strip applications with a powerband from 1,500–6,500 RPM and limited hood clearance. It's perfect for a blow–thru or turbocharged application. Being part of the Holley modular intake line means that this intake is not only available as a complete kit with intake, adapter, 92MM top and fuel rails, but all parts can also be purchased separately for a custom intake build. The plenum Adapter (PN 300–231) will accept all of the popular Holley Hi–Ram plenum tops as a foundation for custom induction systems.
Resources
Installation InstructionsSpecifications
| Description_ASC | Holley Performance Emission Code 3: This part is legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles and Racing Use Only Vehicles. The following vehicles are considered Uncontrolled (Non-Emissions Controlled) Vehicles: 1965 and older U.S. manufactured California Certified vehicles/1967 and older U.S. manufactured Federally Certified vehicles/1967 and older Foreign manufactured vehicle. The following vehicles are considered Racing Use Only Vehicles: Racing Use Only Vehicles are vehicles that are used exclusively for competition and that are not registered and that may never be used on the street. WARNING: It is against the law to install this part on an Emissions Controlled Vehicle. The following vehicles are considered Emissions Controlled Vehicles: 1966 and newer U.S. manufactured California Certified vehicles/1968 and newer U.S. manufactured Federally Certified vehicles/1968 and newer Foreign manufactured vehicle |
| Description_ASM | Single Plane Mid–Rise EFI LS Intake Manifold. All GM LS Gen III or IV engines equipped with LS1/LS2/LS6 style cathedral port cylinder heads. |
| Description_DEF | Engine Intake Manifold |
| Description_DES | LS Single Plane Mid Rise EFI Intake |

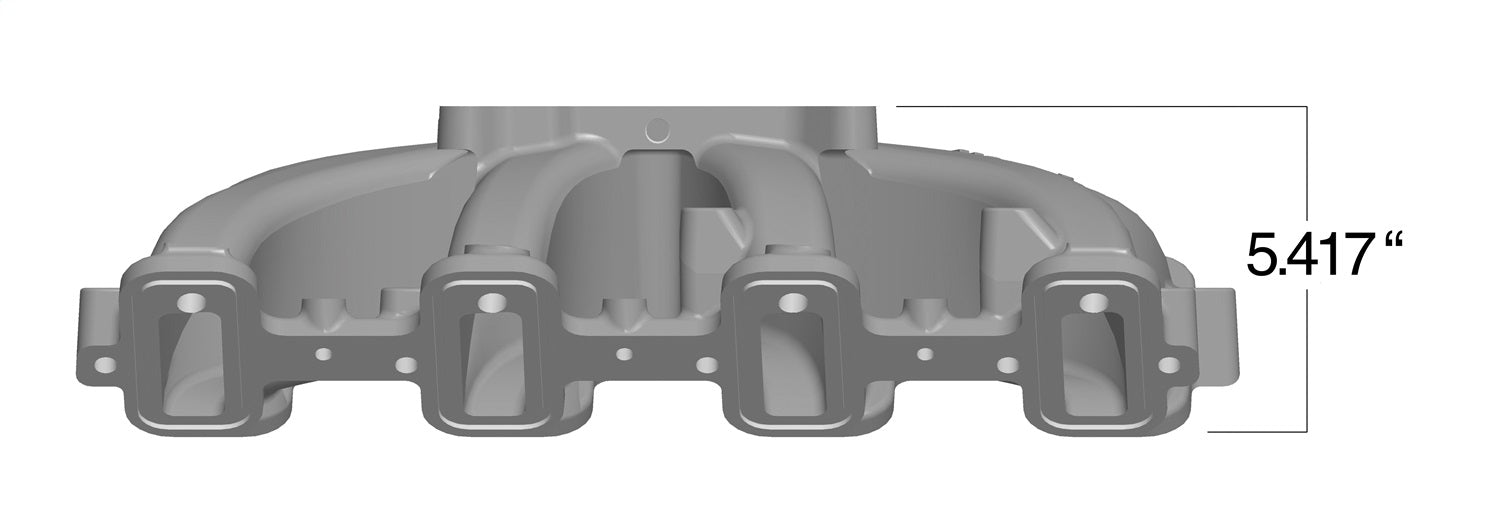

| Description_EXT | LS Single Plane Mid Rise EFI Intake; Upper; EFI; Plane; 4150 Square Bore Flange; Mid-Rise; w/Cathedral Port Cyl. Heads; Ft/Rr Ht 5.417in.; RPM Power Bore 2500-7000; Satin Finish; |
| Description_FAB | 2500-7000 rpm Power Band |
| Description_FAB | 4150 Square Bore Flange |
| Description_FAB | Efficient Casting Design/Lightweight Wall Thickness |
| Description_FAB | Incl. Viton O-Ring Intake To Cylinder Head Gaskets |
| Description_FAB | Minimum Carb Flange Height Results Minimum Hood Modifications |
| Description_FAB | Optimized Runner Layout Provide A Broad Torque Curve |
| Description_FAB | Port Size 2.50 in. Height X 1.15 in. Wide |
| Description_FAB | Weight 11.5 lbs.. |
| Description_INV | INTAKE MANIFOLD; LS1 EFI SINGLE-PLANE |
| Description_MKT | Single Plane EFI LS Intake Manifold. All GM LS Gen III or IV engines equipped with LS1/LS2/LS6 style cathedral port cylinder heads. |
| Description_MKT | The Modular Mid–Rise intake utilizes the popular Holley LS1/LS2/LS6 cathedral port Mid–Rise 2 x 4 intake Manifold along with a purpose built plenum base Adapter and a Holley 92MM EFI plenum top which converts it into a Mid–Rise EFI intake manifold. With a max overall height of only 10.44in., the Mid–Rise Manifold is an excellent choice for street and performance street/strip applications with a powerband from 1,500–6,500 RPM and limited hood clearance. It's perfect for a blow–thru or turbocharged application. Being part of the Holley modular intake line means that this intake is not only available as a complete kit with intake, adapter, 92MM top and fuel rails, but all parts can also be purchased separately for a custom intake build. The plenum Adapter (PN 300–231) will accept all of the popular Holley Hi–Ram plenum tops as a foundation for custom induction systems. |
| Description_SHO | Intake Manifold |
| height | 7.0 |
| length | 23.0 |
| LTL | N |
| weight | 17.0 |
| width | 14.0 |
