Description
Holley EFI fuel filters with built-in regulator provide a simple and clean means to fueling your LS swap. Available with OEM-style or -6AN connections, they feature an internal regulator set at 58 psi, along with an integrated 5 nominal micron rated filter. The bypass design allows you to run one inlet with one outlet to the engine and an optional? return outlet back to the tank. Holley EFI fuel filter regulators are ideal when performing a LS engine swap or any other fuel injection swap that is designed to run at 58 psi of static pressure.
Specifications
| Description_ASC | Holley Performance Emission Code 5: This part is legal for sale or use on Emissions Controlled Vehicles; Uncontrolled (Non-Emissions Controlled) Vehicles; and Racing Use Only Vehicles because it does not affect vehicle emissions and is not covered by emissions regulations |
| Description_DEF | Fuel Injection Pressure Regulator |
| Description_DES | Die Cast By-Pass Fuel Pressure Regulator Kit |
| Description_EXT | Die Cast By-Pass Fuel Pressure Regulator Kit; 15-60 psi.; Pressure Range; 3/8 in. NPT Inlet/Outlet; Black; Aluminum; |
| Description_FAB | 1/8-Inch NPT Gauge Port |
| Description_FAB | Adjustable Psi Pressure Range For Precise Fuel Pressure Adjustments |
| Description_FAB | Constructed From Diecast Or Billet Aluminum |
| Description_FAB | Fuel Pressure Gauge And Black Adapter Fittings Included |

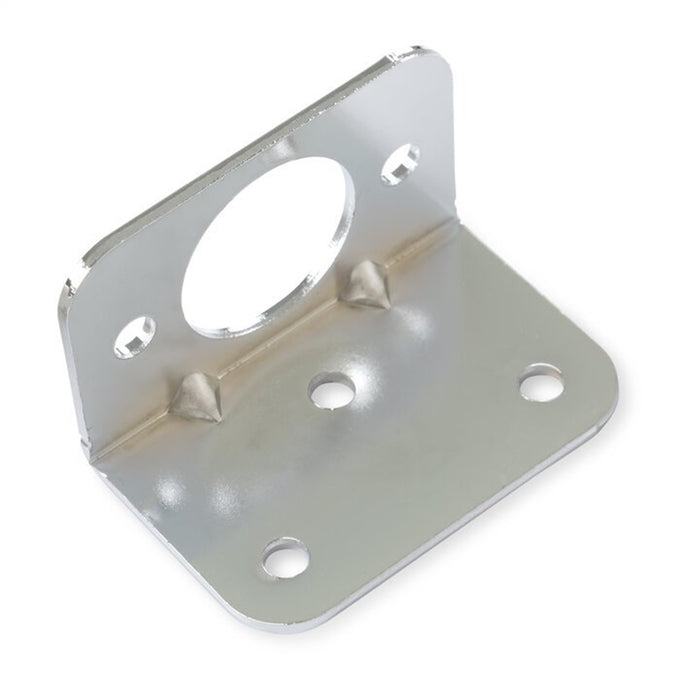

| Description_FAB | Mounting Bracket Included |
| Description_FAB | Regulator Kits Available In Return Or Returnless Design |
| Description_INV | 12-886 REGULATOR KIT; GAUGE AND FITTINGS |
| Description_LAB | Proposition 65 |

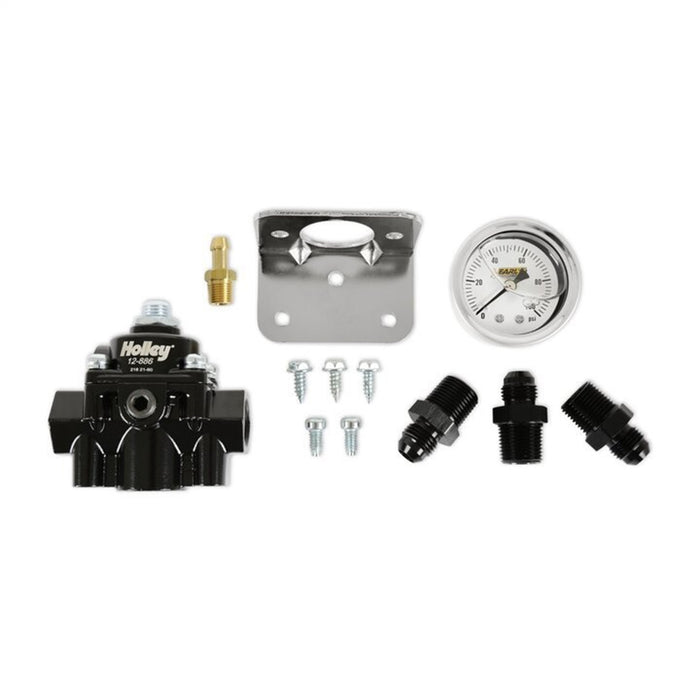

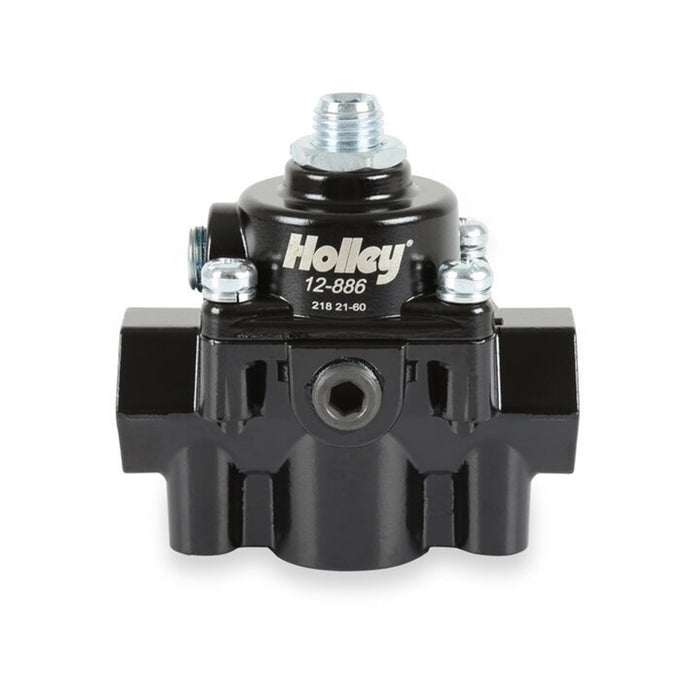

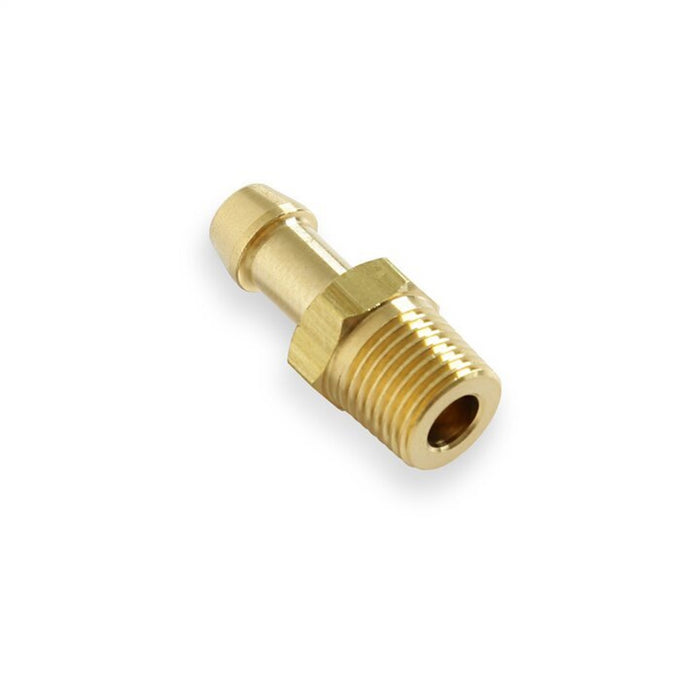

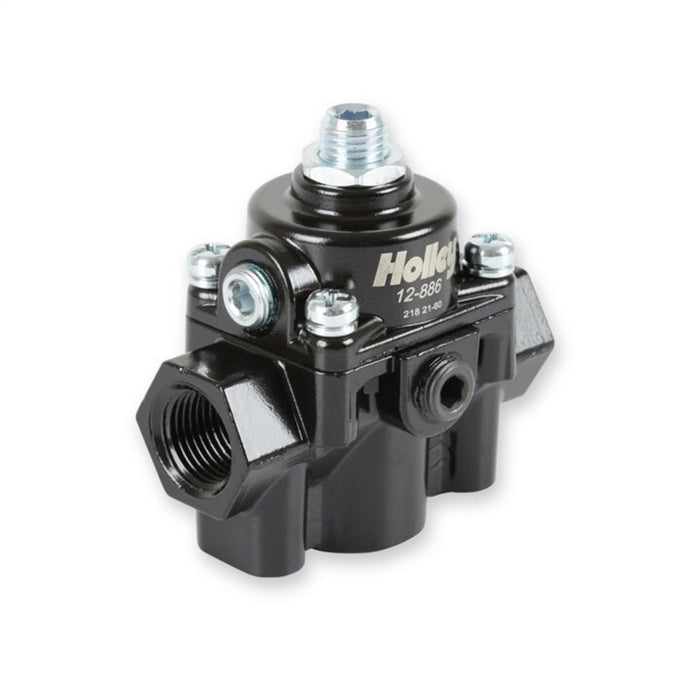

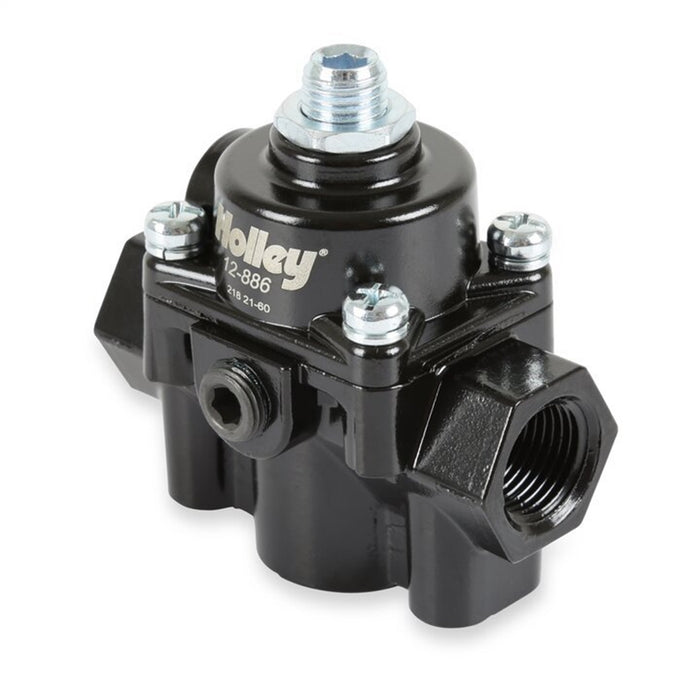

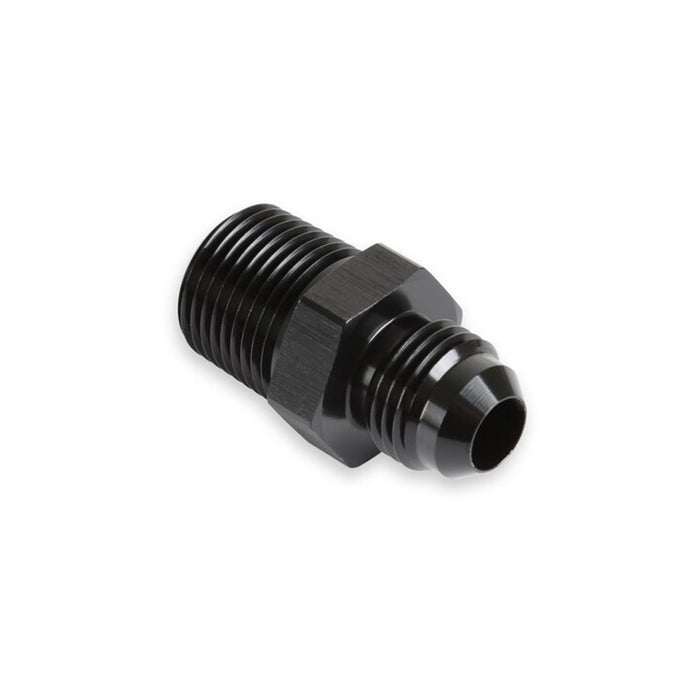

| Description_MKT | Holley Die Cast EFI Bypass Style Fuel Pressure Regulator Kits are part of a complete line of fuel system products from Holley. The included 12-886 regulator features a die cast aluminum body and a black finish for corrosion resistance and good looks. The regulator contains 3/8 in. NPT in/out ports, a 3/8 in. NPT return port, a 1/8 in. NPT gauge port, and a 1/8 in. NPT vacuum port for Boost Reference (1:1). In addition, 3 Mr. Gasket 3/8 in. NPT to -6 AN fittings, a barbed fitting for the vacuum port, a mounting bracket, and all necessary hardware are also included. |
| Description_MKT | Holley EFI fuel filters with built-in regulator provide a simple and clean means to fueling your LS swap. Available with OEM-style or -6AN connections, they feature an internal regulator set at 58 psi, along with an integrated 5 nominal micron rated filter. The bypass design allows you to run one inlet with one outlet to the engine and an optional? return outlet back to the tank. Holley EFI fuel filter regulators are ideal when performing a LS engine swap or any other fuel injection swap that is designed to run at 58 psi of static pressure. |
| Description_SHO | FuelInjPresrRgultr |
| height | 5.7 |
| length | 6.9 |
| Pressure | 15-60 PSI |
| WARNING CA Proposition 65 | Yes |
| WARNING CA Proposition 65 Message | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| weight | 1.3 |
| width | 6.4 |
