Holley 0-80903HBM Gen 3 Marine Ultra Dominator Carburetor
by Holley
SKU ds_BBVL_0-80903HBM
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$2,761.34
-
Original price
$2,761.34
Original price
$2,761.34
$2,761.34
$2,761.34
-
$2,761.34
Current price
$2,761.34
Availability:
Out of stock
Description
The patent pending GEN 3 main–body is 5/16" taller than the previous generation! This new height allowed for larger radius air entries which were optimized using Computational Fluid Dynamics (CFD) software to deliver smoother flow into new fully machined, big bore venturii. The main-body also features an integrated idle bypass valve that allows for idle adjustments while maintaining the correct throttle plate to transfer slot relationship as well as an extended air cleaner flange for easy air scoop attachment when using the available air scoop adapter. The Gen 3 utilizes high capacity fuel bowls which feature 20% more fuel capacity to eliminate starvation, integrated fuel shelf to minimize fuel aeration and internal baffling to control fuel slosh. Other features include all aluminum construction, 12-hole billet booster inserts, fully tunable billet metering blocks, adjustable external linkage, throttle position sensor mounting points and knurled (hand adjustable) curb idle screws. Each calibration has been dyno tested to deliver proven performance!
Specifications
| Barrel | Four |
| Billet Color | Hard Core Gray with Black |
| Booster Type | Annular |
| Carburetor Type | 4500 |
| CFM | 1050 |
| Choke | None |
| Circuit | 3 |
| Description_ASC | Holley Performance Emission Code 4: This part is legal for sale or use on Racing Use Only Vehicles. The following vehicles are considered Racing Use Only Vehicles: Racing Use Only Vehicles are vehicles that are used exclusively for competition that are not registered and that may never be used on the street. WARNING: It is against the law to install this part on an Emissions Controlled Vehicle |
| Description_DEF | Carburetor |
| Description_DES | Gen 3 Marine Ultra Dominator Carburetor |
| Description_EXT | Gen 3 Marine Ultra Dominator Carburetor; 4bbl; 1050 cfm; 3 Circuit Metering; Model 4500; Dual Fuel Inlet; No Choke; Hard Core Gray w/Black Metering Block/Booster Inserts; |
| Description_FAB | 12 Hole Billet Booster Superior Atomization/Throttle Response |
| Description_FAB | 28% Weight Savings |
| Description_FAB | All Aluminum Construction Saves 3.8 lbs. Over Original Models |
| Description_FAB | Clear Sight Windows On Sides Of Bowl For Fuel Level Adjustments |
| Description_FAB | Contoured Hex Head Squirter Screws For Streamlined Airflow |
| Description_FAB | Designed For Marine High HP Engines |
| Description_FAB | Drain Plug On Bowl Provides Easy Access To Empty Bowl |
| Description_FAB | Dual 50CC Accelerator Pumps Fuel From Idle To Full Throttle |
| Description_FAB | Fuel Bowl Provides 20% More Fuel Capacity Controls Slosh |
| Description_FAB | Fully Machined From Venturi Throat To Throttle Bore |
| Description_FAB | Integrated Idle Bypass Valve Allows For Adjustment Of Idle |
| Description_FAB | Metering Blocks Feature Improved True Gasket Sealing |
| Description_INV | 4500 1050 CFM 3 CIR-HARD BLACK MARINE |
| Description_LAB | Proposition 65 |
| Description_MKT | The patent pending GEN 3 main body is 5/16 in. taller than the previous generation! This new height allowed for larger radius air entries which were optimized using Computational Fluid Dynamics (CFD) software to deliver smoother flow into new fully machined, big bore venturii. The main-body also features an integrated idle bypass valve that allows for idle adjustments while maintaining the correct throttle plate to transfer slot relationship as well as an extended air cleaner flange for easy air scoop attachment when using the available air scoop adapter. The Gen 3 utilizes high capacity fuel bowls which feature 20% more fuel capacity to eliminate starvation, integrated fuel shelf to minimize fuel aeration and internal baffling to control fuel slosh. Other features include all aluminum construction, 12-hole billet booster inserts, fully tunable billet metering blocks, adjustable external linkage, throttle position sensor mounting points and knurled (hand adjustable) curb idle screws. Each calibration has been dyno tested to deliver proven performance! |
| Description_MKT | The patent pending GEN 3 main–body is 5/16" taller than the previous generation! This new height allowed for larger radius air entries which were optimized using Computational Fluid Dynamics (CFD) software to deliver smoother flow into new fully machined, big bore venturii. The main-body also features an integrated idle bypass valve that allows for idle adjustments while maintaining the correct throttle plate to transfer slot relationship as well as an extended air cleaner flange for easy air scoop attachment when using the available air scoop adapter. The Gen 3 utilizes high capacity fuel bowls which feature 20% more fuel capacity to eliminate starvation, integrated fuel shelf to minimize fuel aeration and internal baffling to control fuel slosh. Other features include all aluminum construction, 12-hole billet booster inserts, fully tunable billet metering blocks, adjustable external linkage, throttle position sensor mounting points and knurled (hand adjustable) curb idle screws. Each calibration has been dyno tested to deliver proven performance! |
| Description_SHO | Carburetor |
| Emission | Without EGR |
| finish | Hard Core Gray |

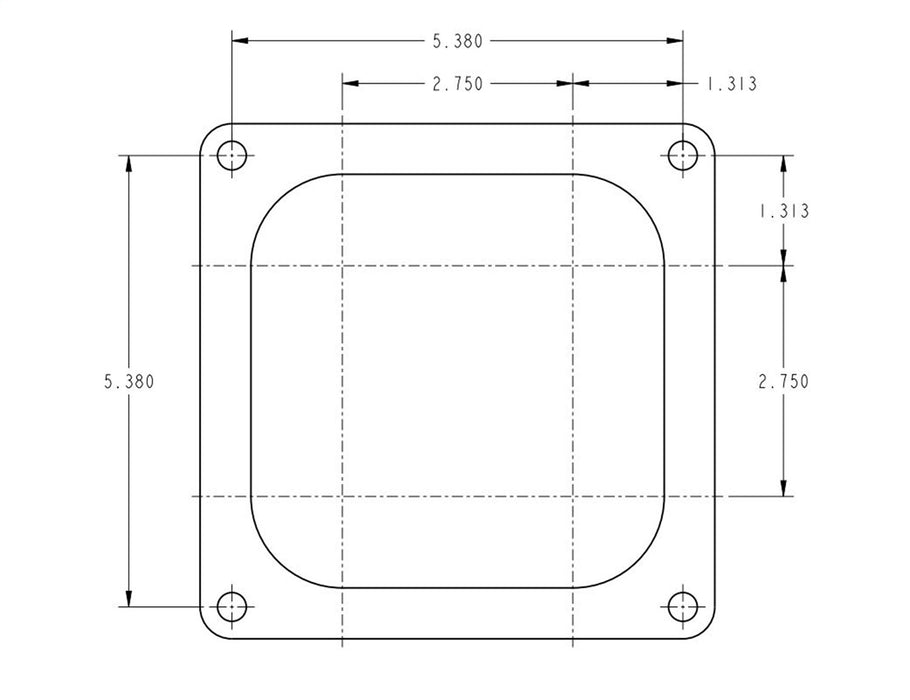

| Flange | 4500 |
| Fuel Inlet | Dual |
| Fuel Type | Gasoline |
| height | 9.4 |
| High Speed Air Bleed | 43 |
| Idle Air Bleed Size | 65 |
| Intermediate Air Bleed | 71 |
| length | 14.3 |
| Marine Engine Size | Universal |
| Material | Aluminum |
| Needle and Seat Size | 120;120 |
| Primary Main Jet | 84 |
| Primary Power Valve | 6.5 |
| Secondary Main Jet | 84 |
| Secondary Pump Nozzle Size | 35 |
| Secondary Type | Mechanical |
| Supercharged Application | No |
| Throttle Bore | 2.000 in. |
| Type | Marine |
| Usage | Marine |
| Venturii Size | 1.690 in. |
| WARNING CA Proposition 65 | Yes |
| WARNING CA Proposition 65 Message | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
| weight | 10.85 |
| width | 12.7 |
