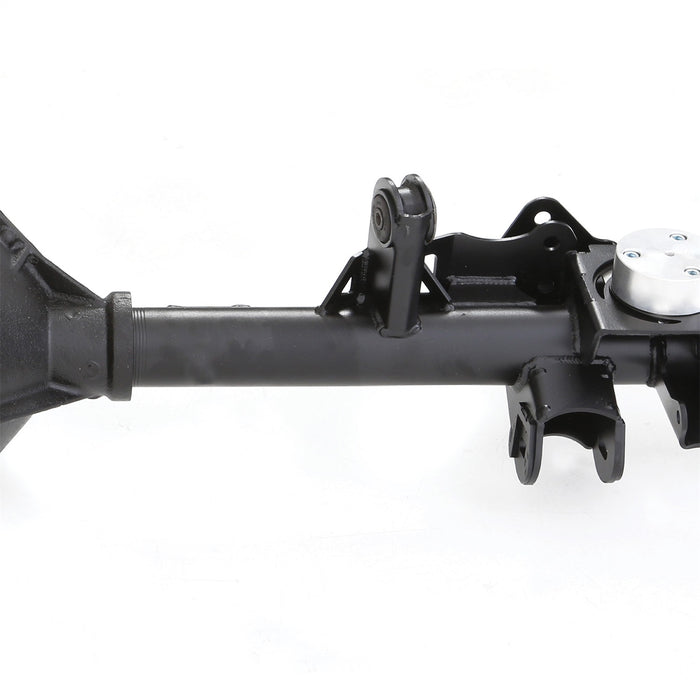

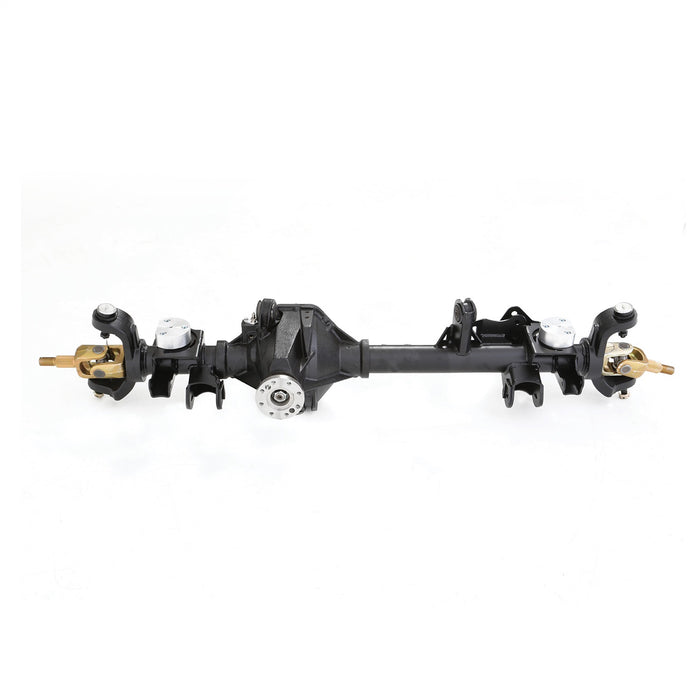

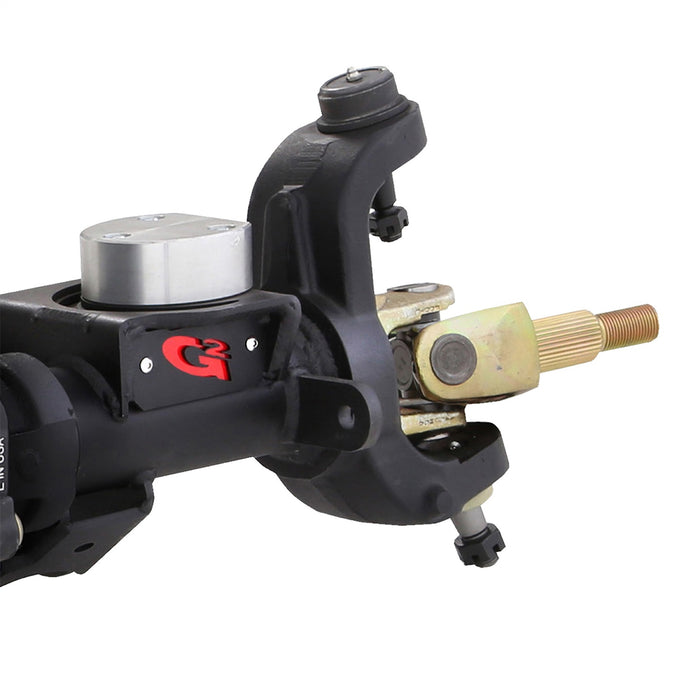

G2 Axle and Gear C4JMFS513AP5 G2 Core 44 Front Axle Assembly No Caster 5.13 W/ARB Air Locker 07-Pres Wrangler JK G2 Axle and Gear
SKU ds_FCNB_C4JMFS513AP5
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$14,217.13
-
Original price
$14,217.13
Original price
$14,217.13
$14,217.13
$14,217.13
-
$14,217.13
Current price
$14,217.13
Availability:
Out of stock
Description

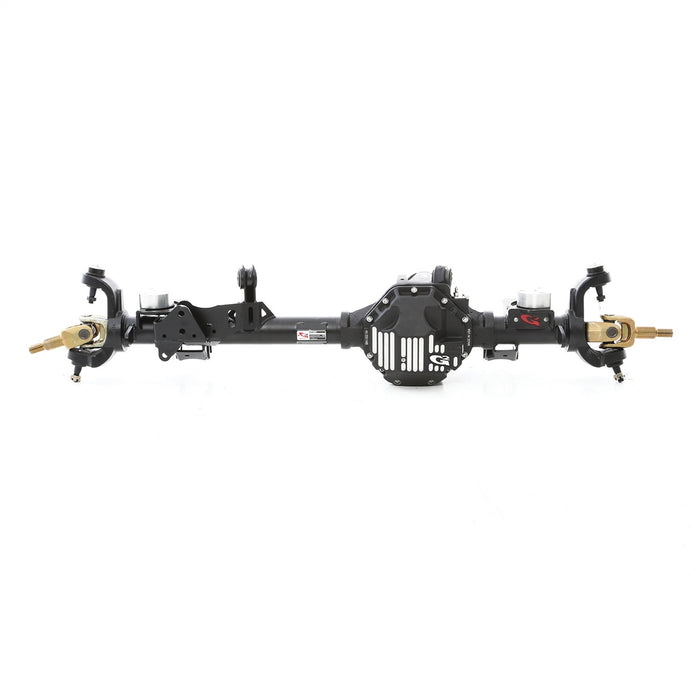

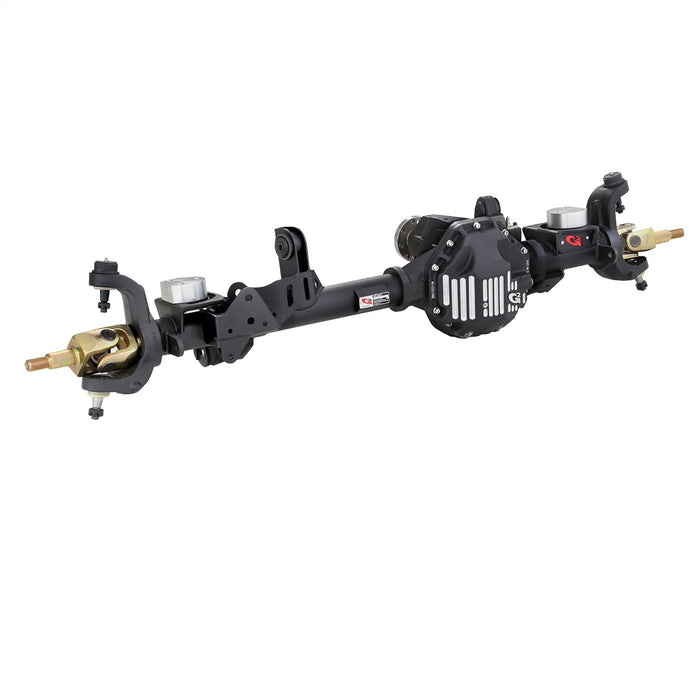

G2 Axle and Gear is proud to introduce our new CORE 44 axle assemblies for 2007 and up Jeep JK Wranglers. Utilizing the strongest and latest generation high pinion 8.8in. Dana 44 gear design, we have developed a whole new housing to handle the heavy loads that would normally bend a stock Dana 30 or Rubicon Dana 44. Then we stuff this heavy duty axle housing full of the best aftermarket components available like lockers of your choice and G/2 Placer Gold USA made 35 spline Chromalloy axle shafts for the strongest Dana 44 available.
Details:
- JK High Pinion Front with 5.13 gear ratio and ARB Air Locker
- Utilizes new generation 8.8in. JK 44 ring and pinion with larger pinion shaft
- USA Made 4340 Chromalloy 1.5in. 35 spline Placer axle shafts
- Heavy duty Dana Spicer 5-7166X Axle U-Joints
- Factory style flange pinion yoke
- Standard axle caster for 0-4 inch lifts
- Massive forged inner C-ends
- Integrated skid plates on lower control arm mounts

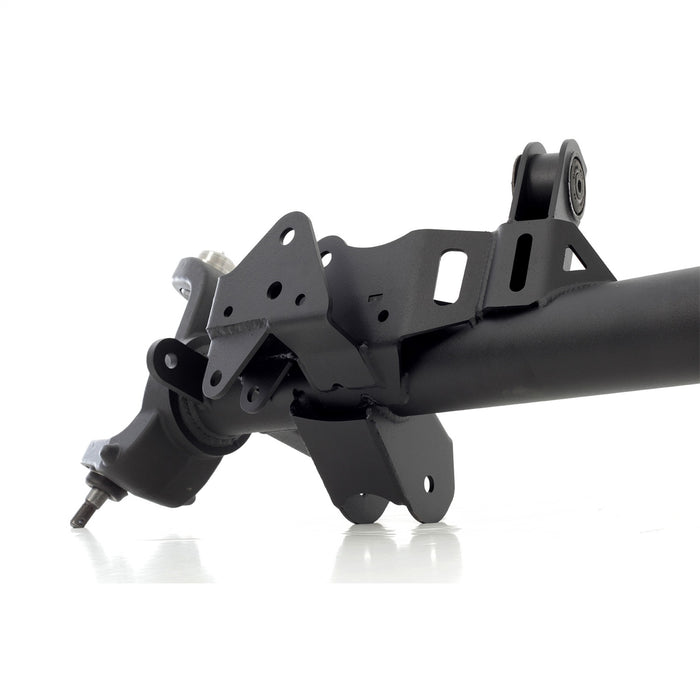

- Heavy-duty 1/4in. laser cut brackets
- Heavy duty 3in. diameter 5/16in. DOM tubes
- Reinforcing ribs for added strength and protection
- Uses metric Rubicon style carrier bearings
- Heavy duty forged bearing caps
- Spanner nuts for backlash adjustment

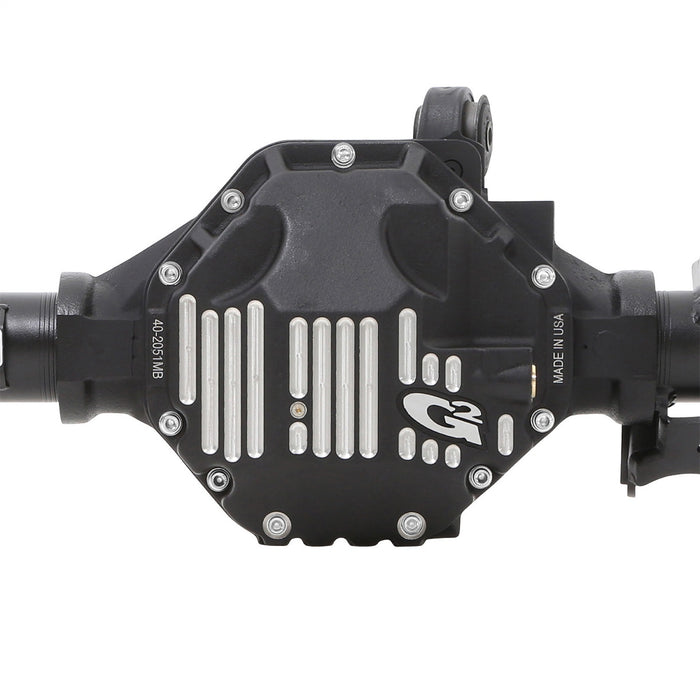

- Heat-treated aluminum diff cover with cooling fins
Specifications
| axle_type | JK Core 44 |
| bolt_pattern | Reuse Factory |
| brake_type | Reuse Factory |
| brand_logo | https://www.asapnetwork.org/sites/default/files/brands/icons/G2_Logo_BlackText_CMYK.png |
| Class | ASEM2 |
| Description_DEF | Drive Axle Shaft |
| Description_DES | Axle Assembly |
| Description_DES | G2 Core 44 Front JK 5.13 W/Arb Air Locker |
| Description_EXT | Axle Assembly; Dana 44; Front; 35 Spline; JK 5.13 Ratio w/ARB Air Locker; |
| Description_FAB | Engineered To Withstand Added Load Of High Torque Applications |
| Description_FAB | Forged From High Grade Alloy Steel |
| Description_FAB | Heat Treated To Exceed OEM Specifications |
| Description_FAB | Remedy The Common Faults Found With Factory Shafts |
| Description_FAB | Utilizes New Generation 8.8In. JK 44 Ring & Pinion With Larger Pinion Shaft |
| Description_INV | G2 CORE 44 FRONT |
| Description_LAB | Made In Logo |
| Description_LAB | Proposition 65 |
| Description_MKT | G2 Axle & Gear Is Proud To Introduce Our New Core 44 Axle Assemblies For 2007 And Up Jeep JK Wranglers. Utilizing The Strongest And Latest Generation High Pinion 8.8" Dana 44 Gear Design, We Have Developed A Whole New Housing To Handle The Heavy Loads That Would Normally Bend A Stock Dana 30 Or Rubicon Dana 44. Then We Stuff This Heavy Duty Axle Housing Full Of The Best Aftermarket Components Available Like Lockers Of Your Choice And G/2 Placer Gold Usa Made 35 Spline Chromalloy Axle Shafts For The Strongest Dana 44 Available. |
| Description_SHO | Axle Assembly |
| gear_ratio | 5.13 Ratio |
| height | 20.0 |
| housing_type | 07-Up Jeep JK Dana 44 |
| last_update | 2021-03-22 10:16:59 |
| length | 65.0 |
| Location | Front |
| LTL | N |
| prop_65_warning | CALIFORNIA WARNING: Cancer and Reproductive Harm -www.P65Warnings.ca.gov |
| sold_as | Each |
| Universal | No |
| vehicle_type | Jeep |
| WARNING CA Proposition 65 | Yes |
| WARNING CA Proposition 65 Message | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |
| weight | 437.58 |
| width | 42.0 |
