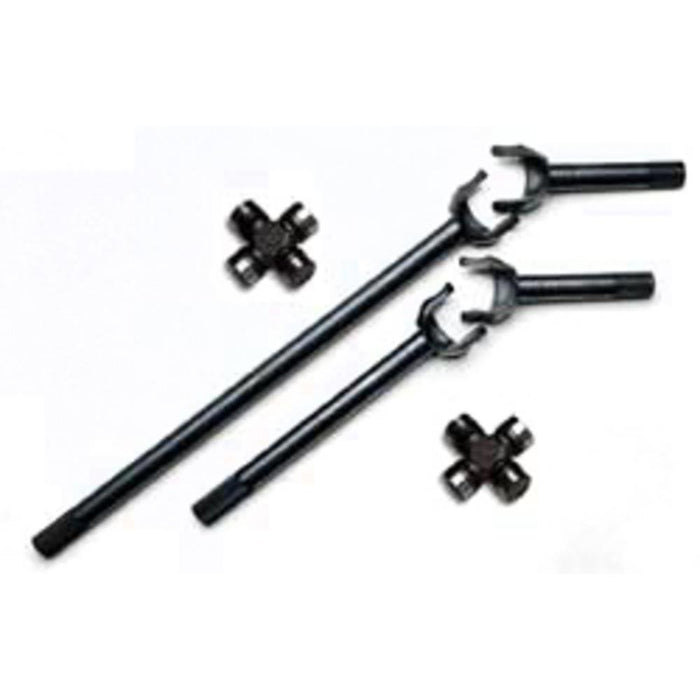

G2 Axle and Gear 98-2034-001 Dana 60 GM Front Axle Kit 35 Spl 77-91 GM K30 G2 Axle and Gear
SKU ds_FCNB_98-2034-001
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$2,250.85
-
Original price
$2,250.85
Original price
$2,250.85
$2,250.85
$2,250.85
-
$2,250.85
Current price
$2,250.85
Availability:
Out of stock
Description
G2 offers a full line of high strength 4340 chrome/nickel (Chromoly) axles designed to handle the punishment of off-road driving, increased loads of oversized tires and the high torque produced by the ultra low geared vehicles. These axles are forged from high tensile strength 4340 alloy with particular attention paid to key weak areas of the original design. Additional material is added to the yoke area surrounding the u-joint cap to prevent distortion leading to damaged bearings.
Details:
- Front Axle Kit
- Dana 60
- 35 Spline
- Uses SPL55-3X Joint
- Machined For Full Circle Snap Rings
- For Use In 1977-1991 GM K30 With Dana 60 Front
- Requires Use Of 35 Spline After Market Locking Hubs Not Included
Specifications
| axle_type | Dana 60 |
| brand_logo | https://www.asapnetwork.org/sites/default/files/brands/icons/G2_Logo_BlackText_CMYK.png |
| Description_DEF | Drive Axle Shaft |
| Description_DES | Dana 60 Axle Assembly |
| Description_DES | Dana 60 GM Front Chromoly Axle Kit |
| Description_EXT | Dana 60 Axle Assembly; Front; Dana 60 Chromoly Kit; 35 Spline; Accepts SPL55-3X U-Joint; LH[Driver Side] and RH[Passenger] Side; |
| Description_FAB | Engineered To Withstand Added Load Of High Torque Applications |
| Description_FAB | Forged From High Grade Alloy Steel |
| Description_FAB | Heat Treated To Exceed OEM Specifications |
| Description_FAB | Remedy The Common Faults Found With Factory Shafts |
| Description_FAB | Uses Spl55-3X Joint |
| Description_INV | D60 AXLE KIT 35 SPLINE |
| Description_LAB | Proposition 65 |
| Description_MKT | G2 Offers A Full Line Of High Strength 4340 Chrome/Nickel (Chromoly) Axles Designed To Handle The Punishment Of Off-Road Driving, Increased Loads Of Oversized Tires And The High Torque Produced By Today'S Ultra Low Geared Vehicles. These Axles Are Forged From High Tensile Strength 4340 Alloy With Particular Attention Paid To Key Weak Areas Of The Original Design. Additional Material Is Added To The Yoke Area Surrounding The U-Joint Cap To Prevent Distortion Leading To Damaged Bearings. |
| Description_MKT | G2 Offers A Full Line Of High Strength 4340 Chrome/Nickel (Chromoly) Axles Designed To Handle The Punishment Of Off-Road Driving, Increased Loads Of Oversized Tires And The High Torque Produced By Today’S Ultra Low Geared Vehicles. These Axles Are Forged From High Tensile Strength 4340 Alloy With Particular Attention Paid To Key Weak Areas Of The Original Design. Additional Material Is Added To The Yoke Area Surrounding The U-Joint Cap To Prevent Distortion Leading To Damaged Bearings. |
| Description_SHO | Axle Assembly |
| height | 7.3 |
| housing_type | Dana 60 |
| last_update | 2021-03-22 10:19:08 |
| length | 37.0 |
| Location | Front |
| LTL | N |
| prop_65_warning | CALIFORNIA WARNING: Cancer and Reproductive Harm -www.P65Warnings.ca.gov |
| sold_as | Kit |
| Universal | No |
| vehicle_type | Truck/SUV |
| weight | 63.0 |
| width | 7.5 |
