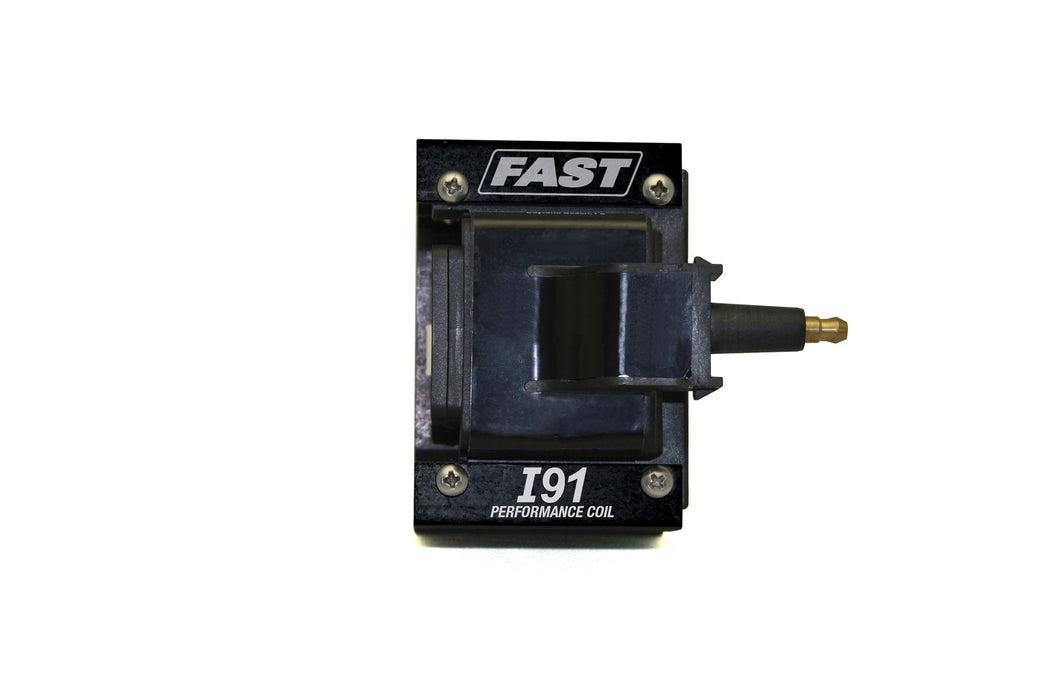

FAST 730-0891 I91 Inductive Ignition Coil
by FAST
SKU ds_DXKP_730-0891
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Original price
$176.13
-
Original price
$176.13
Original price
$176.13
$176.13
$176.13
-
$176.13
Current price
$176.13
Availability:
Only 4 left!
Description
The I91 Coil is designed for use with FAST high output inductive ignition systems such as the I6 Ignition Control or the XR700 and XR3000 Electronic Conversion Systems. The internal design is optimized to produce a long duration spark coupled with higher voltage output making it ideal for street and performance applications.
Resources
Installation InstructionsResources
Installation InstructionsSpecifications
| Ballast Resistor Included | No |
| C.A.R.B. EO Number | D-255-60 |
| C.A.R.B. Exempt? | Yes |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Coil Color | Black |
| Coil Internal Construction | Epoxy |
| Coil Shape | Square |
| Coil Style | E-Core |
| Coil Wire Attachment | Male/HEI |
| Coil Wire Included | No |
| Coil Wire Terminal Quantity | 1 |
| Description_DEF | Ignition Coil |
| Description_DES | I91 Inductive Ignition Coil |
| Description_EXT | The I91 Inductive Coil is designed for use with high output inductive systems such as the I6 or XR-3000 |
| Description_FAB | 50 state legal CARB E.O. D-225-60 |
| Description_FAB | E-core design with closed magnetic path reduces leakage and improves energy transfer to the spark plug, for maximum ignition performance. |
| Description_FAB | High-output E-core coils for race and street |
| Description_FAB | Improved coil wire retention and longer creep path protects against high voltage arcing |
| Description_FAB | Insulated primary connector for enhanced safety with mating connector included |
| Description_FAB | Plastic overmolded core with improved urethane encapsulation material provides protection against severe shock, harsh vibration, and high voltage breakdown by eliminating the exposed E-core |
| Description_FAB | Up to 70% higher energy at the spark plug than stockfor maximum performance, race or street |
| Description_INV | I91 Inductive Coil |
| Description_MKT | The I91 Coil is designed for use with FAST high output inductive ignition systems such as the I6 Ignition Control or the XR700 and XR3000 Electronic Conversion Systems. The internal design is optimized to produce a long duration spark coupled with higher voltage output making it ideal for street and performance applications. |
| Description_SHO | I91 Coil |
| Description_SHP | No |
| Diameter | N/A |
| height | 3 |
| height | 5.0 |
| Leakage Inductance | .23 mH |
| length | 3.0 |
| length | 3.75 |
| LTL | N |
| Maximum Voltage | 47,000 V |
| Meets or Exceeds OEM Specs | Yes |
| Mount Type | Integral |
| Mounting Bracket Included | Yes |
| Mounting Position | Any |
| Oil Filled | No |
| Peak Current | 380 mA |
| Primary Inductance | 4.7 mH |
| Primary Resistance | .40 ohms |
| Quantity | Sold Individually |
| Secondary Inductance | 14.4 H |
| Secondary Resistance | 4.6K ohms |
| Spark Duration | 280 uS |
| Terminal Quantity | 2 |
| Title | The I91 is a great choice for street an performance applications. |
| Turns Ratio | 57:1 |
| weight | 1.25 lbs |
| weight | 1.46 |
| width | 2.5 |
| width | 4.0 |
