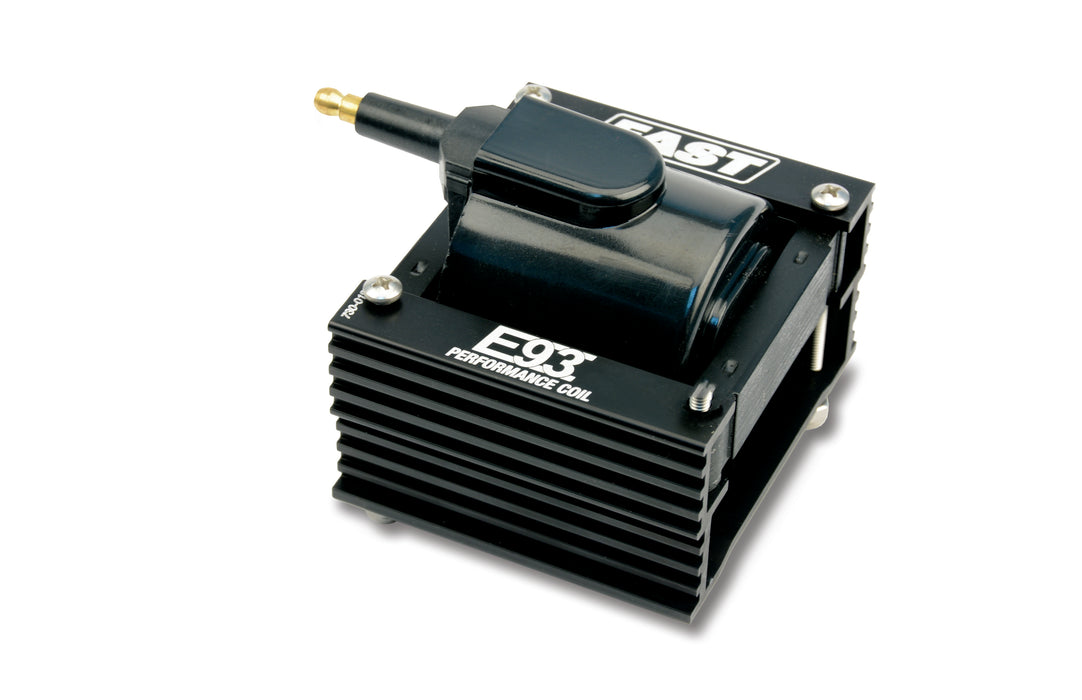

FAST 730-0192 E93 Racing Ignition Coil
by FAST
SKU ds_DXKP_730-0192
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Original price
$161.97
-
Original price
$161.97
Original price
$161.97
$161.97
$161.97
-
$161.97
Current price
$161.97
Availability:
Only 4 left!
Description
When it comes to high compression and cylinder pressures with redline revving RPM, the E93 Coil is the best choice. This coil was engineered from the inside out to handle the needs of race engines. Inside the low profile coil housing is heavy gauge wiring for use on both sets of windings resulting in a highly effective turns ratio of 60:1. The internals are encapsulated in urethane for protection against extreme vibration and abuse from racing environments. The secondary tower is also lengthened to aid in spark isolation and terminal connection.
Resources
Installation InstructionsResources
Installation InstructionsSpecifications
| Ballast Resistor Included | No |
| C.A.R.B. EO Number | D-255-60 |
| C.A.R.B. Exempt? | Yes |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Coil Color | Black |
| Coil Internal Construction | Epoxy |
| Coil Shape | Square |
| Coil Style | E-Core |
| Coil Wire Attachment | Male/HEI |
| Coil Wire Included | No |
| Coil Wire Terminal Quantity | 1 |
| Description_ASC | Primary Inductance: 1.9mH, Turns Ratio: 60:1 |
| Description_ASC | Primary Resistance: .20 Ohms |
| Description_ASC | Secondary Resistance: .82Kohms |
| Description_DEF | Ignition Coil |
| Description_DES | E93 Racing Ignition Coil |
| Description_EXT | E93 Racing Coil is designed for use with E7 Ignition Control or E6 Ignitions in Racing Applications. |
| Description_INV | E93 Racing Coil |
| Description_MKT | When it comes to high compression and cylinder pressures with redline revving RPM, the E93 Coil is the best choice. This coil was engineered from the inside out to handle the needs of race engines. Inside the low profile coil housing is heavy gauge wiring for use on both sets of windings resulting in a highly effective turns ratio of 60:1. The internals are encapsulated in urethane for protection against extreme vibration and abuse from racing environments. The secondary tower is also lengthened to aid in spark isolation and terminal connection. |
| Description_SHO | E93 Coil |
| Description_SHP | No |
| Diameter | N/A |
| height | 3.25 |
| height | 4.5 |
| Leakage Inductance | .14 mH |
| length | 4.25 |
| length | 6.75 |
| Maximum Voltage | 50,000 V |
| Meets or Exceeds OEM Specs | Yes |
| Mount Type | Integral |
| Mounting Bracket Included | Yes |
| Mounting Position | Any |
| Oil Filled | No |
| Peak Current | 615 mA |
| Primary Inductance | 1.9 mH |
| Primary Resistance | .20 ohms |
| Quantity | Sold Individually |
| Secondary Inductance | 6.8 H |
| Secondary Resistance | 820 ohms |
| Spark Duration | 245 uS |
| Terminal Quantity | 2 |
| Title | E93 Racing Coil |
| Turns Ratio | 60:1 |
| weight | 2.13 lbs |
| weight | 2.25 |
| width | 3.5 |
| width | 3.75 |
