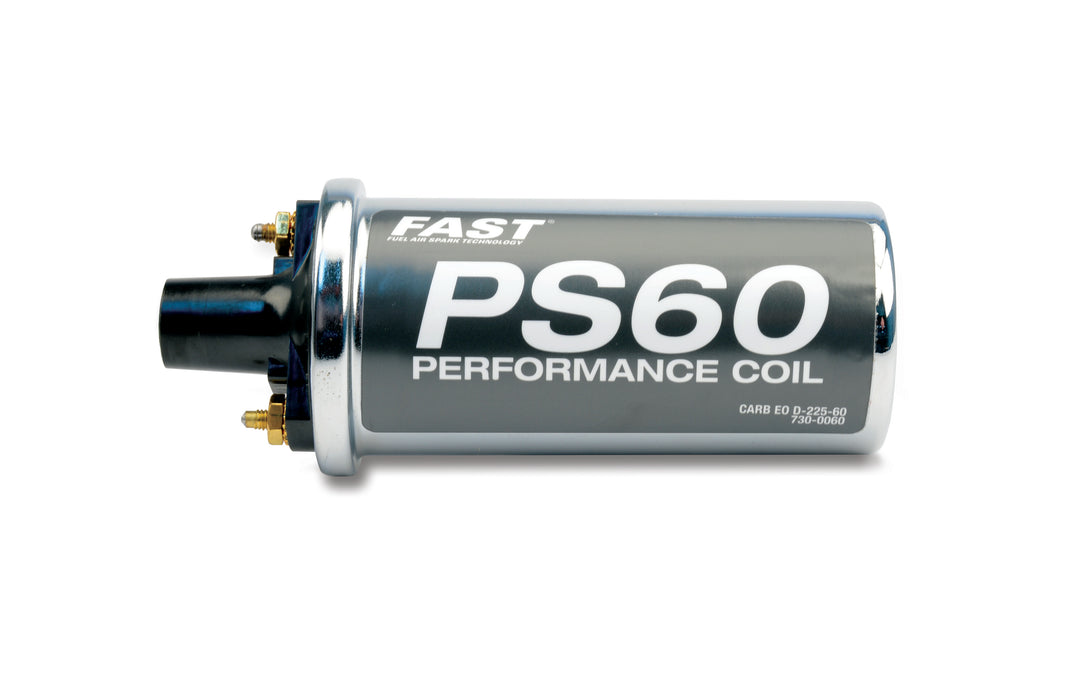

FAST 730-0060 PS60 Performance Canister Ignition Coil
by FAST
SKU ds_DXKP_730-0060
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Original price
$129.88
-
Original price
$129.88
Original price
$129.88
$129.88
$129.88
-
$129.88
Current price
$129.88
Availability:
Only 1 left!
Description
The PS50 and PS60 Coils are ideal for street cars packing a little more power and are running a FAST 6I Ignition, XR700 or 3000 Breakerless Conversion Ssystem or the E6 CD Ignition Controls. These coils feature lower resistance windings to ensure the most voltage possible is brought into the coil with an optimized turns ratio for the best output. This combination is ideal for engines that endure higher RPM and performance such as circle track, road racing and off-road racing. The coils are filled with oil for optimum cooling are housed in a sturdy steel canister that can handle the abuse of racing. They?re topped off with an alkyd molded top and brass, screw-type terminals.
Resources
Installation InstructionsResources
Installation InstructionsSpecifications
| Ballast Resistor Included | No |
| C.A.R.B. EO Number | D-225-60 |
| C.A.R.B. Exempt? | Yes |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Coil Color | Nickel Plated |
| Coil Internal Construction | Oil-Filled |
| Coil Shape | Round |
| Coil Style | Canister |
| Coil Wire Attachment | Female/Socket |
| Coil Wire Included | No |
| Coil Wire Terminal Quantity | 1 |
| Description_ASC | The PS50 and PS60 Coils are ideal for street cars packing a little more power and are running a FAST 6I Ignition, XR700 or 3000 Breakerless Conversion Ssystem or the E6 CD Ignition Controls. |
| Description_DEF | Ignition Coil |
| Description_DES | PS60 Performance Canister Ignition Coil |
| Description_EXT | Nickel Plated |
| Description_INV | PS60 Coil |
| Description_MKT | The PS50 and PS60 Coils are ideal for street cars packing a little more power and are running a FAST 6I Ignition, XR700 or 3000 Breakerless Conversion Ssystem or the E6 CD Ignition Controls. These coils feature lower resistance windings to ensure the most voltage possible is brought into the coil with an optimized turns ratio for the best output. This combination is ideal for engines that endure higher RPM and performance such as circle track, road racing and off-road racing. The coils are filled with oil for optimum cooling are housed in a sturdy steel canister that can handle the abuse of racing. They?re topped off with an alkyd molded top and brass, screw-type terminals. |
| Description_SHO | PS60 Coil |
| Description_SHP | No |
| Diameter | 2.125 |
| height | 5.75 |
| height | 8.5 |
| Leakage Inductance | .5 mH |
| length | 2.75 |
| LTL | N |
| Maximum Voltage | 47,000 V |
| Meets or Exceeds OEM Specs | Yes |
| Mount Type | Bracket |
| Mounting Bracket Included | No |
| Mounting Position | Upright |
| Oil Filled | Yes |
| Peak Current | 160 mA |
| Primary Inductance | 5.3 mH |
| Primary Resistance | .40 ohms |
| Quantity | Sold Individually |
| Secondary Inductance | 15 H |
| Secondary Resistance | 3.8K ohms |
| Spark Duration | 385 uS |
| Terminal Quantity | 2 |
| Title | PS60 Performance Coil |
| Turns Ratio | 54:1 |
| weight | 1.75 lbs |
| weight | 1.8 |
| width | 3.25 |
