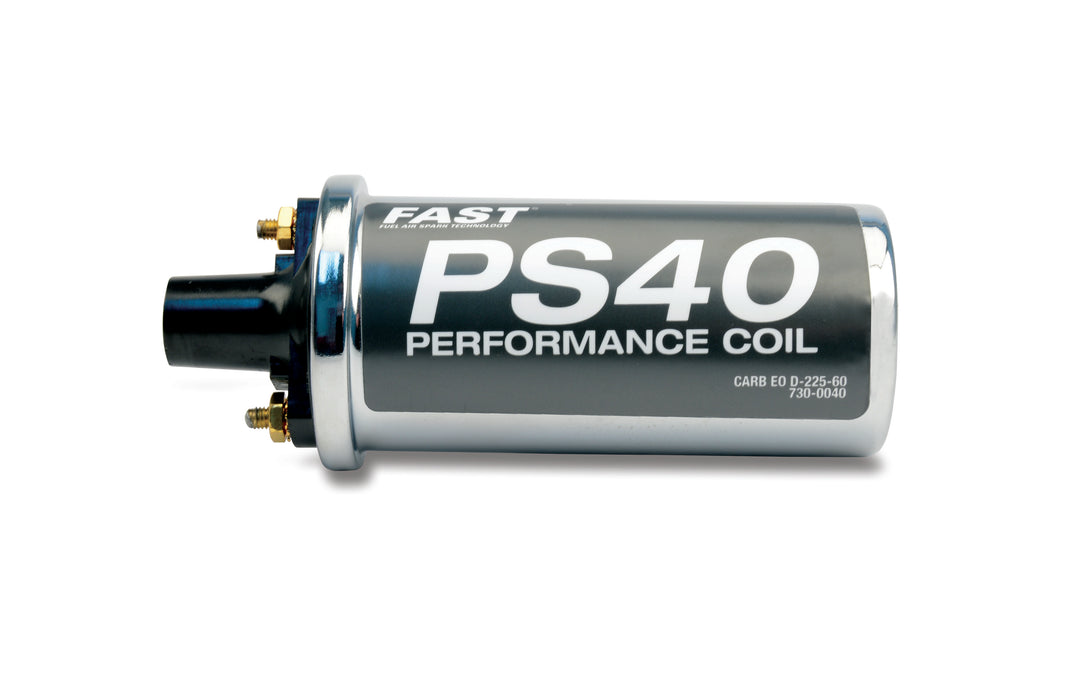

FAST 730-0040 PS40 Premium Canister Street Ignition Coil
by FAST
SKU ds_DXKP_730-0040
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Original price
$123.13
-
Original price
$123.13
Original price
$123.13
$123.13
$123.13
-
$123.13
Current price
$123.13
Availability:
Only 2 left!
Description
The PS20 and PS40 Coils are designed to enhance the output of factory ignition systems. They fit in place of most OEM canister coils, and thanks to their lower resistance and optimized turns ratio, will produce a higher output spark when used with breaker points, amplified ignitions or with the FAST XR-I Points Replacement system. These coils will reliably deliver a high output spark through 6,500 RPM on mild street performance applications and are oil filled to keep the windings cool. Both coils are supplied with a ballast resistor which is required if you plan to fire up your original breaker point style ignition system.
Resources
Installation InstructionsResources
Installation InstructionsSpecifications
| Ballast Resistor Included | Yes |
| C.A.R.B. EO Number | D-225-60 |
| C.A.R.B. Exempt? | Yes |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Coil Color | Nickel Plated |
| Coil Internal Construction | Oil-Filled |
| Coil Shape | Round |
| Coil Style | Canister |
| Coil Wire Attachment | Female/Socket |
| Coil Wire Included | No |
| Coil Wire Terminal Quantity | 1 |
| Description_DEF | Ignition Coil |
| Description_DES | PS40 Premium Canister Street Ignition Coil |
| Description_EXT | Nickel Plated |
| Description_FAB | 20-50% higher energy at spark plug than typical stockcoils |
| Description_FAB | 50 state legal CARB E.O. D-225-60 |
| Description_FAB | Alkyd coil towers eliminate failure from flash over and carbon tracking. |
| Description_FAB | Black |
| Description_FAB | Oil filled for maximum cooling of internal windings and high reliability |
| Description_FAB | PS20 Canister Style coil |
| Description_FAB | Windings optimized with computer aided design for maximum spark gap current and high available voltage |
| Description_INV | PS40 Street Coil |
| Description_MKT | The PS20 and PS40 Coils are designed to enhance the output of factory ignition systems. They fit in place of most OEM canister coils, and thanks to their lower resistance and optimized turns ratio, will produce a higher output spark when used with breaker points, amplified ignitions or with the FAST XR-I Points Replacement system. These coils will reliably deliver a high output spark through 6,500 RPM on mild street performance applications and are oil filled to keep the windings cool. Both coils are supplied with a ballast resistor which is required if you plan to fire up your original breaker point style ignition system. |
| Description_SHO | PS40 Coil |
| Description_SHP | No |
| Diameter | 2.125 |
| height | 5.75 |
| height | 8.5 |
| Leakage Inductance | 1.3 mH |
| length | 2.75 |
| LTL | N |
| Maximum Voltage | 46,000 V |
| Meets or Exceeds OEM Specs | Yes |
| Mount Type | Bracket |
| Mounting Bracket Included | No |
| Mounting Position | Upright |
| Oil Filled | Yes |
| Peak Current | 145 mA |
| Primary Inductance | 7.5 mH |
| Primary Resistance | 1.4 ohms |
| Quantity | Sold Individually |
| Secondary Inductance | 26 H |
| Secondary Resistance | 5.2K ohms |
| Spark Duration | 385 uS |
| Terminal Quantity | 2 |
| Title | PS40 Premium Street Coil |
| Turns Ratio | 60:1 |
| weight | 1.74 |
| weight | 1.75 lbs |
| width | 3.25 |
