FAST 308250 The E92 features the more efficient E-Core Construction
by FAST
SKU ds_DXKP_308250
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Original price
$200.23
-
Original price
$200.23
Original price
$200.23
$200.23
$200.23
-
$200.23
Current price
$200.23
Availability:
Only 2 left!
Description

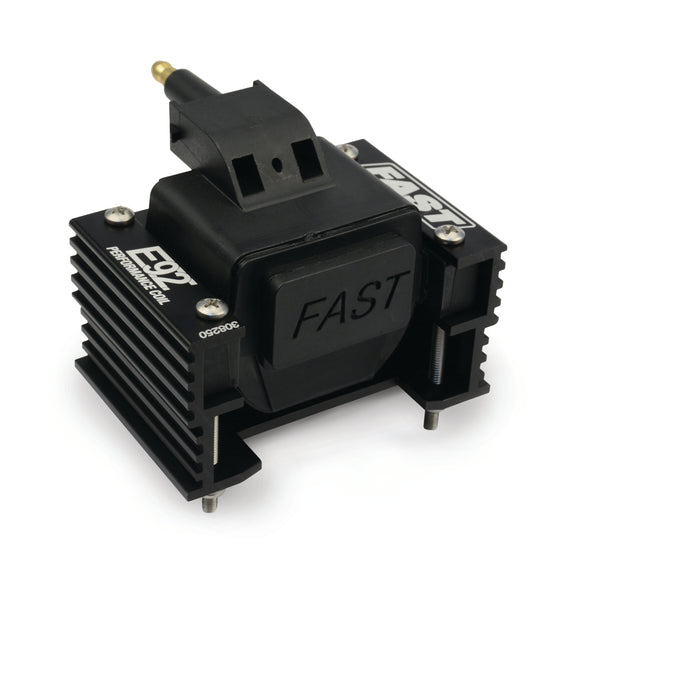

The E92 Coil was designed for high performance street engines running an E6-series Ignition Control. The efficient E-core construction provides a secure housing that can handle the rigors of street and performance use while producing a high output spark. The extruded metal housing provides a durable mount and acts as an effective heat sink as well.
Resources
Installation InstructionsResources
Installation InstructionsSpecifications
| Ballast Resistor Included | No |
| C.A.R.B. EO Number | D-255-60 |
| C.A.R.B. Exempt? | Yes |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Coil Color | Black |
| Coil Internal Construction | Epoxy |
| Coil Shape | Square |
| Coil Style | E-Core |
| Coil Wire Attachment | Male/HEI |
| Coil Wire Included | No |
| Coil Wire Terminal Quantity | 1 |
| Description_ASC | 50 state legal CARB E.O. D-225-60 |
| Description_ASC | E-core design with closed magnetic path reduces leakage and improves energy transfer to the spark plug, for maximum ignition performance. |
| Description_ASC | High-output E-core coils for race and street |
| Description_ASC | Improved coil wire retention and longer creep path protects against high voltage arcing |
| Description_ASC | Insulated primary connector for enhanced safety with mating connector included |
| Description_ASC | Plastic overmolded core with improved urethane encapsulation material provides protection against severe shock, harsh vibration, and high voltage breakdown by eliminating the exposed E-core |
| Description_ASC | Primary inductance 1.9mH, secondary inductance 6.8 mH |
| Description_ASC | Primary resistance .20 ohms, secondary resistance .82 ohms |
| Description_ASC | Up to 70% higher energy at the spark plug than stock for maximum performance, race or street |
| Description_DEF | Ignition Coil |
| Description_DES | E92 Performance/Street Ignition Coil |
| Description_DES | I91/E92 Coil harness |
| Description_EXT | The E92 features the more efficient E-Core Construction |
| Description_INV | E92 Street Coil |
| Description_MKT | The E92 Coil was designed for high performance street engines running an E6-series Ignition Control. The efficient E-core construction provides a secure housing that can handle the rigors of street and performance use while producing a high output spark. The extruded metal housing provides a durable mount and acts as an effective heat sink as well. |
| Description_SHO | E92 Coil |
| Description_SHP | No |
| height | 3 |
| height | 3.4 |
| Leakage Inductance | .14 mH |
| length | 3.75 |
| length | 5.9 |
| LTL | N |
| Maximum Voltage | 48,500 V |
| Meets or Exceeds OEM Specs | Yes |
| Mount Type | Integral |
| Mounting Bracket Included | Yes |
| Mounting Position | Any |
| Oil Filled | No |
| Peak Current | 510 mA |
| Primary Inductance | 1.7 mH |
| Primary Resistance | .23 ohms |
| Quantity | Sold Individually |
| Secondary Inductance | 5.5 H |
| Secondary Resistance | 920 ohms |
| Spark Duration | 245 uS |
| Terminal Quantity | 2 |
| Title | E92 Performance Coil |
| Turns Ratio | 60:1 |
| weight | 1.25 lbs |
| weight | 1.499 |
| width | 2.5 |
| width | 4.1 |
