FAST 307224 E7 CD Ignition + E93 Racing Coil Ignition Kit
by FAST
SKU ds_DXKP_307224
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$1,510.05
-
Original price
$1,510.05
Original price
$1,510.05
$1,510.05
$1,510.05
-
$1,510.05
Current price
$1,510.05
Availability:
Out of stock
Description

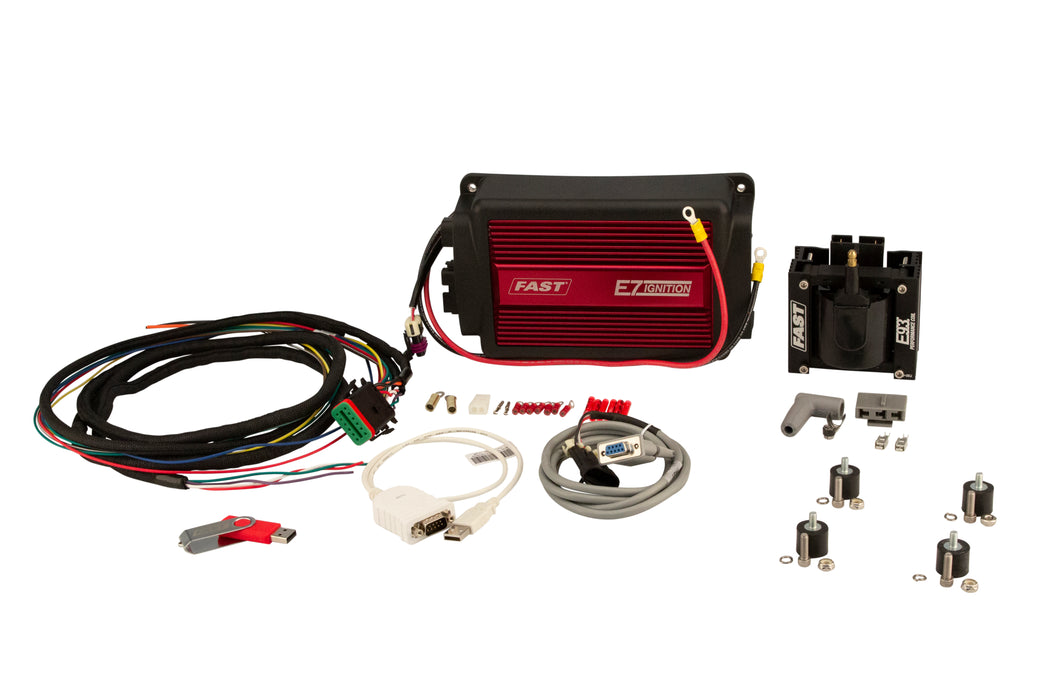

Including both the E7 CD box and an E93 ignition coil, this kit is capable of handling high compression, boosted and nitrous engines, eliminating the guesswork in selecting the right CD box and coil for your race car.
Resources
Installation InstructionsSpecifications
| C.A.R.B. EO Number | N/A |
| C.A.R.B. Exempt? | No |
| Coil Height | 3.25 |
| Coil Length | 4.25 |
| Coil Width | 3.5 |
| Coil Wire Included | No |
| Current Draw | 1 Amp per 1,000 RPM |
| Description_ASC | Includes our 307222 E7 CD Ignition and our 730-0192 E93 E-Coil Racing Coil |
| Description_ASC | See 307222-KIT for a kit that includes our E7 CD Ignition, E93 Coil and a Mounting Kit. |
| Description_ASM | Universal |
| Description_DEF | Ignition Kit |
| Description_DES | E7 CD Ignition + E93 Racing Coil Ignition Kit |
| Description_EXT | Including both the E7 CD box and an E93 ignition coil, this kit is capable of handling high compression, boosted and nitrous engines, eliminating the guesswork in selecting the right CD box and coil for your race car. |
| Description_FAB | Accurate and smooth sequential rev limiters for overrev and starting line RPM |
| Description_FAB | Advanced digital technology produces timing accuracy within ± .5 degrees. |
| Description_FAB | Built-in 20 degree start retard eases cranking and start up |
| Description_FAB | Completely encased in soft urethane for protection against moisture and vibration |
| Description_FAB | High energy sparks to handle extreme compression, boost or nitrous |
| Description_FAB | Multi-strike spark series below 3,000 RPM for clean low RPM operation |
| Description_FAB | The E93 coil was engineered to handle race engines: urethane encapsulation ensures protection against extreme vibration and abuse. |
| Description_INV | E7 + E93 Ignition Kit |
| Description_KEY | ignition system, ignition kit |

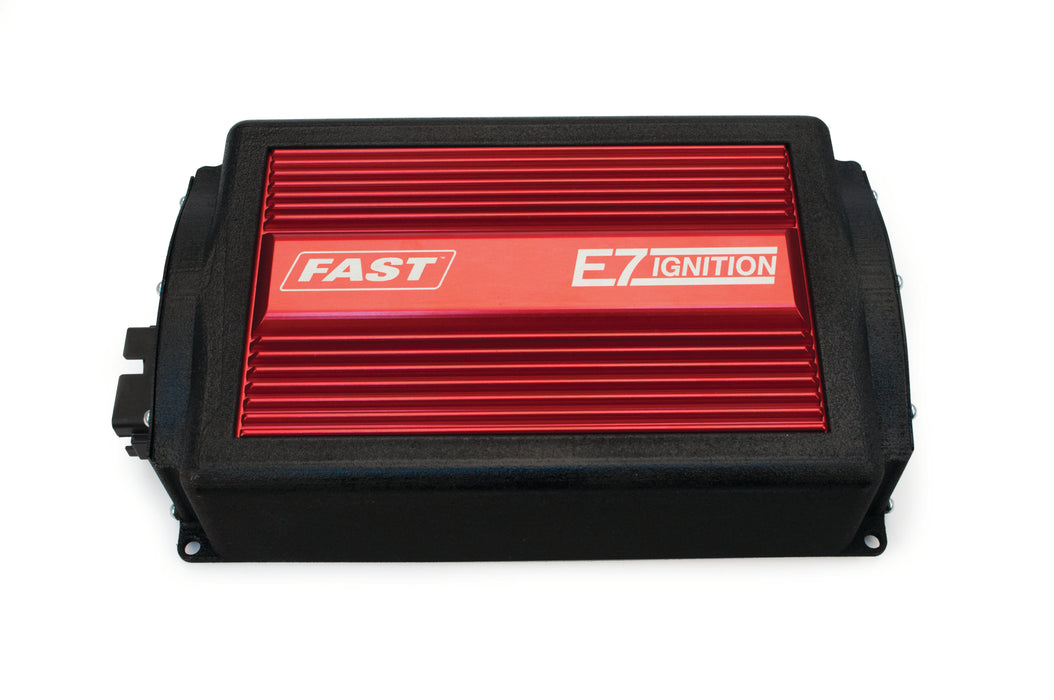

| Description_SHO | E7 CD Box |
| Description_SHO | E7+E93Kit |

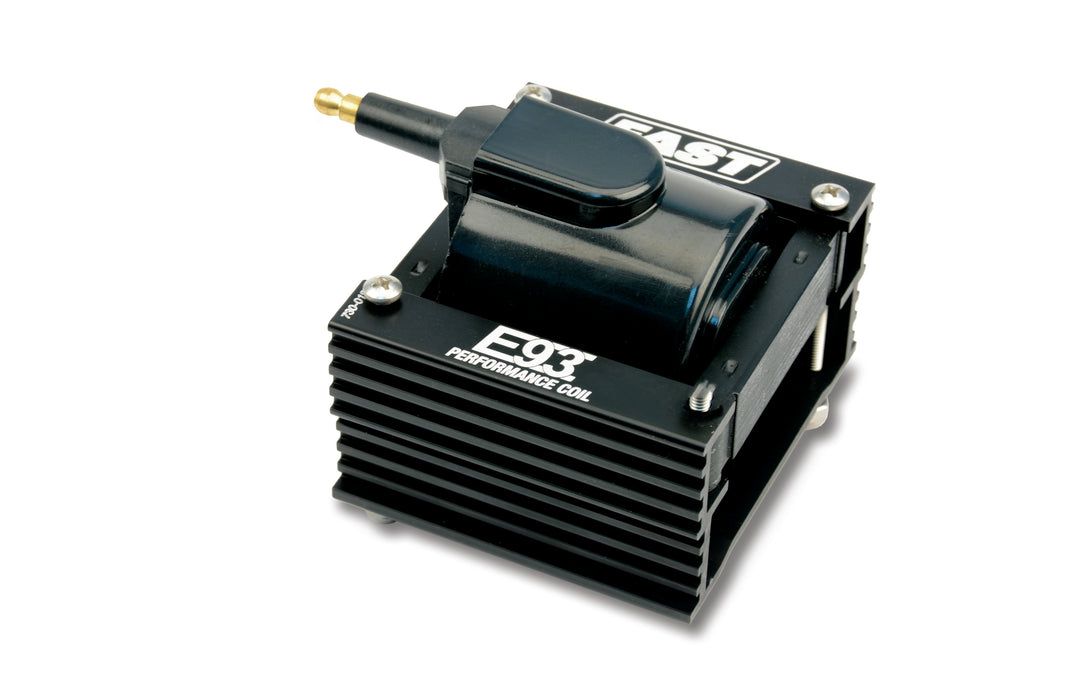

| Description_SHO | E93 Coil |
| Description_SHP | No |
| Grade Type | Performance |
| Hall-Effect Compatible? | Only compatible with aftermarket crank trigger pickup |
| height | 9.0 |
| Ignition Box Height | 2.2 |
| Ignition Box Length | 8.3 |
| Ignition Box Width | 6.3 |
| Instruction Manual Included | Yes |
| IPU Compatible? | Yes |
| Leakage Inductance | 6.8 |
| length | 19.0 |
| Limiter Accuracy | 30 |
| Limiter Range | 100-12,000 |
| Limiter RPM Increment | 100 |
| Limiter Type | Sequential |
| LTL | N |
| Maximum RPM | 12000 |
| Maximum Voltage | 50000 |
| Minimum Operating Voltage | 10 |
| Mounting Hardware Included | Yes |
| Mounting Tray Included? | No |
| Multi-Strike Duration (Crankshaft Rotation) | 20 |
| Operating Range | 12,000+ |
| Operating Voltage | 10-20 |
| Peak Spark Gap Current | 510 |
| Primary Energy Output | 160 |
| Primary Inductance | 1.9 |
| Primary Resistance | 0.2 |
| Primary Voltage Output | 450 |
| Rev Limiter Included | Yes |
| Secondary Resistance | 0.82 |
| Software Included? | Yes |
| Timing Accuracy | 0.5 |
| Timing Retard Stages | 1 |
| Title | E7 CD Ignition + E93 Racing Coil Ignition Kit |
| Trigger Type | Points & Mag |
| Turns Ratio | 0.14 |
| weight | 9.5 |
| width | 8.5 |
