FAST 30367 XIM XR-1A H.O. Ignition Coil Harness for Ford 4.6/5.4 Modular and 5.0 Coyote
by FAST
SKU ds_DXKP_30367
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$450.68
-
Original price
$450.68
Original price
$450.68
$450.68
$450.68
-
$450.68
Current price
$450.68
Availability:
Out of stock
Description

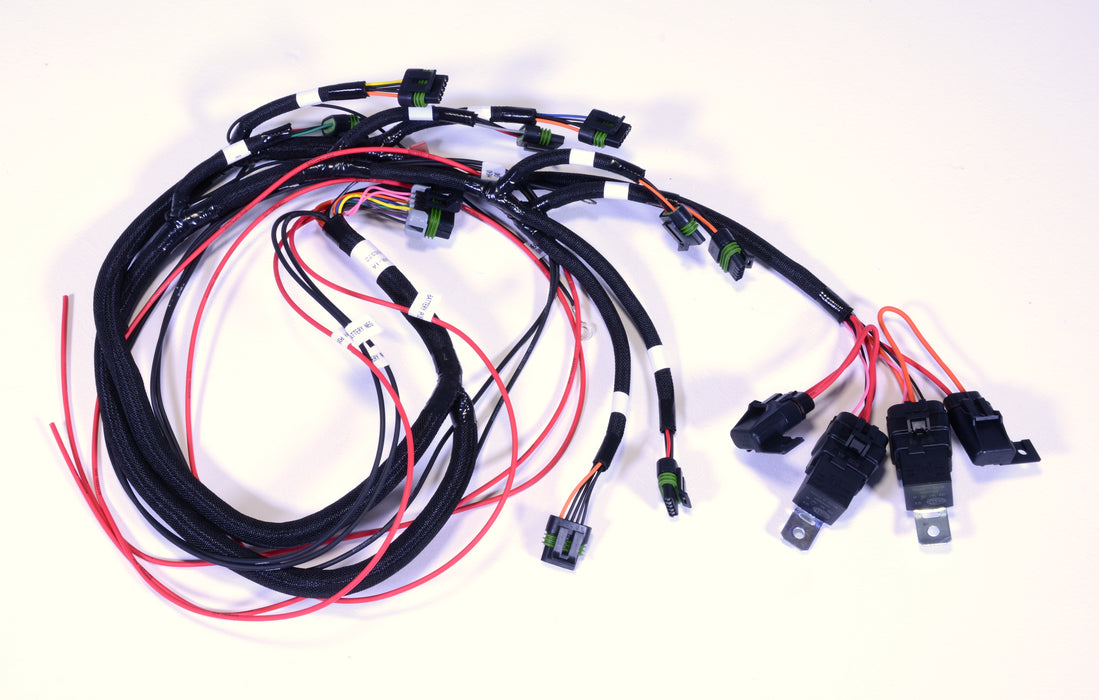

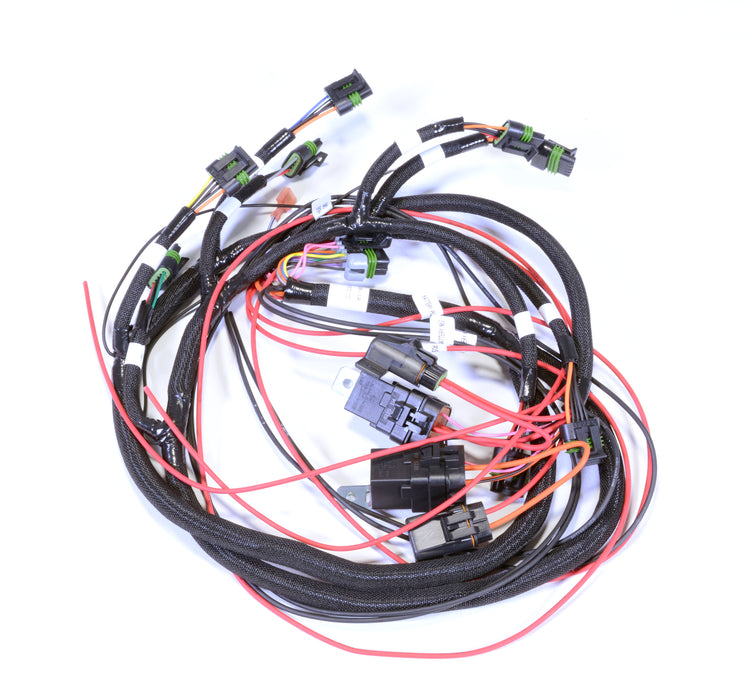

XR-1A High Output Ignition Coils from FAST are great for Ford racers, as the factory option is not ideal for engines with high cylinder pressures. However, these aftermarket coils can be difficult to wire thanks to the complexities of the Ford engine. The new XR-1A High-Output Ignition Coil Harness is pre-made to simplify the XR-1A coils on a Ford Mod or Coyote engine that utilizes FAST XIM ignition control module. The harness features a pair of fuses and relays, along with heavy gauge wire to support the high current demand of XR-1A coils. It is also designed with extra length to accommodate coils that are mounted on or near the cylinder heads or remote-mounted off the engine.
Resources
Installation InstructionsSpecifications
| C.A.R.B. EO Number | N/A |
| C.A.R.B. Exempt? | No |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm P65Warnings. ca.gov |
| Description_ASC | Designed for use with our XR-1A High Output Ignition Coils. These coils are available without connectors under 30260-1 and 30260-8 or with connectors under 30260-T1 and 30260-T8. |
| Description_ASM | Ford 4.6/5.4 Modular and Ford 5.0 Coyote Engines. |
| Description_DEF | Direct Ignition Coil Harness |
| Description_DES | XIM XR-1A H.O. Ignition Coil Harness for Ford 4.6/5.4 Modular and 5.0 Coyote |
| Description_EXT | Designed for Ford 4.6/5.4 Modular and 5.0 Coyote engines, this harness allows for the convenient installation of our H.O. XR-1A ignition coils. Eliminating the need for custom fabrication, this unit is plug and play with FAST XFI and XIM. |
| Description_FAB | Allows easy upgrade to FAST XR-1A High-Output Coils when using XFI/XIM engine control |
| Description_FAB | Can easily be reconfigured to work with a variety of engines & firing orders |
| Description_FAB | Uses two heavy-duty, 30-amp relays & fuses plus heavy-gauge power & ground leads required for peak performance |
| Description_INV | Ford Modular/Coyote XR-1A Coil Harness |
| Description_MKT | XR-1A High Output Ignition Coils from FAST are great for Ford racers, as the factory option is not ideal for engines with high cylinder pressures. However, these aftermarket coils can be difficult to wire thanks to the complexities of the Ford engine. The new XR-1A High-Output Ignition Coil Harness is pre-made to simplify the XR-1A coils on a Ford Mod or Coyote engine that utilizes FAST XIM ignition control module. The harness features a pair of fuses and relays, along with heavy gauge wire to support the high current demand of XR-1A coils. It is also designed with extra length to accommodate coils that are mounted on or near the cylinder heads or remote-mounted off the engine. |
| Description_SHO | CoyoteModulrCoilHrns |
| Description_SHP | No |
| height | 2.3 |
| length | 13.7 |
| Relay Amperage | 30 |
| Title | XIM XR-1A H.O. Ignition Coil Harness for Ford 4.6/5.4 Modular and 5.0 Coyote |
| weight | 2.45 |
| width | 9.8 |
