FAST 3035351-05 XFI 2.0 Ford Windsor EFI Kit w/ Red Throttle Body and 550 HP Pump
by FAST
SKU ds_DXKP_3035351-05
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$6,463.06
-
Original price
$6,463.06
Original price
$6,463.06
$6,463.06
$6,463.06
-
$6,463.06
Current price
$6,463.06
Availability:
Out of stock
Description

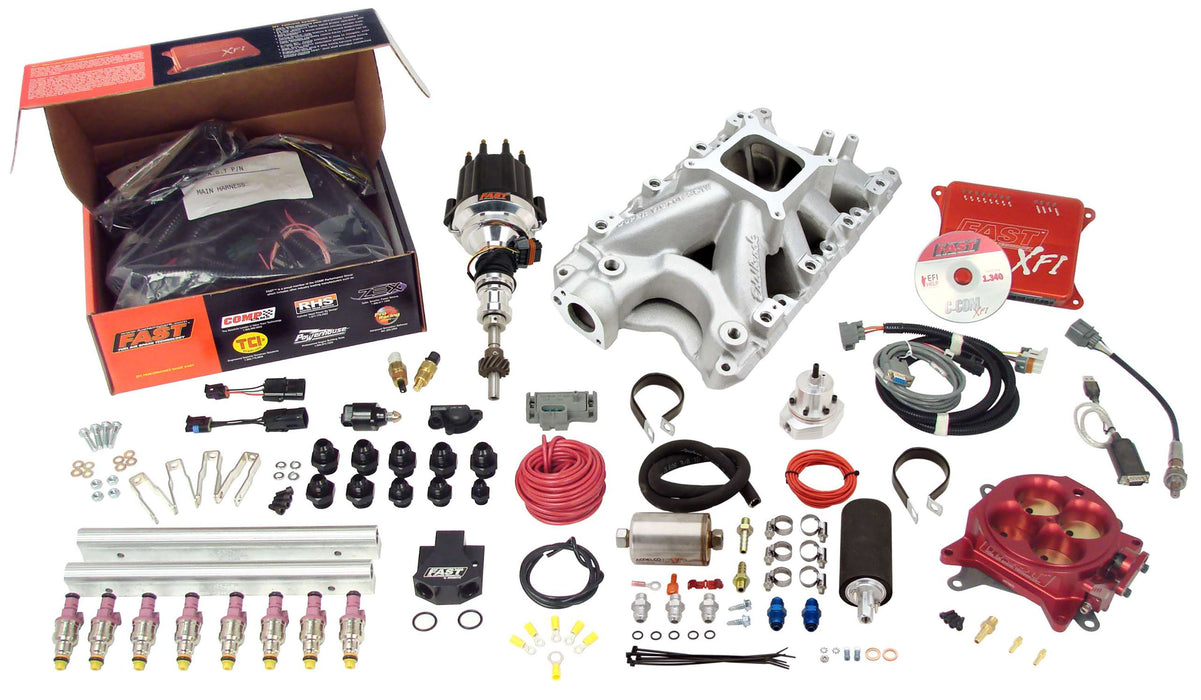

FAST now offers bolt-on XFI 2.0 Kits to install fully sequential EFI on Small and Big Block Chevy and Small Block Ford engines from mild street rods to 1,000 HP all-out race cars. XFI 2.0 Fuel Injection Kits include carefully matched components, including the XFI 2.0, Dual-Sync Distributor, a single plane aluminum intake manifold, 4 barrel throttle body, proper size Precision-Flow Fuel Injectors, aluminum fuel rails, fuel pump kit, all necessary sensors and professional quality wiring harnesses with labeled connectors.
Resources
Installation InstructionsResources
Installation InstructionsSpecifications
| Able to Control Boost? | Yes |
| Able to control ignition timing? | Yes |
| Boost Compatible? | Yes |
| C.A.R.B. EO Number | N/A |
| C.A.R.B. Exempt? | No |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Can Support Internal Datalogging? | Yes |
| Compatible w/ E85 Fuel | Yes |
| Compatible w/ Returnless Fuel System? | Yes |
| Description_DEF | Fuel Injection System |
| Description_DES | 1 Bar Map Sensor with 3 Weatherpack Female Terminals |
| Description_DES | 8 SAE O-Ring to 8 AN |
| Description_DES | 8 SAE O-Ring AN to 6AN |
| Description_DES | Coolant Temperature Sensor |
| Description_DES | Ford Windsor Open Plenum 4150 Flange Intake Manifold |
| Description_DES | Fuel Rail Kit for 3031302/3035351 |
| Description_DES | Inline Fuel Pump Kit |
| Description_DES | Intake Air Temperature Sensor |
| Description_DES | LS1 Type 36 Lb/Hr High Impedance Injector |
| Description_DES | Red 4150 Flange Air Only Throttle Body for Multiport Injection EFI Systems |
| Description_DES | XDi Windsor Distributor |
| Description_DES | XFI 2.0 ECU w/ O2 Sensor/Harness and Flash Drive |
| Description_DES | XFI 2.0 Ford Windsor EFI Kit w/ Red Throttle Body and 550 HP Pump |
| Description_DES | XFI Fuel Inector Harness for Ford Modular Series engines. |
| Description_DES | XFI Harness designed for engines whose sensors feature GM LT1 style sensors. |
| Description_EXT | This XFI 2.0 Kit comes with intake, fuel rails, injectors, air-only throttle body, inline fuel pump kit (500 HP) along with a fuel pressure regulator, dual sync distributor and XFI 2.0 ECU. |
| Description_INV | XFI 2.0 Windsor Red 550 HP |
| Description_MKT | FAST now offers bolt-on XFI 2.0 Kits to install fully sequential EFI on Small and Big Block Chevy and Small Block Ford engines from mild street rods to 1,000 HP all-out race cars. XFI 2.0 Fuel Injection Kits include carefully matched components, including the XFI 2.0, Dual-Sync Distributor, a single plane aluminum intake manifold, 4 barrel throttle body, proper size Precision-Flow Fuel Injectors, aluminum fuel rails, fuel pump kit, all necessary sensors and professional quality wiring harnesses with labeled connectors. |
| Description_SHO | XFI2.0WindsorRed550 |
| Description_SHP | No |
| Fuel Injection Series | XFI 2.0 |
| height | 16.25 |
| Individual Cylinder Corrections? | Yes |
| Injection Type | Multi-Port |
| Knock Retard Compatibility? | Yes |
| Laptop Datalogging Support | Yes |
| length | 31.5 |
| LTL | N |
| Nitrous Compatible? | Yes |
| Requires Separate Personal Computer? | Yes |
| Title | XFI Windsor Kit with 500HP Pump |
| Uses Fuel Pressure Sensor? | Yes |
| weight | 55.0 |
| width | 24.0 |
