FAST 302003L EZ-EFI Fuel + XIM + LSXRT Manifold + Big Mouth Throttle Body + Inline Pump Kit
by FAST
SKU ds_DXKP_302003L
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$7,607.50
-
Original price
$7,607.50
Original price
$7,607.50
$7,607.50
$7,607.50
-
$7,607.50
Current price
$7,607.50
Availability:
Out of stock
Description

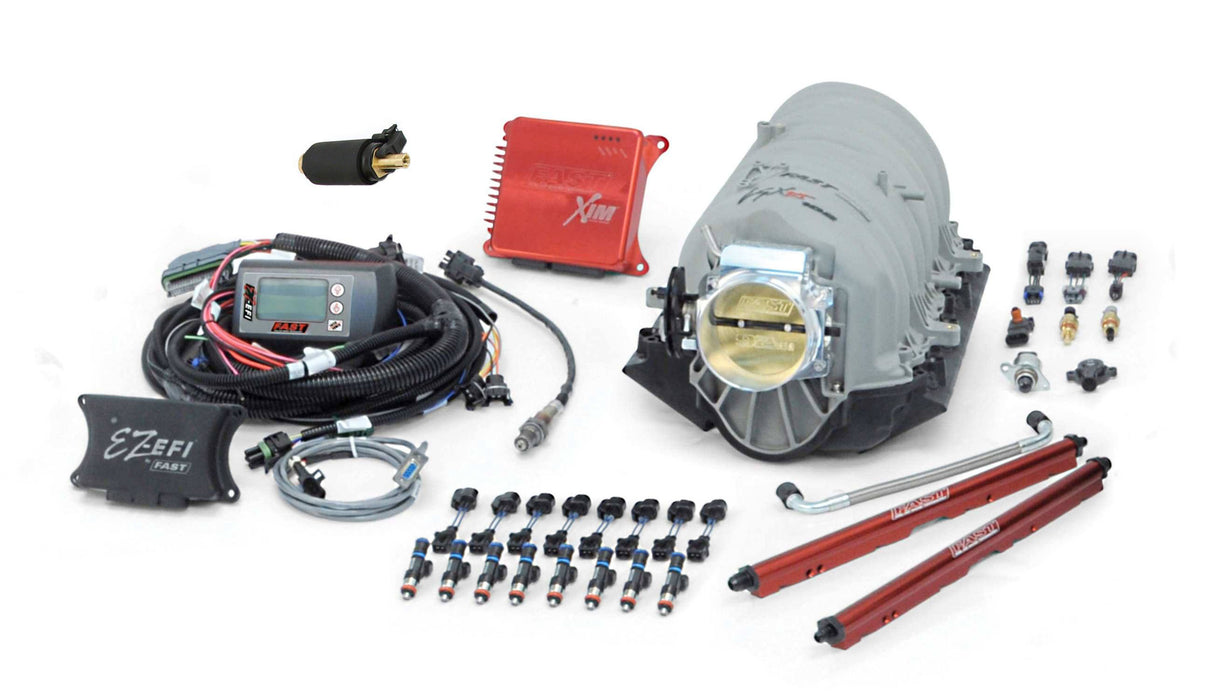

Bolt FAST EZ-EFI technology onto your LS engine with a FAST EZ-EFI Engine + Manifold Kit. Including our FAST EZ-EFI Fuel ECU and Multiport Harness, an LSXRT manifold, Big Mouth Throttle Body, billet fuel rails, Precision Flow fuel injectors, inline fuel pump and an XIM ignition control system, this is the most complete EFI induction solution for your LS project.
Resources
Installation InstructionsResources
Installation InstructionsSpecifications
| Able to Control Boost? | No |
| Able to control ignition timing? | No |
| Boost Compatible? | No |
| C.A.R.B. EO Number | N/A |
| C.A.R.B. Exempt? | No |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Can Support Internal Datalogging? | No |
| Compatible w/ E85 Fuel | No |
| Compatible w/ Returnless Fuel System? | No |
| Description_DEF | Fuel Injection System |
| Description_DES | 1 BAR Map Sensor for EZ 2.0 |
| Description_DES | Big Mouth 92mm Billet Throttle Body w/o TPS or IAC |
| Description_DES | Coolant Temperature Sensor |
| Description_DES | EFI Hose and Hardware Kit |
| Description_DES | EZ-EFI Fuel + XIM + LSXRT Manifold + Big Mouth Throttle Body + Inline Pump Kit |
| Description_DES | FAST LS2 Type 33 Lb/Hr High Impedance Injector |
| Description_DES | Fuel Crossover Line |
| Description_DES | Fuel Rail Kit for LSXRT 102mm Truck Manifolds (LS2 Height Injector) |
| Description_DES | Inline Fuel Pump Kit for EZ 1.0 |
| Description_DES | Intake Air Temperature Sensor |
| Description_DES | LS Series Idle Air Control Valve |
| Description_DES | LSXRT 102mm Cathedral Port Intake Manifold |
| Description_DES | Multiport Retrofit Kit with EZ 1.0 Computer and Push-Button Hand-Held |
| Description_DES | New IAC to Old Harness Adapter |
| Description_DES | Pigtail to adapt new MAP sensor to old harness |
| Description_DES | TPS Adapter Harness LS Sensor to Old Harness |
| Description_DES | XIM Kit for GM LS2/LS3/LS7 |
| Description_EXT | Including our EZ-EFI, XIM Ignition Control, LSXRT Manifold, Big Mouth Throttle Body and inline fuel pump, this kit includes everything needed to bolt modern FAST EFI technology onto your LS engine and also control the ignition system. |
| Description_INV | LS EZ-EFI, XIM, Manifold & Inline Pump |
| Description_MKT | Bolt FAST EZ-EFI technology onto your LS engine with a FAST EZ-EFI Engine + Manifold Kit. Including our FAST EZ-EFI Fuel ECU and Multiport Harness, an LSXRT manifold, Big Mouth Throttle Body, billet fuel rails, Precision Flow fuel injectors, inline fuel pump and an XIM ignition control system, this is the most complete EFI induction solution for your LS project. |
| Description_SHO | EZ-EFI, XIM,PumpMani |
| Description_SHP | No |
| Fuel Injection Series | EZ-EFI Fuel |
| height | 28.0 |
| Individual Cylinder Corrections? | No |
| Injection Type | Multi-Port |
| Knock Retard Compatibility? | No |
| Laptop Datalogging Support | No |
| length | 40.0 |
| Nitrous Compatible? | No |
| Requires Separate Personal Computer? | No |
| Title | LS EZ EFI with XIM, Inline Fuel Pump & Truck Manifold |
| Uses Fuel Pressure Sensor? | No |
| weight | 105.0 |
| width | 22.5 |
