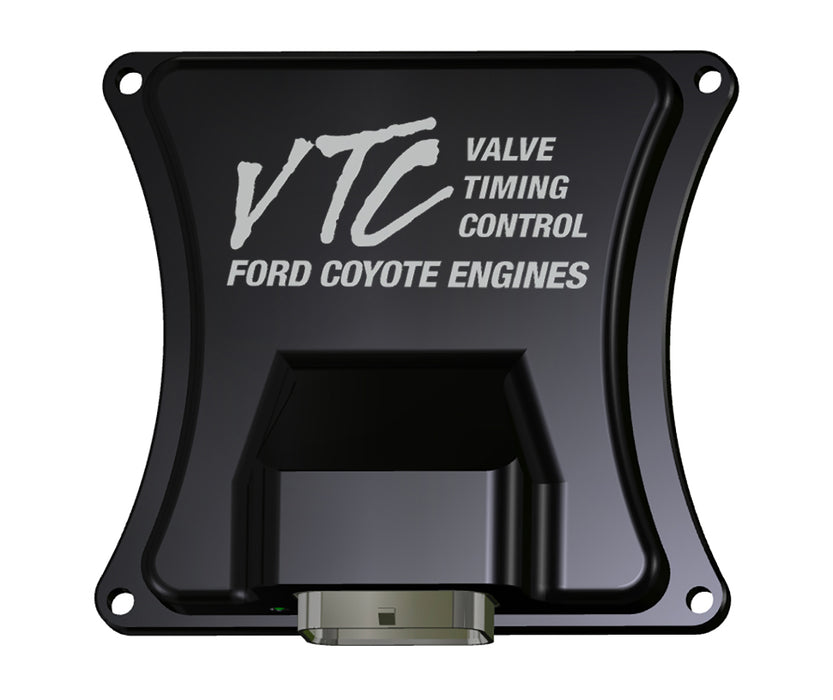

FAST 3013173 Valve Timing Control (VTC) Module for Ford 5.0 Coyote
by FAST
SKU ds_DXKP_3013173
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$1,277.28
-
Original price
$1,277.28
Original price
$1,277.28
$1,277.28
$1,277.28
-
$1,277.28
Current price
$1,277.28
Availability:
Out of stock
Description
This new Coyote valve timing control module and associated harness provide a plug-and-play interface between the engine, FAST XFI Sportsman and an XIM ignition module. The FAST Valve Timing Control Module allows the ECU to control the position of Coyote engines’ four phaseable camshafts. The intake and exhaust cam position is separately tunable through C-Com software with tables for position vs. RPM and load. This provides a simple alternative to having to open up the engine to install mechanical locking devices on all four cams when switching to FAST aftermarket fuel injection. Since this VTC module is an electronic solution, the cams don’t have to be fixed in a single position. The cams can still be moved to maintain the broad powerband allowed by the phaseable cam system. The VTC Module allows for full, dynamic control of valve overlap, allowing the tuner to get their desired sound at idle, while still maintaining great off-idle torque and drivability. It won the runner-up position in the Best New Performance – Street Product category at the 2016 SEMA Show.
Resources
Installation InstructionsSpecifications
| C.A.R.B. EO Number | N/A |
| C.A.R.B. Exempt? | No |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm P65Warnings. ca.gov |
| Description_DEF | Engine Variable Valve Timing (VVT) Control Module |
| Description_DES | Valve Timing Control (VTC) Module for Ford 5.0 Coyote |
| Description_EXT | The FAST Valve Timing (VTC) Module provides a plug-and-play interface between the Ford 5.0 Coyote's phaseable camshafts, FAST XFI and FAST XIM Ignition module. This module allows for the independent control of the Coyote's camshafts. |
| Description_FAB | Customers no longer need to install mechanical locking devices on all 4 cams when switching to FAST EFI. |
| Description_FAB | Intake & exhaust cam position are separately tunable through C-Com software. |
| Description_FAB | Plug & play interface between the engine, FAST XFI and XIM. |
| Description_INV | VTC Module Ford Coyote |
| Description_MKT | This new Coyote valve timing control module and associated harness provide a plug-and-play interface between the engine, FAST XFI Sportsman and an XIM ignition module. The FAST Valve Timing Control Module allows the ECU to control the position of Coyote engines’ four phaseable camshafts. The intake and exhaust cam position is separately tunable through C-Com software with tables for position vs. RPM and load. This provides a simple alternative to having to open up the engine to install mechanical locking devices on all four cams when switching to FAST aftermarket fuel injection. Since this VTC module is an electronic solution, the cams don’t have to be fixed in a single position. The cams can still be moved to maintain the broad powerband allowed by the phaseable cam system. The VTC Module allows for full, dynamic control of valve overlap, allowing the tuner to get their desired sound at idle, while still maintaining great off-idle torque and drivability. It won the runner-up position in the Best New Performance – Street Product category at the 2016 SEMA Show. |
| Description_SHO | CoyoteVTCKit |
| Description_SHP | No |
| height | 10.0 |
| length | 15.0 |
| Title | Valve Timing Control (VTC) Module for Ford 5.0 Coyote |
| weight | 3.0 |
| width | 2.5 |
