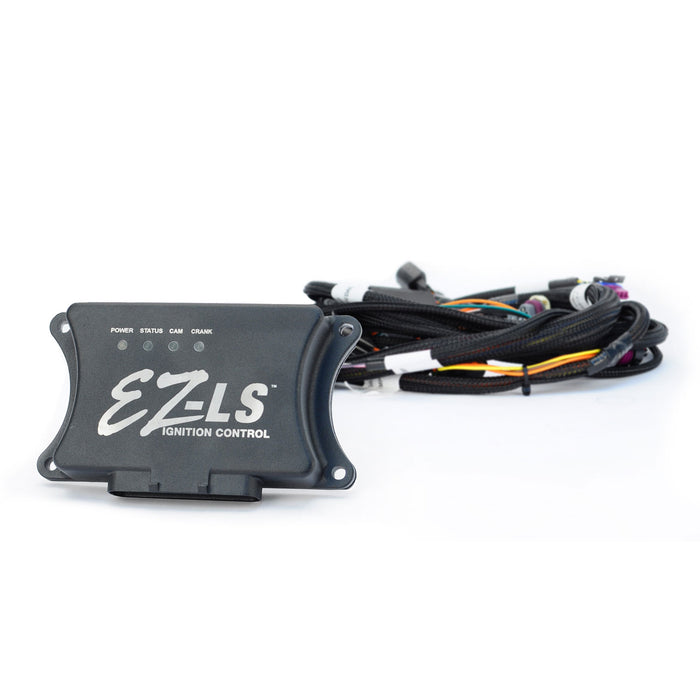

FAST 301312E EZ LS Ignition Kit for 24X and 58X Reluctor LS Engines.
by FAST
SKU ds_DXKP_301312E
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$774.50
-
Original price
$774.50
Original price
$774.50
$774.50
$774.50
-
$774.50
Current price
$774.50
Availability:
Out of stock
Description
With simplified wiring and tuning flexibility, the EZ-LS delivers proven ignition control for LS engine swaps It works perfectly with EZ-EFI 2.0, XFI 2.0 and XFI Sportsman and utilizes a simplified plug-and-play wiring harness and compact, waterproof ECU. This kit was engineered to use stock LS crank and cam sensors and doesn?t require tuning. For those that desire greater tuning control, the EZ-LS can be custom tuned via the EZ-EFI 2.0 hand-held (when hooked up to an EZ-EFI 2.0 ECU) or XFI C-COM software connected to an XFI 2.0 system. Nominal dimensions: 6"W x 3.5"H x 1.5"D
Resources
Installation InstructionsResources
Installation InstructionsSpecifications
| C.A.R.B. EO Number | N/A |
| C.A.R.B. Exempt? | No |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm P65Warnings.ca.gov |
| Description_DEF | Ignition Harness |
| Description_DES | EZ LS Ignition Kit for 24X and 58X Reluctor LS Engines. |
| Description_DES | EZ-LS Harness |
| Description_DES | EZ-LS Ignition Control Unit |
| Description_DES | LS2 58X Crank Sensor Adapter |
| Description_DES | LS2/LS7 Camshaft Sensor Adapter |
| Description_DES | Self-Tapping Stainless Steel Screw for EZ-EFI |
| Description_EXT | This EZ LS is a simple, all-inclusive kit for tuning the ignition of an LS Series coil near plug engine. This EZ LS kit include a simplified harness that allows for stock cam and crank sensors. |
| Description_FAB | Built-in LEDs indicate operation and input/output signals |
| Description_FAB | Clean, simplified installation with a compact, waterproof ignition controller |
| Description_FAB | Complete control over the ignition timing on Gen 3 and 4 LS series engines using a FAST EFI system |
| Description_FAB | Easy installation with plug-and-play wiring harness |
| Description_FAB | Recognizes 24x or 58x crankshaft sensors |
| Description_FAB | Tune through the EZ-EFI 2.0 hand-held or with the XFI C-Com software of an XFI 2.0 or XFI Sportsman EFI system |
| Description_INV | EZ LS Ignition Kit |
| Description_MKT | With simplified wiring and tuning flexibility, the EZ-LS delivers proven ignition control for LS engine swaps It works perfectly with EZ-EFI 2.0, XFI 2.0 and XFI Sportsman and utilizes a simplified plug-and-play wiring harness and compact, waterproof ECU. This kit was engineered to use stock LS crank and cam sensors and doesn?t require tuning. For those that desire greater tuning control, the EZ-LS can be custom tuned via the EZ-EFI 2.0 hand-held (when hooked up to an EZ-EFI 2.0 ECU) or XFI C-COM software connected to an XFI 2.0 system. Nominal dimensions: 6"W x 3.5"H x 1.5"D |
| Description_SHO | Ignition Harness |
| Description_SHP | No |
| height | 2.3 |
| length | 13.7 |
| Title | EZ LS Ignition Kit for 24X and 58X reluctor LS Series Engines. |
| weight | 3.35 |
| width | 9.7 |
