FAST 295-2422 FireWire 90 Degree Cut-To-Fit Wireset for LS Coils w/ Heat Sleeve
by FAST
SKU ds_DXKP_295-2422
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$288.16
-
Original price
$288.16
Original price
$288.16
$288.16
$288.16
-
$288.16
Current price
$288.16
Availability:
Out of stock
Description

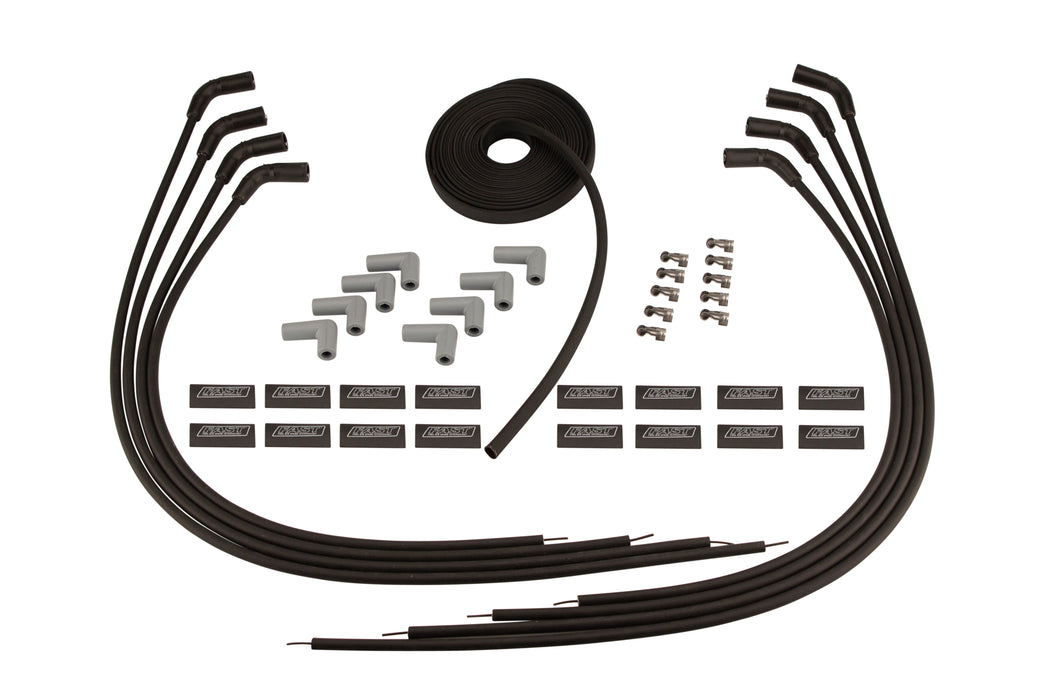

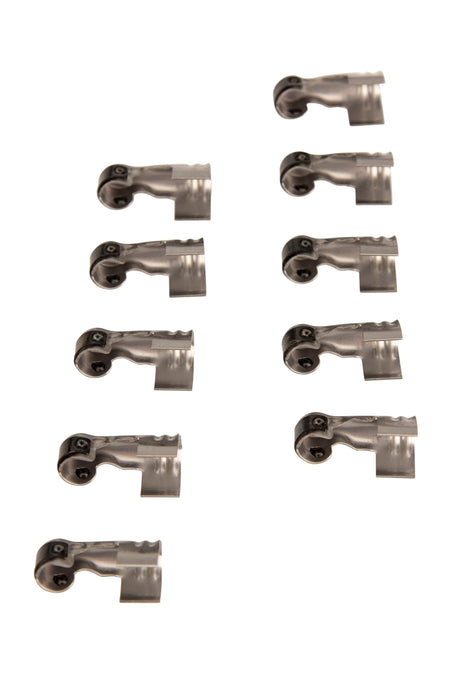

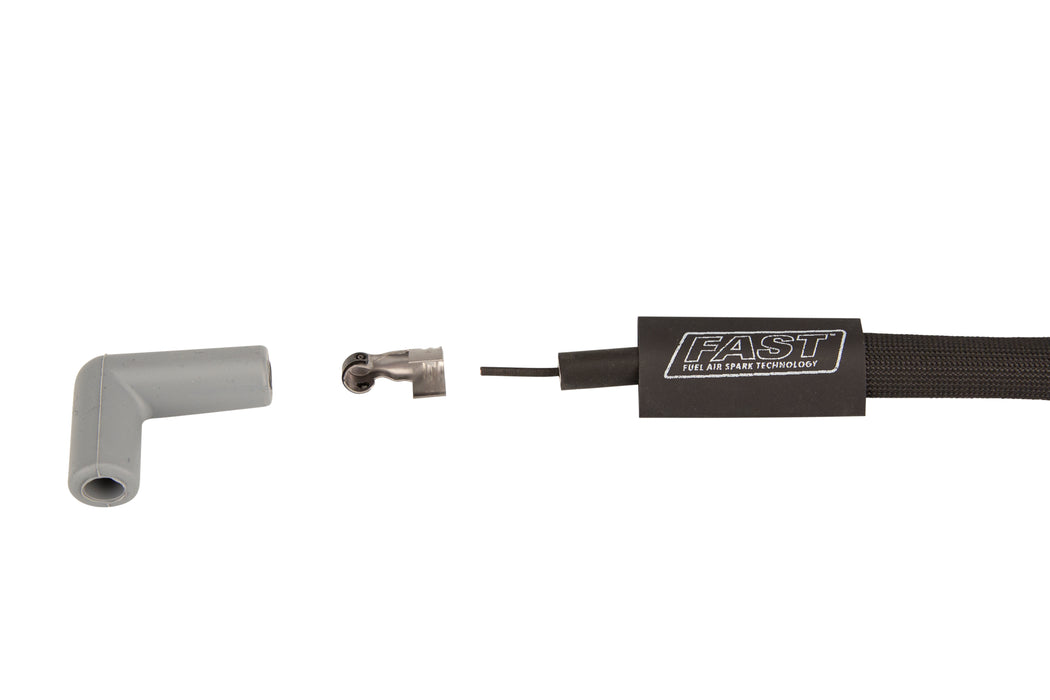

FAST FireWire Cut-to-Fit Wire Sets deliver a high performance, convenient solution for LS coil-equipped engines that require custom length plug wires for a clean installation. Known for their high output, durability and small footprint, GM LS ignition coils are a popular ignition system enhancement for many performance applications. However, retrofitting GM LS coils often results in the use of too short or excessively long spark plug wires to complete the installation. FAST has solved this problem by developing two Cut-to-Fit Wire Sets for GM LS ignition coils.FAST pre-assembles the ignition coil terminals, requiring the end user to crimp only the spark plug terminals to the wires. Designed to accommodate custom coil mounting locations, FAST Cut-to-Fit Wire Sets are available with either 90 degree or 135 (45) degree spark plug boots.With a 9mm diameter and only 15 ohms per foot resistance, FAST FireWire delivers the most energy possible to the spark plug. FireWire’s proprietary reactive core suppresses electromagnetic interference (EMI), safeguarding noise-sensitive ignition control and EFI systems. FAST engineers built the Cut-to-Fit Wire Set to withstand the high heat from turbo LS engines. Featuring a silicone-on-silicone construction, FireWire is resistant to abrasion, heat and oils, while silicone spark plug boots resist cracking from hot headers. Additionally, FAST engineers equipped the FireWire Cut-to-Fit Wire Set with our exclusive Heat Sleeve protective sleeve. Produced from braided fiberglass, the Heat Sleeve-equipped FireWire will withstand up to 1,200 degrees Fahrenheit.
Resources
Installation InstructionsSpecifications
| C.A.R.B. EO Number | N/A |
| C.A.R.B. Exempt? | Yes |
| Coil End Boot Color | Gray |
| Coil Wire Included | Yes |
| Coil Wire Length | 28-40 |
| Conductor Style | Spiral Reactive Core |
| Description_ASC | See 295-2423 for 45 degree Wireset. |
| Description_ASM | Any application with GM LS ignition coils. |
| Description_DEF | Spark Plug Wire Set |
| Description_DES | FireWire 90 Degree Cut-To-Fit Wireset for LS Coils w/ Heat Sleeve |
| Description_EXT | Ideal for engine swaps and custom valve covers, these cut-to-fit LS coil wires feature pre-terminated coil terminals with loose 45 degree spark terminals and boots that allow the builder to choose wire lengths that best fit their needs. |
| Description_FAB | 9mm core delivers the highest possible energy to the spark plug. |

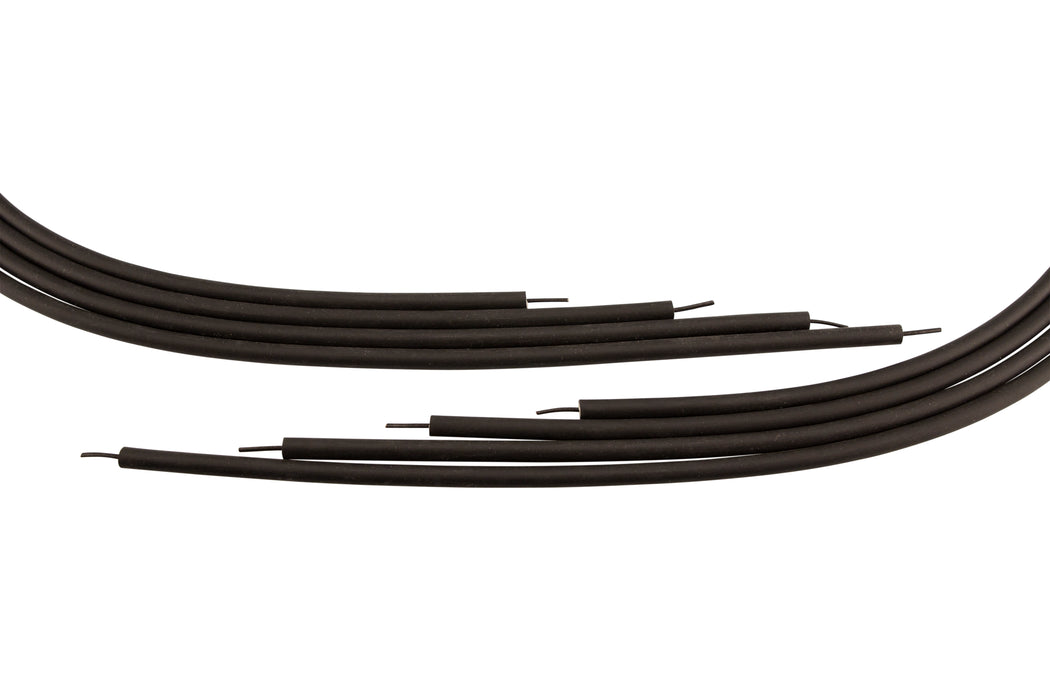

| Description_FAB | Extra-long cut-to-fit wires with pre-terminated coil terminals allow for a clean custom installation. |
| Description_FAB | Heat shrink secures Heat Sleeve at boots. |

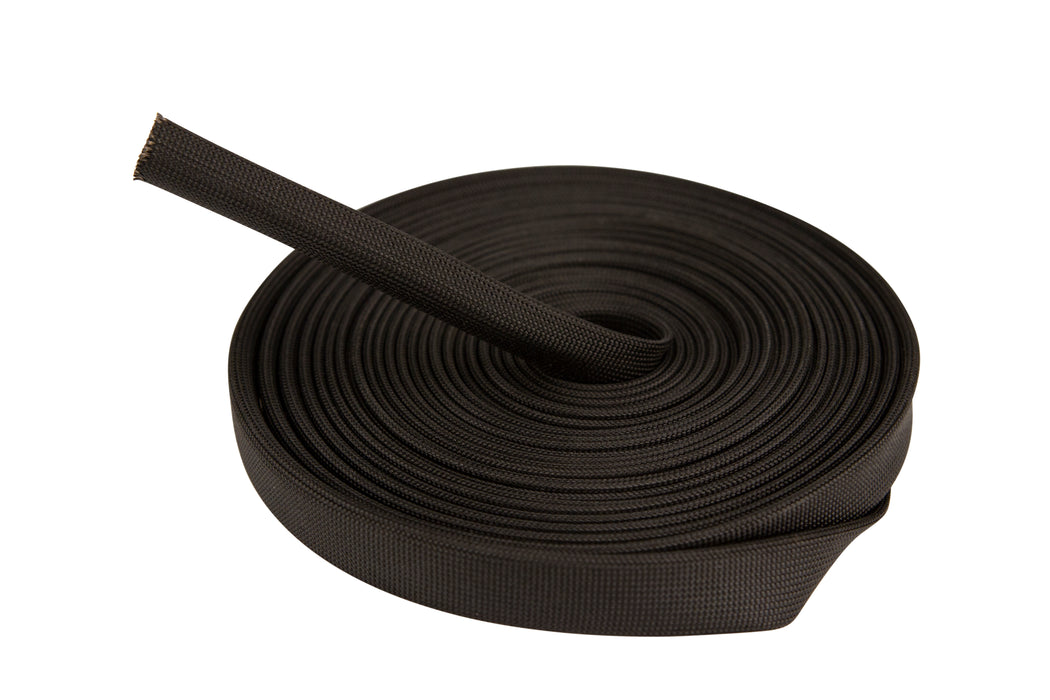

| Description_FAB | Heat Sleeve protects wires up to 1,200 degrees Fahrenheit. |
| Description_FAB | Reactive core reduces EMI interference. |

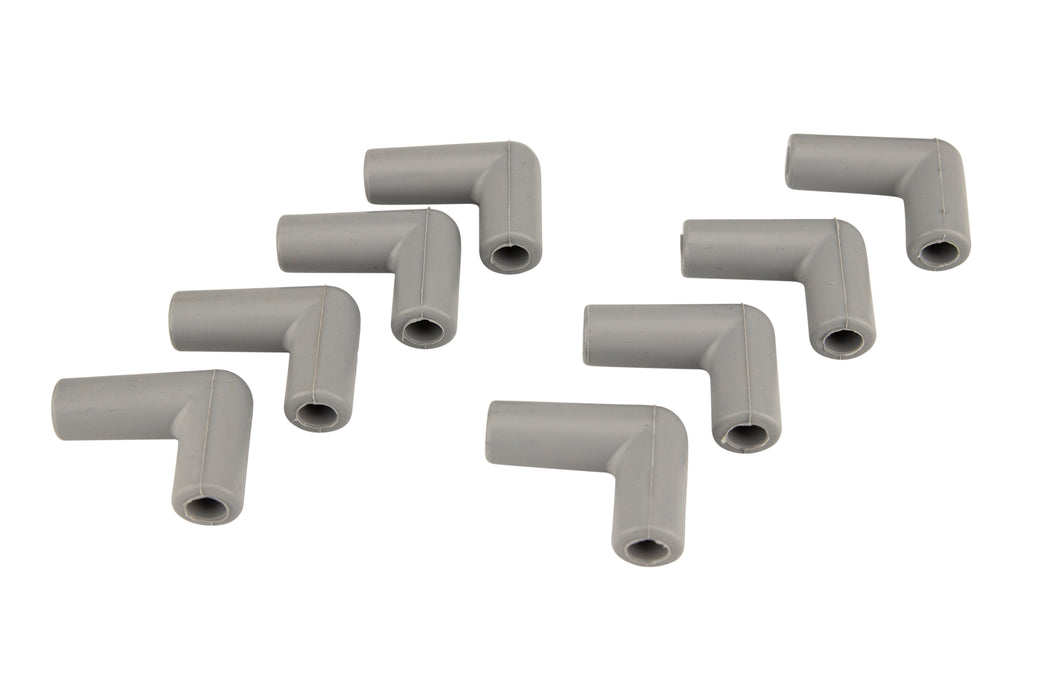

| Description_FAB | Silicone boots resist cracking in high heat environment. |
| Description_INV | Fwire CTF 90 Degree LS Coil Wires |
| Description_MKT | FAST FireWire Cut-to-Fit Wire Sets deliver a high performance, convenient solution for LS coil-equipped engines that require custom length plug wires for a clean installation. Known for their high output, durability and small footprint, GM LS ignition coils are a popular ignition system enhancement for many performance applications. However, retrofitting GM LS coils often results in the use of too short or excessively long spark plug wires to complete the installation. FAST has solved this problem by developing two Cut-to-Fit Wire Sets for GM LS ignition coils.FAST pre-assembles the ignition coil terminals, requiring the end user to crimp only the spark plug terminals to the wires. Designed to accommodate custom coil mounting locations, FAST Cut-to-Fit Wire Sets are available with either 90 degree or 135 (45) degree spark plug boots.With a 9mm diameter and only 15 ohms per foot resistance, FAST FireWire delivers the most energy possible to the spark plug. FireWire’s proprietary reactive core suppresses electromagnetic interference (EMI), safeguarding noise-sensitive ignition control and EFI systems. FAST engineers built the Cut-to-Fit Wire Set to withstand the high heat from turbo LS engines. Featuring a silicone-on-silicone construction, FireWire is resistant to abrasion, heat and oils, while silicone spark plug boots resist cracking from hot headers. Additionally, FAST engineers equipped the FireWire Cut-to-Fit Wire Set with our exclusive Heat Sleeve protective sleeve. Produced from braided fiberglass, the Heat Sleeve-equipped FireWire will withstand up to 1,200 degrees Fahrenheit. |
| Description_SHO | FwireCTF 90DegLSCoil |
| Description_SHP | No |
| height | 3.5 |
| Insulation Material | Silicone |
| Insulation Outside Diameter | 9 |
| length | 9.7 |
| Quantity | 8 |
| RFI Suppression | Yes |
| Spark Plug Boot Material | Silicone |
| Spark Plug End Boot Degree | 135/45 |
| Spark Plug End Boot Quantity Angled | 8 |
| Spark Plug End Boot Quantity Straight | N/A |
| Spark Plug End Terminal Type | Spark Plug |
| Spark Plug Wire Resistance | 15 |
| Title | FireWire 90 Degree Cut-To-Fit Wireset for LS Coils w/ Heat Sleeve |
| Universal Or Specific Fit | Universal |
| weight | 3.1 |
| width | 8.7 |
| Wire 1 Length | 40 |
| Wire 2 Length | 40 |
| Wire 3 Length | 36 |
| Wire 4 Length | 36 |
| Wire 5 Length | 32 |
| Wire 6 Length | 32 |
| Wire 7 Length | 28 |
| Wire 8 Length | 28 |
| Wire Color | Black |
| Wire Separators Included | No |
