Fabtech K7081DL Uniball Control Arm Lift System
by Fabtech
SKU ds_BKBN_K7081DL
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$4,556.07
-
Original price
$4,556.07
Original price
$4,556.07
$4,556.07
$4,556.07
-
$4,556.07
Current price
$4,556.07
Availability:
Out of stock
Description

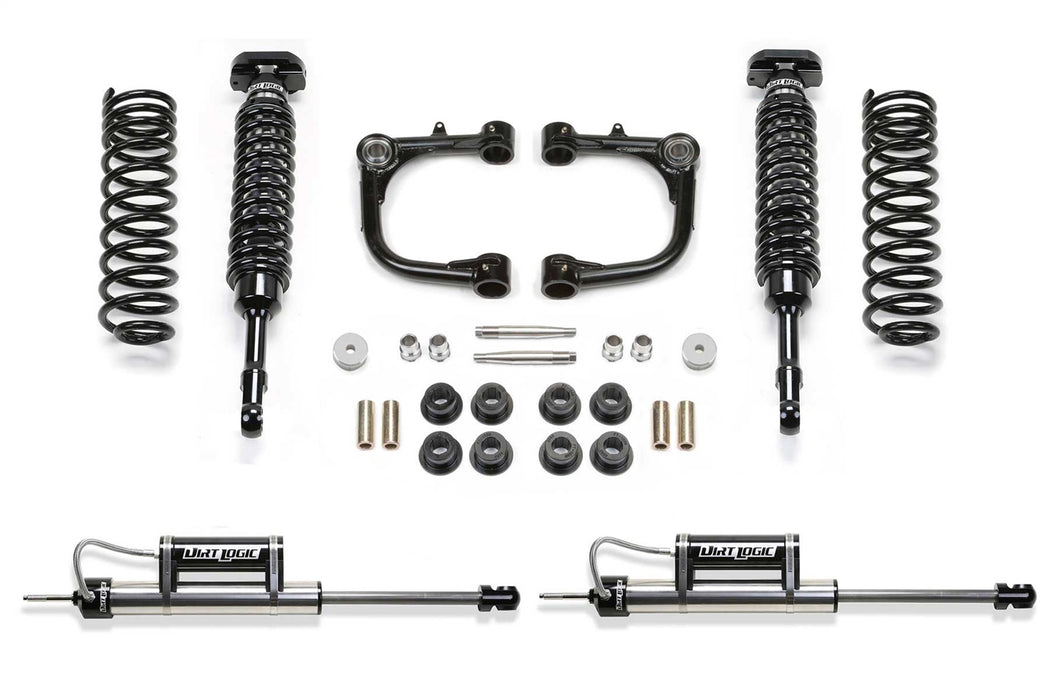

This system is ideal for the Raptor enthusiast that has outgrown the capabilities of the stock shocks and wants increased damping with suspension reliability for aggressive offroad use. Fabtech's Uniball Upper Control Arms provide increased strength to the front suspension by replacing the stock ball joint upper arms that can become worn and eventually fail under aggressive offroad use. These heavy duty upper arms are designed for longevity in rugged offroad conditions. The top quality construction of these arms include .120? wall 1.50? OD 4130 Chromoly tubing and American made 1? FK Stainless PTFE lined Uniballs. The 17-4 Stainless Steel heat treated Uniball pins fit into the factory ball joint tapers without modification to the spindle for easy return to stock feature. The Dirt Logic 3.0 Coilovers are a perfect match to the billet arms. They will provide 11? of wheel travel with the ability to adjust the compression damping by the twist of a knob on the remote reservoir. The rear suspension receives Dirt Logic 3.0 Bypass shocks that will allow 12? of wheel travel with the stock leaf springs. The triple tube bypass adjusters provide infinite adjustability in both rebound and compression. It is the ultimate in shock control for the rear of your Raptor. This system is built to the standard of Fabtech's legendary race components for unsurpassed strength and longevity. It is the single biggest suspension upgrade you can make to your Raptor that you feel both on and offroad.
Specifications
| Description_ASC | TIRE SIZE - 33/12.50R17 WHEEL - 17X8 W/4 5/8" BS W/MINOR TRIMMING; TIRE SIZE - 275/70R18 WHEEL - 18X9 W/4 3/4" BS W/MINOR TRIMMING; TIRE SIZE - 275/60R20 WHEEL - 20X9 W/5" BS W/MINOR TRIMMING; 0. NO FOOTNOTES |
| Description_ASC | TIRE SIZE-33/12.50R17 WHEEL-17X8 W/4 5/8in. BS W/MINOR TRIMMING; TIRE SIZE-275/70R18 WHEEL-18X9 W/4 3/4in. BS W/MINOR TRIMMING; TIRE SIZE-275/60R20 WHEEL-20X9 W/5in. BS W/MINOR TRIMMING; 0. NO FOOTNOTES |
| Description_DEF | Suspension Lift Kit |
| Description_DES | 3" UCA SYS W/DL 2.5 C/O RESI & RR DL RESI 2010-21 TOYOTA 4RUNNER 4WD W/ KDSS |
| Description_DES | Uniball Control Arm Lift System |
| Description_EXT | 3" UCA SYS W/DL 2.5 C/O RESI & RR DL RESI 2010-21 TOYOTA 4RUNNER 4WD W/ KDSS. |
| Description_EXT | Uniball Control Arm Lift System; 3 in. Lift; w/Dirt Logic 2.5 Coilover Resi And Rear Dirt Logic 2.25 Resi Shocks; w/Kinetic Dynamic Suspension System; |
| Description_FAB | Custom Engineered For High Quality Ride |
| Description_FAB | Regulates Wheel Motion In Relation To Body |
| Description_FAB | Upper Control Arm Kit |
| Description_INV | Fabtech-3" UCA SYS W/DL 2.5 |
| Description_LAB | Proposition 65 |
| Description_MKT | Obtain increased wheel travel with a mild lift height with this heavy duty Upper Control Arm system. The tubular Upper Control Arms feature 1.25in OD, .120in wall thick chromoly tube construction with 1in diameter Stainless Steel Uniballs that attach to the factory spindle without drilling. The replacement UCA's have been designed to work in conjunction with Fabtech's Stainless Steel Dirt Logic 2.5 Coilover shocks providing 10in of wheel travel for a complete front suspension system upgrade. The Dirt Logic 2.5 Coilovers feature cold wound coil springs for a smooth ride with the ability to tackle aggressive offroad terrain. Fabtech rear Dual Rate coil springs replace the factory springs with a two stage design. In the first stage they provide a supple ride quality at lower speeds with the ability to allow for more wheel travel when traversing large offroad obstacles. The second stage provides increased spring rate for load carrying capacity of gear while providing a superior ride at higher speeds. The rear Dirt Logic 2.25 shocks will also provide 9in of travel due the remote reservoir allowing for the full stroke of the shock. This system is perfect for those that want increased suspension performance with a low lift height. A great choice for daily drivers that overland and hit the trails on weekends. Arms eliminate upper ball joint with super strong 1in ID Stainless American Uniball. Chromoly tubing reduces flex found in stock arms for more positive road feel. 17-4 Stainless Steel Heat treated Uniball pin fits into factory ball joint taper without modification to the spindle. Dual Rate rear coil springs provide increased flexibity and smooth ride. Great system for the daily driver that requires increased offroad performance. Dirt Logic Shocks allows for wheel travel of 10in Front and 9in Rear. Stainless Steel Body. 7/8in NitroSteel Piston Rod. |
| Description_MKT | This system is ideal for the Raptor enthusiast that has outgrown the capabilities of the stock shocks and wants increased damping with suspension reliability for aggressive offroad use. Fabtech's Uniball Upper Control Arms provide increased strength to the front suspension by replacing the stock ball joint upper arms that can become worn and eventually fail under aggressive offroad use. These heavy duty upper arms are designed for longevity in rugged offroad conditions. The top quality construction of these arms include .120? wall 1.50? OD 4130 Chromoly tubing and American made 1? FK Stainless PTFE lined Uniballs. The 17-4 Stainless Steel heat treated Uniball pins fit into the factory ball joint tapers without modification to the spindle for easy return to stock feature. The Dirt Logic 3.0 Coilovers are a perfect match to the billet arms. They will provide 11? of wheel travel with the ability to adjust the compression damping by the twist of a knob on the remote reservoir. The rear suspension receives Dirt Logic 3.0 Bypass shocks that will allow 12? of wheel travel with the stock leaf springs. The triple tube bypass adjusters provide infinite adjustability in both rebound and compression. It is the ultimate in shock control for the rear of your Raptor. This system is built to the standard of Fabtech's legendary race components for unsurpassed strength and longevity. It is the single biggest suspension upgrade you can make to your Raptor that you feel both on and offroad. |
| Description_SHO | 3" UCA SYS W/DL 2.5 |
| Description_SHO | LftKt-Suspw/Shock |
| height | 15.5 |
| length | 35.75 |
| LTL | N |
| weight | 134.0 |
| width | 30.75 |
