Fabtech K6008 Basic Lift System w/Shocks
by Fabtech
SKU ds_BKBN_K6008
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Original price
$2,749.04
-
Original price
$2,749.04
Original price
$2,749.04
$2,749.04
$2,749.04
-
$2,749.04
Current price
$2,749.04
Availability:
Out of stock
Description

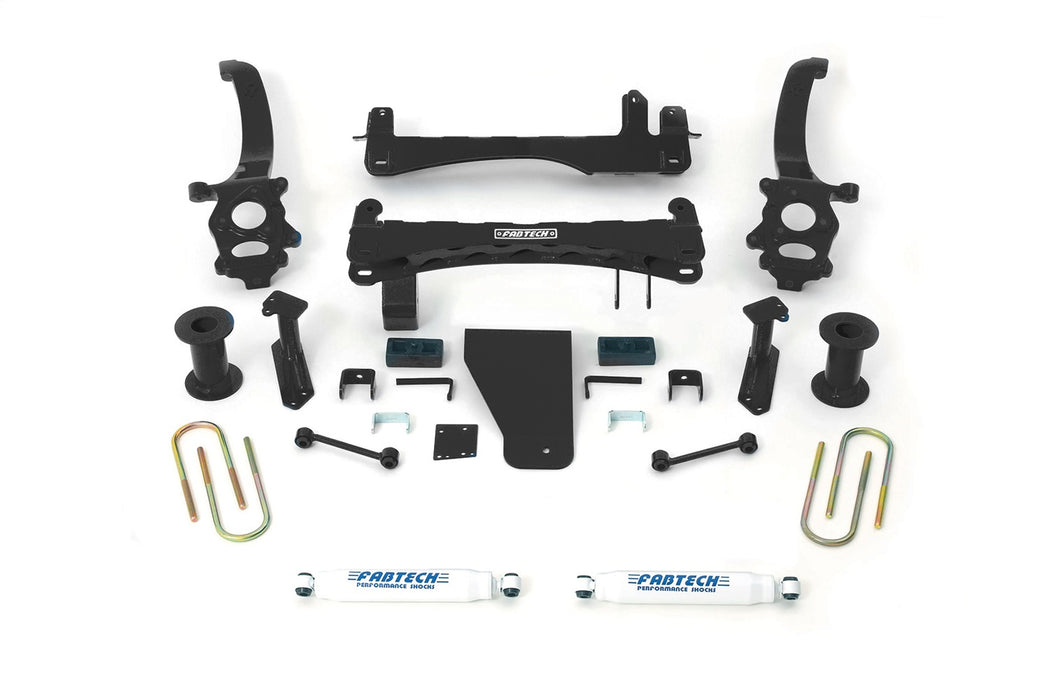

These heavy duty systems feature 1/4 thick steel lower control arm crossmembers with adjustable alignment cams for ease of installation while strengthening the front suspension. Extended length ductile iron steering knuckles allow use of 18 or 20 wheels. The Basic System includes front spacers utilizing the factory Coilover shock while the rear receives Fabtech Performance twin tube shocks.
Specifications
| California Proposition 65 | WARNING: Cancer & Reproductive Harm and image |
| Description_ASC | TIRE SIZE - 35/12.50R17 WHEEL - 17X8 W/5" BS W/MINOR TRIMMING; TIRE SIZE - 35/12.50R18 WHEEL - 18X9 W/5" BS W/MINOR TRIMMING; TIRE SIZE - 35/12.50R20 WHEEL - 20X9 W/5" BS W/MINOR TRIMMING; 15. WILL EXPERIENCE SOME LOSS OF TURNING RADIUS.; 176. WILL NOT FIT TITAN XD MODELS |
| Description_ASC | TIRE SIZE-35/12.50R17 WHEEL-17X8 W/5in. BS W/MINOR TRIMMING; TIRE SIZE-35/12.50R18 WHEEL-18X9 W/5in. BS W/MINOR TRIMMING; TIRE SIZE-35/12.50R20 WHEEL-20X9 W/5in. BS W/MINOR TRIMMING; 15. WILL EXPERIENCE SOME LOSS OF TURNING RADIUS.; 176. WILL NOT FIT TITAN XD MODELS |
| Description_DEF | Suspension Lift Kit |
| Description_DES | 6" BASIC SYS W/PERF SHKS 2014-17 NISSAN TITAN 4WD |
| Description_DES | Basic Lift System w/Shocks |
| Description_DES | COMPONENT BOX 1 |
| Description_DES | COMPONENT BOX 2 |
| Description_DES | PERFORMANCE SHOCK |
| Description_EXT | 6" BASIC SYS W/PERF SHKS 2014-17 NISSAN TITAN 4WD. |
| Description_EXT | Basic Lift System w/Shocks; 6 in. Lift; w/Rear Performance Shocks; |
| Description_EXT | Component Box; Box 1 of 2; For 6 in. Lift; For PN[K6008/K6008M]; |
| Description_EXT | Component Box; Box 2 of 2; For 6 in. Lift; For PN[K6008/K6008M]; |
| Description_EXT | Performance Shock; For PN[K2087/K2081/K2090/K2101/K1045/K6000/K1051/K3044/K3025/K3006/K2104/K2134/K2063/K20631/K20611/K2061/K2060]; |
| Description_FAB | 5 Year/60000 Mile Powertrain Warranty |
| Description_FAB | Arched Lower Control Arm Crossmembers In .25 in. Steel |
| Description_FAB | Differential Skid Plate Made Of .25 in. Steel |
| Description_FAB | Maximum Strength And Rigidity |
| Description_FAB | Stock Track Width For Clean Appearance |
| Description_FAB | Utilizes Factory Front Coilovers w/Performance or Stealth Shocks |
| Description_INV | Fabtech-6" BASIC SYS W/PERF |
| Description_LAB | Proposition 65 |
| Description_MKT | These heavy duty systems feature 1/4 thick steel lower control arm crossmembers with adjustable alignment cams for ease of installation while strengthening the front suspension. Extended length ductile iron steering knuckles allow use of 18 or 20 wheels. The Basic System includes front spacers utilizing the factory Coilover shock while the rear receives Fabtech Performance twin tube shocks. |
| Description_MKT | This system feature Fabtech's proven IFS technology with extended length ductile iron steering knuckles for proper factory electronic stability control functionality. Heavy duty 1/4in thick steel lower control arm crossmembers provide superior ground clearance while the integrated front differential skid plate adds protection to the drivetrain. Rear lift is accomplished with a block and u bolt configuration. The Basic System includes front coilover spacers that utilize the factory Coilover shocks for a stock like ride characteristic. 1/4in thick steel lower control arm crossmembers are arched for maximum ground clearance. Four adjustable alignment cams provide a wide range of adjustment. Extended length ductile iron steering knuckles retain near stock track width keeping the tires under the fenders. These steering knuckles are designed to work in conjunction with the factory ESC for proper functionality at all speeds. Thick wall tubing and 1/4in thick steel plate is used to build these 6in lift spacers that retain the factory Coilover shocks for a stock ride. A heavy duty front differential skid plate is constructed of 1/4in thick steel to protect the diff from offroad obstacles. Integrated differential mounts on the crossmembers properly re-position the front diff for the precise CV and driveshaft angle throughout the entire steering and suspension travel range. 1/4in thick steel construction with heavy wall tubing is built to handle the full compression impact of the Titan. Extended length sway bar end links feature urethane bushings for positive on road feel and longevity. Steel rear lift blocks replaces the factory blocks for addition lift without changing the ride quality or load carrying capacity. American made U-Bolts that retain the entire rear differential to the vehicle. A critical part that demands the best quality for your vehicle. Extended length Performance twin tube shocks provide a good highway ride with the ability to tackle offroad. |
| Description_SHO | 6" BASIC SYS W/PERF |
| Description_SHO | LftKt-Suspw/Shock |
| height | 16.25 |
| length | 45.5 |
| Lift/Drop Height | 6 in. |
| LTL | N |
| Title | Fabtech 6" BASIC SYS W/PERF SHKS 2014-17 NISSAN TITAN 4WD |
| WARNING CA Proposition 65 | Yes |
| WARNING CA Proposition 65 Message | Warning: Cancer and Reproductive Harm-www.P65Warnings.ca.gov. |
| weight | 225.9 |
| width | 30.635 |
