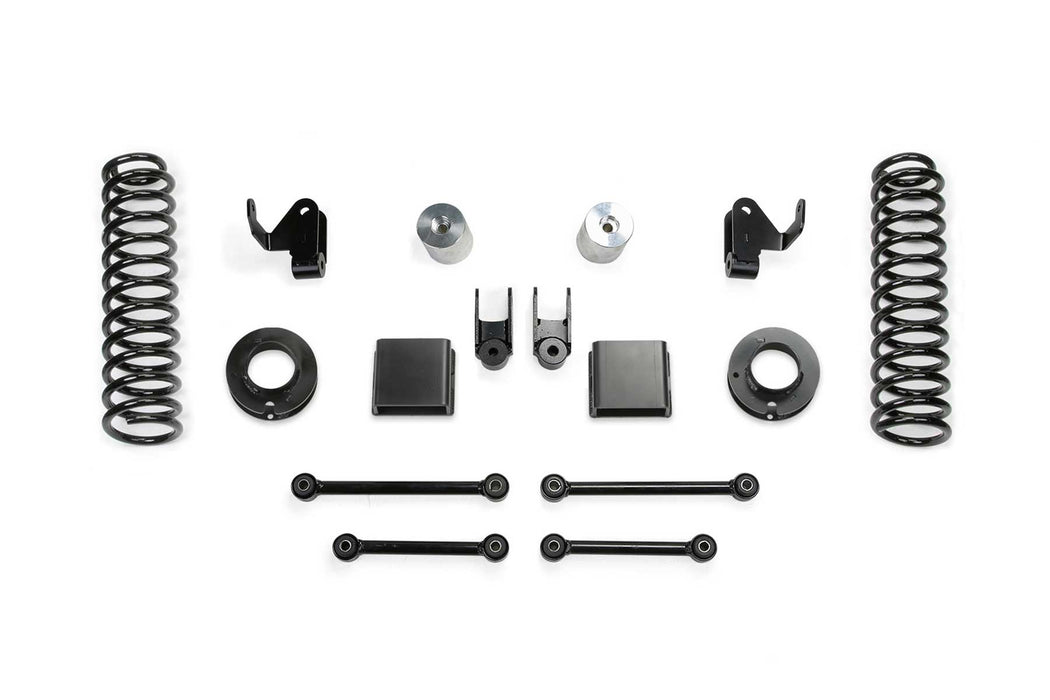

Fabtech K4189 Sport Lift System w/Shock; 3 in. w/Shocks Extension;
by Fabtech
SKU ds_BKBN_K4189
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Original price
$1,205.69
-
Original price
$1,205.69
Original price
$1,205.69
$1,205.69
$1,205.69
-
$1,205.69
Current price
$1,205.69
Availability:
Only 2 left!
Description
The Sport system features American made coil springs that are a Dual Rate design allowing for long travel suspension use offroad with a smooth highway ride. The first stage of the spring provides a soft ride with the ability to extend for additional travel. The second stage is designed to handle the payload of the vehicle and address large impact absorption at higher speeds. The Dual Rate coil springs are corner specific to the JL. This keeps the vehicle level side to side while allowing for increased suspension travel. Four bump stops extensions utilize the factory bump stops for compliant cushioning at full compression. The extensions retain the stock down travel to eliminate over cycling of the suspension and driveline. The extended length front and rear sway bar links with urethane bushings reposition the bars to work within the factory operating planes. By extending the length of the links, it prevents the sway bar from going over center and creating bind at full extension travel. A heavy duty rear track bar bracket re-centers the axle while retaining the factory roll center of the vehicle with the increased ride height.
Specifications
| Description_ASC | W/ STANDARD FENDERS TIRE SIZE - 35/12.5R17 WHEEL - 17X9 W/4.5" BS W/MINOR TRIMMING; W/ STANDARD FENDERS TIRE SIZE - 35/12.5R18 WHEEL - 18X9 W/4.5" BS W/MINOR TRIMMING; W/ STANDARD FENDERS TIRE SIZE - 325/65R18 WHEEL - 18X9 W/4.5" BS W/MINOR TRIMMING; W/ STANDARD FENDERS TIRE SIZE - 35/12.5R20 WHEEL - 20X9 W/5" BS W/MINOR TRIMMING; W/ STANDARD FENDERS TIRE SIZE - 325/60R20 WHEEL - 20X9 W/5" BS W/MINOR TRIMMING; W/ HIGH CLEARANCE FENDERS TIRE SIZE - 37/12.5R17 WHEEL - 17X9 W/4.5" BS W/CUTTING; W/ HIGH CLEARANCE FENDERS TIRE SIZE - 37/12.5R18 WHEEL - 18X9 W/4.5" BS W/CUTTING; W/ HIGH CLEARANCE FENDERS TIRE SIZE - 37/12.5R20 WHEEL - 20X9 W/5" BS W/CUTTING; 167. FITS DIESEL MODELS ONLY |
| Description_ASC | W/STANDARD FENDERS TIRE SIZE-35/12.5R17 WHEEL-17X9 W/4.5in. BS W/MINOR TRIMMING; W/STANDARD FENDERS TIRE SIZE-35/12.5R18 WHEEL-18X9 W/4.5in. BS W/MINOR TRIMMING; W/STANDARD FENDERS TIRE SIZE-325/65R18 WHEEL-18X9 W/4.5in. BS W/MINOR TRIMMING; W/STANDARD FENDERS TIRE SIZE-35/12.5R20 WHEEL-20X9 W/5in. BS W/MINOR TRIMMING; W/STANDARD FENDERS TIRE SIZE-325/60R20 WHEEL-20X9 W/5in. BS W/MINOR TRIMMING; W/HIGH CLEARANCE FENDERS TIRE SIZE-37/12.5R17 WHEEL-17X9 W/4.5in. BS W/CUTTING; W/HIGH CLEARANCE FENDERS TIRE SIZE-37/12.5R18 WHEEL-18X9 W/4.5in. BS W/CUTTING; W/HIGH CLEARANCE FENDERS TIRE SIZE-37/12.5R20 WHEEL-20X9 W/5in. BS W/CUTTING; 167. FITS DIESEL MODELS ONLY |
| Description_DEF | Suspension Lift Kit |
| Description_DES | 3" SPORT SYSTEM DIESEL |
| Description_DES | 3" SPORT SYSTEM W/ SHK EXT 20-22 JEEP JT 4WD DIESEL |
| Description_DES | JEEP JT 3" SHOCK EXT KIT |
| Description_DES | Sport Lift System w/Shock |
| Description_EXT | 3" SPORT SYSTEM W/ SHK EXT 20-22 JEEP JT 4WD DIESEL. |
| Description_EXT | Sport Lift System w/Shock; 3 in. w/Shocks Extension; |
| Description_FAB | Easy Installation |
| Description_FAB | Everything You Will Need To Lift Your Vehicle |
| Description_FAB | Increased Leaf Spring Flexibility |
| Description_FAB | Increased Travel And Articulation |
| Description_FAB | No Welding Or Cutting |
| Description_FAB | Ride Quality Enhancement |
| Description_INV | Fabtech-3" SPORT SYSTEM W/ S |
| Description_LAB | Proposition 65 |
| Description_MKT | The Sport system features American made coil springs that are a Dual Rate design allowing for long travel suspension use offroad with a smooth highway ride. The first stage of the spring provides a soft ride with the ability to extend for additional travel. The second stage is designed to handle the payload of the vehicle and address large impact absorption at higher speeds. The Dual Rate coil springs are corner specific to the JL. This keeps the vehicle level side to side while allowing for increased suspension travel. Four bump stops extensions utilize the factory bump stops for compliant cushioning at full compression. The extensions retain the stock down travel to eliminate over cycling of the suspension and driveline. The extended length front and rear sway bar links with urethane bushings reposition the bars to work within the factory operating planes. By extending the length of the links, it prevents the sway bar from going over center and creating bind at full extension travel. A heavy duty rear track bar bracket re-centers the axle while retaining the factory roll center of the vehicle with the increased ride height. |
| Description_MKT | This Sport lift kit is Fabtech?s most popular Jeep system providing increased ride height and suspension performance at a great price. Installation is easy and can be installed in a couple hours. The Sport lift kit features front coil springs that are a dual rate design allowing extended suspension travel for offroad use while providing a smooth highway ride. The first stage of the spring provides a soft ride with the ability to extend for additional travel. The second stage is designed to handle the payload of the vehicle and address large impact absorption at higher speeds. The rear of the vehicle receives coil spring spacers retaining the factory ride and load carrying capacity. The spacer height is 1-3/4" to help level the stance of the vehicle. Four bump stops extensions utilize the factory bump stops for compliant cushioning at full compression. The extensions retain the stock down travel to eliminate over cycling of the suspension and driveline. The extended length front and rear sway bar links with urethane bushings reposition the bars to work within the factory operating planes. By extending the length of the links, it prevents the sway bar from going over center and creating bind at full extension travel. The factory shocks are retained with steel extension brackets keeping the shocks in the proper travel range with the new ride height. This Gladiator lift kit is an excellent choice for the Jeep enthusiast that wants to run larger tires with enhanced offroad capability and a good highway ride. |
| Description_SHO | 3" SPORT SYSTEM W/ S |
| Description_SHO | LftKt-Suspw/Shock |
| height | 14.06 |
| length | 27.5 |
| LTL | N |
| weight | 66.2 |
| width | 18.38 |
