Fabtech K4037M Basic Lift System w/Shocks
by Fabtech
SKU ds_BKBN_K4037M
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Original price
$1,452.57
-
Original price
$1,452.57
Original price
$1,452.57
$1,452.57
$1,452.57
-
$1,452.57
Current price
$1,452.57
Availability:
4+ in stock
Description
Fabtechs development capabilities are second to none with over 20 years of experience in aftermarket suspension design. State of the art software, fabrication equipment along with our seasoned engineers and fabricators allow the company to develop products that are constantly on the cutting edge. Fabtech has received numerous awards for our designs that continue to lead the market. Proper design in suspension development is key in providing a quality, trouble free product to the end consumer. Fabtech leads the industry with extensive research, design technology and rigorous testing that results in the highest performing, finest quality suspension system for the discerning offroad enthusiast.
Specifications
| Description_ASC | TIRE SIZE - 35/12.50R17 WHEEL - 17X8 W/5" BS W/MINOR TRIMMING; 148. EXHAUST SPACERS REQUIRED FOR ALL INSTALLATIONS ON 2012-CURRENT JEEP WRANGLERS; 249. FOR HEAVY OFFROAD USE, FRONT DRIVESHAFT IS REQUIRED. ORDER P/N FTS94057.; 250. FOR HEAVY OFFROAD USE, REAR DRIVESHAFT IS REQUIRED. SEE A QUALITY DRIVELINE SUPPLIER TO ORDER. |
| Description_ASC | TIRE SIZE-35/12.50R17 WHEEL-17X8 W/5in. BS W/MINOR TRIMMING; 148. EXHAUST SPACERS REQUIRED FOR ALL INSTALLATIONS ON 2012-CURRENT JEEP WRANGLERS; 249. FOR HEAVY OFFROAD USE; FRONT DRIVESHAFT IS REQUIRED. ORDER P/N FTS94057.; 250. FOR HEAVY OFFROAD USE; REAR DRIVESHAFT IS REQUIRED. SEE A QUALITY DRIVELINE SUPPLIER TO ORDER. |
| Description_DEF | Suspension Lift Kit |
| Description_DES | 3" BASIC SYS W/STEALTH 2007-18 JEEP JK 4WD |
| Description_DES | Basic Lift System w/Shocks |
| Description_DES | JEEP JK 3" BASIC BOX KIT |
| Description_DES | STEALTH MONOTUBE |
| Description_EXT | 3" BASIC SYS W/STEALTH 2007-18 JEEP JK 4WD. |
| Description_EXT | Basic Lift System w/Shocks; w/Stealth Monotube Shocks; 3 in. Lift; |
| Description_EXT | Component Box; Black; For 3 in. Lift; For PN[K4037]; |
| Description_EXT | Stealth Monotube Shock Absorber; For PN[K4090M/K4051M/K4085M/K4052M/K4053M/K4055M/K4089M/K4086M/K4057M/K4058M/K4059M/K4061M/K2108M/K2109M/K2166M/K3001M/K3018M/K7002M/K7003M]; |
| Description_EXT | Stealth Monotube Shock Absorber; For PN[K4090M/K4051M/K4085M/K4052M/K4089M/K4086M/K4057M/K4058M/K2070M/K3001M/K7012M; |
| Description_FAB | Designed For The Budget Minded Enthusiast |
| Description_FAB | Everything You Will Need To Lift Your Vehicle |
| Description_FAB | Utilizes The Stock Radius Arm |
| Description_INV | Fabtech-3" BASIC SYS W/STEAL |
| Description_LAB | Proposition 65 |

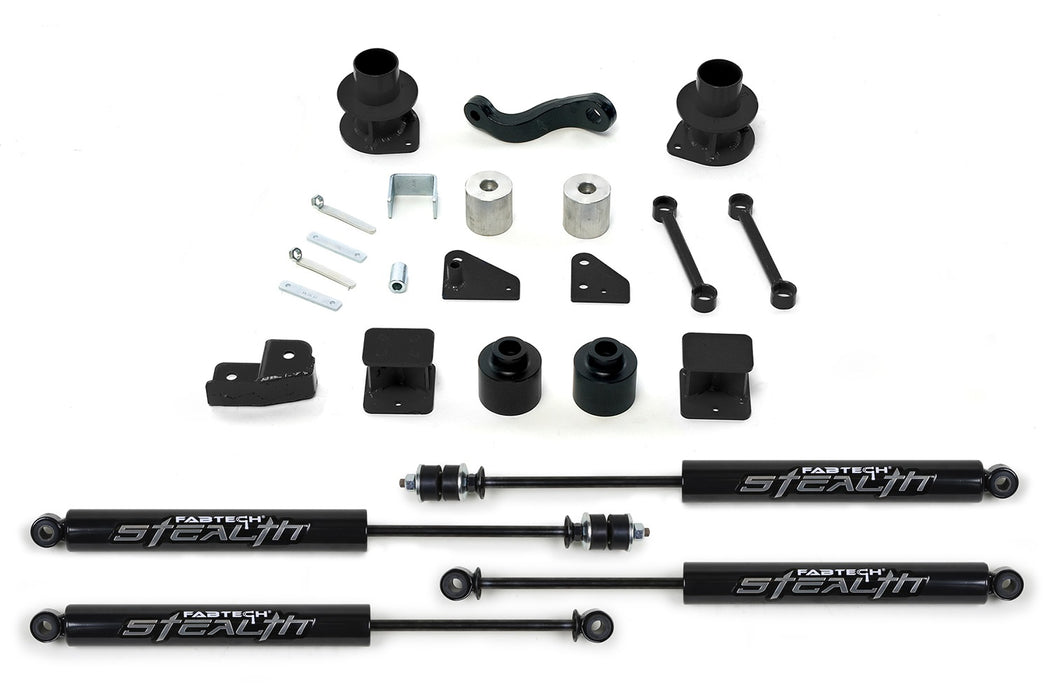

| Description_MKT | Fabtech offers the 3'' Basic system. This system utilizes the factory coil springs with 3'' steel coil spacers. With the vast array of cab and motor combinations found in the JK, utilization of the factory coil springs with this system ensures that the vehicle will receive a full 3'' of lift to clear 35/1250R17 tires. This system includes a replacement Pitman Arm, front and rear Trac Bar relocation brackets, Sway Bar Links, front and rear Bump Stop mounts, gusset kit, and more. Proper front end alignment is insured with this system due to the included adjustable alignment cams. Also included is a front driveshaft boot clamp kit to allow additional clearance between the front driveshaft and transmission during full suspension articulation. This system capitalizes on Jeep's very capable factory suspension design with the benefit of additional wheelwell clearance to run 35'' tall tires for all around on and offroad performance. As an alternative to the factory small CV driveshafts we offer Heavy Duty units featuring large 1310 U-joints for increased strength. These driveshafts will directly replace the factory assemblies for use with the 3'' Basic System. |
| Description_MKT | Fabtechs development capabilities are second to none with over 20 years of experience in aftermarket suspension design. State of the art software, fabrication equipment along with our seasoned engineers and fabricators allow the company to develop products that are constantly on the cutting edge. Fabtech has received numerous awards for our designs that continue to lead the market. Proper design in suspension development is key in providing a quality, trouble free product to the end consumer. Fabtech leads the industry with extensive research, design technology and rigorous testing that results in the highest performing, finest quality suspension system for the discerning offroad enthusiast. |
| Description_SHO | 3" BASIC SYS W/STEAL |
| Description_SHO | LftKt-Suspw/Shock |
| height | 8.0 |
| length | 24.0 |
| Lift/Drop Height | 3 in. |
| LTL | N |
| WARNING CA Proposition 65 | Yes |
| WARNING CA Proposition 65 Message | Warning: Cancer and Reproductive Harm-www.P65Warnings.ca.gov. |
| weight | 64.0 |
| width | 19.52 |
