Fabtech K2378DL Uniball UCA Lift System w/Shocks
by Fabtech
SKU ds_BKBN_K2378DL
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Original price
$67,937.48
-
Original price
$67,937.48
Original price
$67,937.48
$67,937.48
$67,937.48
-
$67,937.48
Current price
$67,937.48
Description

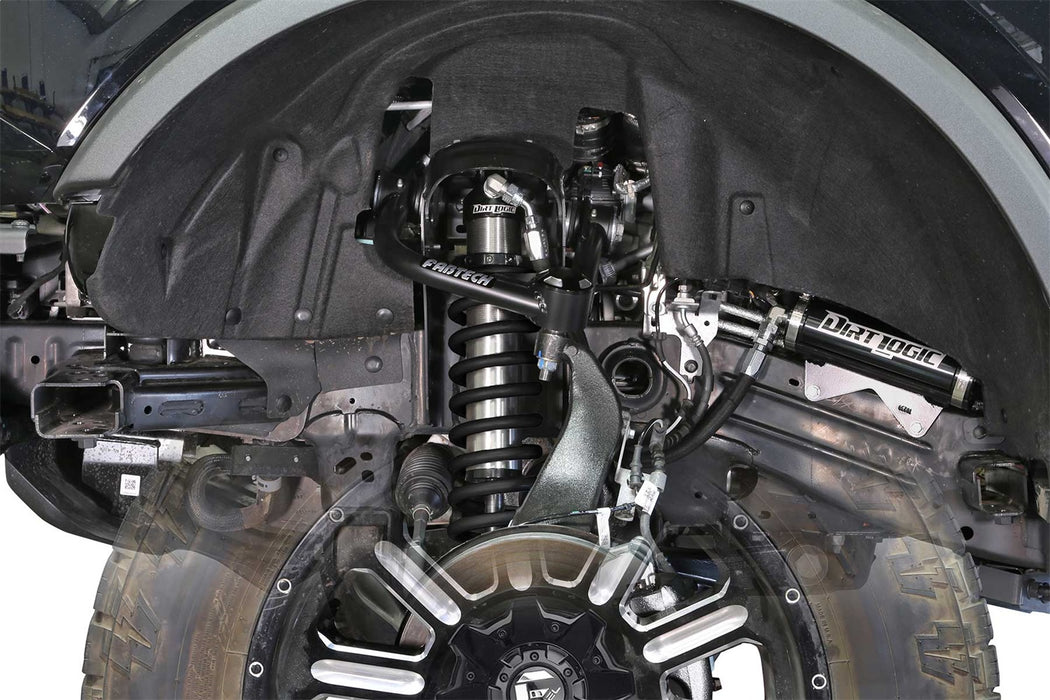

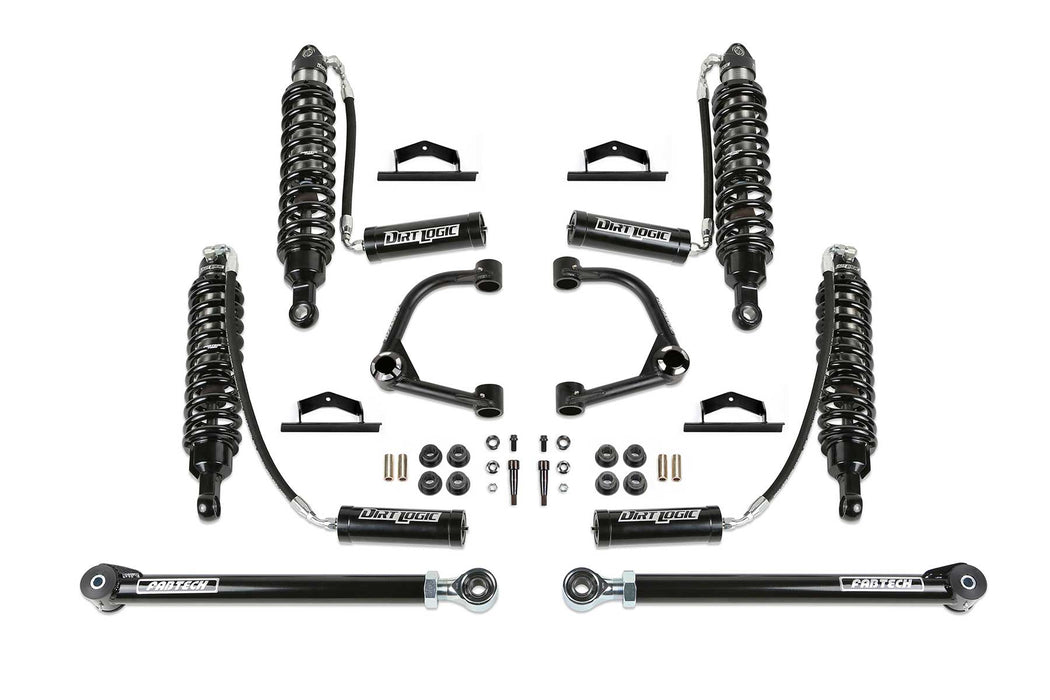

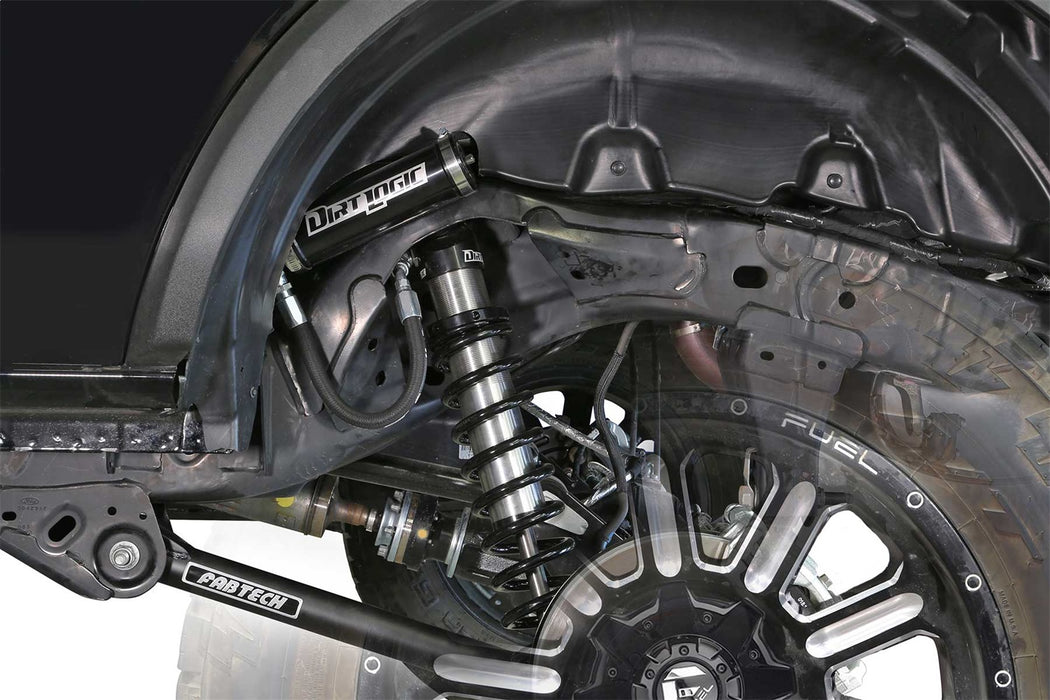

This high quality suspension has been designed to upgrade GM 1500 SUV's with standard suspension for increased strength and a balanced compliant ride for both on and offroad. The front suspension receives Fabtech's heavy duty Uniball Upper Control Arms and Dirt Logic 2.5 Coilover shocks. The Fabtech arms are vastly superior to the stock arms providing strength and longevity to the vehicle. They are constructed of 1.25" OD, .120" wall chromoly tubing with 1" FK Stainless PTFE lined Uniballs that attach to the factory GM steering knuckle without drilling. The replacement UCA's have been designed to work in conjunction with Fabtech's Stainless Steel Dirt Logic 2.5 Coilover shocks for a complete front suspension system upgrade. The Dirt Logic 2.5 Coilovers feature cold wound coil springs for a smooth ride with the ability to tackle aggressive offroad terrain. The rear receives extended length upper link arms to allow for increased travel without bind. The geometry of these links provides the proper alignment to the rear independent suspension with the new ride height. As with the front, the rear also receives stainless steel Dirt Logic 2.5 Coilover shocks for a superior ride quality. This 3" lift kit system is perfect for those that want increased suspension performance with a low lift height. A great choice for daily drivers that overland and hit the trails on weekends.
Specifications
| Description_ASC | TIRE SIZE - 35/12.50R17 Wheel - 17X9 W/4 1/2" BS W/MINOR TRIMMING; TIRE SIZE - 35/12.50R18 Wheel - 18X9 W/4 1/2" BS W/MINOR TRIMMING; TIRE SIZE - 35/12.50R20 Wheel - 20X9 W/4 1/2" BS W/MINOR TRIMMING; 185. FITS 4-DOOR MODELS ONLY; 2FITS VEHICLES EQUIPPED WITH BILSTEIN SHOCKS ONLY. |
| Description_ASC | TIRE SIZE-35/12.50R17 WHEEL-17X9 W/4 1/2in. BS W/MINOR TRIMMING; TIRE SIZE-35/12.50R18 WHEEL-18X9 W/4 1/2in. BS W/MINOR TRIMMING; TIRE SIZE-35/12.50R20 WHEEL-20X9 W/4 1/2in. BS W/MINOR TRIMMING; 185. FITS 4-DOOR MODELS ONLY; 238. FITS VEHICLES EQUIPPED WITH BILSTEIN SHOCKS ONLY. |
| Description_DEF | Suspension Lift Kit |
| Description_DES | 2.5DLSS C/O RESI BRONCO FRT PAIR PACKAGED |
| Description_DES | 2.5DLSS C/O RESI BRONCO RR 4DR PAIR PACKAGED |
| Description_DES | 3" UCA KIT W/UNIBALLS & DLSS RESI SHOCKS 21-22 FORD BRONCO 4-DOOR BILSTEIN |
| Description_DES | LOWER LINK KIT |
| Description_DES | Uniball UCA Lift System w/Shocks |
| Description_DES | UNIBALL UCA SYSTEM |
| Description_EXT | 3" UCA KIT W/UNIBALLS & DLSS RESI SHOCKS 21-22 FORD BRONCO 4-DOOR BILSTEIN. |
| Description_EXT | Uniball UCA Lift System w/Shocks; 3 in. LIft; w/Uniball; Dirt Logic SS Resi Shocks; |
| Description_FAB | Arms Eliminate Upper Ball Joint W/ Super Strong 1 in. ID |
| Description_FAB | Chromoly Tubing Reduces Flex Found In Stock Arms |
| Description_FAB | Extend Rear Link Arms For Proper IRS Alignment |
| Description_FAB | Free 5 year 60000 Mile Powertrain Warranty |
| Description_FAB | Incl Front And Rear Dirt Logic 2.5 Coilovers |
| Description_FAB | Uniball Pin Fit Into Ball Joint Taper w/o Modify To The Spindle |
| Description_INV | Fabtech-3" UCA KIT W/UNIBALL |
| Description_LAB | Proposition 65 |
| Description_MKT | Fabtech?s high quality Uniball UCA lift kit for the Bronco offers increased front suspension travel for enhanced offroad capabilities with clearance to run 35" tall tires. The stance of the vehicle with this kit will become more level front to rear for an aggressive look. The factory Bronco upper control arms are replaced with Fabtech?s Uniball Upper Control Arms that provide additional wheel travel with an extra degree of caster compared to stock arms. The increased caster helps to balance steering effort with oversized tires. The Fabtech upper control arms are constructed of the finest material with .120" wall 1.25" OD 4130 Chromoly steel tubing. High quality 1" FK Stainless PTFE lined Uniball bearings are utilized in place of the small factory ball joints and allow for increased travel without bind. These super stout Bronco upper control arms are designed for longevity in rugged offroad conditions while providing a more positive on road feel. The Fabtech upper control arms have been designed to work in conjunction with the Dirt Logic 2.5 Coilover shocks to provide additional front wheel travel. The rear suspension receives Adjustable Lower Link Arms with Fabtech?s lifetime 5 Ton joints?. The lower links are .313 thick wall tubing that are guaranteed never to bend. Dirt Logic 2.5 Coilovers are utilized for a balanced ride front to rear. This system is perfect for those that want increased suspension performance with a low lift height. A great choice for daily drivers that want a clean look with the ability to hit the trails on weekends. |
| Description_MKT | This high quality suspension has been designed to upgrade GM 1500 SUV's with standard suspension for increased strength and a balanced compliant ride for both on and offroad. The front suspension receives Fabtech's heavy duty Uniball Upper Control Arms and Dirt Logic 2.5 Coilover shocks. The Fabtech arms are vastly superior to the stock arms providing strength and longevity to the vehicle. They are constructed of 1.25" OD, .120" wall chromoly tubing with 1" FK Stainless PTFE lined Uniballs that attach to the factory GM steering knuckle without drilling. The replacement UCA's have been designed to work in conjunction with Fabtech's Stainless Steel Dirt Logic 2.5 Coilover shocks for a complete front suspension system upgrade. The Dirt Logic 2.5 Coilovers feature cold wound coil springs for a smooth ride with the ability to tackle aggressive offroad terrain. The rear receives extended length upper link arms to allow for increased travel without bind. The geometry of these links provides the proper alignment to the rear independent suspension with the new ride height. As with the front, the rear also receives stainless steel Dirt Logic 2.5 Coilover shocks for a superior ride quality. This 3" lift kit system is perfect for those that want increased suspension performance with a low lift height. A great choice for daily drivers that overland and hit the trails on weekends. |
| Description_SHO | 3" UCA KIT W/UNIBALL |
| Description_SHO | LftKt-Suspw/Shock |
| height | 15.5 |
| length | 36.1 |
| Lift/Drop Height | 3 in. |
| LTL | N |
| WARNING CA Proposition 65 | Yes |
| WARNING CA Proposition 65 Message | Warning: Cancer and Reproductive Harm-www.P65Warnings.ca.gov |
| weight | 168.0 |
| width | 26.1 |
