Fabtech K2337M 4 Link Lift System; 6 in. Lift; w/Coils And Stealth;
by Fabtech
SKU ds_BKBN_K2337M
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$4,334.73
-
Original price
$4,334.73
Original price
$4,334.73
$4,334.73
$4,334.73
-
$4,334.73
Current price
$4,334.73
Availability:
Out of stock
Description

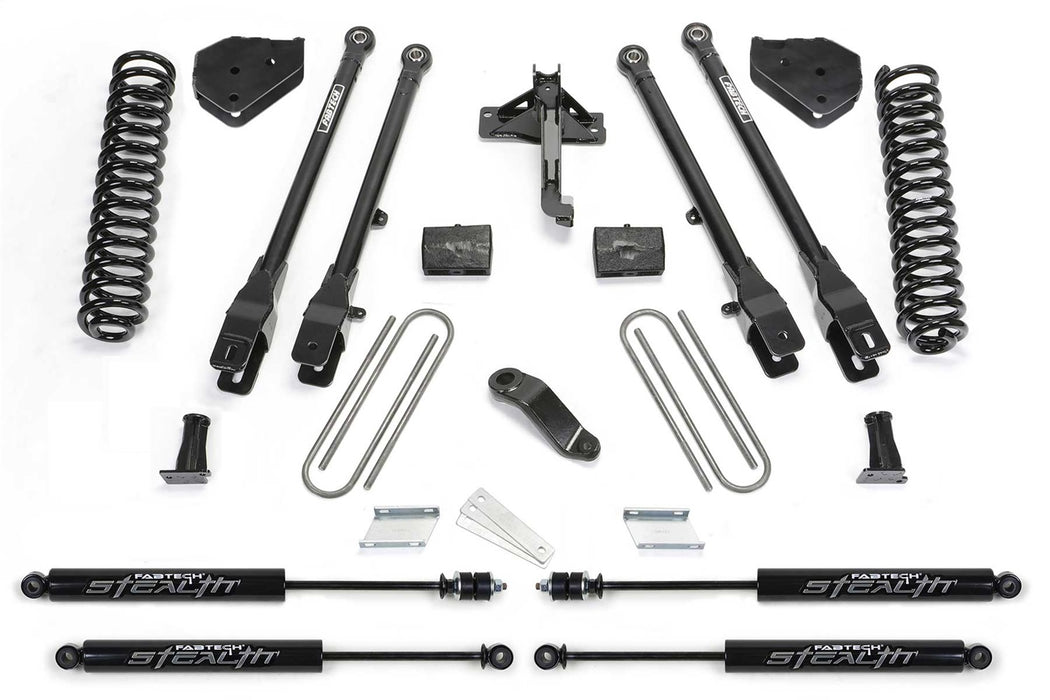

For the ultimate in suspension performance for the Super Duty we offer a bolt on 4 Link System that provides unsurpassed articulation and wheel travel. These 2 diameter heavy wall links feature race style 1 Uniballs for superior strength. Thick 1/4 steel brackets secure the 4 Links to the frame without cutting or welding. The system also includes Sway Bar Drops, Trac Bar relocation bracket, Pitman Arm, and U-Bolt kit.
Specifications
| Description_ASC | TIRE SIZE - 37/12.50R17 WHEEL - 17X9 W/4 3/4" BS W/MINOR TRIMMING; TIRE SIZE - 37/12.50R18 WHEEL - 18X9 W/4 3/4" BS W/MINOR TRIMMING; TIRE SIZE - 37/13.50R20 WHEEL - 20X9 W/5" BS W/MINOR TRIMMING; 101. SOME MODELS MAY NOT SIT LEVEL AFTER INSTALL.; 179. FRONT DRIVESHAFT MODIFICATION IS REQUIRED OR ORDER DRIVESHAFT (FTS92035) |
| Description_ASC | TIRE SIZE-37/12.50R17 WHEEL-17X9 W/4 3/4in. BS W/MINOR TRIMMING; TIRE SIZE-37/12.50R18 WHEEL-18X9 W/4 3/4in. BS W/MINOR TRIMMING; TIRE SIZE-37/13.50R20 WHEEL-20X9 W/5in. BS W/MINOR TRIMMING; 101. SOME MODELS MAY NOT SIT LEVEL AFTER INSTALL.; 179. FRONT DRIVESHAFT MODIFICATION IS REQUIRED OR ORDER DRIVESHAFT (FTS92035) |
| Description_DEF | Suspension Lift Kit |
| Description_DES | 4 Link Lift System |
| Description_DES | 4"/6"/8" 4LINK BOX 1 |
| Description_DES | 6" 4LINK BOX 2 |
| Description_DES | 6" 4LINK SYS W/COILS & STEALTH 19-20 FORD F450/550 4WD DIESEL |
| Description_DES | F450/550 REAR BOX KIT |
| Description_DES | SD 4WD COIL BOX |
| Description_DES | STEALTH MONOTUBE |
| Description_EXT | 4 Link Lift System; 6 in. Lift; w/Coils And Stealth; |
| Description_EXT | 6" 4LINK SYS W/COILS & STEALTH 19-20 FORD F450/550 4WD DIESEL. |
| Description_FAB | Everything You Will Need To Lift Your Vehicle |
| Description_FAB | Heavy Wall Links |
| Description_FAB | No Cutting Or Welding |
| Description_FAB | Provides Unsurpassed Articulation And Wheel Travel |
| Description_FAB | Race Style Uniball For Superior Strength |
| Description_FAB | Ultimate In Suspension Performance |
| Description_INV | Fabtech-6" 4LINK SYS W/COILS |
| Description_LAB | Proposition 65 |
| Description_MKT | Fabtech's 6in 4 Link Conversion system for the Ford F450 and F550 Super Duty is built to handle the on and offroad demands of the truck enthusiast. This vehicle's suspension is more robust than the Ford F250 and F350 and therefore demands specialty parts only available from Fabtech. This system comes with everything needed to convert to a 4 Link front suspension. The system will provide less caster change throughout the travel range which benefits on road driving. Offroad the 4 Link system will provide more articulation than a Radius Arm for increased terrain traversing at all speeds. Fabtech's 4 Link System has been proven in over 10 years of service in consumer, commercial and military applications. High quality components with properly design suspension geometry is the pinnacle of Super Duty suspension systems. Each Fabtech component is expertly built in house and has specific design features and benefits as listed below. FEATURES: LINK ARMS & BRACKETS - 2in OD Heavy wall link arms have 1/4in thick steel brackets at the axle with adjustable alignment cams and Fabtech's legendary 5 Ton joints to pivot at the frame for an extended service life. The 5 Ton joints have been proven in military use for over 10 years and are quiet and strong. The 4 Link Arms attach to stout 1/4in thick steel frame brackets for a solid mounting of the new suspension. The geometry of the 4 Link arms and frame brackets has been designed to provide an improved highway ride due to reduced caster change and able to tackle rough offroad conditions better than a Radius Arm suspension. COIL SPRINGS - American made coil springs have been designed for a very compliant ride quality both on and offroad. Each coil is preset during the manufacturing process to insure no ride height settling over time. Allows for a 2in increase in wheel travel over stock when used with Fabtech shock absorbers. TRACK BAR BRACKET - 1/4in thick steel bracketry rep-ositions the factory track bar to center the axle u |
| Description_MKT | For the ultimate in suspension performance for the Super Duty we offer a bolt on 4 Link System that provides unsurpassed articulation and wheel travel. These 2 diameter heavy wall links feature race style 1 Uniballs for superior strength. Thick 1/4 steel brackets secure the 4 Links to the frame without cutting or welding. The system also includes Sway Bar Drops, Trac Bar relocation bracket, Pitman Arm, and U-Bolt kit. |
| Description_SHO | 6" 4LINK SYS W/COILS |
| Description_SHO | LftKt-Suspw/Shock |
| height | 14.5 |
| length | 45.5 |
| Lift/Drop Height | 6 in. |
| LTL | N |
| WARNING CA Proposition 65 | Yes |
| WARNING CA Proposition 65 Message | Warning: Cancer and Reproductive Harm-www.P65Warnings.ca.gov. |
| weight | 307.0 |
| width | 47.56 |
