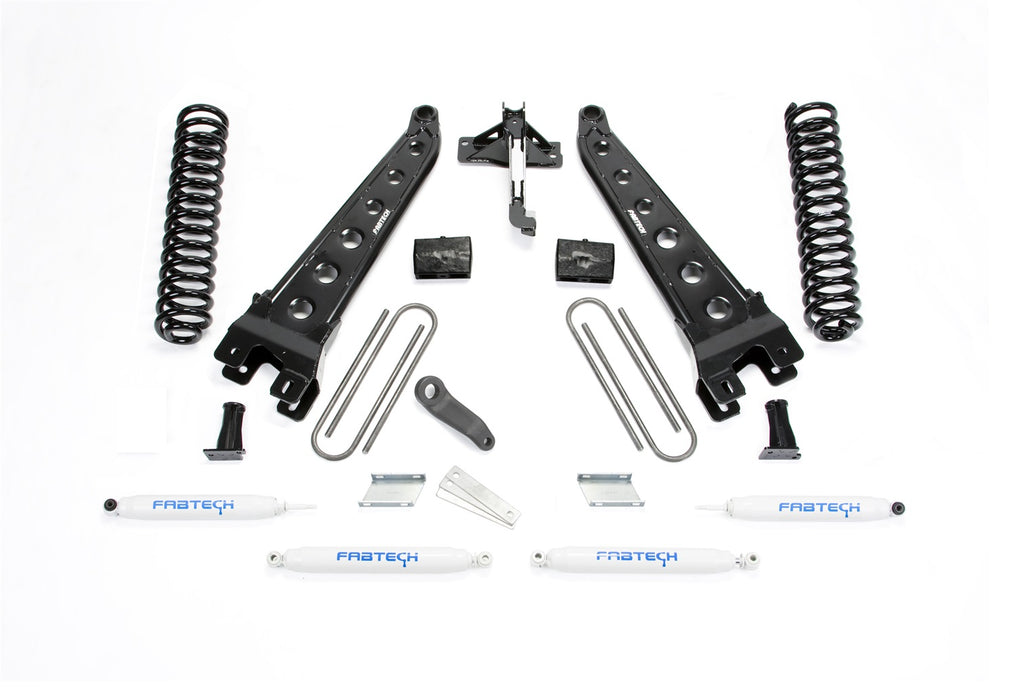

Fabtech K2256 Radius Arm Lift System
by Fabtech
SKU ds_BKBN_K2256
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Original price
$3,035.29
-
Original price
$3,035.29
Original price
$3,035.29
$3,035.29
$3,035.29
-
$3,035.29
Current price
$3,035.29
Availability:
Only 2 left!
Description
For the ultimate in suspension performance for the Super Duty we offer a bolt on 4 Link System that provides unsurpassed articulation and wheel travel. These 2 diameter heavy wall links feature race style 1 Uniballs for superior strength. Thick 1/4 steel brackets secure the 4 Links to the frame without cutting or welding. The system also includes Sway Bar Drops, Trac Bar relocation bracket, Pitman Arm, and U-Bolt kit.
Specifications
| Description_ASC | TIRE SIZE - 37/12.50R17 Wheel - 17X9 W/4 3/4" BS W/MINOR TRIMMING; TIRE SIZE - 37/12.50R18 Wheel - 18X9 W/4 3/4" BS W/MINOR TRIMMING; TIRE SIZE - 37/13.50R20 Wheel - 20X9 W/5" BS W/MINOR TRIMMING; NON DUALLY MODELS ONLY.; 16VEHICLES EQUIPPED WITH 2 PIECE DRIVESHAFT REQUIRE FTS419.; 171. WILL NOT FIT DIESEL MODELS; 17FRONT DRIVESHAFT MODIFICATION IS REQUIRED OR ORDER DRIVESHAFT (FTS92036); 175. VEHICLES W/ FACTORY REAR SWAY BAR MUST ORDER EXTENDED SWAY BAR LINK KIT PART NUMBER FTS22276. |
| Description_ASC | TIRE SIZE-37/12.50R17 WHEEL-17X9 W/4 3/4in. BS W/MINOR TRIMMING; TIRE SIZE-37/12.50R18 WHEEL-18X9 W/4 3/4in. BS W/MINOR TRIMMING; TIRE SIZE-37/13.50R20 WHEEL-20X9 W/5in. BS W/MINOR TRIMMING; 3. NON DUALLY MODELS ONLY.; 163. VEHICLES EQUIPPED WITH 2 PIECE DRIVESHAFT REQUIRE FTS419.; 171. WILL NOT FIT DIESEL MODELS; 173. FRONT DRIVESHAFT MODIFICATION IS REQUIRED OR ORDER DRIVESHAFT (FTS92036); 175. VEHICLES W/FACTORY REAR SWAY BAR MUST ORDER EXTENDED SWAY BAR LINK KIT PART NUMBER FTS22276. |
| Description_DEF | Suspension Lift Kit |
| Description_DES | 6" RAD ARM SYS W/COILS & PERF SHKS 17-21 FORD F250/F350 4WD GAS |
| Description_DES | 6" RADIUS ARM BOX |
| Description_DES | 6" REAR BOX KIT |
| Description_DES | PERFORMANCE SHOCK |
| Description_DES | Radius Arm Lift System |
| Description_DES | SD 6" GAS 4WD COIL BOX |
| Description_EXT | 6" RAD ARM SYS W/COILS & PERF SHKS 17-21 FORD F250/F350 4WD GAS. |
| Description_EXT | Block Kit; Rear; For 6 in. Lift; For PN[K2217M/K2217DL/K2218DL/K2243DL/K2219M/K2219DL/K2244DL/K2232DL/K2256DL/K2257/K2257M/K2257DL/K2256M/K2255M/K2255/K2217/K2218/K2219]; |
| Description_EXT | Coil Spring Kit; For 6 in. Lift; For PN[K2255/K2255M/K2255DL/K2256/K2256M/K2256DL/K2257/K2257M/K2257DL]; |
| Description_EXT | Component Box; For 6 in. Lift; For PN[K2218M/K2218DL/K2243DL/K2256DL/K2256M/K2218/K2231DL/K2256]; |
| Description_EXT | Performance Shock; For PN[K2011/K2050/K2052/K2054/K2156/K2157/K2155/K2132/K2131/K2130/K2010/K2118/K2119/K20132/K20101/K20102/K20111/K20112/K2257/K2013]; |
| Description_EXT | Performance Shock; For PN[K2011/K2086/K2087/K2115/K2025/K2026/K2050/K2052/K2054/K2084/K2116/K3039/K3033/K3035/K3036/K5001/K5000/K3043/K3041/K3040]; |
| Description_EXT | Radius Arm Lift System; w/Performance Shocks; 6 in. Lift; |
| Description_FAB | Adjustable Alignment Cam Allows Caster Adjustment |
| Description_FAB | Dimple Die Side Plates |
| Description_FAB | Fully Tubular Structure |
| Description_FAB | Patent Pending Radius Arms |
| Description_FAB | Unsurpassed Strength And Performance |
| Description_INV | Fabtech-6" RAD ARM SYS W/COI |
| Description_LAB | Proposition 65 |
| Description_MKT | For the ultimate in suspension performance for the Super Duty we offer a bolt on 4 Link System that provides unsurpassed articulation and wheel travel. These 2 diameter heavy wall links feature race style 1 Uniballs for superior strength. Thick 1/4 steel brackets secure the 4 Links to the frame without cutting or welding. The system also includes Sway Bar Drops, Trac Bar relocation bracket, Pitman Arm, and U-Bolt kit. |
| Description_MKT | Our patented Radius Arms feature a full tubular structure strengthened by dimple die side plates, with an adjustable alignment cam at the axle to allow caster adjustment. Front spring lift options includes 6in replacement Coil Springs. Completing this system is a Trac Bar relocation bracket, Pitman Arm, Sway Bar drops, and a rear Block & U-bolt kit. Includes Performance Shocks. This system qualifies for our 5/60 Powertrain Warranty. |
| Description_SHO | 6" RAD ARM SYS W/COI |
| Description_SHO | LftKt-Suspw/Shock |
| height | 14.5 |
| length | 45.5 |
| Lift/Drop Height | 6 in. |
| LTL | N |
| WARNING CA Proposition 65 | Yes |
| WARNING CA Proposition 65 Message | Warning: Cancer and Reproductive Harm-www.P65Warnings.ca.gov. |
| weight | 258.6 |
| width | 39.52 |
