Fabtech K2255DL Basic Lift System w/Shocks
by Fabtech
SKU ds_BKBN_K2255DL
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Original price
$3,149.06
-
Original price
$3,149.06
Original price
$3,149.06
$3,149.06
$3,149.06
-
$3,149.06
Current price
$3,149.06
Availability:
Only 1 left!
Description
Fabtech now offers multiple suspension systems specifically for the 2017 Super Duty with the 6.2L gas engine. This engine is lighter than the 6.7L Powerstoke diesel and therefore requires a different coil spring. Fabtechs gas engine coil springs will provide the correct amount of lift with a superior ride quality. All Fabtech 6 suspension systems including Basic, Radius Arm and 4 Link are available with the gas engine coil springs.
Specifications
| Description_ASC | TIRE SIZE - 37/12.50R17 Wheel - 17X9 W/4 3/4" BS W/MINOR TRIMMING; TIRE SIZE - 37/12.50R18 Wheel - 18X9 W/4 3/4" BS W/MINOR TRIMMING; TIRE SIZE - 37/13.50R20 Wheel - 20X9 W/5" BS W/MINOR TRIMMING; NON DUALLY MODELS ONLY.; 16VEHICLES EQUIPPED WITH 2 PIECE DRIVESHAFT REQUIRE FTS419.; 171. WILL NOT FIT DIESEL MODELS; 17FRONT DRIVESHAFT MODIFICATION IS REQUIRED OR ORDER DRIVESHAFT (FTS92036); 175. VEHICLES W/ FACTORY REAR SWAY BAR MUST ORDER EXTENDED SWAY BAR LINK KIT PART NUMBER FTS22276. |
| Description_ASC | TIRE SIZE-37/12.50R17 WHEEL-17X9 W/4 3/4in. BS W/MINOR TRIMMING; TIRE SIZE-37/12.50R18 WHEEL-18X9 W/4 3/4in. BS W/MINOR TRIMMING; TIRE SIZE-37/13.50R20 WHEEL-20X9 W/5in. BS W/MINOR TRIMMING; 3. NON DUALLY MODELS ONLY.; 163. VEHICLES EQUIPPED WITH 2 PIECE DRIVESHAFT REQUIRE FTS419.; 171. WILL NOT FIT DIESEL MODELS; 173. FRONT DRIVESHAFT MODIFICATION IS REQUIRED OR ORDER DRIVESHAFT (FTS92036); 175. VEHICLES W/FACTORY REAR SWAY BAR MUST ORDER EXTENDED SWAY BAR LINK KIT PART NUMBER FTS22276. |
| Description_DEF | Suspension Lift Kit |
| Description_DES | 2.25DLSS N/R |
| Description_DES | 6" BASIC SYS W/DLSS SHKS 17-21 FORD F250/F350 4WD GAS |
| Description_DES | 6" BASIC SYSTEM |
| Description_DES | 6" REAR BOX KIT |
| Description_DES | Basic Lift System w/Shocks |
| Description_DES | SD 6" GAS 4WD COIL BOX |
| Description_EXT | 6" BASIC SYS W/DLSS SHKS 17-21 FORD F250/F350 4WD GAS. |
| Description_EXT | Basic Lift System w/Shocks; w/DLSS Shocks; 6 in. Lift; |
| Description_EXT | Block Kit; Rear; For 6 in. Lift; For PN[K2217M/K2217DL/K2218DL/K2243DL/K2219M/K2219DL/K2244DL/K2232DL/K2256DL/K2257/K2257M/K2257DL/K2256M/K2255M/K2255/K2217/K2218/K2219]; |
| Description_EXT | Coil Spring Kit; For 6 in. Lift; For PN[K2255/K2255M/K2255DL/K2256/K2256M/K2256DL/K2257/K2257M/K2257DL]; |
| Description_EXT | Component Box; For 6 in. Lift; For PN[K2217M/K2217DL/K2255DL/K2255/K2217]; |
| Description_EXT | Dirt Logic 2.25 Shock Absorber; For PN[K2144DL/K2206DL/K2205DL/K2158DL/K2159DL/K2217DL/K2218DL/K2243DL/K2219DL/K2244DL/K2232DL/K2215DL/K2216DL/K2253DL/K2204DL]; Stainless Steel; |
| Description_EXT | Dirt Logic 2.25 Shock Absorber; Stainless Steel; For PN[K2217DL/K2218DL/K2219DL/K2256DL/K2257DL/K2255DL/K2130DL/K2131DL/K2132DL/K2050DL/K2052DL/K2054DL/K20101DL/K20102DL]; |
| Description_FAB | Designed For The Budget Minded Enthusiast |
| Description_FAB | Everything You Will Need To Lift Your Vehicle |
| Description_FAB | Utilizes The Stock Radius Arm |
| Description_INV | Fabtech-6" BASIC SYS W/DLSS |
| Description_LAB | Proposition 65 |

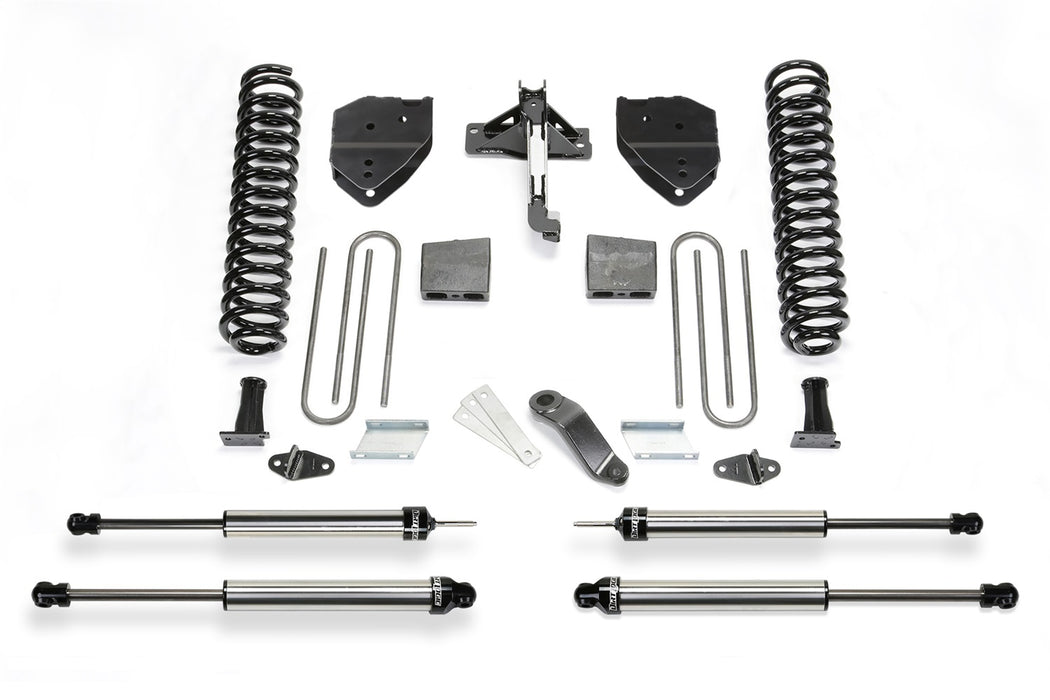

| Description_MKT | As a popular alternative to our Radius Arm and 4 Link System this Basic Drop Bracket system is designed for the budget minded enthusiast. Application utilizes the stock radius arm. Completing this system is a Trac Bar relocation bracket, Pitman Arm, Sway Bar drops, rear Blocks and U- bolt kit. Includes Dirt Logic 2.25 Shocks. This system qualifies for our 5/60 Powertrain Warranty. |
| Description_MKT | Fabtech now offers multiple suspension systems specifically for the 2017 Super Duty with the 6.2L gas engine. This engine is lighter than the 6.7L Powerstoke diesel and therefore requires a different coil spring. Fabtechs gas engine coil springs will provide the correct amount of lift with a superior ride quality. All Fabtech 6 suspension systems including Basic, Radius Arm and 4 Link are available with the gas engine coil springs. |
| Description_SHO | 6" BASIC SYS W/DLSS |
| Description_SHO | LftKt-Suspw/Shock |
| height | 15.59 |
| length | 39.0 |
| Lift/Drop Height | 6 in. |
| LTL | N |
| WARNING CA Proposition 65 | Yes |
| WARNING CA Proposition 65 Message | Warning: Cancer and Reproductive Harm-www.P65Warnings.ca.gov. |
| weight | 240.2 |
| width | 44.0 |
