Fabtech K2219 4 Link Lift System
by Fabtech
SKU ds_BKBN_K2219
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Save $564.99
Original price
$4,094.72
Original price
$4,094.72
-
Original price
$4,094.72
Original price
$4,094.72
Current price
$3,529.73
$3,529.73
-
$3,529.73
Current price
$3,529.73
Availability:
4+ in stock
Description

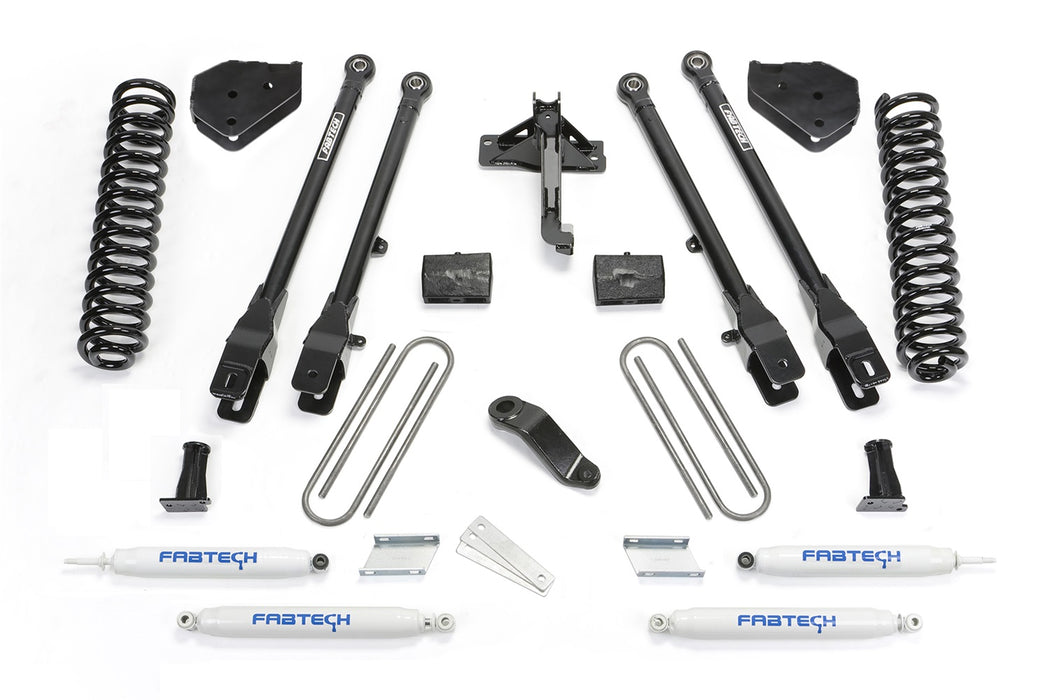

For the ultimate in suspension performance for the Super Duty we offer a bolt on 4 Link System that provides unsurpassed articulation and wheel travel. These 2 diameter heavy wall links feature race style 1 Uniballs for superior strength. Thick 1/4 steel brackets secure the 4 Links to the frame without cutting or welding. The system also includes Sway Bar Drops, Trac Bar relocation bracket, Pitman Arm, and U-Bolt kit.
Specifications
| California Proposition 65 | WARNING: Cancer & Reproductive Harm and image |
| Description_ASC | TIRE SIZE - 37/12.50R17 Wheel - 17X9 W/4 3/4" BS W/MINOR TRIMMING; TIRE SIZE - 37/12.50R18 Wheel - 18X9 W/4 3/4" BS W/MINOR TRIMMING; TIRE SIZE - 37/13.50R20 Wheel - 20X9 W/5" BS W/MINOR TRIMMING; NON DUALLY MODELS ONLY.; 42. WILL NOT FIT GAS MOTORS.; 16VEHICLES EQUIPPED WITH 2 PIECE DRIVESHAFT REQUIRE FTS419.; 165. SOME 2017 MODELS MAY REQUIRE A DUAL STEERING STABILIZER FOR OVERSIZED TIRES. ORDER DIRT LOGIC-FTS220512, DIRT LOGIC W/RESI-FTS221162 OR STEALTH-FTS8046.; 175. VEHICLES W/ FACTORY REAR SWAY BAR MUST ORDER EXTENDED SWAY BAR LINK KIT PART NUMBER FTS22276. |
| Description_ASC | TIRE SIZE-37/12.50R17 WHEEL-17X9 W/4 3/4in. BS W/MINOR TRIMMING; TIRE SIZE-37/12.50R18 WHEEL-18X9 W/4 3/4in. BS W/MINOR TRIMMING; TIRE SIZE-37/13.50R20 WHEEL-20X9 W/5in. BS W/MINOR TRIMMING; 3. NON DUALLY MODELS ONLY.; 42. WILL NOT FIT GAS MOTORS.; 163. VEHICLES EQUIPPED WITH 2 PIECE DRIVESHAFT REQUIRE FTS419.; 165. SOME 2017 MODELS MAY REQUIRE A DUAL STEERING STABILIZER FOR OVERSIZED TIRES. ORDER DIRT LOGIC-FTS220512; DIRT LOGIC W/RESI-FTS221162 OR STEALTH-FTS8046.; 175. VEHICLES W/FACTORY REAR SWAY BAR MUST ORDER EXTENDED SWAY BAR LINK KIT PART NUMBER FTS22276. |
| Description_DEF | Suspension Lift Kit |
| Description_DES | 4 Link Lift System |
| Description_DES | 4"/6"/8" 4LINK BOX 1 |
| Description_DES | 6" 4LINK BOX 2 |
| Description_DES | 6" 4LINK SYS W/COILS & PERF SHKS 17-21 FORD F250/F350 4WD DIESEL |
| Description_DES | 6" REAR BOX KIT |
| Description_DES | PERFORMANCE SHOCK |
| Description_DES | SD 6" 4WD COIL BOX BLACK |
| Description_EXT | 4 Link Lift System; 6 In. Lift; Incl. Performance Shocks; |
| Description_EXT | 6" 4LINK SYS W/COILS & PERF SHKS 17-21 FORD F250/F350 4WD DIESEL. |
| Description_EXT | Block Kit; Rear; For 6 in. Lift; For PN[K2217M/K2217DL/K2218DL/K2243DL/K2219M/K2219DL/K2244DL/K2232DL/K2256DL/K2257/K2257M/K2257DL/K2256M/K2255M/K2255/K2217/K2218/K2219]; |
| Description_EXT | Coil Spring Kit; Black; Front; For 6 in. Lift; For PN[K2011/K2050/K2052/K2054/K2156/K2156M/K2157/K2157M/K2155/K2155M/K2132/K2131/K2130/K2217M/K2217DL/K2218M/K2219M/K2219DL/K2010]; |
| Description_EXT | Component Box; Box 1 of 2; For 6 in. Lift; For PN[K2219M/K2219DL/K2244DL/K2232DL/K2257/K2257M/K2257DL/K2219]; |
| Description_EXT | Component Box; Box 2 of 2; For 6 in. Lift; For PN[K2219M/K2219DL/K2244DL/K2232DL/K2257/K2257M/K2257DL/K2219]; |
| Description_EXT | Performance Shock; For PN[K2011/K2050/K2052/K2054/K2156/K2157/K2155/K2132/K2131/K2130/K2010/K2118/K2119/K20132/K20101/K20102/K20111/K20112/K2257/K2013]; |
| Description_EXT | Performance Shock; For PN[K2011/K2086/K2087/K2115/K2025/K2026/K2050/K2052/K2054/K2084/K2116/K3039/K3033/K3035/K3036/K5001/K5000/K3043/K3041/K3040]; |
| Description_FAB | Everything You Will Need To Lift Your Vehicle |
| Description_FAB | Heavy Wall Links |
| Description_FAB | No Cutting Or Welding |
| Description_FAB | Provides Unsurpassed Articulation And Wheel Travel |
| Description_FAB | Race Style Uniball For Superior Strength |
| Description_FAB | Ultimate In Suspension Performance |
| Description_INV | Fabtech-6" 4LINK SYS W/COILS |
| Description_LAB | Proposition 65 |
| Description_MKT | For the ultimate in suspension performance for the Super Duty we offer a bolt on 4 Link System that provides unsurpassed articulation and wheel travel. These 2 diameter heavy wall links feature race style 1 Uniballs for superior strength. Thick 1/4 steel brackets secure the 4 Links to the frame without cutting or welding. The system also includes Sway Bar Drops, Trac Bar relocation bracket, Pitman Arm, and U-Bolt kit. |
| Description_MKT | For the ultimate in suspension performance for the Super Duty we offer a bolt on 4 Link System that provides unsurpassed articulation and wheel travel. These 2'' diameter heavy wall links feature race style 1'' Uniballs for superior strength. Thick 1/4'' steel brackets secure the 4 Links to the frame without cutting or welding. This 4 Link system allows the use of our replacement Coil Springs. The system also includes Sway bar drops, Trac Bar relocation bracket, Pitman Arm, and a rear Block & U-Bolt kit. This kit includes front and rear Performance Shocks. |
| Description_SHO | 6" 4LINK SYS W/COILS |
| Description_SHO | LftKt-Suspw/Shock |
| height | 15.59 |
| length | 43.5 |
| Lift/Drop Height | 6 in. |
| LTL | N |
| Title | Fabtech 6" 4LINK SYS W/COILS & PERF SHKS 17-21 FORD F250/F350 4WD DIESEL |
| WARNING CA Proposition 65 | Yes |
| WARNING CA Proposition 65 Message | Warning: Cancer and Reproductive Harm-www.P65Warnings.ca.gov. |
| weight | 300.9 |
| width | 46.56 |
