Fabtech K2123M Radius Arm Lift System
by Fabtech
SKU ds_BKBN_K2123M
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$3,140.81
-
Original price
$3,140.81
Original price
$3,140.81
$3,140.81
$3,140.81
-
$3,140.81
Current price
$3,140.81
Availability:
Out of stock
Description

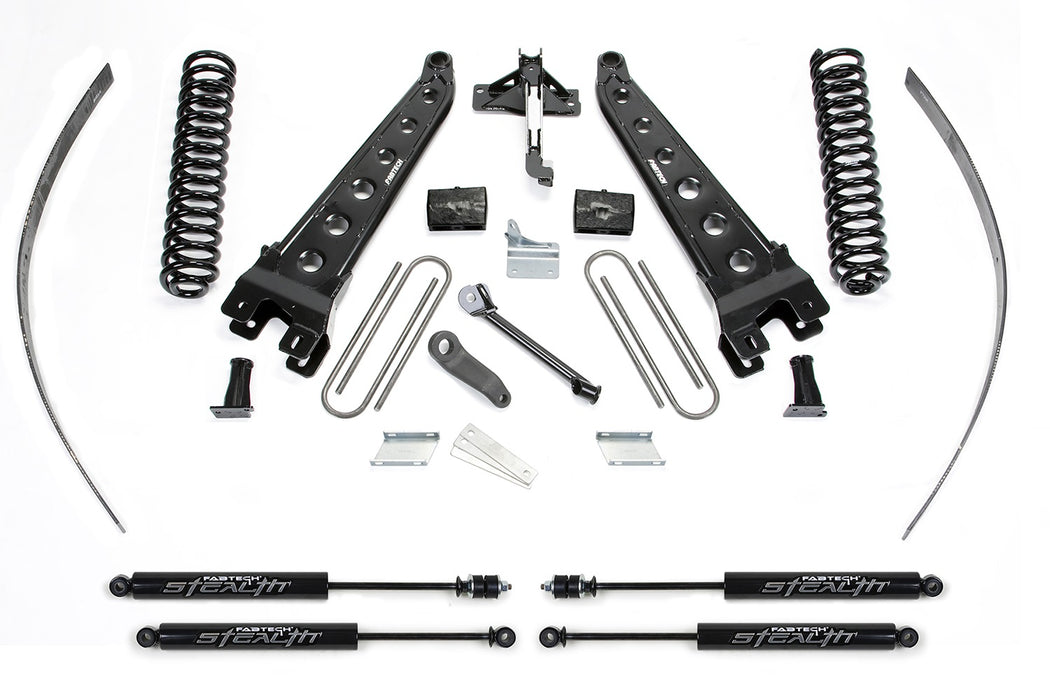

Our patented Radius Arms feature a full tubular structure strengthened by dimple die side plates, with an adjustable alignment cam at the axle to allow caster adjustment. Front spring lift options includes 6 replacement Coil Springs. Completing this system is a Trac Bar relocation bracket, Pitman Arm, Sway Bar drops, and a rear Block & U-bolt kit.
Specifications
| Description_ASC | TIRE SIZE - 37/13.50R20 WHEEL - 20X10 W/4 1/2" BS W/MINOR TRIMMING; TIRE SIZE - 355/65R18 WHEEL - 18X9.5 W/4 3/4" BS W/MINOR TRIMMING; 27. FRONT DRIVE SHAFT MODIFICATION MAY BE REQUIRED TO CLEAR EXHAUST ON GAS MOTOR. |
| Description_ASC | TIRE SIZE-37/13.50R20 WHEEL-20X10 W/4 1/2in. BS W/MINOR TRIMMING; TIRE SIZE-355/65R18 WHEEL-18X9.5 W/4 3/4in. BS W/MINOR TRIMMING; 27. FRONT DRIVE SHAFT MODIFICATION MAY BE REQUIRED TO CLEAR EXHAUST ON GAS MOTOR. |
| Description_DEF | Suspension Lift Kit |
| Description_DES | 08-13F250 W/O FACT OVERLOAD 8" |
| Description_DES | 8" RAD ARM SYS W/COILS & STEALTH 2008-16 FORD F250 4WD W/O FACTORY OVERLOAD |
| Description_DES | RADIUS ARM BOX |
| Description_DES | Radius Arm Lift System |
| Description_DES | SD 8" 4WD COIL BOX BLACK |
| Description_DES | STEALTH MONOTUBE |
| Description_EXT | 8" RAD ARM SYS W/COILS & STEALTH 2008-16 FORD F250 4WD W/O FACTORY OVERLOAD. |
| Description_EXT | Block Kit; 8 in. Lift; Rear; Not For Factory Overload; |
| Description_EXT | Coil Spring Kit; Black; Front; For 8 in. Lift; For PN[K2126/K20151/K2123/K2124/K2128/K2129/K20392/K20171/K20172/K2039/K20391/K2125/K2127/K2121/K2122/K2015/K20152/K2015M/K20151M]; |
| Description_EXT | Component Box; For 4/6/8 in. Lifts; For PN[K2206/K2131/K2123/K2124/K2128/K2204DL/K2119/K2123/K2124/K2128/K2204DL/K2119/K2119M/K2123M/K2124M/K2131M/K2128M/K2131DL/K2145DL/K2128DL]; |
| Description_EXT | Radius Arm Lift System; w/Stealth Monotube Shocks; 8 in. Lift; w/o Factory Overload; |
| Description_EXT | Stealth Monotube Shock Absorber; For PN[K2215M/K2212M/K2209M/K2156M/K2155M/K2214M/K2217M/K2218M/K2219M/K2216M/K2210M/K2253M/K2213M/K2257M/K2256M/K2254M/K2252M/K2255M/K2211M]; |
| Description_EXT | Stealth Monotube Shock Absorber; For PN[K7054M/K2015M/K20151M/K20152M/K2017M/K20172M/K2039M/K20391M/K20392M/K2121M/K2122M/K2123M/K2124M/K2125M/K2126M/K3015M/K30151M/K30152M]; |
| Description_FAB | Adjustable Alignment Cam Allows Caster Adjustment |
| Description_FAB | Dimple Die Side Plates |
| Description_FAB | Fully Tubular Structure |
| Description_FAB | Patent Pending Radius Arms |
| Description_FAB | Unsurpassed Strength And Performance |
| Description_INV | Fabtech-8" RAD ARM SYS W/COI |
| Description_LAB | Proposition 65 |
| Description_MKT | Our patented Radius Arms feature a full tubular structure strengthened by dimple die side plates, with an adjustable alignment cam at the axle to allow caster adjustment. Front spring lift includes 8'' replacement Coil Springs. Completing this system is a Trac Bar relocation bracket, Pitman Arm, Sway Bar drops, rear Add-a-leafs and a Block & U-bolt kit. |
| Description_MKT | Our patented Radius Arms feature a full tubular structure strengthened by dimple die side plates, with an adjustable alignment cam at the axle to allow caster adjustment. Front spring lift options includes 6 replacement Coil Springs. Completing this system is a Trac Bar relocation bracket, Pitman Arm, Sway Bar drops, and a rear Block & U-bolt kit. |
| Description_SHO | 8" RAD ARM SYS W/COI |
| Description_SHO | LftKt-Suspw/Shock |
| height | 14.5 |
| length | 52.0 |
| LTL | N |
| weight | 289.0 |
| width | 36.52 |
