Description
The legendary Dirt Logic 2.25 rear shocks are constructed of a stainless steel body with NitroSteel(R) piston rod for maximum corrosion resistance and durability. Superior ride quality both on and offroad. Excellent damping for offroad use.
Specifications
| Description_ASC | TIRE SIZE - 33/12.50R18 Wheel - 18X9 W/5" BS W/MINOR TRIMMING; TIRE SIZE - 295/55R20 Wheel - 20X9 W/5" BS W/MINOR TRIMMING; TIRE SIZE - 295/65R18 Wheel - 18X9 W/5" BS W/MINOR TRIMMING; TIRE SIZE - 33/12.50R20 Wheel - 20X9 W/5" BS W/MINOR TRIMMING; 14. CAN NOT USE OEM Wheel AND TIRE.; DOES NOT FIT STANDARD CAB.; 197. WILL NOT FIT MODELS EQUIPPED WITH ADAPTIVE RIDE CONTROL |
| Description_ASC | TIRE SIZE-33/12.50R18 WHEEL-18X9 W/5in. BS W/MINOR TRIMMING; TIRE SIZE-295/55R20 WHEEL-20X9 W/5in. BS W/MINOR TRIMMING; TIRE SIZE-295/65R18 WHEEL-18X9 W/5in. BS W/MINOR TRIMMING; TIRE SIZE-33/12.50R20 WHEEL-20X9 W/5in. BS W/MINOR TRIMMING; 14. CAN NOT USE OEM WHEEL AND TIRE.; 17. DOES NOT FIT STANDARD CAB.; 197. WILL NOT FIT MODELS EQUIPPED WITH ADAPTIVE RIDE CONTROL |
| Description_DEF | Suspension Lift Kit |
| Description_DES | 1.5" BUDGET SYS W/ DL 2.5 & 2.25 2019-22 GM K1500 P/U W/ TRAIL BOSS/AT4 PKG |
| Description_DES | 2.25DLSS N/R T1 |
| Description_DES | 2.5DLSS C/O N/R T1 PAIR PACKAGED |
| Description_DES | Ball Joint UCA Lift System w/Shocks |
| Description_DES | T1 BJ UCA W/O SHK SPCR |
| Description_EXT | 1.5" BUDGET SYS W/ DL 2.5 & 2.25 2019-22 GM K1500 P/U W/ TRAIL BOSS/AT4 PKG. |

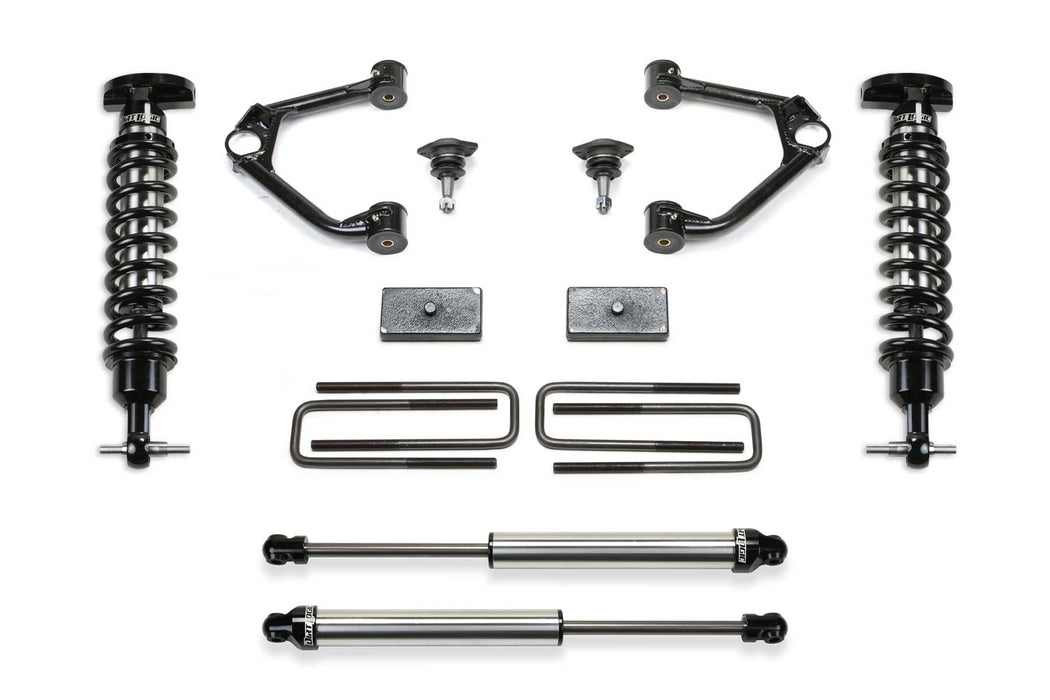

| Description_EXT | Ball Joint UCA Lift System w/Shocks; 1.5 in. Lift; w/Front Dirt Logic 2.5 Coilover And Rear Dirt Logic 2.25 Shocks; |
| Description_FAB | No Loss Of Ground Clearance |
| Description_FAB | Simplified Design With Fast Install |
| Description_FAB | Steering Knuckles Retain Proper ESC |
| Description_INV | Fabtech-1.5" BUDGET SYS W/ D |
| Description_LAB | Proposition 65 |
| Description_MKT | Designed specifically for Trail Boss and AT4 owners that want a little more ride height out of their truck for clearance of full size 33/1250R 18 inch or 20 inch tires, this lift kit is the ticket. Fabtech's Upper Control Arm lift kit provides a 1.5in increased ride height on Trail Boss and AT4 models without creating suspension bind at full droop. These vehicles have a factory 2in lift. With the addition of this 1.5in lift kit, the vehicle will sit as high as a standard model with a 3.5in lift kit and clear a 33in tall tire. This 1.5in lift kit features the legendary stainless steel Dirt Logic 2.5 Coilover shocks. These Coilovers are built of the highest quality materials and will surpass all shocks in corrosion resistance due to the stainless steel body and NitroSteel piston rod. They will provide an outstanding ride quality both on and offroad. The tubular Upper Control Arms with heavy duty ball joints address the geometry of the front suspension with the new ride height for proper alignablity. Due to the new GM suspension geometry of the 2019, there are no differential drop brackets required for the CV axles to operate properly. Rear lift comes from 1in blocks and u bolts. Some owners may opt to not install the rear blocks if they desire to level the stance of the vehicle. The legendary Dirt Logic 2.25 rear shocks are constructed of a stainless steel body with NitroSteel piston rod for maximum corrosion resistance and durability. Superior ride quality both on and offroad. Excellent damping for offroad use. FEATURES: Increased ground clearance, Extended range upper ball joints provide a smooth quiet ride, Increased fender clearance for 33in tall tires, Suspension can be restored to stock, Easy installation. |
| Description_MKT | The legendary Dirt Logic 2.25 rear shocks are constructed of a stainless steel body with NitroSteel(R) piston rod for maximum corrosion resistance and durability. Superior ride quality both on and offroad. Excellent damping for offroad use. |
| Description_SHO | 1.5" BUDGET SYS W/ D |
| Description_SHO | LftKt-Suspw/Shock |
| height | 15.13 |
| length | 35.75 |
| Lift/Drop Height | 1.5 in. |
| LTL | N |
| WARNING CA Proposition 65 | Yes |
| WARNING CA Proposition 65 Message | Warning: Cancer and Reproductive Harm-www.P65Warnings.ca.gov. |
| weight | 117.2 |
| width | 24.75 |
