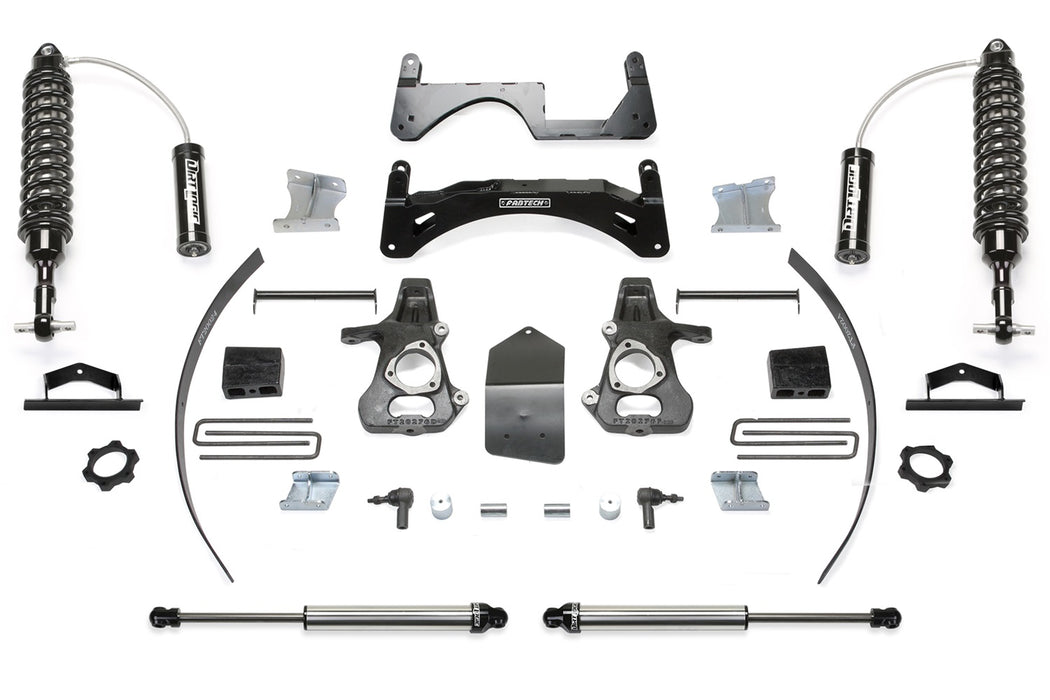

Fabtech K1114DL Basic Lift System w/Shocks
by Fabtech
SKU ds_BKBN_K1114DL
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$5,614.17
-
Original price
$5,614.17
Original price
$5,614.17
$5,614.17
$5,614.17
-
$5,614.17
Current price
$5,614.17
Availability:
Out of stock
Description
As a popular alternative to our Radius Arm and 4 Link System this Basic Drop Bracket system is designed for the budget minded enthusiast. Application utilizes the stock radius arm. Completing this system is a Trac Bar relocation bracket, Pitman Arm, Sway Bar drops, Add-a-leafs with rear blocks, u bolt kit and more.
Specifications
| Description_ASC | TIRE SIZE - 35/12.50R17 WHEEL - 17X8 W/5" BS W/MINOR TRIMMING; TIRE SIZE - 35/12.50R20 WHEEL - 20X9 W/5" BS W/MINOR TRIMMING; TIRE SIZE - 325/65R18 WHEEL - 18X9 W/5" BS W/MINOR TRIMMING |
| Description_ASC | TIRE SIZE-35/12.50R17 WHEEL-17X8 W/5in. BS W/MINOR TRIMMING; TIRE SIZE-35/12.50R20 WHEEL-20X9 W/5in. BS W/MINOR TRIMMING; TIRE SIZE-325/65R18 WHEEL-18X9 W/5in. BS W/MINOR TRIMMING |
| Description_DEF | Suspension Lift Kit |
| Description_DES | 2.25DLSS N/R |
| Description_DES | 2.5DLSS C/O RESI T900 6" PAIR PACKAGED |
| Description_DES | 6" BASIC SYS W/ DL 2.5 & 2.25 14-18 GM C/K1500 P/U W/ OE ALM OR STMP STL UCA |
| Description_DES | Basic Lift System w/Shocks |
| Description_DES | COMPONENT BOX 1 |
| Description_DES | COMPONENT BOX 2 - ALUM |
| Description_EXT | 6" BASIC SYS W/ DL 2.5 & 2.25 14-18 GM C/K1500 P/U W/ OE ALM OR STMP STL UCA. |
| Description_EXT | Basic Lift System w/Shocks; 6 in. Lift; w/Front Dirt Logic SS 2.5 Coilovers Resi; Rear Dirt Logic SS Shocks; |
| Description_EXT | Component Box; Box 1 of 2; For 6 in. Lift; For PN[K1093/K1067/K1099/K1068/K1068M/K1114DL/K1112DL/K1078/K1067M/K1067DL/K1073DL/K1068DL/K1072DL]; |
| Description_EXT | Component Box; Box 2 of 2; For 6 in. Lift; For PN[K1093/K1068/K1068M/K1114DL/K1073DL/K1068DL]; |
| Description_EXT | Dirt Logic 2.25 Shock Absorber; Stainless Steel; For PN[K1111DL/K1115DL/K1114DL/K1112DL/K1113DL/K1067DL/K1073DL/K1084DL/K1083DL/K1068DL/K1026DL/K1025DL/K1085DL/K1072DL]; |
| Description_EXT | Dirt Logic 2.5 Resi Coil Over Shock Absorber; Front; For 6 in. Lift; For PN[K1112DL/K1114DL/K1115DL]; |
| Description_FAB | Designed For The Budget Minded Enthusiast |
| Description_FAB | Everything You Will Need To Lift Your Vehicle |
| Description_FAB | Utilizes The Stock Radius Arm |
| Description_INV | Fabtech-6" BASIC SYS W/ DL 2 |
| Description_LAB | Proposition 65 |
| Description_MKT | As a popular alternative to our Radius Arm and 4 Link System this Basic Drop Bracket system is designed for the budget minded enthusiast. Application utilizes the stock radius arm. Completing this system is a Trac Bar relocation bracket, Pitman Arm, Sway Bar drops, Add-a-leafs with rear blocks, u bolt kit and more. |
| Description_MKT | Our 6'' Performance System for the Aluminum component version has been designed utilizing our industry leading crossmember and spindle technology. The front high arched 1/4'' thick steel crossmember has been formed to fit to the bottom of the 2014-15 frame without having to cut or modify it for a fast installation. Extensive design work was given to the extended length steering knuckles specifically for the Aluminum component version keeping track width near stock and working properly with the Stablitrac safety functions. The front differential is relocated with heavy duty brackets while a tightly formed 1/4 '' thick steel skid plate provides protection for offroad use. The rear suspension is upgraded with add a leafs and 5'' tall blocks and u bolts. What sets this 6'' Performance system apart from our 6'' Basic is the Dirt Logic Shocks. The factory front Coilover shocks are replaced with Dirt Logic 2.5 Coilovers that have been ride tuned by our in house shock experts to provide a supple highway ride with excellent offroad damping. These 2.5 Coilovers include Eibach coil springs for the best possible ride. The rear suspension receives Dirt Logic 2.25 shocks that are tuned for a compliant highway ride with great offroad capability. Dirt Logics are the finest shocks you can buy for your vehicle and will provide a quality ride you can feel each time you drive. - Front lower control arm Crossmember forms to bottom of frame without cutting - Offset ductile Steering Knuckles keep tires under fenders - Includes Crossmember cross tubes to distribute front suspension impact loads - Top of the line Dirt Logic shocks for superior damping and ride - Systems compatible with factory Stablitrac. NOTE- Before ordering visually check your vehicle's factory suspension for aluminum or steel version. This system will only fit factory aluminum suspension vehicles. |
| Description_SHO | 6" BASIC SYS W/ DL 2 |
| Description_SHO | LftKt-Suspw/Shock |
| height | 15.13 |
| length | 45.5 |
| LTL | N |
| weight | 371.6 |
| width | 43.75 |
