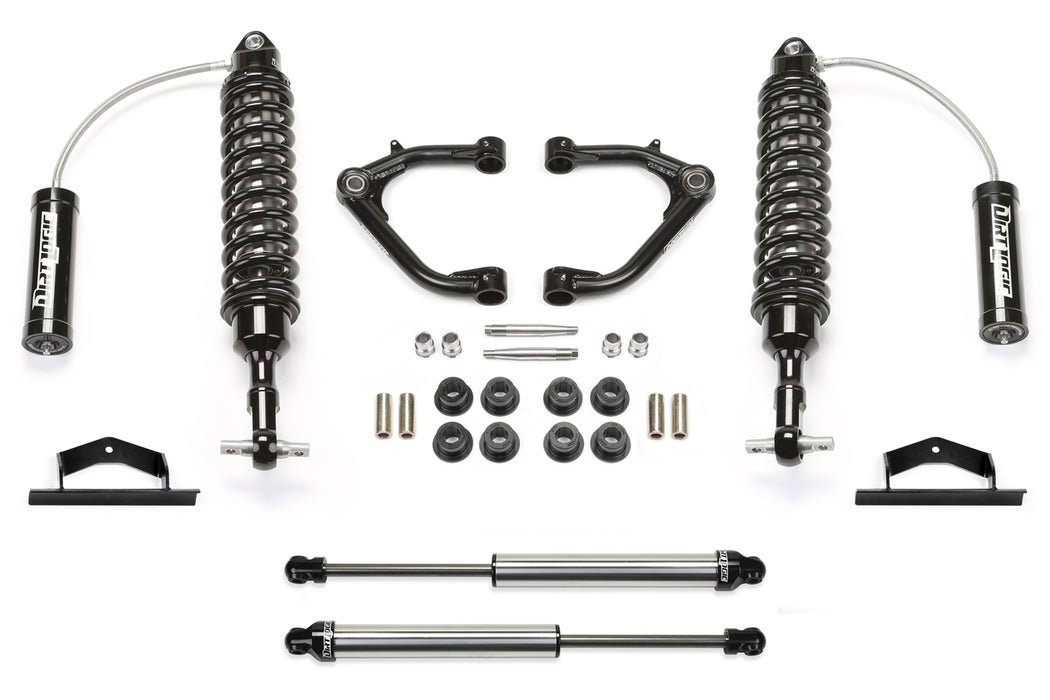

Fabtech K1106DL Uniball Control Arm Lift System
by Fabtech
SKU ds_BKBN_K1106DL
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$4,318.51
-
Original price
$4,318.51
Original price
$4,318.51
$4,318.51
$4,318.51
-
$4,318.51
Current price
$4,318.51
Availability:
Out of stock
Description
Arms eliminate upper ball join w/super strong 1 ID stainless American uniball. Additional caster is built into arms for greater align ability to help with problematic leveling kit alignments. Allows for increased wheel travel when used w/Dirt Logic 2.5 coilover shocks. Chromoly tubing reduces flex found in stock arms for more positive road feel. 4340 heat treated uniball pin fits into factory ball join taper without modification to the spindle for easy return to stock feature. Arms are direct replacements for factory arms on suspensions that require additional strength and align ability.
Specifications
| Description_ASC | TIRE SIZE - 275/65R18 Wheel - 18X8 W/4 1/2" BS W/MINOR TRIMMING; TIRE SIZE - 285/55R20 Wheel - 20X9 W/5" BS W/MINOR TRIMMING; TIRE SIZE - 295/70R17 Wheel - 17X8 W/4 1/2" BS W/MINOR TRIMMING; 1. WILL NOT FIT MODELS WITH FACTORY AUTORIDE SHOCKS.; 8. WILL NOT FIT ALL Wheel DRIVE MODELS.; 14. CAN NOT USE OEM Wheel AND TIRE.; DOES NOT FIT STANDARD CAB.; 127. FITS MODELS WITH FACTORY FORGED SILVER ALUMINUM UCA OR STAMPED BLACK STEEL UCA. |
| Description_ASC | TIRE SIZE-275/65R18 WHEEL-18X8 W/4 1/2in. BS W/MINOR TRIMMING; TIRE SIZE-285/55R20 WHEEL-20X9 W/5in. BS W/MINOR TRIMMING; TIRE SIZE-295/70R17 WHEEL-17X8 W/4 1/2in. BS W/MINOR TRIMMING; 1. WILL NOT FIT MODELS WITH FACTORY AUTORIDE SHOCKS.; 8. WILL NOT FIT ALL WHEEL DRIVE MODELS.; 14. CAN NOT USE OEM WHEEL AND TIRE.; 17. DOES NOT FIT STANDARD CAB.; 127. FITS MODELS WITH FACTORY FORGED SILVER ALUMINUM UCA OR STAMPED BLACK STEEL UCA. |
| Description_DEF | Suspension Lift Kit |
| Description_DES | 0-3,6" K2 UNIBALL UCA KIT W/ OE ALM OR STMP STL UCA |
| Description_DES | 2" UCA KIT W/ DL 2.5 & 2.25 14-18 GM C/K1500 P/U W/ OE ALM OR STMP STL UCA |
| Description_DES | 2.25DLSS N/R |
| Description_DES | 2.5DLSS C/O RESI T900/K2 2" PAIR PACKAGED |
| Description_DES | Uniball Control Arm Lift System |
| Description_EXT | 2" UCA KIT W/ DL 2.5 & 2.25 14-18 GM C/K1500 P/U W/ OE ALM OR STMP STL UCA. |
| Description_EXT | Control Arm Kit; For 0-6 in. Lift; Front Upper; Uniball; For PN[K1106DL/K1069DL]; |
| Description_EXT | Dirt Logic 2.25 Shock Absorber; Stainless Steel; For PN[K1106DL/K1105DL/K1061DL/K1105DL/K2197DL/K1069DL/K2185DL/K1061DL]; |
| Description_EXT | Dirt Logic 2.5 Resi Coil Over Shock Absorber; Front; For 2 in. Lift; For PN[K1106DL/K1106DL]; |
| Description_EXT | Uniball Control Arm Lift System; 2 in. Lift; Incl. Uniball Upper Control Arms System; Front Dirt Logic SS 2.5 Coilovers; Rear Dirt Logic SS Shocks; |
| Description_FAB | Custom Engineered For High Quality Ride |
| Description_FAB | Regulates Wheel Motion In Relation To Body |
| Description_INV | Fabtech-2" UCA KIT W/ DL 2.5 |
| Description_LAB | Proposition 65 |
| Description_MKT | Arms eliminate upper ball join w/super strong 1 ID stainless American uniball. Additional caster is built into arms for greater align ability to help with problematic leveling kit alignments. Allows for increased wheel travel when used w/Dirt Logic 2.5 coilover shocks. Chromoly tubing reduces flex found in stock arms for more positive road feel. 4340 heat treated uniball pin fits into factory ball join taper without modification to the spindle for easy return to stock feature. Arms are direct replacements for factory arms on suspensions that require additional strength and align ability. |
| Description_MKT | Arms eliminate upper ball joint w/ super strong 1'' ID Stainless American Uniball - Additional caster is built into Arms for greater align ability to help with problematic leveling kit alignments - Allows for increased wheel travel when used with Dirt Logic 2.5 Coilover Resi shocks - Chromoly tubing reduces flex found in stock arms for more positive road feel - 17-4 Stainless Steel Heat treated Uniball pin fits into factory ball joint taper without modification to the spindle for easy return to stock feature - Arms are direct replacements for factory arms on suspensions that require additional strength and align ability. Material Construction Specs - Built with same materials as found on Trophy Trucks - .120'' Wall 4130 Chromoly Tubing. 1.50'' OD. - .250'' wall DOM Bushing Barrels - 1'' ID Stainless Steel American Uniball - 17-4 Stainless Misalignments - 17-4 Stainless Steel Heat Treated Tapered Uniball Pins. NOTE- Before ordering visually check your vehicle's factory suspension for aluminum or steel version. This system will only fit factory aluminum suspension vehicles. |
| Description_SHO | 2" UCA KIT W/ DL 2.5 |
| Description_SHO | LftKt-Suspw/Shock |
| height | 15.5 |
| length | 35.75 |
| Lift/Drop Height | 2 in. |
| LTL | N |
| WARNING CA Proposition 65 | Yes |
| WARNING CA Proposition 65 Message | Warning: Cancer and Reproductive Harm-www.P65Warnings.ca.gov. |
| weight | 101.2 |
| width | 23.75 |
