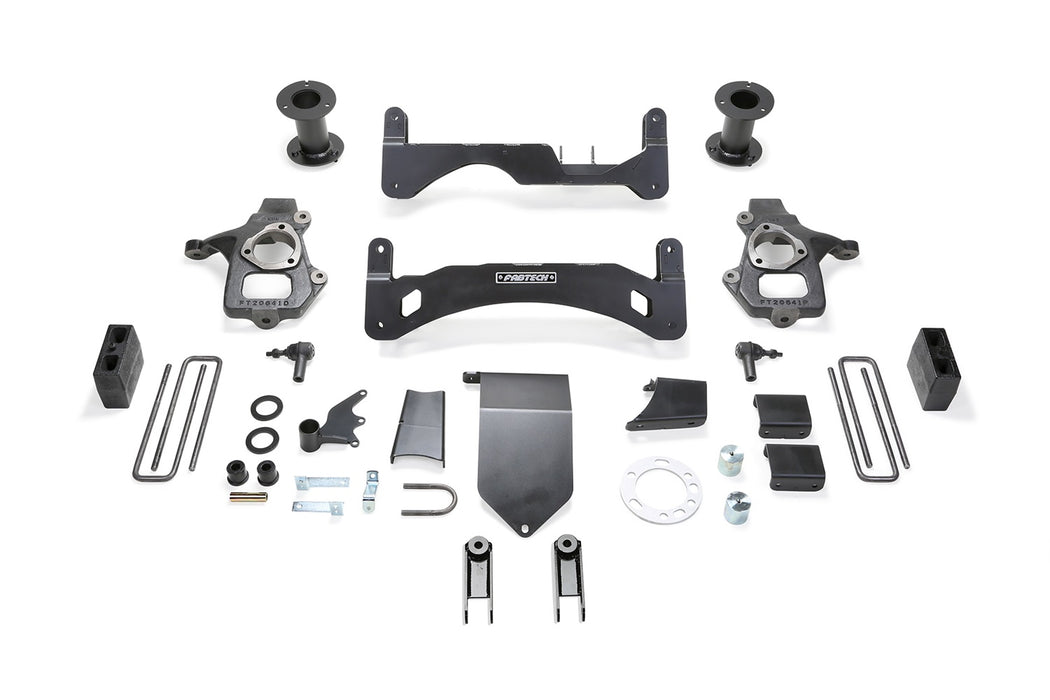

Fabtech K1094 Basic Coilover Lift System
by Fabtech
SKU ds_BKBN_K1094
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Original price
$2,583.98
-
Original price
$2,583.98
Original price
$2,583.98
$2,583.98
$2,583.98
-
$2,583.98
Current price
$2,583.98
Availability:
4+ in stock
Description
This new Gen II system retains the factory track width keeping the tires under the fenders for a clean appearance. With the factory track width retained the front Sway Bar utilizes the stock end links and mounting holes keeping the leverage on the bar proper. There are no CV spacers, impact struts or add a leafs required for installation. The front differential is relocated in a manner so that when driving at higher 4 wheel drive speeds vibration is reduced. The GEN II Basic System utilizes a simplistic upper Coilover spacer that provides lift from the top of the shock rather than bottom up with reduced install time. All bracketry and the skid plate is constructed of 1/4 thick steel for maximum strength and proven reliability. The system passes FMVSS 126 standards for stability control functionality as tested by an independent lab.
Specifications
| Description_ASC | TIRE SIZE - 35/12.50R20 Wheel - 20X9 W/5" BS W/MINOR TRIMMING; TIRE SIZE - 325/65R18 Wheel - 18X9 W/5" BS W/MINOR TRIMMING; 8. WILL NOT FIT ALL Wheel DRIVE MODELS.; 14. CAN NOT USE OEM Wheel AND TIRE.; DOES NOT FIT STANDARD CAB. |
| Description_ASC | TIRE SIZE-35/12.50R20 WHEEL-20X9 W/5in. BS W/MINOR TRIMMING; TIRE SIZE-325/65R18 WHEEL-18X9 W/5in. BS W/MINOR TRIMMING; 8. WILL NOT FIT ALL WHEEL DRIVE MODELS.; 14. CAN NOT USE OEM WHEEL AND TIRE.; 17. DOES NOT FIT STANDARD CAB. |
| Description_DEF | Suspension Lift Kit |
| Description_DES | 2014 GM 1500 6" SPACER KIT |
| Description_DES | 6" BASIC SYS G2 W/MAGNERIDE 14-18 GM K1500 P/U DENALI W/ OE ALM OR STMP STL UCA |
| Description_DES | 6" MAGNERIDE RR SHK MNT KIT |
| Description_DES | Basic Coilover Lift System |
| Description_DES | COMPONENT BOX 1 GEN2 |
| Description_DES | COMPONENT BOX 2 GEN2 - ALUM |
| Description_EXT | 6" BASIC SYS G2 W/MAGNERIDE 14-18 GM K1500 P/U DENALI W/ OE ALM OR STMP STL UCA. |
| Description_EXT | Basic Coilover Lift System; 6 in. Lift; GEN II w/Magneride Suspension; |
| Description_EXT | Coil Spring Spacer Kit; For 6 in. Lift; For PN[K1083/K1083M/K1084/K1084M/K1100/K1094]; |
| Description_EXT | Component Box; Box 1 of 2; For Gen ll 6 in. Lift; For PN[K1111DL/K1083DL/K1083M/K1084/K1084M/K1100/K1113DL/K1094/K1084DL/K1083DL/K1086DL/K1085DL]; |
| Description_EXT | Component Box; Box 2 of 2; For Gen ll 6 in. Lift; Aluminum; For PN[K1084/K1084M/K1113DL/K1094/K1084DL/K1086DL]; |
| Description_EXT | Shock Absorber Mount Kit; Set Of 2; Rear; For Use w/Magneride Suspension And PN[K1094]; |
| Description_FAB | Designed For The Budget Minded Enthusiast |
| Description_FAB | Everything You Will Need To Lift Your Vehicle |
| Description_FAB | Utilizes The Stock Radius Arm |
| Description_INV | Fabtech-6" BASIC SYS G2 W/MA |
| Description_LAB | Proposition 65 |
| Description_MKT | This new Gen II system retains the factory track width keeping the tires under the fenders for a clean appearance. With the factory track width retained the front Sway Bar utilizes the stock end links and mounting holes keeping the leverage on the bar proper. There are no CV spacers, impact struts or add a leafs required for installation. The front differential is relocated in a manner so that when driving at higher 4 wheel drive speeds vibration is reduced. The GEN II Basic System utilizes a simplistic upper Coilover spacer that provides lift from the top of the shock rather than bottom up with reduced install time. All bracketry and the skid plate is constructed of 1/4 thick steel for maximum strength and proven reliability. The system passes FMVSS 126 standards for stability control functionality as tested by an independent lab. |
| Description_MKT | This new Gen II system retains the factory track width keeping the tires under the fenders for a clean appearance. With the factory track width retained the front Sway Bar utilizes the stock end links and mounting holes keeping the leverage on the bar proper. There are no CV spacers, impact struts or add a leafs required for installation. The front differential is relocated in a manner so that when driving at higher 4 wheel drive speeds vibration is reduced. The GEN II Basic System utilizes a simplistic upper Coilover spacer that provides lift from the top of the shock rather than bottom up with reduced install time. All bracketry and the skid plate is constructed of 1/4in thick steel for maximum strength and proven reliability. This 6in system will level the stance of the vehicle compared to the factory nose down rake. For those customers that want a factory nose down appearance order optional add a leaf, Part #FTS212. The system passes FMVSS 126 standards for stability control functionality as tested by an independent lab. |
| Description_SHO | 6" BASIC SYS G2 W/MA |
| Description_SHO | LiftKt-SuspFront |
| height | 14.5 |
| length | 45.5 |
| LTL | N |
| weight | 241.8 |
| width | 39.08 |
