Fabtech K1056DL Budget Lift System w/Shock
by Fabtech
SKU ds_BKBN_K1056DL
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Original price
$3,063.90
-
Original price
$3,063.90
Original price
$3,063.90
$3,063.90
$3,063.90
-
$3,063.90
Current price
$3,063.90
Availability:
Only 1 left!
Description
Our 4 Ultimate System provides less lift than our 6 RTS(TM) system but still allows use of 33 or 35 tall tires with cutting for street and offroad use. We have developed this system utilizing replacement upper control arms constructed of 1.50 OD .120 thick wall DOM tubing that attaches to heavy duty Fabtech ductile iron steering knuckles. The factory torsion bars remain in the stock position and use new forged adjusting keys to provide the proper amount of lift. There is no loss of ground clearance with this system as the stock lower control arms, torsion bars and front differential do not need to be relocated. This 4 Ultimate System will level the stance of the vehicle compared to the factory nose down rake with no change to the rear suspension. For those customers that require a factory nose down appearance an optional 1 rear block kit is available (2500HD Part # FTS21110) (3500HD Part # FTS21111).
Specifications
| California Proposition 65 | WARNING: Cancer & Reproductive Harm and image |
| Description_ASC | TIRE SIZE - 33/12.50R18 Wheel - 18X9 W/5 3/4" BS W/MINOR TRIMMING; TIRE SIZE - 33/12.50R20 Wheel - 20X9 W/5 3/4" BS W/MINOR TRIMMING; TIRE SIZE - 35/13.50R18 Wheel - 18X9 W/5 3/4" BS W/FENDERWELL CUTTING; TIRE SIZE - 35/13.50R20 Wheel - 20X9 W/5 3/4" BS W/FENDERWELL CUTTING; DOES NOT FIT STANDARD CAB.; 114. WILL NOT ALLOW USE OF 17 IN. Wheels.; 124. REQUIRES CUTTING OF FENDERWELL SHEETMETAL FOR USE WITH 35 IN. TIRES |
| Description_ASC | TIRE SIZE-33/12.50R18 WHEEL-18X9 W/5 3/4in. BS W/MINOR TRIMMING; TIRE SIZE-33/12.50R20 WHEEL-20X9 W/5 3/4in. BS W/MINOR TRIMMING; TIRE SIZE-35/13.50R18 WHEEL-18X9 W/5 3/4in. BS W/FENDERWELL CUTTING; TIRE SIZE-35/13.50R20 WHEEL-20X9 W/5 3/4in. BS W/FENDERWELL CUTTING; 17. DOES NOT FIT STANDARD CAB.; 114. WILL NOT ALLOW USE OF 17 IN. WHEELS.; 124. REQUIRES CUTTING OF FENDERWELL SHEETMETAL FOR USE WITH 35 IN. TIRES |
| Description_DEF | Suspension Lift Kit |
| Description_DES | 3.5" GM SYSTEM W/ DLSS SHOCKS 11 C/K2500HD/3500HD EXC STD CB |
| Description_DES | 3.5" ULTIMATE SYS W/DLSS SHKS 2011-19 GM C/K2500HD/3500HD |
| Description_DES | Budget Lift System w/Shock |
| Description_EXT | 3.5" ULTIMATE SYS W/DLSS SHKS 2011-19 GM C/K2500HD/3500HD. |

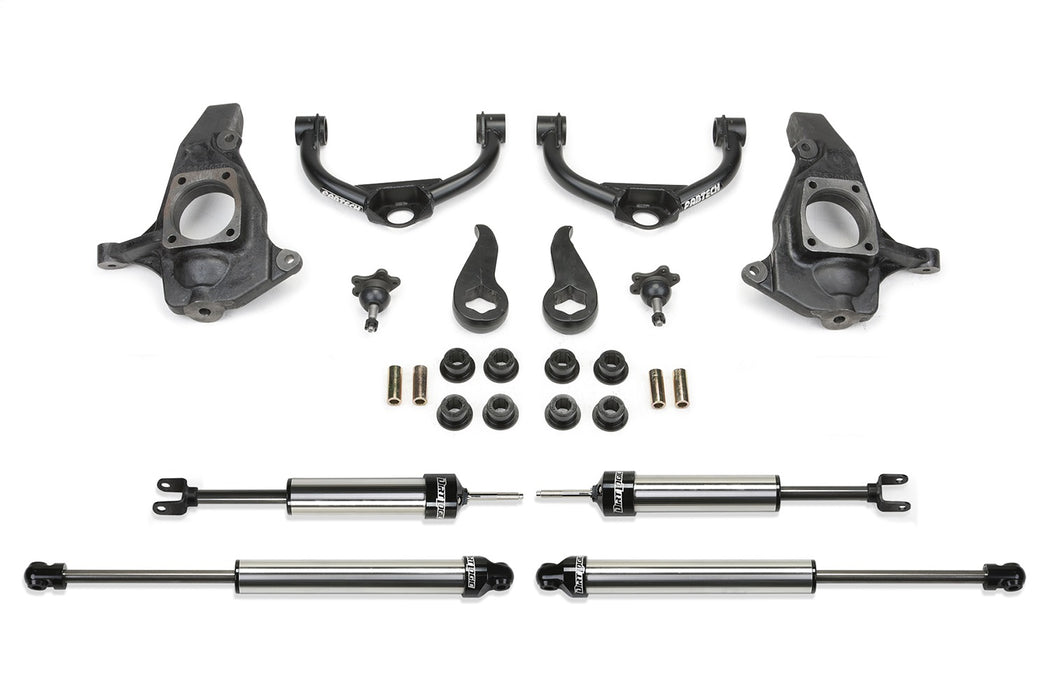

| Description_EXT | Budget Lift System w/Shock; 4 in. Lift; Incl. Spindles; Upper Control Arms; Steering Knuckles; Torsion Keys; Rear Shocks; All Required Hardware; w/DLSS Shocks; |
| Description_EXT | Component Box; For 4 in. Lift; Incl. Dirt Logic Stainless Steel Shocks; For PN[K1056DL]; |
| Description_FAB | Fabtech Development Capabilities Are Second To None With |
| Description_FAB | Products That Are Constantly On The Cutting Edge Fabtech Has |
| Description_FAB | Received Numerous Awards For Our Designs That Continue |
| Description_FAB | Seasoned Engineers And Fabricators Allow The Company To Develop |
| Description_FAB | State Of The Art Software Fabrication Equipment Along With Our |
| Description_FAB | To Lead The Market |
| Description_FAB | With Over 20 Years Experience In Aftermarket Suspension Design |
| Description_INV | Fabtech-3.5" ULTIMATE SYS W/ |
| Description_LAB | Proposition 65 |
| Description_MKT | Our 4 Ultimate System provides less lift than our 6 RTS(TM) system but still allows use of 33 or 35 tall tires with cutting for street and offroad use. We have developed this system utilizing replacement upper control arms constructed of 1.50 OD .120 thick wall DOM tubing that attaches to heavy duty Fabtech ductile iron steering knuckles. The factory torsion bars remain in the stock position and use new forged adjusting keys to provide the proper amount of lift. There is no loss of ground clearance with this system as the stock lower control arms, torsion bars and front differential do not need to be relocated. This 4 Ultimate System will level the stance of the vehicle compared to the factory nose down rake with no change to the rear suspension. For those customers that require a factory nose down appearance an optional 1 rear block kit is available (2500HD Part # FTS21110) (3500HD Part # FTS21111). |
| Description_MKT | Our 4in Ultimate System provides less lift than our 6in RTS system but still allows use of 33in or 35in tall tires with cutting for street and offroad use. We have developed this system utilizing replacement upper control arms constructed of 1.50in OD .120in thick wall DOM tubing that attaches to heavy duty Fabtech ductile iron steering knuckles. The factory torsion bars remain in the stock position and use new forged adjusting keys to provide the proper amount of lift. Includes front and rear 2.25 Dirt Logic Stainless Steel shocks. |
| Description_SHO | 3.5" ULTIMATE SYS W/ |
| Description_SHO | LftKt-Suspw/Shock |
| height | 19.9 |
| length | 37.1 |
| Lift/Drop Height | 4 in. |
| LTL | N |
| Title | Fabtech 3.5 in. ULTIMATE SYS W/DLSS SHKS 2011-19 GM C/K2500HD/3500HD |
| WARNING CA Proposition 65 | Yes |
| WARNING CA Proposition 65 Message | Warning: Cancer and Reproductive Harm-www.P65Warnings.ca.gov. |
| weight | 149.0 |
| width | 14.8 |
