Fabtech K1051 Raised Torsion Suspension Lift System
by Fabtech
SKU ds_BKBN_K1051
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Original price
$3,149.95
-
Original price
$3,149.95
Original price
$3,149.95
$3,149.95
$3,149.95
-
$3,149.95
Current price
$3,149.95
Availability:
Only 3 left!
Description

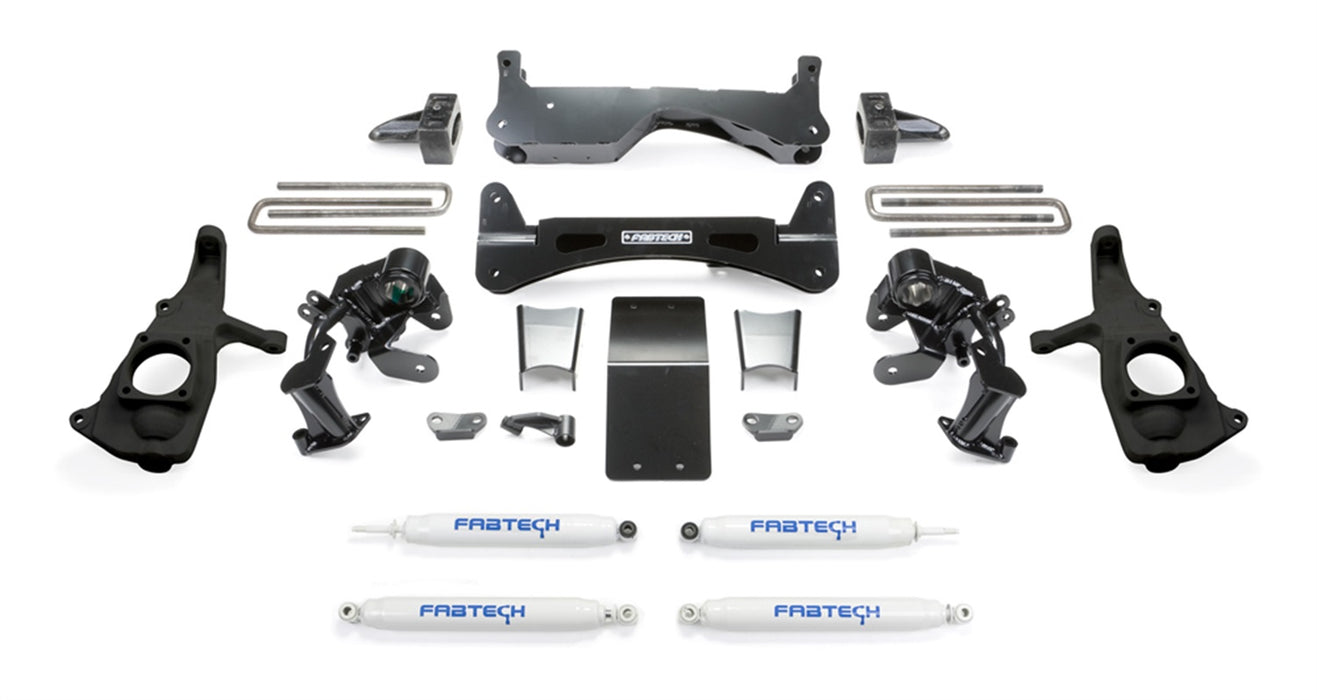

Fabtechs cutting edge RTS(TM) system has now been developed for the all new GM HD platform. The 6 RTS(TM) utilizes a patent pending bracket system that keep the torsion bars raised up, in the stock location. This feature provides superior ground clearance at the frame as there are no torsion bars hanging down to become high centered on or damaged when offroading.. The 6 RTS(TM) system has been designed with unitized bracketry to retain the four front compression stops of the vehicle as GM intended. This distributes impact loads across a wide section of the frame rather than at a single point.High arched crossmembers and front differential skid plate are constructed of 1/4 thick steel to resist bending from hard front suspension impacts. Only 1/4 thick steel provides the rigidity and strength necessary to relocate the torsion bars, bump stops and lower control arms properly. Minimal heavy duty bracketry allow for a fast installation time with only two holes to drill and no cutting of the front diff housing. The 6 RTS(TM) system allows the use of both 18 and 20 diameter wheels.
Specifications
| Description_ASC | TIRE SIZE - 35/13.50R18 WHEEL - 18X9 W/5 3/4" BS W/MINOR TRIMMING; TIRE SIZE - 35/13.50R20 WHEEL - 20X10 W/5 3/4" BS W/MINOR TRIMMING; TIRE SIZE - 37/13.50R20 WHEEL - 20X10 W/5 3/4" BS W/MINOR TRIMMING; TIRE SIZE - 355/65R18 WHEEL - 18X9 W/5 3/4" BS W/MINOR TRIMMING; 60. FITS EXTENDED AND CREW CAB MODELS ONLY.; 55. MUST USE AFTERMARKET 18 IN. WHEELS OR LARGER. |
| Description_ASC | TIRE SIZE-35/13.50R18 WHEEL-18X9 W/5 3/4in. BS W/MINOR TRIMMING; TIRE SIZE-35/13.50R20 WHEEL-20X10 W/5 3/4in. BS W/MINOR TRIMMING; TIRE SIZE-37/13.50R20 WHEEL-20X10 W/5 3/4in. BS W/MINOR TRIMMING; TIRE SIZE-355/65R18 WHEEL-18X9 W/5 3/4in. BS W/MINOR TRIMMING; 60. FITS EXTENDED AND CREW CAB MODELS ONLY.; 55. MUST USE AFTERMARKET 18 IN. WHEELS OR LARGER. |
| Description_DEF | Suspension Lift Kit |
| Description_DES | 6" RTS SYS W/PERF SHKS 2011-19 GM 3500HD 2WD/4WD |
| Description_DES | COMPONENT BOX 1 |
| Description_DES | COMPONENT BOX 2 |
| Description_DES | COMPONENT BOX 3 - 3500HD |
| Description_DES | PERFORMANCE SHOCK |
| Description_DES | Raised Torsion Suspension Lift System |
| Description_EXT | 6" RTS SYS W/PERF SHKS 2011-19 GM 3500HD 2WD/4WD. |
| Description_EXT | Component Box; Box 1 of 3; For 6 in. Lift; For PN[K1051/K1046/K1051M/K1046M/K1051DL/K1046DL]; |
| Description_EXT | Component Box; Box 2 of 3; For 6 in. Lift; For PN[K1051/K1046/K1051M/K1046M/K1051DL/K1046DL]; |
| Description_EXT | Component Box; Box 3 of 3; For 6 in. Lift; For PN[K1051/K1051M/K1051DL]; |
| Description_EXT | Performance Shock; For PN[K1051/K1121/K1123/K1046]; 20.56 in. Extended Length; 12.75 in. Collapsed Length; 7.81 in. Stroke; |
| Description_EXT | Performance Shock; For PN[K2087/K2081/K2090/K2101/K1045/K6000/K1051/K3044/K3025/K3006/K2104/K2134/K2063/K20631/K20611/K2061/K2060/K6008]; |
| Description_EXT | Raised Torsion Suspension Lift System; w/Performance Shocks; 6 in. Lift; |
| Description_FAB | As There Is No Torsion Bars Hanging Down To Become High |
| Description_FAB | Centered On Or Damaged When Offroading |
| Description_FAB | Highway Manners |
| Description_FAB | Patent Pending Torsion Bar Brackets That Keep The Torsion Bars |
| Description_FAB | Raised Up In The Stock Location |
| Description_FAB | System Should Function For Ultimate Offroad Use With Great |
| Description_FAB | The All New RTS™ Raised Torsion Suspension System Utilizes |
| Description_FAB | This Feature Provides Superior Ground Clearance At The Frame |
| Description_FAB | This Industry Leading System Rewrites How An IFS Suspension |
| Description_INV | Fabtech-6" RTS SYS W/PERF SH |
| Description_LAB | Proposition 65 |
| Description_MKT | Fabtech's cutting edge RTS system has now been developed for the all new GM HD platform. The 6in RTS utilizes a patent pending bracket system that keep the torsion bars raised up, in the stock location. This feature provides superior ground clearance at the frame as there are no torsion bars hanging down to become high centered on or damaged when offroading. |
| Description_MKT | Fabtechs cutting edge RTS(TM) system has now been developed for the all new GM HD platform. The 6 RTS(TM) utilizes a patent pending bracket system that keep the torsion bars raised up, in the stock location. This feature provides superior ground clearance at the frame as there are no torsion bars hanging down to become high centered on or damaged when offroading.. The 6 RTS(TM) system has been designed with unitized bracketry to retain the four front compression stops of the vehicle as GM intended. This distributes impact loads across a wide section of the frame rather than at a single point.High arched crossmembers and front differential skid plate are constructed of 1/4 thick steel to resist bending from hard front suspension impacts. Only 1/4 thick steel provides the rigidity and strength necessary to relocate the torsion bars, bump stops and lower control arms properly. Minimal heavy duty bracketry allow for a fast installation time with only two holes to drill and no cutting of the front diff housing. The 6 RTS(TM) system allows the use of both 18 and 20 diameter wheels. |
| Description_SHO | 6" RTS SYS W/PERF SH |
| Description_SHO | LftKt-Suspw/Shock |
| height | 17.6 |
| length | 34.5 |
| LTL | N |
| weight | 324.2 |
| width | 49.2 |
