Description

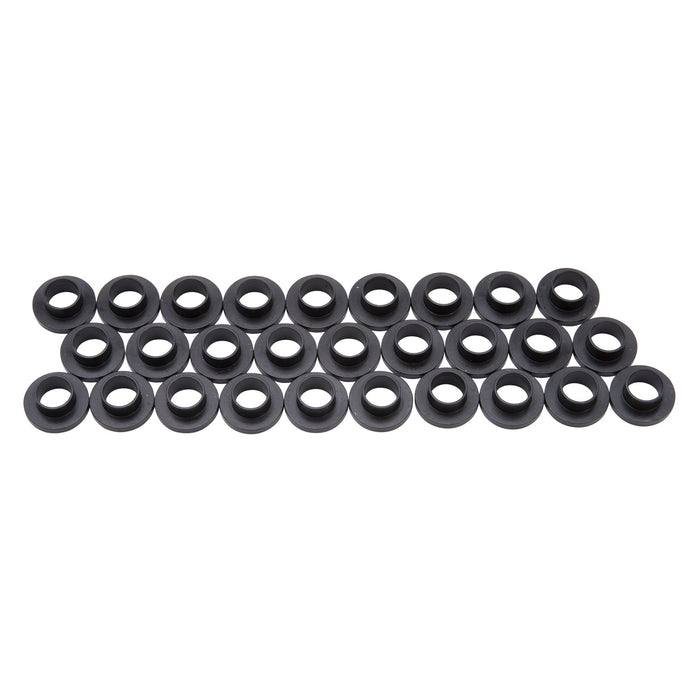

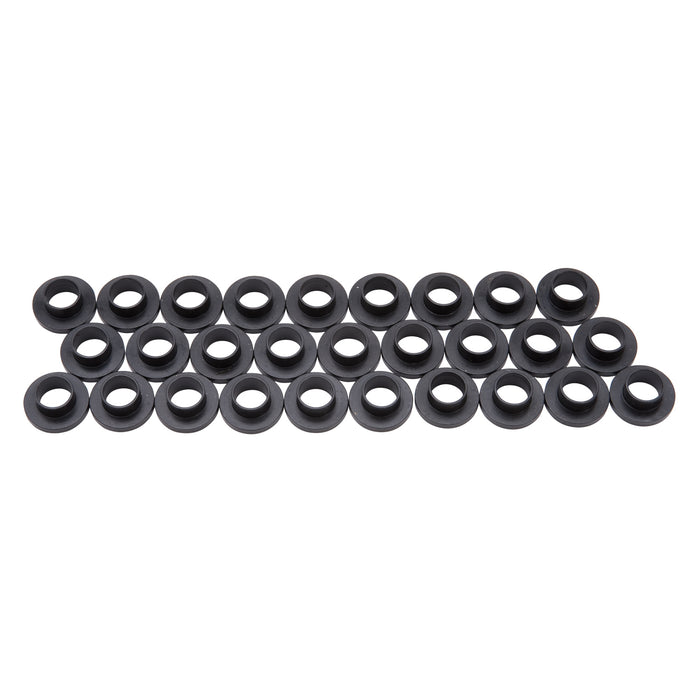

Edelbrock #9693 7/16in. to 1/2in. Bushing Washer Kit allows the use of Stock or Edelbrock 7/16in. Head Bolts with ? Bolt Holes on pre-1970 AMC engines. Use with Edelbrock #60129/60139 Performer AMC and #60109/60119 RPM AMC Cylinder Heads.
Specifications
| Description_ABR | AMCHeadBolt |
| Description_ASM | AMC:-:290 (4.8L)-401 (6.6L) |
| Description_DEF | Engine Cylinder Head Bolt Set |
| Description_DES | HEAD BOLT BUSHING |
| Description_EXT | Edelbrock #9693 7/16" to 1/2" Bushing Washer Kit allows the use of Stock or Edelbrock 7/16" Head Bolts with 1/2" Bolt Holes on pre-1970 AMC engines. Use with Edelbrock #60129/60139 Performer AMC and #60109/60119 RPM AMC Cylinder Heads. |
| Description_EXT | Edelbrock #9693 7/16in. to 1/2in. Bushing Washer Kit allows the use of Stock or Edelbrock 7/16in. Head Bolts with ? Bolt Holes on pre-1970 AMC engines. Use with Edelbrock #60129/60139 Performer AMC and #60109/60119 RPM AMC Cylinder Heads. |
| Description_FAB | Allows Use Of Stock 0.4375 in. Head Bolts |
| Description_FAB | Hardened Bushings with Integral Washer |
| Description_FAB | Includes 28 Per Package |
| Description_FAB | Use Stock Bolts for Performer/RPM/Victor Jr. Heads |
| Description_INV | AMC Head Bolt Bushings |
| Description_KEY | Edelbrock; AMC; V8; Head Bushing; Kit |
| Description_LAB | AMC Head Bolt Bushings |
| Description_MKT | The Edelbrock #9693 bolt bushing kit contain a complete set of the highest quality head bolt bushings. Cold-formed to ensure molecular integrity and heat treated prior to thread rolling and machining |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 0in.} |
| Description_TRA | #60109 and #60119 heads will have to apply a thin bead of silicone around the oil drain back provisions. This will prevent any leaks that may occur. CAUTION: The silicon bead on OEM type head gaskets will overlap these provisions. The addition of the silicone bead will help provide a better seal. |
| Description_TRA | Apply oil or suitable thread lubricant to head bolt threads and the underside of bolt heads and washers. |
| Description_TRA | Be sure that the surface of the block and the surface of the head are thoroughly cleaned to remove any oily film before installation. |
| Description_TRA | or 30, 60, 90, 100-110). |
| Description_TRA | The Edelbrock #9693 is made specifically for AMC engines |
| Description_TRA | The Edelbrock #9693 is made specifically for AMC engines •Be sure that the surface of the block and the surface of the head are thoroughly cleaned to remove any oily film before installation. • Use alcohol or lacquer thinner on a lint-free rag to clean. •#60109 and #60119 heads will have to apply a thin bead of silicone around the oil drain back provisions. This will prevent any leaks that may occur. CAUTION: The silicon bead on OEM type head gaskets will overlap these provisions. The addition of the silicone bead will help provide a better seal.•Apply oil or suitable thread lubricant to head bolt threads and the underside of bolt heads and washers.•Using the torque sequence (See Figure 1); torque all 7/16in. bolts to 65-70 ft./lbs and all 1/2in. bolts to 100-110 ft./lbs in four steps (30; 40; 50; 60-75; or 30; 60; 90; 100-110). |
| Description_TRA | Use alcohol or lacquer thinner on a lint-free rag to clean. |
| Description_TRA | Using the torque sequence (See Figure 1), torque all 7/16" bolts to 65-70 ft./lbs and all 1/2" bolts to 100-110 ft./lbs in four steps (30, 40, 50, 60-75 |
| Engine Make/Size | AMC 304-401 |
| finish | Black Oxide |
| height | 1.5 |
| length | 5.75 |
| LTL | N |
| Material | Chromoly |
| Quantity | Set of 28 |
| RGL | WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Thickness | 0.1250 |
| WARNING CA Proposition 65 | Yes |
| WARNING CA Proposition 65 Message | WARNING: This product can expose you to Chromium; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| weight | 0.56 |
| width | 2.75 |
