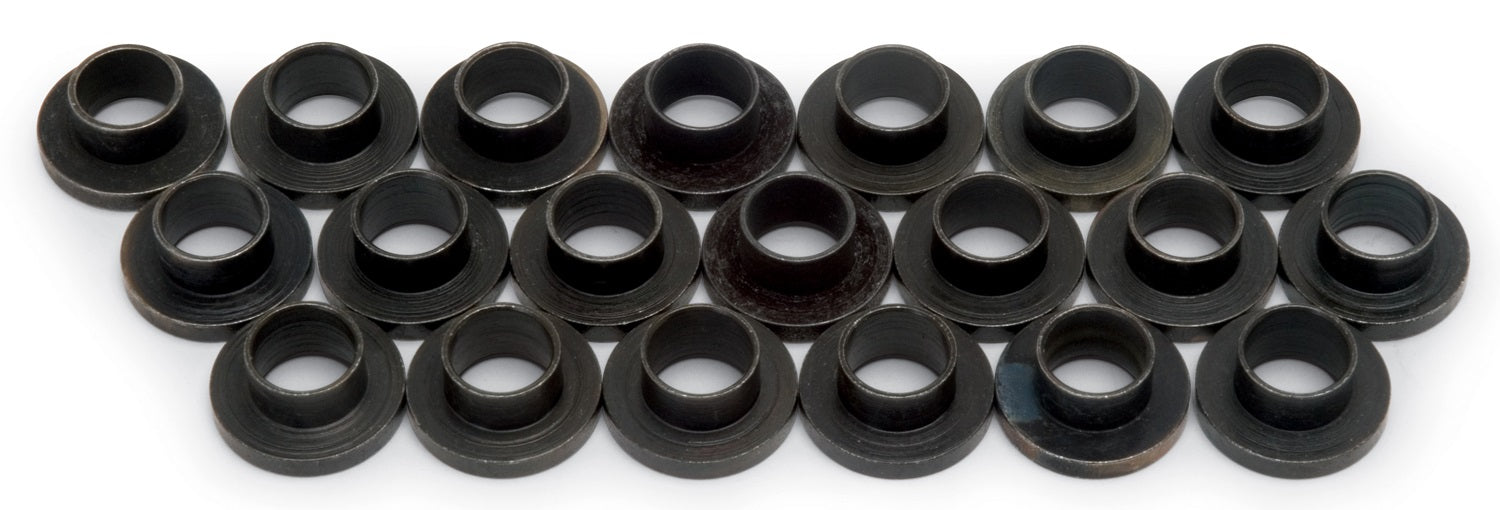

Edelbrock 9680 7/16 HEAD BOLT BUSHING
by Edelbrock
SKU ds_BDVJ_9680
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Original price
$169.82
-
Original price
$169.82
Original price
$169.82
$169.82
$169.82
-
$169.82
Current price
$169.82
Availability:
4+ in stock
Description
The Edelbrock #9680 bolt bushing kit contain a complete set of the highest quality head bolt bushings. Cold-formed to ensure molecular integrity and heat treated prior to thread rolling and machining
Specifications
| Description_ABR | FordHeadBolt |
| Description_ASM | Ford:-:302 (5.0L) |
| Description_DEF | Engine Cylinder Head Bolt Washer Set |
| Description_DES | HEAD BOLT BUSHING |
| Description_EXT | 7/16 HEAD BOLT BUSHING |
| Description_EXT | Edelbrock #9680 Head Bolt Bushings with Integral Washers must be used on 289-302 S/B Ford Engines with 7/16" Head Bolts. Complete Set of 20 High Quality Head Bolt Bushings. Use with Edelbrock Head Bolt Kit #8552 or Stock 7/16" Head Bolts. |
| Description_FAB | Allows Use Of Stock 0.4375 in. Head Bolts |
| Description_FAB | Hardened Bushings with Integral Washer |
| Description_FAB | Includes 20 Per Package |
| Description_FAB | Use Stock Bolts for Performer/RPM/Victor Jr. Heads |
| Description_INV | Ford 5.0L Head Bolt Bushings |
| Description_INV | Ford 5.0L Head Bolt Bushings? |
| Description_KEY | Edelbrock; 289; 302; Ford; V8; Head Bushing; Kit |
| Description_LAB | Ford 5.0L Head Bolt Bushings |
| Description_MKT | The Edelbrock #9680 bolt bushing kit contain a complete set of the highest quality head bolt bushings. Cold-formed to ensure molecular integrity and heat treated prior to thread rolling and machining |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 0in.} |
| Description_TRA | Apply oil or suitable thread lubricant to head bolt threads and the underside of bolt heads and washers. |
| Description_TRA | BOSS 302 CLONE ENGINES - Use Edelbrock Head Bolt Bushings with Integral Washers #9680 in place of washers supplied with your head bolt kit. Torque 7/16" bolts to 65-70 ft./lbs. in four steps (30, 40, 50, 65-70) following the factory tightening sequence. ALL ENGINES - A re-torque is recommended after initial start-up and cool-down (allow 2-3 hours for adequate cooling). |
| Description_TRA | Installation is the same as for original equipment cylinder heads. Consult service manual for specific procedures, if necessary. |
| Description_TRA | or 30, 60, 90, 100-110). |
| Description_TRA | The Edelbrock #9680 is made specifically for 289-302 Ford engines |
| Description_TRA | The Edelbrock #9680 is made specifically for 289-302 Ford engines • Apply oil or suitable thread lubricant to head bolt threads and the underside of bolt heads and washers.• Using the torque sequence (See Figure 1); torque all 7/16in. bolts to 65-70 ft./lbs and all 1/2in. bolts to 100-110 ft./lbs in four steps (30; 40; 50; 60-75; or 30; 60; 90; 100-110). • Installation is the same as for original equipment cylinder heads. Consult service manual for specific procedures; if necessary. • BOSS 302 CLONE ENGINES-Use Edelbrock Head Bolt Bushings with Integral Washers #9680 in place of washers supplied with your head bolt kit. Torque 7/16in. bolts to 65-70 ft./lbs. in four steps (30; 40; 50; 65-70) following the factory tightening sequence. ALL ENGINES-A re-torque is recommended after initial start-up and cool-down (allow 2-3 hours for adequate cooling). |
| Description_TRA | Using the torque sequence (See Figure 1), torque all 7/16" bolts to 65-70 ft./lbs and all 1/2" bolts to 100-110 ft./lbs in four steps (30, 40, 50, 60-75 |
| height | 2.0 |
| length | 6.6 |
| LTL | N |
| weight | 0.5 |
| width | 5.8 |
