Description

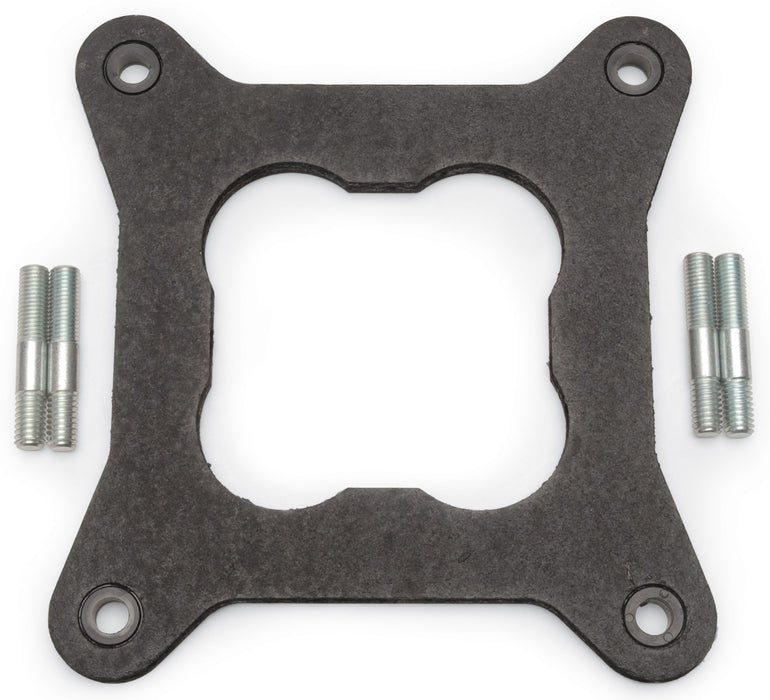

The Edelbrock Square-bore Heat Insulator Gasket #9266 is designed to prevent percolation on Edelbrock Performer Series carburetors exposed to extreme under hood temperatures. This gasket features an open center which will allow open plenum Torker and Victor style manifolds to seal properly to the carburetor. Prior to installation, check air cleaner-to-hood clearance to ensure that additional height of heat insulator gasket will not cause interference. Remove air cleaner and all attachments to the carburetor such as fuel line, throttle linkage, and vacuum lines. Be sure to note the position or tag each piece to facilitate re-installation. Remove the carburetor and set it aside, then remove the old base gasket and any additional plates, such as Edelbrock square-bore adapter #2732. Remove the short carb studs and install the longer studs. Install the #9265 heat insulator gasket directly against the manifold, then replace the carb and all other connections. Note that gasket #9265 is rigid enough to replace square-bore adapter plate #2732, if required.
Specifications
| Description_ABR | Carb Insulat |
| Description_DEF | Carburetor Heat Insulator |
| Description_DES | HEAT INSULATOR |
| Description_EXT | The Edelbrock Square-bore Heat Insulator Gasket #9265 is designed to prevent percolation on Edelbrock Performer Series carburetors exposed to extreme under hood temperatures. |
| Description_EXT | The Edelbrock Square-bore Heat Insulator Gasket #9265 is designed to prevent percolation on Edelbrock Performer Series carburetors exposed to extreme under hood temperatures.? |
| Description_FAB | Comes w/Extended Carb Studs |
| Description_FAB | Dual-Plane Low-Rise Intake w/180 Deg. Firing Order |
| Description_FAB | Helps Prevents Fuel Percolation |
| Description_FAB | Square Bore Applications Only |
| Description_INV | Sq Bore Heat Insulator |
| Description_KEY | Edelbrock; Gasket; Heat; Insulator; Carburetor; Carb; Installation; Replacement; Percolation; Performer Series; Thunder Series; AVS; AVS2; Square bore |
| Description_LAB | Carburetor Heat Insulator #9265 Square Bore |
| Description_MKT | The Edelbrock Square-bore Heat Insulator Gasket #9266 is designed to prevent percolation on Edelbrock Performer Series carburetors exposed to extreme under hood temperatures. This gasket features an open center which will allow open plenum Torker and Victor style manifolds to seal properly to the carburetor. Prior to installation, check air cleaner-to-hood clearance to ensure that additional height of heat insulator gasket will not cause interference. Remove air cleaner and all attachments to the carburetor such as fuel line, throttle linkage, and vacuum lines. Be sure to note the position or tag each piece to facilitate re-installation. Remove the carburetor and set it aside, then remove the old base gasket and any additional plates, such as Edelbrock square-bore adapter #2732. Remove the short carb studs and install the longer studs. Install the #9265 heat insulator gasket directly against the manifold, then replace the carb and all other connections. Note that gasket #9265 is rigid enough to replace square-bore adapter plate #2732, if required. |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 0in.} |
| height | 0.25 |
| length | 11.5 |
| LTL | N |
| WARNING CA Proposition 65 | Yes |
| WARNING CA Proposition 65 Message | WARNING: This product can expose you to Chromium; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| weight | 0.45 |
| width | 8.25 |
