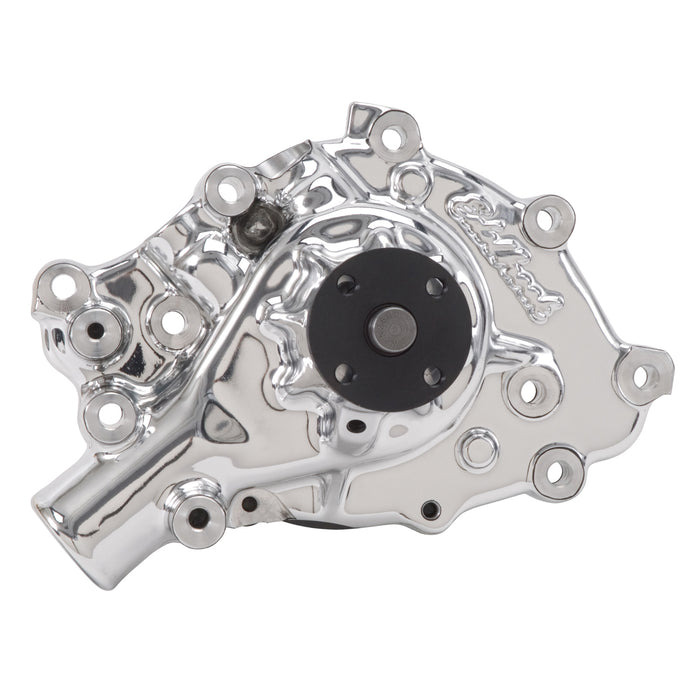

Edelbrock 88414 Engine Water Pump
by Edelbrock
SKU ds_BDVJ_88414
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$515.40
-
Original price
$515.40
Original price
$515.40
$515.40
$515.40
-
$515.40
Current price
$515.40
Availability:
Out of stock
Description
Edelbrock #88414 Water Pump Ford 5.0l 1965-68 289, 1968-69 351w EnduraShine ideal to prevent overheating in street rods and street machines, as well as in tow rigs and motorhomes. Using state-of-the-art racing technology, Edelbrock has designed these "super cooling" Water Pumps to provide maximum flow, maximum pressure and equal distribution to both sides of the block within 1%. Available for most popular applications, these high performance pumps flow in only one direction for optimum efficiency. The casting's computer-designed internal passages and precision powdered metal impeller produce the maximum flow rate possible.
Specifications
| Casting Number | 8841 |
| Description_ABR | Water Pump |
| Description_ASM | Ford:Small-Block:289 (4.7L)/302 (5.0L)/351W (5.8L) |
| Description_DEF | Engine Water Pump |
| Description_EXT | Edelbrock #88414 Water Pump Ford 5.0L 1965-68 289, 1968-69 351w EnduraShine Ideal To Prevent Overheating In Street Rods And Street Machines |
| Description_INV | Water Pump Ford 5.0L 1965-69 289 351w E |
| Description_LAB | Water Pump for Small-Block Ford in EnduraShine Finish |
| Description_MKT | Edelbrock #88414 Water Pump Ford 5.0l 1965-68 289, 1968-69 351w EnduraShine ideal to prevent overheating in street rods and street machines, as well as in tow rigs and motorhomes. Using state-of-the-art racing technology, Edelbrock has designed these "super cooling" Water Pumps to provide maximum flow, maximum pressure and equal distribution to both sides of the block within 1%. Available for most popular applications, these high performance pumps flow in only one direction for optimum efficiency. The casting's computer-designed internal passages and precision powdered metal impeller produce the maximum flow rate possible. |
| Description_TRA | Concentricity is not assured when universal type clutches or spacers are used. Universal fan clutches and spacers have a 3/4" pilot hole, so an adapter must be used when installing a water pump with a 5/8" shaft, the adapter bushing is supplied with the unit |
| Description_TRA | Incorrect alignment or an unbalanced condition puts excessive strain on the pump's shaft and/or bearing and will result in early failure of the shaft and/or bearing |
| Description_TRA | So special care must be taken to maintain concentricity with the shaft and the fan clutch. Failure to do so will void warranty |
| Description_TRA | The balance of the assembly depends primarily upon the concentricity of the fan clutch and spacers with the pump shaft |
| Description_TRA | The use of aftermarket (non-OEM) fan spacers are not recommended and will void the warranty of the water pump |
| Fan Clutch Included | No |
| height | 9.1 |
| Housing Material | Aluminum |
| Hub Height | 5.420 |
| Hub Hole Quantity | 6 |
| Impeller Material | Powdered Metal |
| Impeller Rotation | Standard |
| Impeller Vane Quantity | 6 |
| Includes Back Housing | Yes |
| Installation Warnings | Yes |
| length | 13.9 |
| Mounting Hardware Included | No |
| Mounting Hole Quantity | 10 |
| Outlet Quantity | 1 |
| Pulley Included | No |
| Related Cooling Fan Components | No |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Thermostat And Housing Included | No |
| Water Pump Drive Type | V-Belt |
| weight | 9.05 |
| width | 8.8 |
