Description

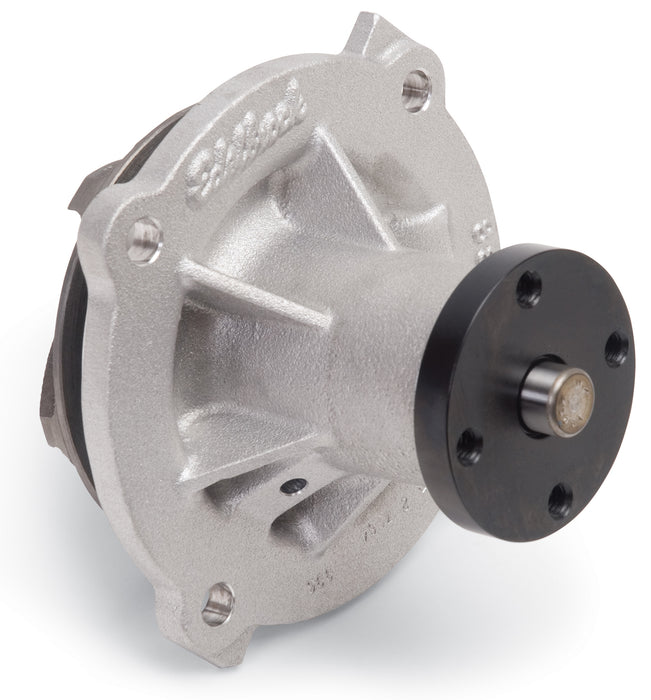

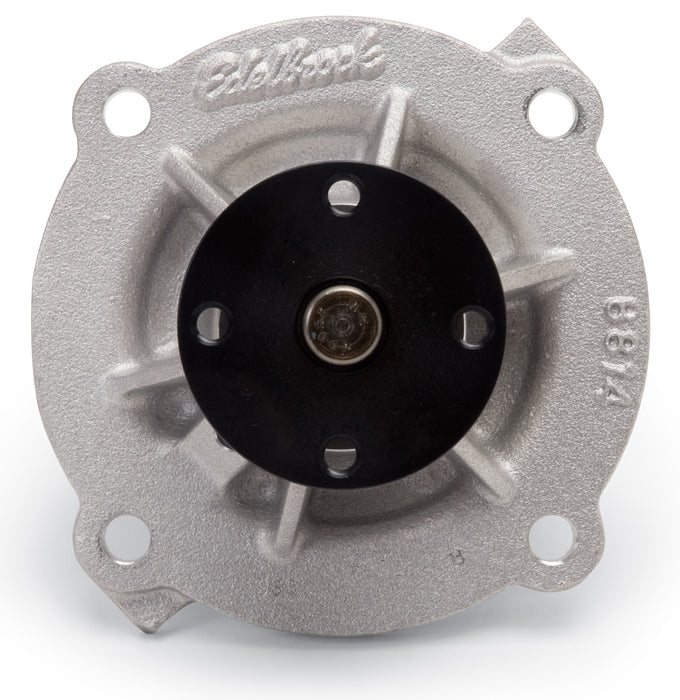

Edelbrock #8814 Water Pump for Big-Block Chrysler 361-440?1958-79 ideal to prevent overheating in street rods and street machines, as well as in tow rigs and motorhomes. Using state-of-the-art racing technology, Edelbrock has designed these "super cooling" Water Pumps to provide maximum flow, maximum pressure and equal distribution to both sides of the block within 1%. Available for most popular applications, these high performance pumps flow in only one direction for optimum efficiency. The casting's computer-designed internal passages and precision powdered metal impeller produce the maximum flow rate possible.
Specifications
| Casting Number | 8814 |
| Description_ABR | Water Pump |
| Description_ASM | Chrysler:Big-Block B-Series:361 (5.9L)/383 (6.3L)/400 (6.6L) |
| Description_ASM | Chrysler:Big-Block B-Series:361 (5.9L)/383 (6.3L)/400 (6.6L);Chrysler:Big-Block RB-Series:413 (6.8L)/426 (7.0L)/440 (7.2L);Chrysler:Gen II HEMI:426 (7.0L) |
| Description_ASM | Chrysler:Big-Block RB-Series:413 (6.8L)/426 (7.0L)/440 (7.2L) |
| Description_ASM | Chrysler:Gen II HEMI:426 (7.0L) |
| Description_DEF | Engine Water Pump |
| Description_DES | WATER PUMP |
| Description_EXT | Edelbrock #8814 Water Pump Big for Block Chrysler 361-440 1958-79 Ideal To Prevent Overheating In Street Rods And Street Machines |
| Description_EXT | Edelbrock #8814 Water Pump Big for Block Chrysler 361-440?1958-79 Ideal To Prevent Overheating In Street Rods And Street Machines |
| Description_FAB | Equal Distribution to Both Sides of Block |
| Description_FAB | Impeller Is Larger Than Others For Max Pressure |
| Description_FAB | Impeller Vanes Dramatically Increase Flow Rates |
| Description_FAB | Internal Passages Are Balanced for Maximum Flow |
| Description_FAB | Maximum Cooling for Street and Racing Engines |
| Description_FAB | Only Flows In One Direction For Optimum Efficiency |
| Description_INV | Water Pump Big Block Chrysler 361-440 |
| Description_INV | Water Pump Big Block Chrysler 361-440? |
| Description_KEY | Edelbrock; Water pump; passenger car; 8814; Big Block Chrysler; RB; B; 361-440 |
| Description_LAB | Water Pump #8814 For 1958-79 BB Chrysler 361-440, Standard Rotation, Satin |
| Description_LAB | Water Pump #8814 For 1958-79 BB Chrysler 361-440; Reverse Rotation; Satin |
| Description_MKT | Edelbrock #8814 Water Pump for Big-Block Chrysler 361-440 1958-79 ideal to prevent overheating in street rods and street machines, as well as in tow rigs and motorhomes. Using state-of-the-art racing technology, Edelbrock has designed these "super cooling" Water Pumps to provide maximum flow, maximum pressure and equal distribution to both sides of the block within 1%. Available for most popular applications, these high performance pumps flow in only one direction for optimum efficiency. The casting's computer-designed internal passages and precision powdered metal impeller produce the maximum flow rate possible. |
| Description_MKT | Edelbrock #8814 Water Pump for Big-Block Chrysler 361-440?1958-79 ideal to prevent overheating in street rods and street machines, as well as in tow rigs and motorhomes. Using state-of-the-art racing technology, Edelbrock has designed these "super cooling" Water Pumps to provide maximum flow, maximum pressure and equal distribution to both sides of the block within 1%. Available for most popular applications, these high performance pumps flow in only one direction for optimum efficiency. The casting's computer-designed internal passages and precision powdered metal impeller produce the maximum flow rate possible. |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 0in.} |
| Description_TRA | CAUTION: Be sure that the fan bolts don't protrude through the hub so far that they hit the water pump housing. Check closely for any interference with drive belts |
| Description_TRA | DO NOT use on engines converted to a serpentine belt pulley system |
| Description_TRA | Installation is the same as for original equipment water pumps. Therefore, please consult your service manual for specific procedures. |
| Description_TRA | It offers weight savings along with increased durability and cooling potential. It is a standard rotation water pump for Chrysler Wedge (B & RB), 426 Hemi and Big-Block engines |
| Description_TRA | some filing for clearance may be necessary with some applications. Verify that the radiator fan is properly balanced. Imbalanced fans can cause severe damage and/or injury and will void your warranty. |
| Description_TRA | The Victor series are heavy duty water pumps for both street and racing applications |
| Description_TRA | These pumps are a direct replacement for the original equipment pump to provide compatibility with all accessories and pulleys. |
| Description_TRA | • The Victor series are heavy duty water pumps for both street and racing applications • These pumps are a direct replacement for the original equipment pump to provide compatibility with all accessories and pulleys. • It offers weight savings along with increased durability and cooling potential. It is a standard rotation water pump for Chrysler Wedge (B RB); 426 Hemi and Big-Block engines • DO NOT use on engines converted to a serpentine belt pulley system • Installation is the same as for original equipment water pumps. Therefore; please consult your service manual for specific procedures. CAUTION: Be sure that the fan bolts don t protrude through the hub so far that they hit the water pump housing. Check closely for any interference with drive belts; some filing for clearance may be necessary with some applications. Verify that the radiator fan is properly balanced. Imbalanced fans can cause severe damage and/or injury and will void your warranty. |
| Engine Make/Size | Mopar 361-440 |
| Fan Clutch Included | No |
| finish | As Cast |
| height | 6.5 |
| Housing Material | Aluminum |
| Hub Height | 3.070 |
| Hub Hole Quantity | 6 |
| Impeller Material | Powdered Metal |
| Impeller Rotation | Standard |
| Impeller Vane Quantity | 6 |
| Includes Back Housing | No |
| Installation Warnings | Yes |
| length | 9.0 |
| LTL | N |
| Mounting Hardware Included | No |
| Mounting Hole Quantity | 4 |
| Pulley Included | No |
| Related Cooling Fan Components | No |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Style | Street/High-Performance |
| Thermostat And Housing Included | No |
| Type | Mechanical |
| WARNING CA Proposition 65 | Yes |
| WARNING CA Proposition 65 Message | WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| Water Pump Drive Type | V-Belt |
| weight | 4.75 |
| width | 6.25 |
