Edelbrock 88114 Ideal To Prevent Overheating In Street Rods And Street Machines
by Edelbrock
SKU ds_BDVJ_88114
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$512.21
-
Original price
$512.21
Original price
$512.21
$512.21
$512.21
-
$512.21
Current price
$512.21
Availability:
Out of stock
Description

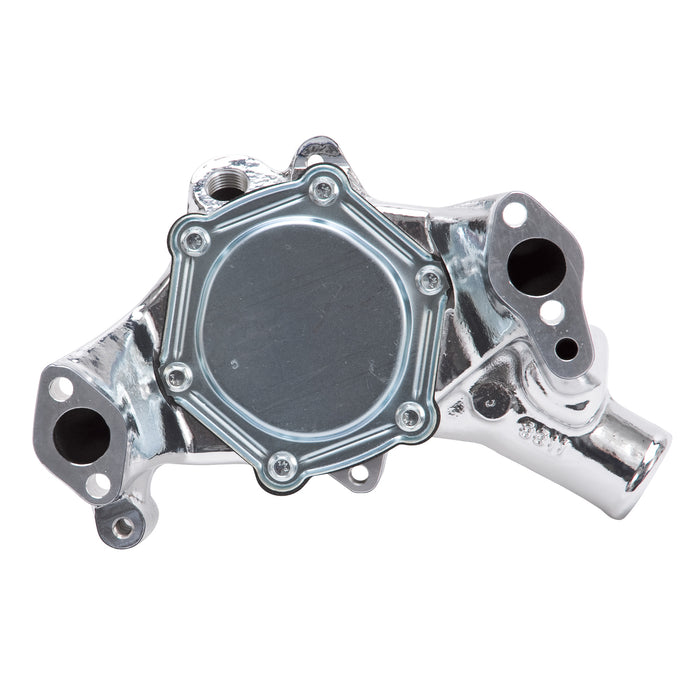

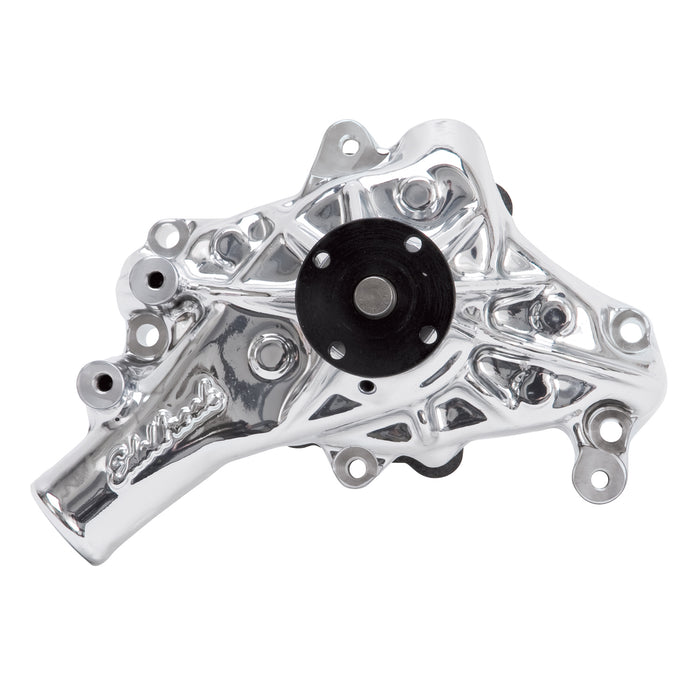

Edelbrock #88114 Water Pump long style 1969-88 SBC engine EnduraShine ideal to prevent overheating in street rods and street machines, as well as in tow rigs and motorhomes. Using state-of-the-art racing technology, Edelbrock has designed these "super cooling" Water Pumps to provide maximum flow, maximum pressure and equal distribution to both sides of the block within 1%. Available for most popular applications, these high performance pumps flow in only one direction for optimum efficiency. The casting's computer-designed internal passages and precision powdered metal impeller produce the maximum flow rate possible.
Specifications
| Casting Number | 8811 |
| Description_ABR | Water Pump |
| Description_ASM | Chevrolet:90 Deg V6:232 (3.8L)-262 (4.3L) |
| Description_ASM | Chevrolet:Small-Block Light Duty Trucks:262 (4.3L)-400 (6.6L) |
| Description_ASM | Chevrolet:Small-Block:262 (4.3L)-400 (6.6L) |
| Description_DEF | Engine Water Pump |
| Description_EXT | Edelbrock #88114 Water Pump Long Style 1969-88 SBC Engine EnduraShine |
| Description_EXT | Ideal To Prevent Overheating In Street Rods And Street Machines |
| Description_INV | Water Pump Long Style 1969-88 SBC E |
| Description_LAB | Water Pump for Small-Block Chevy in EnduraShine Finish (Long) |
| Description_MKT | Edelbrock #88114 Water Pump long style 1969-88 SBC engine EnduraShine ideal to prevent overheating in street rods and street machines, as well as in tow rigs and motorhomes. Using state-of-the-art racing technology, Edelbrock has designed these "super cooling" Water Pumps to provide maximum flow, maximum pressure and equal distribution to both sides of the block within 1%. Available for most popular applications, these high performance pumps flow in only one direction for optimum efficiency. The casting's computer-designed internal passages and precision powdered metal impeller produce the maximum flow rate possible. |
| Description_TRA | Concentricity is not assured when universal type clutches or spacers are used. Universal fan clutches and spacers have a 3/4" pilot hole, so an adapter must be used when installing a water pump with a 5/8" shaft, the adapter bushing is supplied with the unit. |
| Description_TRA | Incorrect alignment or an unbalanced condition puts excessive strain on the pump's shaft and/or bearing and will result in early failure of the shaft and/or bearing. The balance of the assembly depends primarily upon the concentricity of the fan clutch and spacers with the pump shaft. |
| Description_TRA | So special care must be taken to maintain concentricity with the shaft and the fan clutch. Failure to do so will void warranty. |
| Description_TRA | The use of aftermarket (non-OEM) fan spacers are not recommended and will void the warranty of the water pump. |
| Fan Clutch Included | No |
| height | 8.6 |
| Housing Material | Aluminum |
| Hub Height | 6.938 |
| Hub Hole Quantity | 6 |
| Impeller Material | Powdered Metal |
| Impeller Rotation | Standard |
| Impeller Vane Quantity | 6 |
| Includes Back Housing | Yes |
| Installation Warnings | Yes |
| length | 13.7 |
| Mounting Hardware Included | Yes |
| Mounting Hole Quantity | 4 |
| Outlet Quantity | 1 |
| Pulley Included | No |
| Related Cooling Fan Components | No |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Thermostat And Housing Included | No |
| Water Pump Drive Type | V-Belt |
| weight | 10.35 |
| width | 9.2 |
