Description

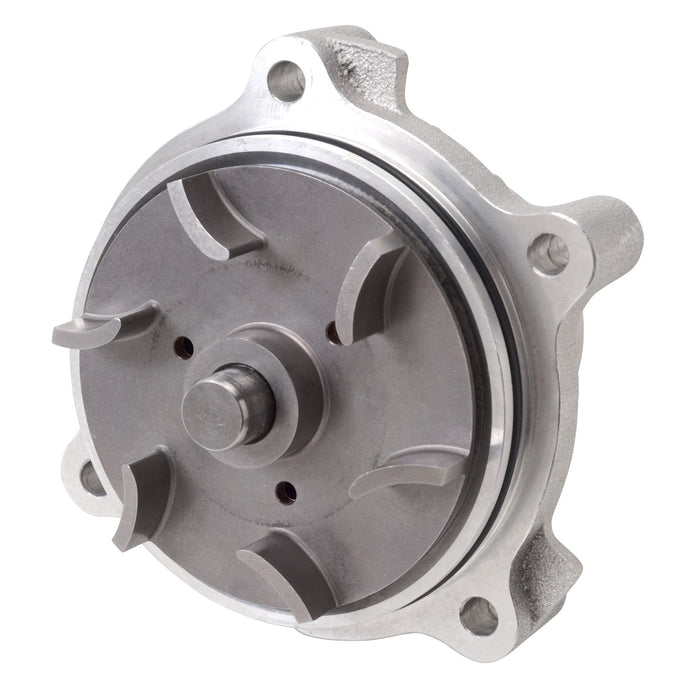

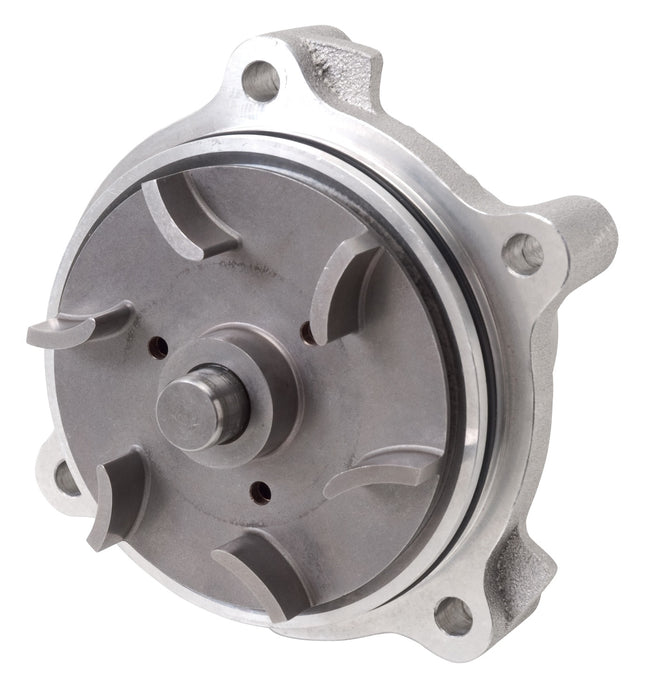

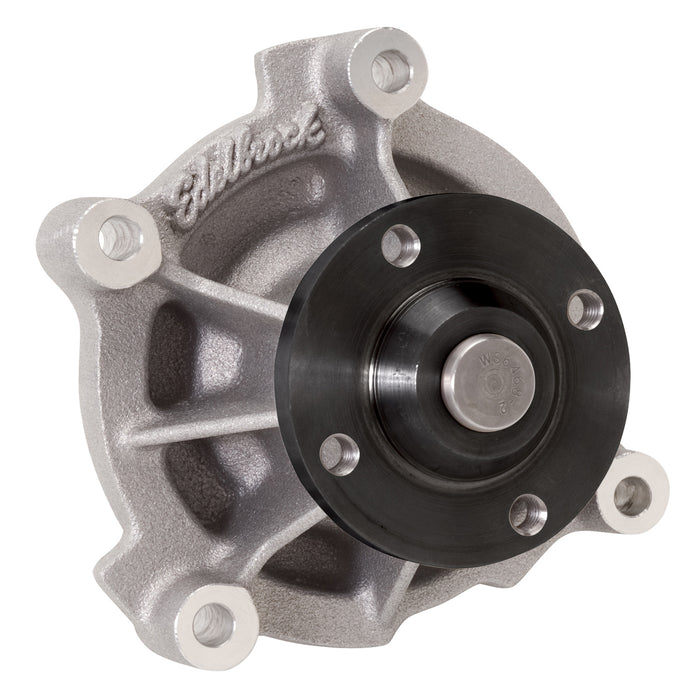

The Edelbrock part #8803 Short Water Pump designed for Ford 4.6L V8 Mustangs is ideal to prevent overheating in street rods and street machines, as well as in tow rigs and motorhomes. Using State-Of-The-Art Racing Technology, Edelbrock has designed these "Super Cooling" Water Pumps to provide maximum flow, maximum pressure and equal distribution to both sides of the block within 1%. Available for most popular applications, these high performance water pumps flow in only one direction for optimum efficiency. The casting's computer-designed internal passages and precision powdered metal impeller produce the maximum flow rate possible.
Specifications
| Casting Number | 8003 |
| Description_ABR | Water Pump |
| Description_ASM | Ford:Mustang Cobra:281 (4.6L) |
| Description_ASM | Ford:Mustang Cobra:281 (4.6L);Ford:Mustang GT:281 (4.6L);Ford:Mustang Mach 1:281 (4.6L) |
| Description_ASM | Ford:Mustang GT:281 (4.6L) |
| Description_ASM | Ford:Mustang Mach 1:281 (4.6L) |
| Description_DEF | Engine Water Pump |
| Description_DES | WATER PUMP |
| Description_EXT | Water Pump Ford 4.6L V8 Mustang Short The Edelbrock aluminum water pump is a heavy duty water pump for both street and racing applications |
| Description_FAB | Equal Distribution to Both Sides of Block |
| Description_FAB | Impeller Is Larger Than Others For Max Pressure |
| Description_FAB | Impeller Vanes Dramatically Increase Flow Rates |
| Description_FAB | Internal Passages Are Balanced for Maximum Flow |
| Description_FAB | Maximum Cooling for Street and Racing Engines |
| Description_FAB | Only Flows In One Direction For Optimum Efficiency |
| Description_INV | Water Pump Ford 4.6L V8 Mustang Short |
| Description_KEY | Edelbrock; Water Pump; 4.6L; Mustang; Ford; Small Block; Short; V8; 8803 |
| Description_LAB | Water Pump Ford 4.6L V8 Mustang Short |
| Description_MKT | The Edelbrock part #8803 Short Water Pump designed for Ford 4.6L V8 Mustangs is ideal to prevent overheating in street rods and street machines, as well as in tow rigs and motorhomes. Using State-Of-The-Art Racing Technology, Edelbrock has designed these "Super Cooling" Water Pumps to provide maximum flow, maximum pressure and equal distribution to both sides of the block within 1%. Available for most popular applications, these high performance water pumps flow in only one direction for optimum efficiency. The casting's computer-designed internal passages and precision powdered metal impeller produce the maximum flow rate possible. |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 0in.} |
| Description_TRA | 2001 model year Mustang GTs and Cobras were equipped with either the long (#8803) or short (#8804) style water pump |
| Description_TRA | Customers of this vintage should measure their hub height before installing to determine the correct pump for their vehicle |
| Description_TRA | Installation is the same as for original equipment water pumps. Consult service manual for specific procedures |
| Description_TRA | The #8803 has a hub height of 2.58", while the #8804 has a hub height of 3.43" |
| Description_TRA | • Customers of this vintage should measure their hub height before installing to determine the correct pump for their vehicle • The #8803 has a hub height of 2.58in.; while the #8804 has a hub height of 3.43in. • Installation is the same as for original equipment water pumps. Consult service manual for specific procedures • 2001 model year Mustang GTs and Cobras were equipped with either the long (#8803) or short (#8804) style water pump |
| Engine Make/Size | Ford 4.6L |
| Fan Clutch Included | No |
| finish | As Cast |
| height | 6.0 |
| Housing Material | Aluminum |
| Hub Hole Quantity | 6 |
| Impeller Material | Powdered Metal |
| Impeller Rotation | Reverse |
| Impeller Vane Quantity | 6 |
| Includes Back Housing | No |
| Installation Warnings | Yes |
| length | 9.0 |
| LTL | N |
| Mounting Hardware Included | No |
| Mounting Hole Quantity | 4 |
| Pulley Included | No |
| Related Cooling Fan Components | No |
| RGL | WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Style | Street/High-Performance |
| Thermostat And Housing Included | No |
| Type | Mechanical |
| WARNING CA Proposition 65 | Yes |
| WARNING CA Proposition 65 Message | WARNING: This product can expose you to Lead; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| Water Pump Drive Type | Serpentine Belt |
| weight | 4.7 |
| width | 6.0 |
