Edelbrock 85912 Edelbrock E-Series Cylinder Head Bolt Kit #85912 for Chrysler big-block
by Edelbrock
SKU ds_BDVJ_85912
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Original price
$276.96
-
Original price
$276.96
Original price
$276.96
$276.96
$276.96
-
$276.96
Current price
$276.96
Availability:
Only 4 left!
Description

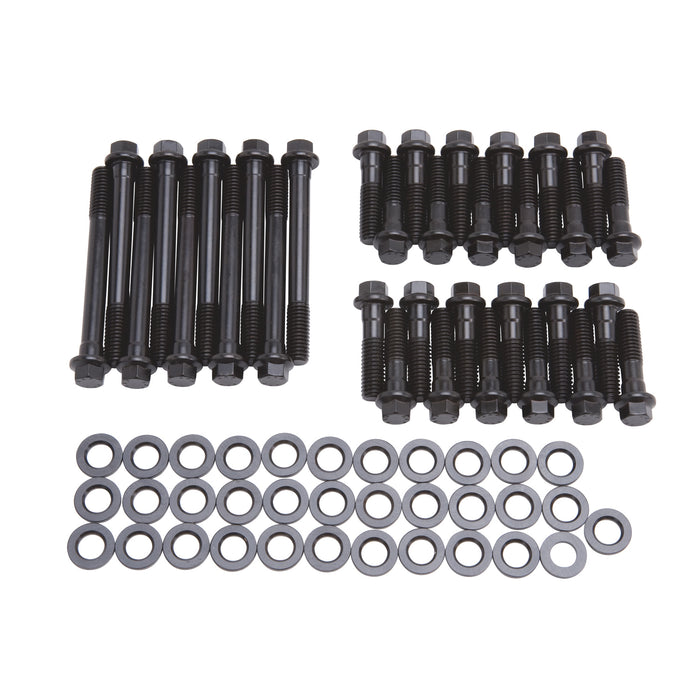

Edelbrock E-Series Cylinder Head Bolt Kit #85912 is specially designed for use with Chrysler big-block engines equipped with E-Street/Performer RPM cylinder heads (#60825, 60829, #60929, #60185, #60189, #5090 and #5093). This kit contains all necessary bolts and washers to install one set of heads. E-Series bolts have a yield tensile strength of 190,000 PSI for strong and reliable loading with generous filleting throughout to eliminate stress risers. Bolt threads are rolled after heat-treating for superior form and strength, while a small hex head provides extra space for socket clearance in tight situations. E-Series Cylinder Head Bolts have a durable black oxide finish with sealer and come with the distinctive Edelbrock “E” stamped into the head.
Specifications
| Description_ABR | HeadBoltKit |
| Description_ASM | Chrysler:Big-Block B-Series:383 (6.3L)/400 (6.6L) |
| Description_ASM | Chrysler:Big-Block RB-Series:413 (6.8L)/426 (7.0L)/440 (7.2L) |
| Description_DEF | Engine Cylinder Head Bolt Set |
| Description_DES | Edelbrock E-Series Cylinder Head Bolt Kit #85912 for Chrysler big-block |
| Description_EXT | Edelbrock #85912 is a Head Bolt Kit for Big-Block Chrysler Engines with Edelbrock (#60825, 60829, #60929, #60185, #60189, #5090, #5093 E-Street and Performer RPM Cylinder Heads. This kit contains a complete set of Head Bolts & Washers. |
| Description_FAB | black-oxide finish with sealer |
| Description_FAB | Edelbrock “E” logo stamped on bolt head |
| Description_FAB | For big-block Chrysler w/E-Street/Performer RPM aluminum heads |
| Description_FAB | Heat treating with rolled threads for superior form and strength |
| Description_FAB | Yield tensile strength of 190,000 PSI |
| Description_INV | Big Block Chrysler Head Bolt Kit |
| Description_LAB | Edelbrock E-Series Cylinder Head Bolt Kit #85912 for Chrysler big-block |
| Description_MKT | Edelbrock E-Series Cylinder Head Bolt Kit #85912 is specially designed for use with Chrysler big-block engines equipped with E-Street/Performer RPM cylinder heads (#60825, 60829, #60929, #60185, #60189, #5090 and #5093). This kit contains all necessary bolts and washers to install one set of heads. E-Series bolts have a yield tensile strength of 190,000 PSI for strong and reliable loading with generous filleting throughout to eliminate stress risers. Bolt threads are rolled after heat-treating for superior form and strength, while a small hex head provides extra space for socket clearance in tight situations. E-Series Cylinder Head Bolts have a durable black oxide finish with sealer and come with the distinctive Edelbrock “E” stamped into the head. |
| Description_SHP | None |
| Description_TRA | Apply 30W oil to fine threads and under nuts and washers and torque nuts to 25 ft./lbs. A head bolt re-torque is recommended after initial start-up and cool-down (allow 2-3 hours for adequate cooling). |
| Description_TRA | Apply a continuous 1/8" bead of automotive RTV silicone sealer to end sealing surfaces on block and along bottom of intake ports on cylinder head. Also, apply a thin bead of sealer around intake ports on cylinder head and gasket. |
| Description_TRA | Be sure that the surface of the block and the surface of the head are thoroughly cleaned to remove any oily film before installation. |
| Description_TRA | Double nut both studs and screw them in until they reach the bottom. Install rocker shaft, factory concave washer and hard washer supplied with this kit. |
| Description_TRA | Installation is the same as for original equipment cylinder heads. Consult service manual for specific procedures, if necessary. |
| Description_TRA | Position intake gasket thin valley cover in place and tighten bolts down. Then, place intake manifold in position and torque manifold bolts to 25 ft. lbs. |
| Description_TRA | Rocker shaft hold-down studs, nuts and washers, for 2 places marked (S) in each head, are supplied in this kit. |
| Description_TRA | The Edelbrock #8591 is made specifically for big block Chrysler |
| Description_TRA | Torque to 70 ft./lbs. in three steps (40, 55, 70) following the factory tightening sequence. |
| Description_TRA | Use alcohol or lacquer thinner on a lint-free rag to clean. Apply oil or suitable thread lubricant to head bolt threads and the underside of bolt heads and washers. |
| height | 3.0 |
| length | 7.0 |
| LTL | N |
| weight | 4.7 |
| width | 5.0 |
