Edelbrock 85772 Edelbrock E-Series Cylinder Head Bolt Kit #85772 for 5.2L/5.9L Magnum
by Edelbrock
SKU ds_BDVJ_85772
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Original price
$234.39
-
Original price
$234.39
Original price
$234.39
$234.39
$234.39
-
$234.39
Current price
$234.39
Availability:
Only 4 left!
Description

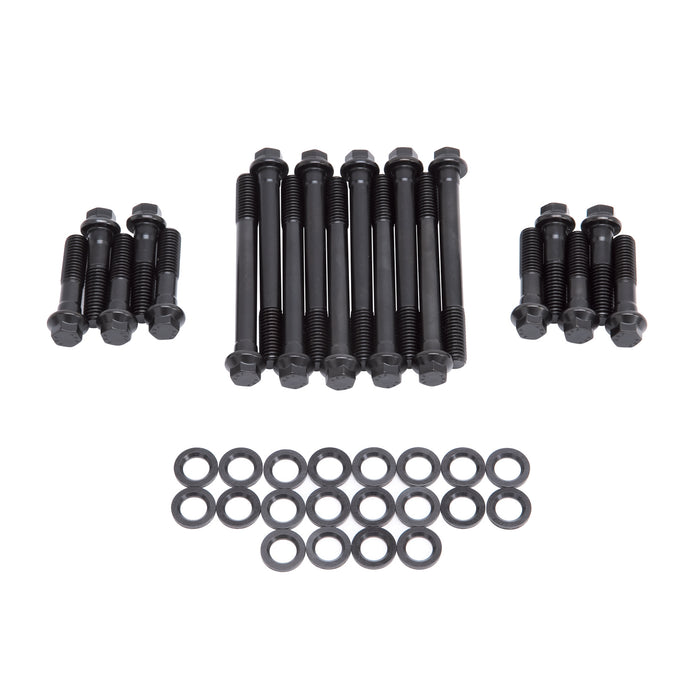

Edelbrock E-Series Cylinder Head Bolt Kit #85772 is a high-quality replacement bolt set for Chrysler 5.2L and 5.9L Magnum engines equipped with Performer RPM #61779 and #61775 aluminum heads. This kit contains all necessary parts to replace the factory head bolts. E-Series bolts have a yield tensile strength of 190,000 PSI for strong and reliable loading with generous filleting throughout to eliminate stress risers. Bolt threads are rolled after heat-treating for superior form and strength, while a small hex head provides extra space for socket clearance in tight situations. E-Series Cylinder Head Bolts have a durable black oxide finish with sealer and come with the distinctive Edelbrock “E” stamped into the head.
Specifications
| Description_ABR | HeadBoltKit |
| Description_ASM | Chrysler:Magnum:318 (5.2L)/360 (5.9L) |
| Description_DEF | Engine Cylinder Head Bolt Set |
| Description_DES | Edelbrock E-Series Cylinder Head Bolt Kit #85772 for 5.2L/5.9L Magnum |
| Description_EXT | Edelbrock #85772 is a Head Bolt Kit for 1992+ Small-Block Chrysler 5.2L/5.9L "Magnum" Engines with Edelbrock 61767, 61769, 61779, & 61775 Performer RPM Cylinder Heads. Kit contains a complete set of Head Bolts & Washers for a pair of heads. |
| Description_FAB | black-oxide finish with sealer |
| Description_FAB | Edelbrock “E” logo stamped on bolt head |
| Description_FAB | For Chrysler 5.2L and 5.9L Magnum with aluminum heads |
| Description_FAB | Heat treating with rolled threads for superior form and strength |
| Description_FAB | Yield tensile strength of 190,000 PSI |
| Description_INV | Edelbrock Cylinder Head Bolt Kit #85772 |
| Description_LAB | Edelbrock E-Series Cylinder Head Bolt Kit #85772 for 5.2L/5.9L Magnum |
| Description_MKT | Edelbrock E-Series Cylinder Head Bolt Kit #85772 is a high-quality replacement bolt set for Chrysler 5.2L and 5.9L Magnum engines equipped with Performer RPM #61779 and #61775 aluminum heads. This kit contains all necessary parts to replace the factory head bolts. E-Series bolts have a yield tensile strength of 190,000 PSI for strong and reliable loading with generous filleting throughout to eliminate stress risers. Bolt threads are rolled after heat-treating for superior form and strength, while a small hex head provides extra space for socket clearance in tight situations. E-Series Cylinder Head Bolts have a durable black oxide finish with sealer and come with the distinctive Edelbrock “E” stamped into the head. |
| Description_SHP | None |
| Description_TRA | Apply oil suitable thread lubricant to head bolt threads and the underside of bolt heads and washers. |
| Description_TRA | Be sure that the surface of the block and the surface of the head is thoroughly cleaned to remove any oily film before installation. Use alcohol or lacquer thinner on a lint-free rag to clean. |
| Description_TRA | Installation is the same as for original equipment cylinder heads. Consult a service manual for specific procedures, if necessary. |
| Description_TRA | The Edelbrock #8577 is made specifically for Chrysler Magnum V8 |
| Description_TRA | Torque bolts to 95 ft/lbs in three steps (45-65-95), following the factory tightening sequence. A re torque is recommended after initial start-up and cool-down (allow 2-3 hours for adequate cooling). |
| height | 3.0 |
| length | 7.0 |
| LTL | N |
| weight | 4.4 |
| width | 5.0 |
