Edelbrock 8561 { Sellable : Yes }
by Edelbrock
SKU ds_BDVJ_8561
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$236.32
-
Original price
$236.32
Original price
$236.32
$236.32
$236.32
-
$236.32
Current price
$236.32
Availability:
Out of stock
Description

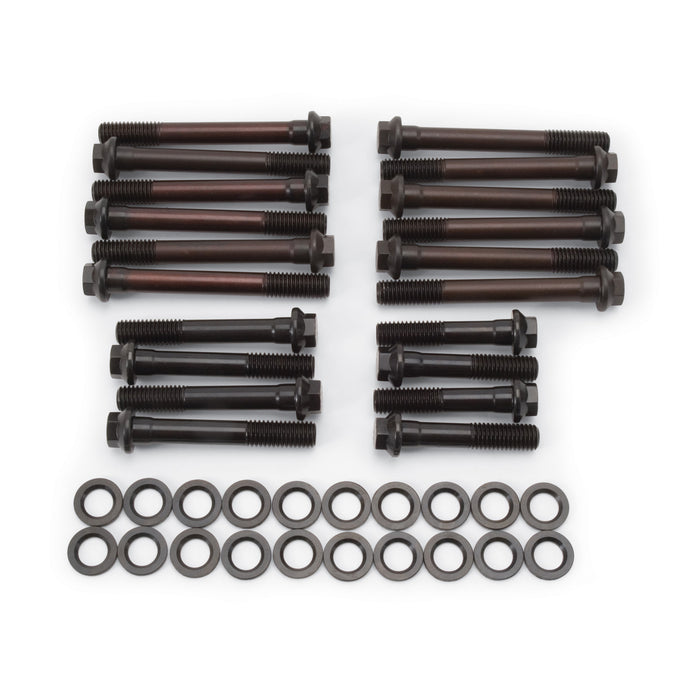

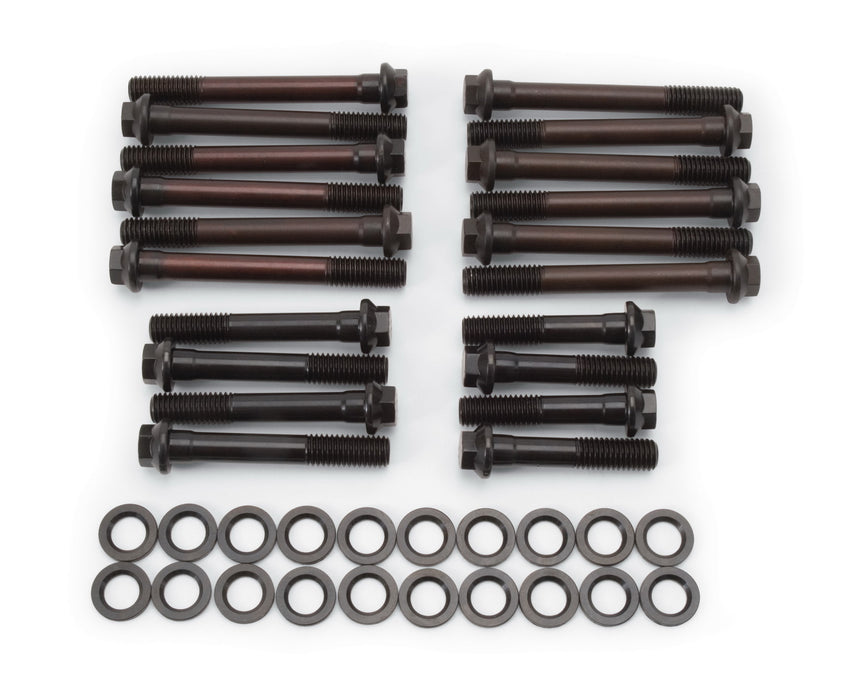

The Edelbrock #8561 bolt kit contain a complete set of the highest quality head bolts and hardened washers available. Cold-formed to ensure molecular integrity and heat treated prior to thread rolling and machining. Reduced diameter bolt heads eliminate the need for valve train removal to facilitate cylinder head re-torqueing. Hardened and parallel-ground washers are included. Rated at 170,000 p.s.i.
Specifications
| Description_ABR | HeadBlotKit |
| Description_ASM | Pontiac:-:326 (5.3L)-455 (7.5L) |
| Description_DEF | Engine Cylinder Head Bolt Set |
| Description_DES | HEAD BOLT KIT |
| Description_EXT | Edelbrock #8561 is a Head Bolt Kit for 1961-1979 Pontiac 326-455 Engines with Edelbrock 61569, 61589, 61575, 61579, 61595, and 61599 Performer D-Port Pontiac Cylinder Heads. Complete set of Head Bolts & Washers for a pair of heads. |
| Description_EXT | Edelbrock #8561 is a Head Bolt Kit for 1961-1979 Pontiac 326-455 Engines with Edelbrock 61569; 61589; 61575; 61579; 61595; and 61599 Performer D-Port Pontiac Cylinder Heads. Complete set of Head Bolts Washers for a pair of heads. |
| Description_FAB | Cold-Formed; Heat Treated |
| Description_FAB | Ensures Molecular Integrity |
| Description_FAB | Hardened/Parallel-Ground Washers Included |
| Description_FAB | Highest Quality Head Bolts |
| Description_FAB | Manufactured By ARP |
| Description_FAB | Rated At 170000 psi |
| Description_FAB | Reduced Diameter Bolt Heads |
| Description_INV | Pontiac D Port Head Bolt Kit |
| Description_KEY | Edelbrock; Pontiac; 455;400; 389; 350; V8 Head Bolt; Kit |
| Description_LAB | Pontiac D Port Head Bolt Kit |
| Description_MKT | The Edelbrock #8561 bolt kit contain a complete set of the highest quality head bolts and hardened washers available. Cold-formed to ensure molecular integrity and heat treated prior to thread rolling and machining. Reduced diameter bolt heads eliminate the need for valve train removal to facilitate cylinder head re-torqueing. Hardened and parallel-ground washers are included. Rated at 170,000 p.s.i. |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 0in.} |
| Description_TRA | Be sure that the surface of the block and the surface of the head are thoroughly cleaned to remove any oily film before installation. |
| Description_TRA | For 389-455 engines, use Edelbrock #7381, Fel-Pro #1016 or equivalent head gaskets. NOTE: Edelbrock Cylinder Head Gasket Set #7382 may also be used. |
| Description_TRA | Installation is the same as for original equipment cylinder heads. Consult service manual for specific procedures, if necessary. |
| Description_TRA | The Edelbrock #8561 is made specifically for Pontiac V8 |
| Description_TRA | The Edelbrock #8561 is made specifically for Pontiac V8 •Installation is the same as for original equipment cylinder heads. Consult service manual for specific procedures; if necessary. •For 389-455 engines; use Edelbrock #7381; Fel-Pro #1016 or equivalent head gaskets. NOTE: Edelbrock Cylinder Head Gasket Set #7382 may also be used. •This gasket set includes all necessary gaskets for cylinder head installation; including cylinder head; intake; exhaust; water neck and valve cover gaskets. •Be sure that the surface of the block and the surface of the head are thoroughly cleaned to remove any oily film before installation.• Use alcohol or lacquer thinner on a lint-free rag to clean. Coat threads; washers; and underside of bolt heads with motor oil for accurate torque readings. •Torque upper row of bolts to 105 ft./lbs.; torque lower row of bolts to 95 ft./lbs. in three even increments. Start in center and work out towards ends. A re-torque is recommended after initial start-up and cool-down (allow 2-3 hours for adequate cooling). |
| Description_TRA | This gasket set includes all necessary gaskets for cylinder head installation, including cylinder head, intake, exhaust, water neck and valve cover gaskets. |
| Description_TRA | Torque upper row of bolts to 105 ft. /lbs., torque lower row of bolts to 95 ft./lbs. in three even increments. Start in center and work out towards ends. A re-torque is recommended after initial start-up and cool-down (allow 2-3 hours for adequate cooling). |
| Description_TRA | Use alcohol or lacquer thinner on a lint-free rag to clean. Coat threads, washers, and underside of bolt heads with motor oil for accurate torque readings. |
| finish | Black Oxide |
| Grade Type | Performance |
| Head Drive Type | Hex |
| height | 2.0 |
| length | (4) 2.25 in, (4) 3.00 in, (4) 3.75 in, (2) 4.00 in, (6) 4.25 |
| length | 8.5 |
| Material | Chromoly |
| Minimum Length | 2.25 |
| Quantity | Kit |
| RGL | WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Thread Diameter | 0.50 |
| Thread Type | Coarse |
| Washers Included | Yes |
| weight | 5.05 |
| width | 4.0 |
