Edelbrock 8560 { Sellable : Yes }
by Edelbrock
SKU ds_BDVJ_8560
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$322.82
-
Original price
$322.82
Original price
$322.82
$322.82
$322.82
-
$322.82
Current price
$322.82
Availability:
Out of stock
Description

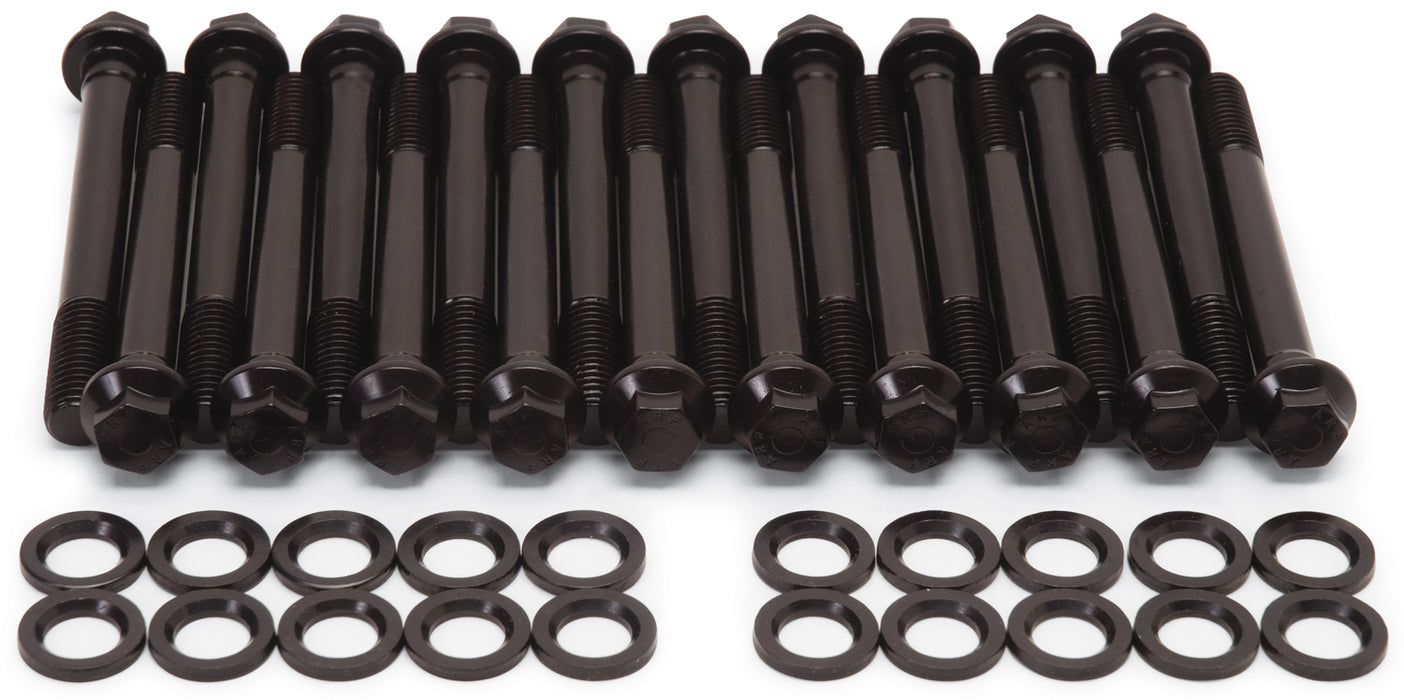

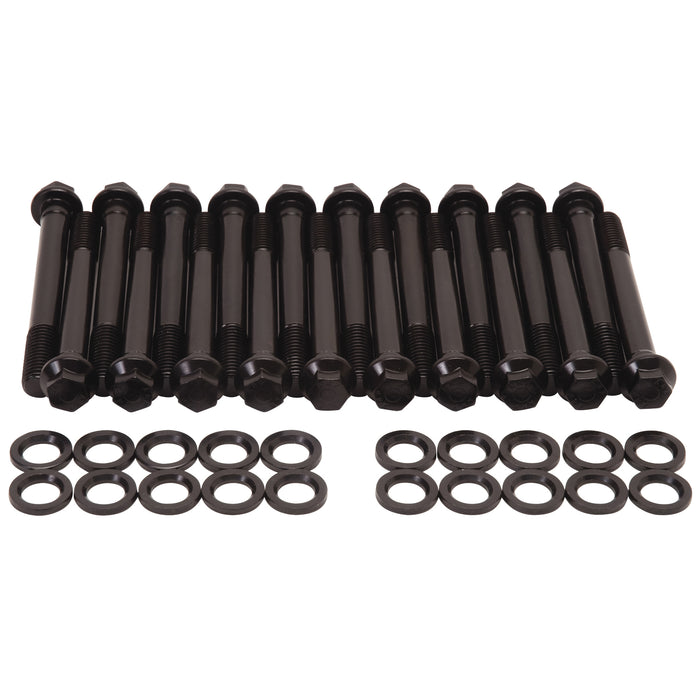

The Edelbrock #8560 bolt kit contain a complete set of the highest quality head bolts and hardened washers available. Cold-formed to ensure molecular integrity and heat treated prior to thread rolling and machining. Reduced diameter bolt heads eliminate the need for valve train removal to facilitate cylinder head re-torqueing. Hardened and parallel-ground washers are included. Rated at 170,000 p.s.i.
Specifications
| Description_ABR | HeadBlotKit |
| Description_ASM | Ford:Cleveland:351C (5.8L) |
| Description_DEF | Engine Cylinder Head Bolt Set |
| Description_DES | HEAD BOLT KIT |
| Description_EXT | Edelbrock #8560 is a Head Bolt Kit for 1970-74 S/B Ford 351 Cleveland Engines with Edelbrock #61629, 61625, and 61609 Performer RPM Cylinder Heads. Complete set of Head Bolts & Washers for a pair of heads. |
| Description_EXT | Edelbrock #8560 is a Head Bolt Kit for 1970-74 S/B Ford 351 Cleveland Engines with Edelbrock #61629; 61625; and 61609 Performer RPM Cylinder Heads. Complete set of Head Bolts Washers for a pair of heads. |
| Description_FAB | Cold-Formed; Heat Treated |
| Description_FAB | Ensures Molecular Integrity |
| Description_FAB | Hardened/Parallel-Ground Washers Included |
| Description_FAB | Highest Quality Head Bolts |
| Description_FAB | Manufactured By ARP |
| Description_FAB | Rated At 170000 psi |
| Description_FAB | Reduced Diameter Bolt Heads |
| Description_INV | 351C Ford Head bolt Kit |
| Description_INV | 351C Ford Head bolt Kit? |
| Description_KEY | Edelbrock; 351C; Ford; V8 Head Bolt; Kit |
| Description_LAB | 351C Ford Head bolt Kit |
| Description_MKT | The Edelbrock #8560 bolt kit contain a complete set of the highest quality head bolts and hardened washers available. Cold-formed to ensure molecular integrity and heat treated prior to thread rolling and machining. Reduced diameter bolt heads eliminate the need for valve train removal to facilitate cylinder head re-torqueing. Hardened and parallel-ground washers are included. Rated at 170,000 p.s.i. |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 0in.} |
| Description_TRA | Be sure that the surface of the block and the surface of the head are thoroughly cleaned to remove any oily film before installation. |
| Description_TRA | Installation is the same as for original equipment cylinder heads. Consult service manual for specific procedures, if necessary. |
| Description_TRA | The Edelbrock #8560 is made specifically for Ford Cleveland V8 |
| Description_TRA | The Edelbrock #8560 is made specifically for Ford Cleveland V8 •Installation is the same as for original equipment cylinder heads. Consult service manual for specific procedures; if necessary.• Be sure that the surface of the block and the surface of the head are thoroughly cleaned to remove any oily film before installation.•Use alcohol or lacquer thinner on a lint-free rag to clean. Apply oil or suitable thread lubricant to head bolt threads and the underside of bolt heads and washers.• Torque 1/2in. bolts to 100-110 ft./lbs (1/2in. bolts) in four steps (30; 60; 90; 100-110) following the factory tightening sequence. |
| Description_TRA | Torque 1/2" bolts to 100-110 ft./lbs (1/2" bolts) in four steps (30, 60, 90, 100-110) following the factory tightening sequence. |
| Description_TRA | Use alcohol or lacquer thinner on a lint-free rag to clean. Apply oil or suitable thread lubricant to head bolt threads and the underside of bolt heads and washers. |
| Engine Make/Size | Ford Big Block 351 Cleveland |
| height | 9.25 |
| length | 17.75 |
| WARNING CA Proposition 65 | Yes |
| WARNING CA Proposition 65 Message | WARNING: This product can expose you to Chromium; which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information; visit www.P65warnings.ca.gov. |
| weight | 110.55 |
| width | 11.75 |
