Edelbrock 8557 { Sellable : Yes }
by Edelbrock
SKU ds_BDVJ_8557
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$370.64
-
Original price
$370.64
Original price
$370.64
$370.64
$370.64
-
$370.64
Current price
$370.64
Availability:
Out of stock
Description

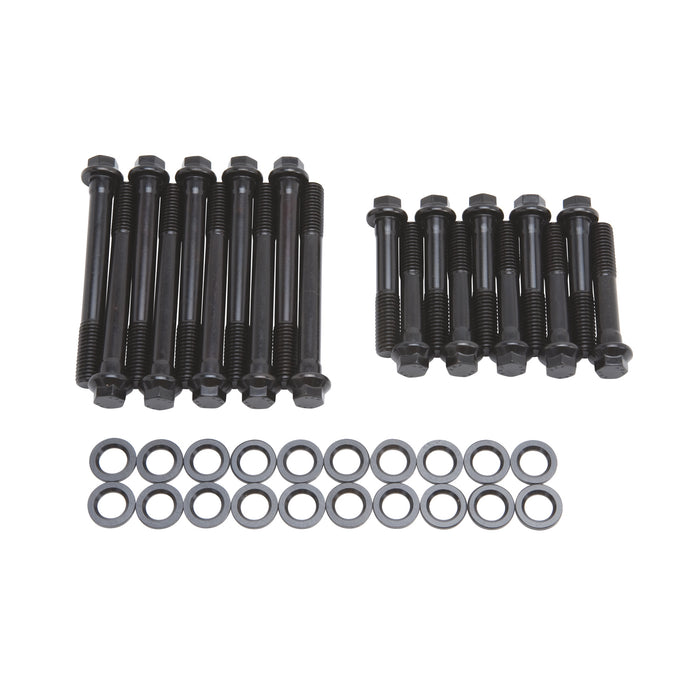

The Edelbrock #8557 bolt kit contain a complete set of the highest quality head bolts and hardened washers available. Cold-formed to ensure molecular integrity and heat treated prior to thread rolling and machining. Reduced diameter bolt heads eliminate the need for valve train removal to facilitate cylinder head re-torqueing. Hardened and parallel-ground washers are included. Rated at 170,000 p.s.i.
Specifications
| Description_ABR | HeadBlotKit |
| Description_ASM | Ford:FE:390 (6.4L)-428 (7.0L) |
| Description_DEF | Engine Cylinder Head Bolt Set |
| Description_DES | HEAD BOLT KIT |
| Description_EXT | Edelbrock #8557 is a Head Bolt Kit for 1958-76 Ford FE 390-428 with Edelbrock 60059, 60089, 60065, 60069, 60075, & 60079 Performer RPM Cylinder Heads. Complete set of Head Bolts & Washers for a pair of heads. |
| Description_EXT | Edelbrock #8557 is a Head Bolt Kit for 1958-76 Ford FE 390-428 with Edelbrock 60059; 60089; 60065; 60069; 60075; 60079 Performer RPM Cylinder Heads. Complete set of Head Bolts Washers for a pair of heads. |
| Description_FAB | Cold-Formed; Heat Treated |
| Description_FAB | Ensures Molecular Integrity |
| Description_FAB | Hardened/Parallel-Ground Washers Included |
| Description_FAB | Highest Quality Head Bolts |
| Description_FAB | Manufactured By ARP |
| Description_FAB | Rated At 170000 psi |
| Description_FAB | Reduced Diameter Bolt Heads |
| Description_INV | Ford FE Head Bolt Kit |
| Description_KEY | Edelbrock; Ford FE; 390; 406;410; 427; 428 V8 Head Bolt; Kit |
| Description_LAB | Ford FE Head Bolt Kit |
| Description_MKT | The Edelbrock #8557 bolt kit contain a complete set of the highest quality head bolts and hardened washers available. Cold-formed to ensure molecular integrity and heat treated prior to thread rolling and machining. Reduced diameter bolt heads eliminate the need for valve train removal to facilitate cylinder head re-torqueing. Hardened and parallel-ground washers are included. Rated at 170,000 p.s.i. |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 0in.} |
| Description_TRA | Be sure that the surface of the block and the surface of the head are thoroughly cleaned to remove any oily film before installation. |
| Description_TRA | Installation is the same as for original equipment cylinder heads. Consult service manual for specific procedures, if necessary. |
| Description_TRA | The Edelbrock #8557 is made specifically for |
| Description_TRA | The Edelbrock #8557 is made specifically for •Installation is the same as for original equipment cylinder heads. Consult service manual for specific procedures; if necessary.• Be sure that the surface of the block and the surface of the head are thoroughly cleaned to remove any oily film before installation.•Use alcohol or lacquer thinner on a lint-free rag to clean. Apply oil or suitable thread lubricant to head bolt threads and the underside of bolt heads and washers to prevent galling and improper torque readings. •Use thread sealant on any bolts that go into coolant passages. Torque top row of bolts to 110 ft./lbs. and bottom row of bolts to 100 ft./lbs. in three or four steps; following the factory tightening sequence. A re-torque is recommended after the initial star-up and cool-down (allow 2-3 hours for adequate cooling) |
| Description_TRA | Use alcohol or lacquer thinner on a lint-free rag to clean. Apply oil or suitable thread lubricant to head bolt threads and the underside of bolt heads and washers to prevent galling and improper torque readings. |
| Description_TRA | Use thread sealant on any bolts that go into coolant passages. Torque top row of bolts to 110 ft./lbs. and bottom row of bolts to 100 ft./lbs. in three or four steps, following the factory tightening sequence. A re-torque is recommended after the initial star-up and cool-down (allow 2-3 hours for adequate cooling) |
| finish | Black Oxide |
| Grade Type | Performance |
| Head Drive Type | Hex |
| height | 2.5 |
| length | (10) 4.450 in, (10) 2.875 |
| length | 9.0 |
| LTL | N |
| Material | Chromoly |
| Quantity | Kit |
| RGL | WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Thread Diameter | 0.50 |
| Thread Type | Coarse |
| Washers Included | Yes |
| weight | 4.7 |
| width | 4.5 |
