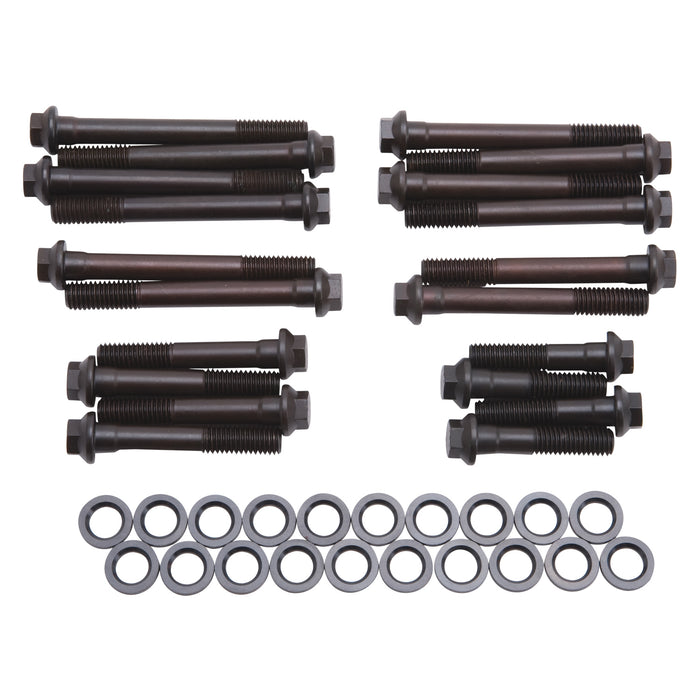

Edelbrock 85562 Edelbrock E-Series Cylinder Head Bolt Kit #85562 for Pontiac w/Edelbrock heads
by Edelbrock
SKU ds_BDVJ_85562
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$194.33
-
Original price
$194.33
Original price
$194.33
$194.33
$194.33
-
$194.33
Current price
$194.33
Availability:
Out of stock
Description
Edelbrock E-Series Cylinder Head Bolt Kit #85562 is designed for use on Pontiac engines with Edelbrock Performer and Performer RPM Cylinder Heads #6056-6058. Note that this head bolt kit is required to install these Edelbrock Pontiac heads. The 6056-6058 cylinder heads require a head bolt kit that is similar to that needed for a Ram-Air IV head, which is different from a standard D-port head. Several of the bolt boss heights have been increased to enhance the potential of the heads. E-Series bolts have a yield tensile strength of 190,000 PSI for strong and reliable loading. Bolt threads are rolled after heat-treating for superior form and strength, while a small hex head provides extra space for socket clearance in tight situations. E-Series Cylinder Head Bolts have a durable black oxide finish with sealer and come with the distinctive Edelbrock “E” stamped into the head.
Specifications
| Description_ABR | HeadBoltKit |
| Description_ASM | Pontiac:-:326 (5.3L)-455 (7.5L) |
| Description_DEF | Engine Cylinder Head Bolt Set |
| Description_DES | Edelbrock E-Series Cylinder Head Bolt Kit #85562 for Pontiac w/Edelbrock heads |
| Description_EXT | Edelbrock #85562 is a Head Bolt Kit for 1961-79 Pontiac 326-455 Engines with Edelbrock #6056-6058 Cylinder Heads. Not for Stock Heads. |
| Description_FAB | black-oxide finish with sealer |
| Description_FAB | Edelbrock “E” logo stamped on bolt head |
| Description_FAB | For use with Performer/Performer RPM heads for Pontiac |
| Description_FAB | Heat treating with rolled threads for superior form and strength |
| Description_FAB | Yield tensile strength of 190,000 PSI |
| Description_INV | E-Series Pontiac Head Bolt Kit #85562 |
| Description_LAB | Edelbrock E-Series Cylinder Head Bolt Kit #85562 for Pontiac w/Edelbrock heads |
| Description_MKT | Edelbrock E-Series Cylinder Head Bolt Kit #85562 is designed for use on Pontiac engines with Edelbrock Performer and Performer RPM Cylinder Heads #6056-6058. Note that this head bolt kit is required to install these Edelbrock Pontiac heads. The 6056-6058 cylinder heads require a head bolt kit that is similar to that needed for a Ram-Air IV head, which is different from a standard D-port head. Several of the bolt boss heights have been increased to enhance the potential of the heads. E-Series bolts have a yield tensile strength of 190,000 PSI for strong and reliable loading. Bolt threads are rolled after heat-treating for superior form and strength, while a small hex head provides extra space for socket clearance in tight situations. E-Series Cylinder Head Bolts have a durable black oxide finish with sealer and come with the distinctive Edelbrock “E” stamped into the head. |
| Description_SHP | None |
| Description_TRA | Be sure that the surface of the block and the surface of the head are thoroughly cleaned to remove any oily film before installation. |
| Description_TRA | For 389-455 engines, use Edelbrock #7381, Fel-Pro #1016 or equivalent head gaskets. NOTE: Edelbrock Cylinder Head Gasket Set #7382 may also be used. |
| Description_TRA | Installation is the same as for original equipment cylinder heads. Consult service manual for specific procedures, if necessary. |
| Description_TRA | The Edelbrock #8556 is made specifically for Pontiac V8 |
| Description_TRA | This gasket set includes all necessary gaskets for cylinder head installation, including cylinder head, intake, exhaust, water neck and valve cover gaskets. |
| Description_TRA | Torque upper row of bolts to 105 ft. /lbs., torque lower row of bolts to 95 ft./lbs. in three even increments. Start in center and work out towards ends. A re-torque is recommended after initial start-up and cool-down (allow 2-3 hours for adequate cooling). |
| Description_TRA | Use alcohol or lacquer thinner on a lint-free rag to clean. Coat threads, washers, and underside of bolt heads with motor oil for accurate torque readings. |
| height | 3.0 |
| length | 7.0 |
| LTL | N |
| weight | 4.6 |
| width | 5.0 |
