Edelbrock 8554 { Sellable : Yes }
by Edelbrock
SKU ds_BDVJ_8554
Proudly Canadian
Albertan Owned
Supporting Canadian truckers since 2018
Secure Payments
Financing Available
SSL encrypted checkout with financing options
Trusted Brands
Top-Quality Suppliers
Authorized dealer for Fox, Bilstein, BFGoodrich & 50+ brands
Sold out
Original price
$540.93
-
Original price
$540.93
Original price
$540.93
$540.93
$540.93
-
$540.93
Current price
$540.93
Availability:
Out of stock
Description

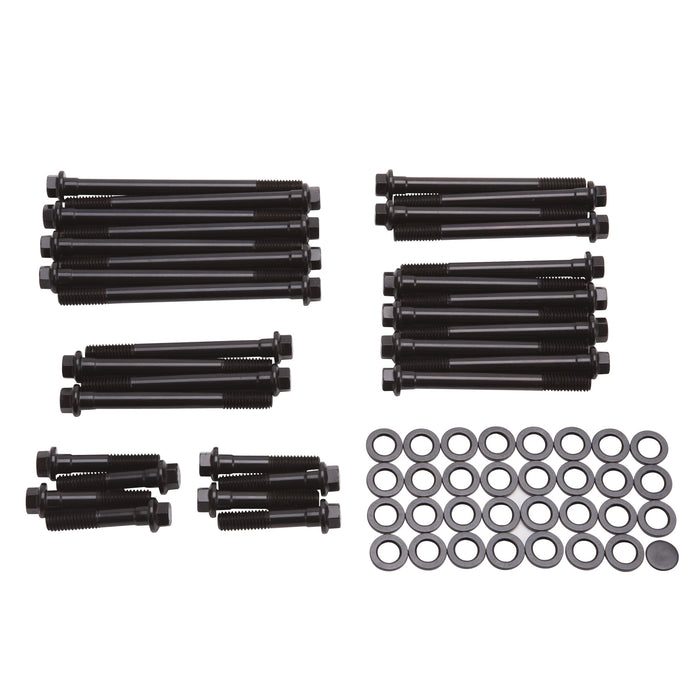

The Edelbrock #8554 bolt kit contain a complete set of the highest quality head bolts and hardened washers available. Cold-formed to ensure molecular integrity and heat treated prior to thread rolling and machining. Reduced diameter bolt heads eliminate the need for valve train removal to facilitate cylinder head re-torqueing. Hardened and parallel-ground washers are included. Rated at 170,000 p.s.i.
Specifications
| Description_ABR | HeadBlotKit |
| Description_ASM | Chevrolet:Big-Block Mark IV:396 (6.5L)-502 (8.2L) |
| Description_DEF | Engine Cylinder Head Bolt Set |
| Description_DES | HARDWARE KIT |
| Description_EXT | Edelbrock #8554 head bolt kit for 1965+ Big-Block Chevy Engines with Edelbrock Victor Cylinder Heads. This head bolt kit can be used on all Mark IV, Gen V, and Bow Tie Blocks. Complete set of Head Bolts & Washers. Not for Stock Heads. |
| Description_EXT | Edelbrock #8554 head bolt kit for 1965+Big-Block Chevy Engines with Edelbrock Victor Cylinder Heads. This head bolt kit can be used on all Mark IV; Gen V; and Bow Tie Blocks. Complete set of Head Bolts Washers. Not for Stock Heads. |
| Description_FAB | Cold-Formed; Heat Treated |
| Description_FAB | Ensures Molecular Integrity |
| Description_FAB | Hardened/Parallel-Ground Washers Included |
| Description_FAB | Highest Quality Head Bolts |
| Description_FAB | Manufactured By ARP |
| Description_FAB | Rated At 170000 psi |
| Description_FAB | Reduced Diameter Bolt Heads |
| Description_INV | Victor BBC Head Bolt Kit |
| Description_KEY | Edelbrock; Victor; Big Block Chevy; V8 Head Bolt; Kit |
| Description_LAB | Victor BBC Head Bolt Kit |
| Description_MKT | The Edelbrock #8554 bolt kit contain a complete set of the highest quality head bolts and hardened washers available. Cold-formed to ensure molecular integrity and heat treated prior to thread rolling and machining. Reduced diameter bolt heads eliminate the need for valve train removal to facilitate cylinder head re-torqueing. Hardened and parallel-ground washers are included. Rated at 170,000 p.s.i. |
| Description_SHO | { Sellable : Yes } |
| Description_SHP | { eo : 0in.} |
| Description_TRA | Be sure that the surface of the block and the surface of the head are thoroughly cleaned to remove any oily film before installation. Use alcohol or lacquer thinner on a lint-free rag to clean. Apply oil or suitable thread lubricant to head bolt threads and the underside of bolt heads and washers to prevent galling and improper torque readings. Apply liquid Teflon PST or other suitable thread sealant on any bolt threads that go into coolant passages. Torque bolts to 70 ft./lbs., following the factory tightening sequence (See Figure 1). A re-torque is recommended after the initial star-up and cool-down (allow 2-3 hours for adequate cooling). |
| Description_TRA | For 454 CID and small Mark IV engines, use Fel-Pro head gasket #1017-1, or equivalent. For 502 CID Mark V and Gen VI engines, use Fel-Pro head gasket #1047, or equivalent. |
| Description_TRA | Installation is the same as for original equipment cylinder heads. Consult service manual for specific procedures, if necessary. |
| Description_TRA | The Edelbrock #8554 is made specifically for big block Chevy with Victor level cylinder heads |
| Description_TRA | The Edelbrock #8554 is made specifically for big block Chevy with Victor level cylinder heads •Installation is the same as for original equipment cylinder heads. Consult service manual for specific procedures; if necessary. •For 454 CID and small Mark IV engines; use Fel-Pro head gasket #1017-1; or equivalent. For 502 CID Mark V and Gen VI engines; use Fel-Pro head gasket #1047; or equivalent.• Be sure that the surface of the block and the surface of the head are thoroughly cleaned to remove any oily film before installation. Use alcohol or lacquer thinner on a lint-free rag to clean. Apply oil or suitable thread lubricant to head bolt threads and the underside of bolt heads and washers to prevent galling and improper torque readings. Apply liquid Teflon PST or other suitable thread sealant on any bolt threads that go into coolant passages. Torque bolts to 70 ft./lbs.; following the factory tightening sequence (See Figure 1). A re-torque is recommended after the initial star-up and cool-down (allow 2-3 hours for adequate cooling). |
| finish | Black Oxide |
| Grade Type | Performance |
| Head Drive Type | Hex |
| height | 2.0 |
| length | (8) 2.18 in, (4) 4.50 in, (12) 4.18, (8) 5.50 |
| length | 11.5 |
| LTL | N |
| Material | Chromoly |
| Minimum Length | 2.18 |
| Quantity | Kit |
| RGL | WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov. |
| Thread Diameter | 0.4375 |
| Thread Type | Coarse |
| Washers Included | Yes |
| weight | 6.24 |
| width | 3.5 |
